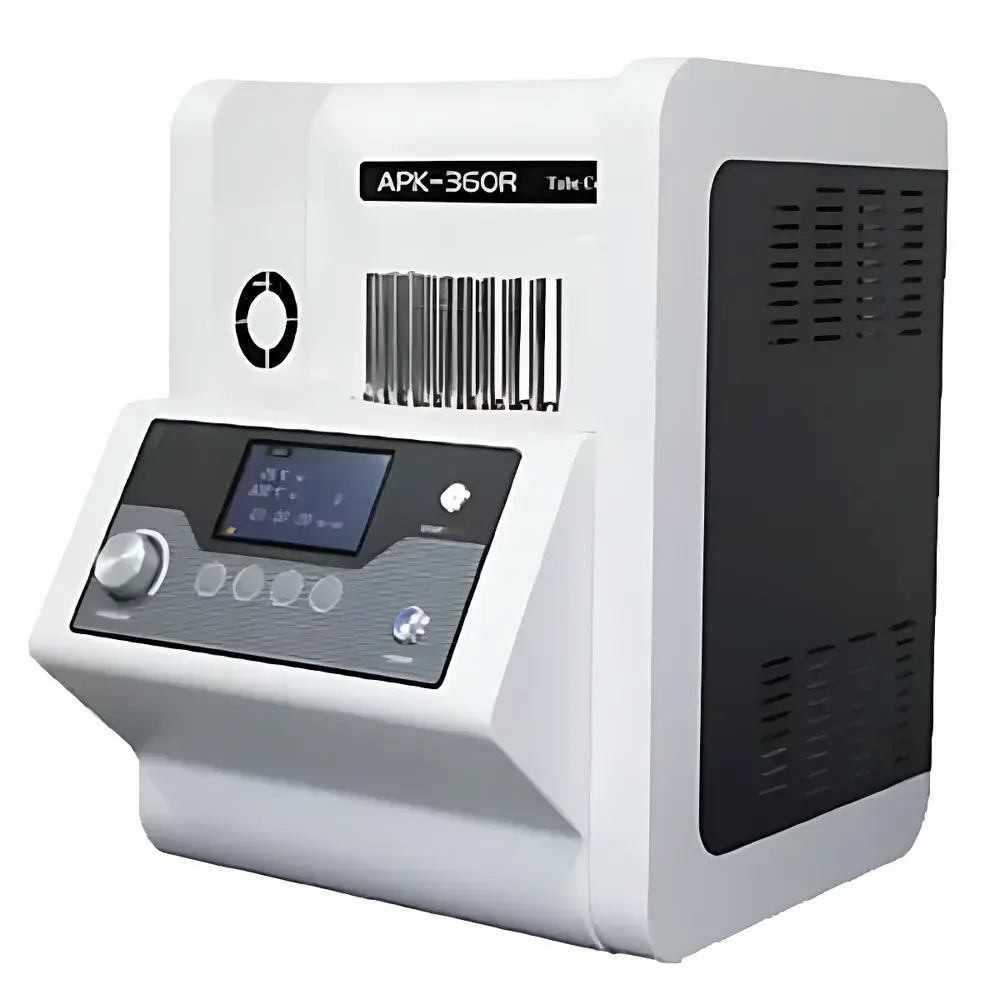

HUANKONG APK360R Adsorption Tube Aging and Activation Instrument
| Brand | HUANKONG |
|---|---|
| Origin | Shandong, China |
| Manufacturer Type | Direct Manufacturer |
| Region Category | Domestic (China) |
| Model | APK360R |
| Temperature Control Range | Ambient to 400 °C |
| Gas Flow Rate | 200 mL/min |
| Tube Capacity | 36 positions |
Overview
The HUANKONG APK360R Adsorption Tube Aging and Activation Instrument is a dedicated thermal conditioning system engineered for the rigorous preparation of sorbent-packed adsorption tubes—critical consumables used in thermal desorption–gas chromatography (TD–GC) workflows. Unlike generic ovens or manual heating setups, the APK360R applies precisely controlled convective heating and inert gas purging to thermally desorb residual volatiles, moisture, and carryover contaminants from sorbent beds (e.g., Tenax TA, Carbopack B/C, Carboxen, or multi-bed configurations). Its operation is grounded in validated thermal aging principles: sustained elevated temperature under continuous carrier gas flow (typically nitrogen or helium) drives off physisorbed and weakly chemisorbed species without degrading sorbent integrity. This process ensures baseline stability, minimizes ghost peaks, and maintains trace-level reproducibility—essential for EPA TO-17, ISO 16017-1, and ASTM D6196 compliant volatile organic compound (VOC) analysis in air, soil, and indoor environment monitoring.
Key Features
- 36-position rotary sample carousel with indexed tube slots—enabling uniform thermal exposure and mechanical protection of tube ends and frits during insertion/removal
- Programmable 10-segment temperature ramping profile, supporting stepwise conditioning (e.g., low-T moisture removal → mid-T hydrocarbon purge → high-T carbonaceous residue burn-off)
- Integrated PID-controlled heating system with ambient-to-400 °C operating range and ±1 °C thermal stability over full load
- Fixed-flow inert gas delivery at 200 mL/min per tube position, calibrated via integrated mass flow controller and compatible with standard 1/8″ Swagelok® tubing interfaces
- Automated cycle execution: one-button start initiates heating, dwell, purge, and active cooling phases without operator intervention
- Forced-air rapid cooldown system reduces tube surface temperature from 400 °C to <50 °C within ≤10 minutes—minimizing turnaround time between batches
- Front-panel touchscreen interface with password-protected method storage (up to 20 user-defined protocols) and real-time status logging
Sample Compatibility & Compliance
The APK360R accommodates standard 1/4″ OD stainless steel or quartz adsorption tubes (6 in. / 150 mm length), including common formats such as Markes UNITY™, Gerstel TDS, and custom-packed tubes with stainless frits or polyimide-coated walls. All thermal profiles are designed to remain within sorbent manufacturer-recommended activation limits (e.g., Tenax TA: ≤350 °C; Carbopack C: ≤300 °C), preventing irreversible degradation. The instrument supports GLP-compliant operation through audit-trail-capable event logging (start time, max temperature, dwell duration, gas flow verification), and its fixed gas flow architecture aligns with EPA Method TO-17 Section 8.2.3 requirements for tube bake-out validation. No modifications to tube geometry or packing density are required prior to use.
Software & Data Management
While the APK360R operates autonomously via embedded firmware, optional USB data export enables transfer of cycle logs (timestamp, setpoint, actual temperature history, gas flow confirmation) to external LIMS or QC databases. Each run generates a CSV-formatted record containing method ID, operator code, tube batch ID (manually entered), and pass/fail flag based on thermal deviation thresholds (>±3 °C from setpoint for >60 s triggers alert). The system does not require network connectivity or proprietary software installation, reducing cybersecurity exposure in regulated laboratories. All calibration and maintenance records—including heater element resistance checks and flow sensor zero-point verification—can be archived alongside analytical data for FDA 21 CFR Part 11 readiness when paired with appropriate electronic signature controls.
Applications
- Pre-use activation of new adsorption tubes prior to first thermal desorption analysis
- Post-analysis regeneration to eliminate carryover between high-concentration and low-concentration samples
- Periodic maintenance cycling to restore sorbent capacity in routine environmental air monitoring programs
- Method development support for optimizing tube conditioning parameters across multi-sorbent configurations
- Quality assurance in accredited testing labs performing ISO/IEC 17025 audits—documented tube preparation is a mandatory control point
FAQ
Can the APK360R handle tubes packed with mixed sorbents (e.g., Carbopack X + Carbosieve SIII)?
Yes—provided the lowest thermal limit among the sorbents defines the maximum setpoint. The instrument’s programmable ramping allows staged heating to avoid exceeding individual sorbent tolerances.
Is external gas supply pressure regulation required?
No—the built-in mass flow controller accepts inlet pressures from 30–100 psi and delivers stable 200 mL/min regardless of minor upstream fluctuations.
Does the rotary carousel accommodate different tube lengths?
It is optimized for 6-inch (150 mm) tubes. Shorter or longer tubes require custom spacers to ensure consistent positioning relative to the heating zone.
How often should the internal flow sensor be recalibrated?
Annual verification is recommended using a NIST-traceable bubble flowmeter; factory calibration certificate is supplied with each unit.
Can the APK360R be integrated into an automated TD–GC sequence?
Not directly—it operates as a standalone benchtop unit. However, its deterministic cycle time enables synchronization with autosampler schedules via lab workflow planning.
