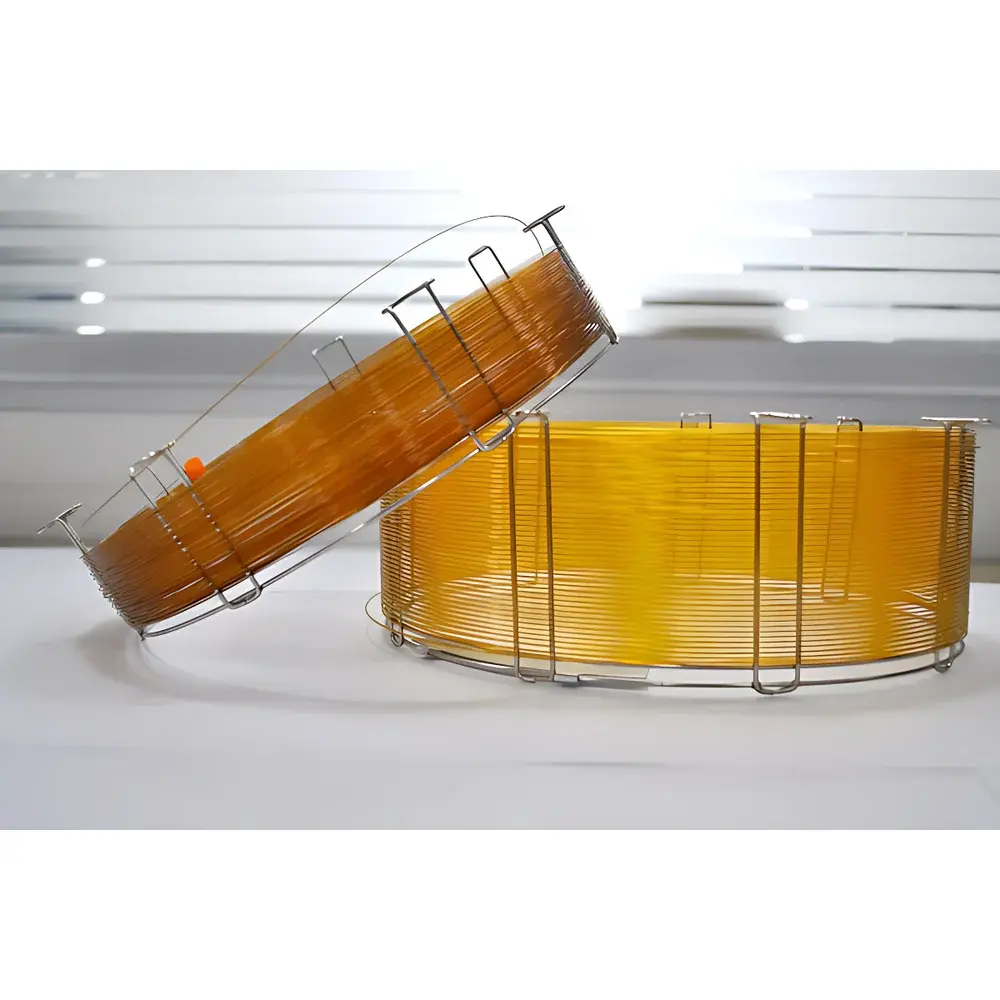

HUIFEN Capillary Column

Overview

HUIFEN capillary columns are precision-engineered fused-silica chromatographic columns designed for high-resolution gas chromatography (GC) and gas chromatography–mass spectrometry (GC–MS) applications. Based on the fundamental principle of partition chromatography, these columns separate volatile and semi-volatile compounds by differential distribution between a stationary phase coated on the inner wall of the capillary and the mobile phase (carrier gas). The columns feature ultra-low bleed polyimide outer coating, excellent thermal stability, and consistent column-to-column reproducibility—critical attributes for quantitative analysis in regulated environments.

Key Features

• Fused-silica construction with precise dimensional control: standard inner diameters (ID) of 0.10–0.53 mm and lengths ranging from 10 m to 60 m, supporting method scalability and optimization.
• Uniform stationary phase bonding and cross-linking—applied via proprietary vapor-phase deposition—to minimize column bleed and extend operational lifetime up to 320 °C (isothermal) or 350 °C (programmed ramp).
• End-capped deactivation technology ensures minimal active sites, reducing tailing for polar analytes such as organic acids, amines, and phenols.
• Available in multiple stationary phase chemistries—including 100% dimethylpolysiloxane (non-polar), 5% phenyl/95% methylpolysiloxane (low-to-medium polarity), and polyethylene glycol (highly polar)—to match selectivity requirements across diverse sample matrices.
• Rigorously tested for resolution (Rs ≥ 1.5 for critical pairs), efficiency (N > 50,000 plates/m), and inertness using standardized test mixtures (e.g., USP L1, L3, L40 system suitability standards).

Sample Compatibility & Compliance

HUIFEN capillary columns are validated for use with common GC carrier gases (helium, hydrogen, nitrogen) and compatible with both split/splitless and cold-on-column injection techniques. They support EPA Methods 8270D, 8082A, and ASTM D3612 for environmental and petrochemical analysis; pharmacopeial methods including USP , EP 2.2.46, and JP G14 for pharmaceutical impurity profiling; and food safety protocols aligned with ISO 17025-accredited laboratories. Columns are supplied with full traceability documentation, including lot-specific chromatograms, retention index data, and certificate of conformance per ISO 9001:2015 quality management systems.

Software & Data Management

While capillary columns themselves are passive consumables, their performance is integral to compliant data acquisition workflows. HUIFEN columns are fully interoperable with industry-standard GC control software platforms—including Agilent OpenLab CDS, Thermo Fisher Chromeleon, and Shimadzu GCsolution—enabling automated column recognition, method transfer validation, and audit-trail generation. When deployed in GLP- or GMP-regulated settings, column usage logs, maintenance records, and system suitability test (SST) results can be integrated into electronic lab notebooks (ELNs) and LIMS environments supporting 21 CFR Part 11 compliance through electronic signatures and secure data archiving.

Applications

• Environmental analysis: detection and quantification of PAHs, PCBs, pesticides, and VOCs in soil, water, and air samples.
• Petrochemical testing: hydrocarbon type analysis (PIONA), simulated distillation (ASTM D5292), and sulfur compound profiling.
• Pharmaceutical QC/QA: residual solvent testing (ICH Q3C), assay purity assessment, and stability-indicating method development.
• Food and flavor chemistry: fatty acid methyl ester (FAME) profiling, terpene characterization, and adulteration screening in essential oils and beverages.
• Forensic toxicology: identification of drugs of abuse, metabolites, and synthetic cannabinoids in biological matrices.

FAQ

What temperature range is recommended for HUIFEN capillary columns?
Standard columns are rated for isothermal operation up to 320 °C; extended-temperature variants support programmed ramps to 350 °C with low baseline drift.
Are custom dimensions or stationary phases available?
Yes—HUIFEN offers OEM services for non-standard lengths, IDs, film thicknesses (0.1–5.0 µm), and specialty phases (e.g., cyanopropylphenyl, trifluoropropyl) upon technical review.
How should capillary columns be conditioned before first use?
Conditioning involves gradual temperature ramping under carrier gas flow (e.g., 10 °C/min to 25 °C below maximum temperature, hold 30–60 min) to remove residual solvents and stabilize the stationary phase.
What contributes to column longevity in routine GC operation?
Proper inlet maintenance (septa, liner, trap), avoidance of oxygen exposure at elevated temperatures, and adherence to manufacturer-recommended injection volumes and solvent compatibility significantly extend column service life.
Do HUIFEN columns comply with pharmacopeial system suitability requirements?
Each batch undergoes system suitability verification per USP and EP 2.2.46 criteria—including resolution, tailing factor, and plate count—documented in the CoA provided with shipment.
