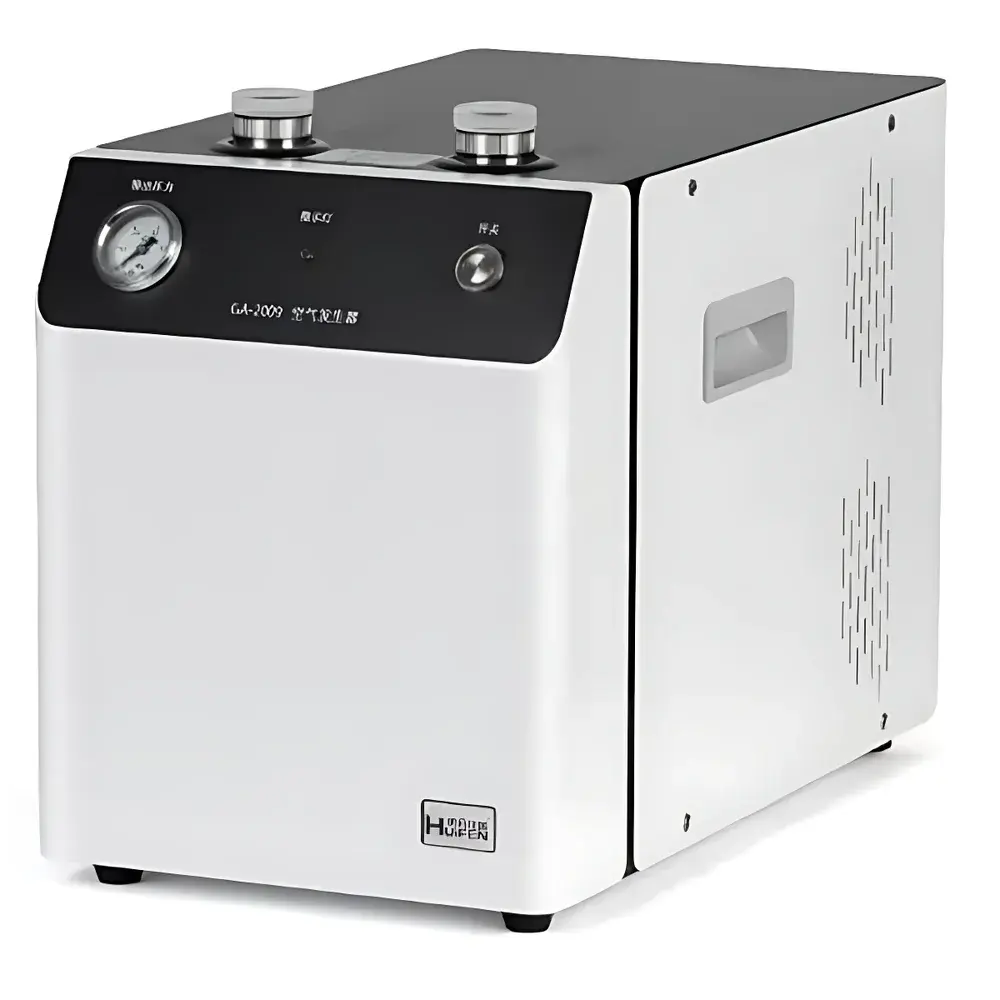

HUIFEN GA-2009 Air Generator
| Brand | HUIFEN Instrument |
|---|---|
| Origin | Shandong, China |
| Model | GA-2009 |
| Hydrocarbon Removal Principle | Triple-stage air purification |
| Output Flow Rate | 0–3 L/min |
| Output Pressure | 0–0.4 MPa (adjustable) |
| Hydrocarbon Content | ≤0.1 ppm (v/v) |
| Dew Point | −60 °C |
| Dimensions | 450 × 270 × 390 mm |
| Pressure Stability | ±0.003 MPa |
| Safety Protection | Dual-stage overpressure and overcurrent protection |
| Operating Mode | Continuous or intermittent use |
Overview
The HUIFEN GA-2009 Air Generator is an engineered solution for laboratories requiring a continuous, on-demand supply of high-purity compressed air—specifically designed to replace conventional high-pressure gas cylinders in analytical instrumentation applications. It operates on a triple-stage purification principle: coarse particulate filtration, activated carbon adsorption for hydrocarbon removal, and desiccant-based drying to achieve a dew point of −60 °C. This architecture ensures consistent delivery of instrument-grade air compliant with stringent requirements for gas chromatography (GC), GC–MS, elemental analyzers, and other air-dependent detection systems. Unlike cylinder-based supply, the GA-2009 eliminates logistical constraints—including storage hazards, refilling downtime, and batch-to-batch variability—while maintaining stable pressure output within ±0.003 MPa under dynamic load conditions. Its compact footprint (450 × 270 × 390 mm) and low acoustic signature (<45 dB(A)) support integration into regulated laboratory environments where space efficiency and operational quietness are critical.
Key Features
- Triple-stage air purification system: mechanical pre-filter, catalytic carbon bed, and regenerative desiccant dryer
- Adjustable output pressure (0–0.4 MPa) with high stability (±0.003 MPa) across full flow range (0–3 L/min)
- Hydrocarbon content consistently maintained at ≤0.1 ppm (v/v), validated per ISO 8573-1:2010 Class 1.2.1 for oil vapor
- Dual-stage electronic safety: independent overpressure cutoff and thermal-overcurrent protection circuitry
- Robust aluminum-alloy chassis with vibration-damped mounting; operational noise <45 dB(A) at 1 m distance
- Designed for 24/7 operation or duty-cycled use without performance degradation in flow rate or purity
Sample Compatibility & Compliance
The GA-2009 delivers air meeting ISO 8573-1:2010 Class 1.2.1 specifications for solid particles, water, and oil content—making it suitable for GC carrier gas support (when used with auxiliary zero-air modules), FID and NPD detector air supplies, and pneumatic actuation in automated sample introduction systems. It complies with general electrical safety standards IEC 61010-1 for laboratory equipment and incorporates fail-safe interlocks aligned with GLP-compliant lab infrastructure requirements. While not certified to FDA 21 CFR Part 11 out-of-the-box, its pressure and flow stability support audit-ready documentation when integrated with external data loggers meeting ALCOA+ principles.
Software & Data Management
The GA-2009 is a standalone hardware unit with no embedded microprocessor or digital interface. All operational parameters—including pressure setpoint, real-time outlet pressure, and runtime hours—are monitored via analog gauges and LED status indicators. For laboratories requiring traceable operational records, third-party pressure transducers and data acquisition systems (e.g., LabVIEW-compatible 4–20 mA outputs or Modbus RTU add-ons) may be externally interfaced. The unit’s design prioritizes mechanical reliability over digital complexity, minimizing firmware-related validation burdens in regulated QC/QA settings.
Applications
- Primary air supply for flame ionization detectors (FID), nitrogen phosphorus detectors (NPD), and thermal conductivity detectors (TCD) in gas chromatography
- Zero-air generation when paired with catalytic converters for environmental air monitoring calibrations (per EPA Method TO-15 and ISO 16000-6)
- Pneumatic power source for autosamplers, valve actuators, and purge-and-trap concentrators
- Support gas for elemental analyzers (CHNS/O), particularly where hydrocarbon-free air prevents baseline drift and carbon memory effects
- General-purpose clean air for clean benches, glove boxes, and particle-counting calibration
FAQ
Does the GA-2009 require routine consumable replacement?
Yes—activated carbon and desiccant cartridges must be replaced every 6–12 months depending on ambient air quality and daily operating hours. Replacement intervals are documented in the user manual and align with ISO 8573 maintenance guidance.
Can the unit be mounted vertically or in a rack?
No—the GA-2009 is designed for horizontal benchtop placement only. Internal airflow and condensate drainage paths assume this orientation; deviation may impair purification efficiency and void warranty.
Is the output air suitable for mass spectrometry applications?
Not directly—the GA-2009 meets requirements for detector support gases (e.g., FID air), but MS-grade air demands additional hydrocarbon scrubbing and oxygen stabilization not provided by standard configuration. Integration with a secondary catalytic purifier is recommended.
What is the maximum allowable ambient temperature for continuous operation?
40 °C, per IEC 60068-2-2. Operation above this threshold reduces desiccant service life and increases risk of thermal shutdown.
Does the unit include an internal air reservoir?
No—it provides continuous flow-on-demand without buffer storage. For applications requiring transient peak flow >3 L/min, an external stainless-steel receiver tank (ASME Section VIII compliant) must be installed downstream.
