HunterLab Aeros Non-Contact 0/45° Spectrophotometric Color Measurement System

Overview

The HunterLab Aeros is a purpose-engineered, non-contact spectrophotometric color measurement system designed for industrial environments where sample heterogeneity, irregular geometry, or surface texture preclude reliable data acquisition using conventional contact-based instruments. Unlike traditional 0/45° or d/8° spectrophotometers requiring flat, homogeneous, and static placement, the Aeros employs a patented non-contact optical architecture—currently under patent application—to acquire spatially resolved spectral reflectance data across large, three-dimensional, and optically complex surfaces without physical contact. Its core measurement principle relies on high-stability full-spectrum LED illumination (400–700 nm) coupled with a precision 0/45° integrating sphere geometry, ensuring compliance with CIE 15:2018 and ISO/CIE 11664-4 for tristimulus value computation. Engineered for integration into production lines or QC labs operating under Industry 4.0 frameworks, the Aeros delivers metrologically traceable CIE L*a*b*, ΔE*ab, and spectral reflectance curves with repeatability of ≤0.03 ΔE*ab (mean, n=20, standard conditions), validated per ASTM E308-23.

Key Features

• Non-contact measurement technology eliminates sample compression, surface abrasion, or cross-contamination—critical for hygroscopic, friable, or sterile-sensitive materials such as roasted coffee beans, dairy powders, or pharmaceutical granules.
• Motorized auto-height positioning system uses ultrasonic sensing to dynamically locate optimal focal distance (±0.2 mm resolution) across variable sample topographies, enabling consistent measurement geometry independent of operator input.

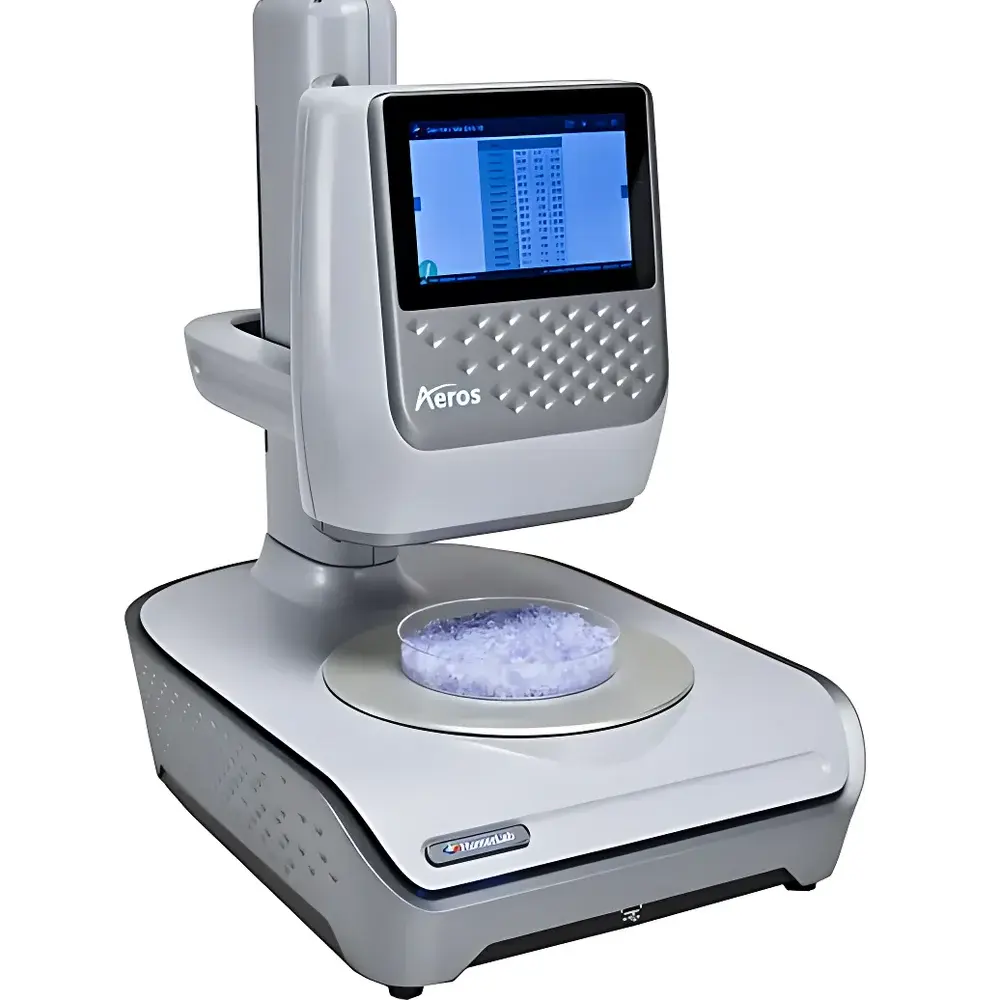

• Programmable rotating test stage completes 35 spatially distributed measurements in 5 seconds over a maximum area of 223.2 cm² (34.6 in²), generating statistically robust mean color values with standard deviation reporting.
• Sealed, maintenance-free optical path with long-life full-spectrum LEDs (>50,000 hours MTBF) and brushless DC motor drive—designed for continuous operation in ambient temperatures from 10–40°C and relative humidity up to 80% non-condensing.

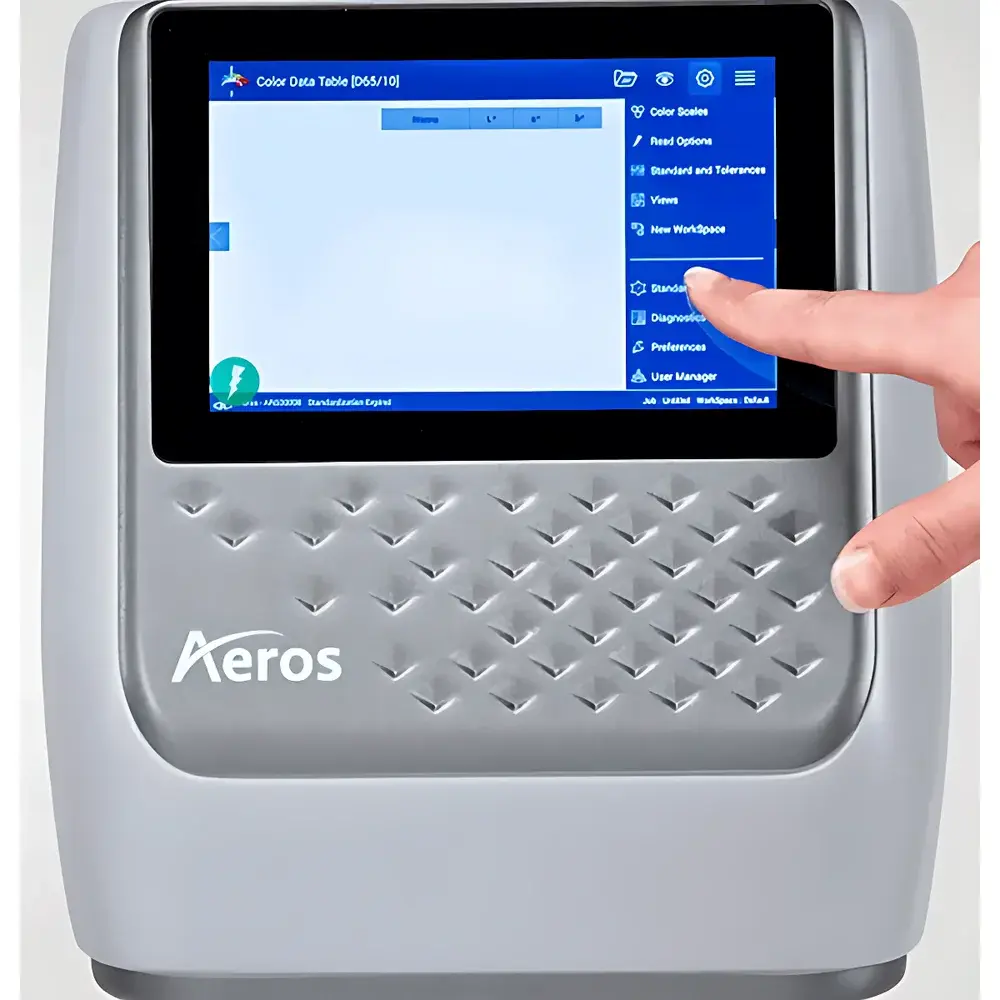

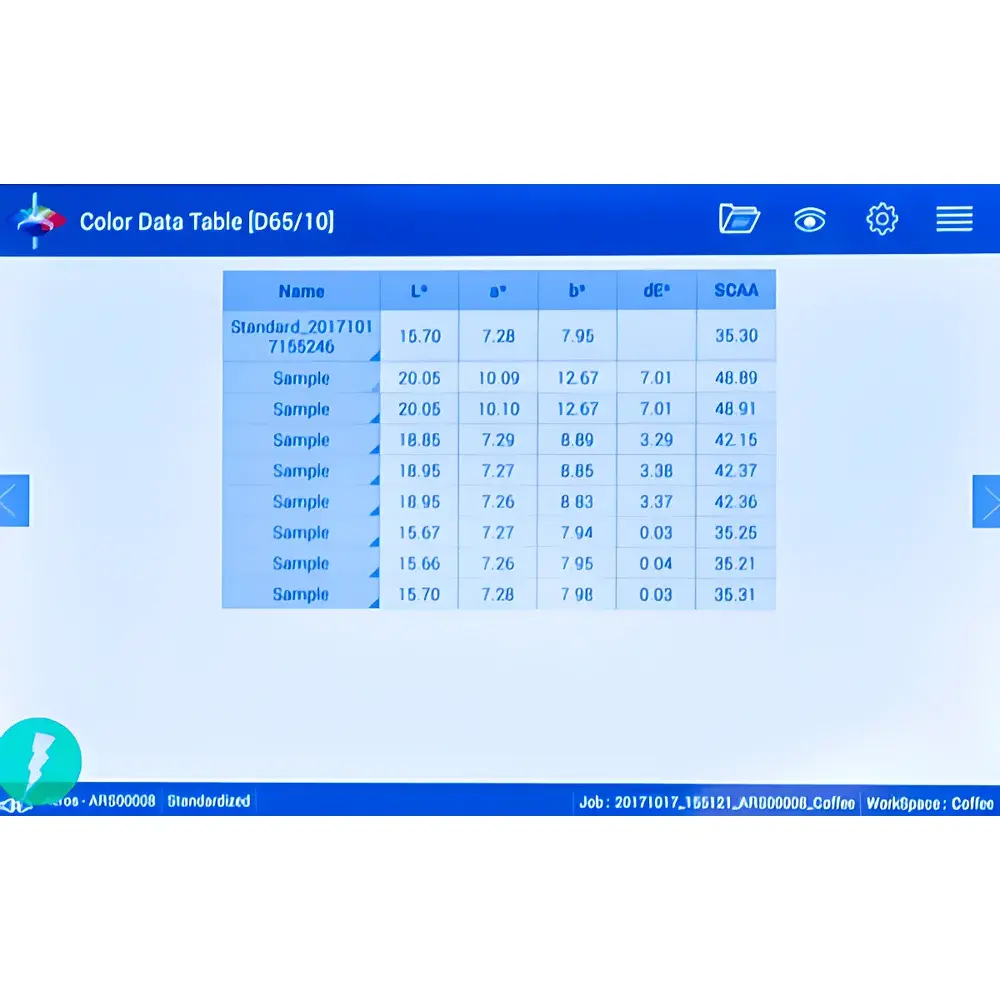

• Embedded 7″ capacitive touchscreen interface runs EasyMatch ESSENTIAL firmware, supporting standalone operation with one-touch measurement, real-time pass/fail flagging, and configurable tolerancing against master standards.

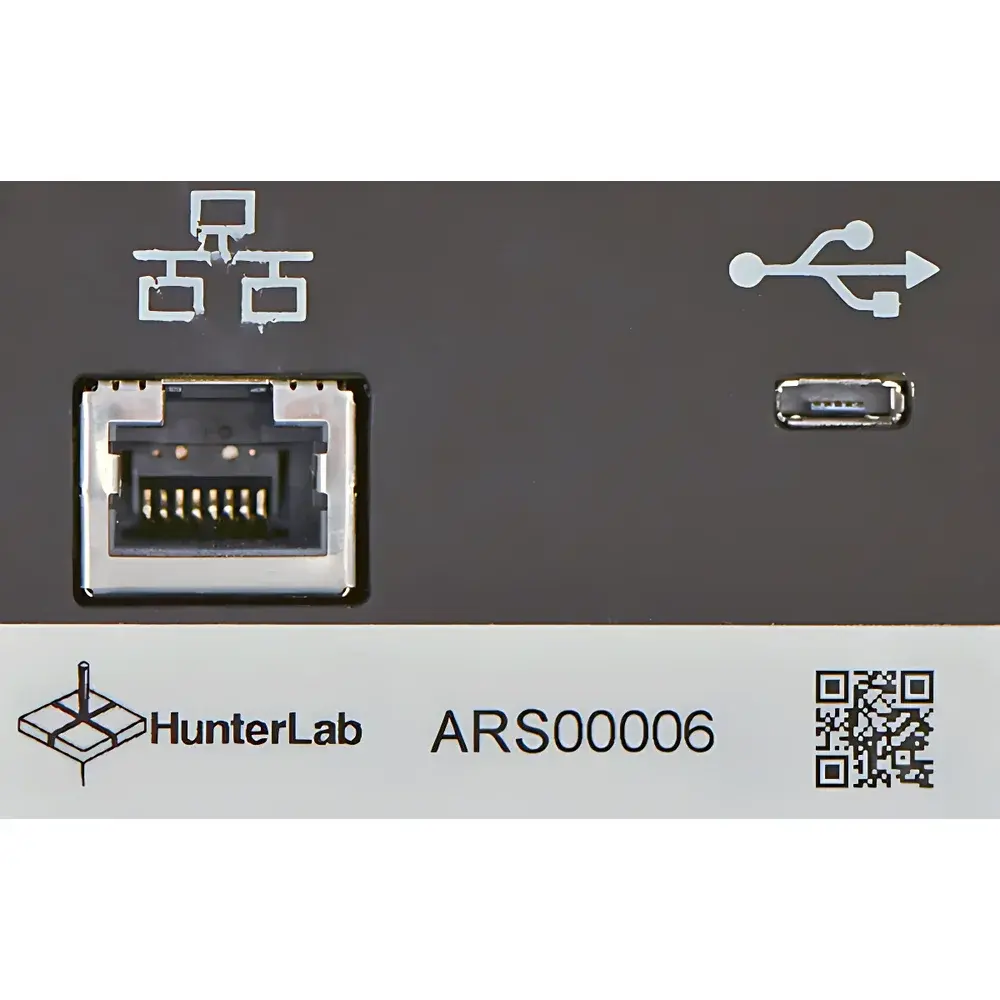

• Native Ethernet and USB-C connectivity with dual-mode communication: direct instrument-to-printer (local/network) output, SMTP email report delivery, and bidirectional data exchange with LIMS, SPC, and MES platforms via HL-XML or OPC UA protocols.

Sample Compatibility & Compliance

The Aeros accommodates samples ranging from 5 mm to 120 mm in height and up to 150 mm in diameter—including bulk solids (e.g., plastic pellets, nut kernels, spice blends), textured composites (e.g., woven textiles, extruded profiles), and particulate matrices (e.g., ground coffee, cereal flakes). Its non-contact design satisfies ISO 9001:2015 clause 7.1.5.2 (monitoring and measuring resource suitability) and supports GMP-aligned workflows through configurable electronic signatures, audit trail logging (per FDA 21 CFR Part 11 Annex 11 when paired with enterprise software), and calibration traceability to NIST-traceable ceramic tile standards. All spectral data comply with CIE Publication 15:2018 and ISO 13655:2017 for spectral measurement geometry and illuminant definition.

Software & Data Management

EasyMatch ESSENTIAL provides embedded instrument control, statistical process visualization (X-bar/R charts), and export-ready reports in PDF, CSV, and XML formats. When connected to a Windows host, EasyMatch QC enables advanced analysis including PCA-based batch clustering, spectral derivative mapping, and multi-instrument fleet calibration monitoring. Data integrity safeguards include role-based access control, timestamped revision history, and encrypted local storage. Remote diagnostics and firmware updates are supported via HunterLab Remote Access Service—a secure TLS 1.2–encrypted channel allowing authorized technical support personnel to perform live troubleshooting or guided operator training without onsite visits.

Applications

The Aeros serves as a primary color verification tool in food & beverage (roasted coffee grading, snack chip color consistency, confectionery coating uniformity), plastics (recycled pellet lot acceptance, masterbatch dispersion validation), agriculture (grain quality sorting, seed coat assessment), and cosmetics (powder blush homogeneity, pressed pigment tablet evaluation). Its ability to resolve micro-heterogeneity makes it especially valuable for R&D applications involving formulation optimization, raw material substitution studies, and shelf-life color stability testing under accelerated aging protocols.

FAQ

Does the Aeros require annual recalibration?
Yes—HunterLab recommends annual factory recalibration using NIST-traceable standards; field verification with supplied calibration tiles is advised before each shift.
Can the Aeros measure transparent or translucent samples?
No—it is optimized for opaque, diffusely reflecting surfaces; transmission or haze measurement requires complementary instrumentation such as the HunterLab UltraScan VIS.
Is the rotating stage compatible with custom sample holders?
Yes—the stage features standardized M4 threaded mounting points and accepts third-party fixtures engineered to ASME B5.54-2022 dimensional tolerances.
What cybersecurity protocols does the remote access feature employ?
HunterLab Remote Access uses mutual TLS authentication, ephemeral session keys, and zero-persistence remote control—no credentials or configuration files are stored on the instrument.
How is measurement uncertainty quantified for heterogeneous samples?
Uncertainty is reported per ISO/IEC Guide 98-3 (GUM) as expanded uncertainty (k=2) derived from within-run repeatability, inter-instrument reproducibility, and environmental influence factors (temperature, humidity drift coefficients).
