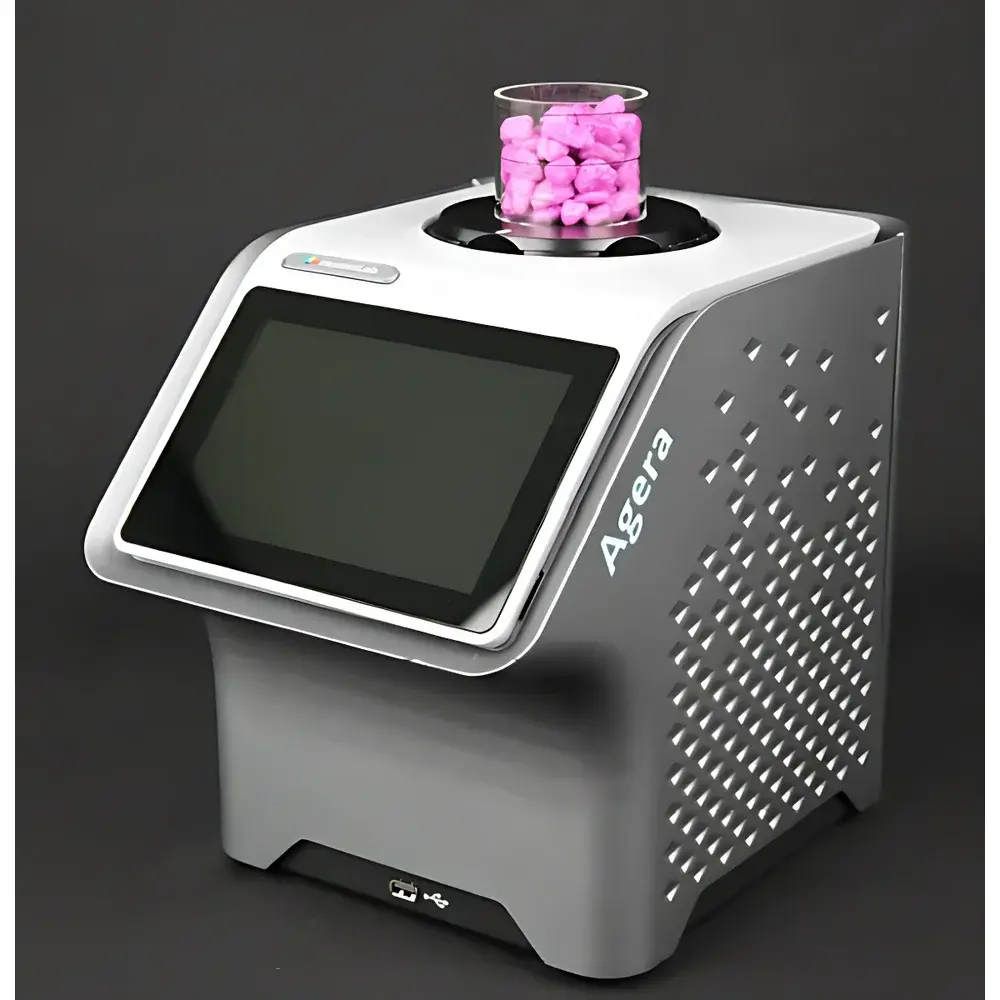

HunterLab Agera Coating Color Measurement Instrument

Overview

The HunterLab Agera Coating Color Measurement Instrument is a benchtop spectrophotometer engineered for high-precision color and gloss quantification in industrial coating applications. It operates on the 0/45° optical geometry principle—where illumination is directed at 45° to the sample surface and detection occurs at 0° (normal incidence)—ensuring minimal influence from surface texture and specular reflection, while maintaining compliance with CIE, ASTM E308, and ISO/CIE 11664 colorimetric standards. Unlike diffuse/8° or d/0 instruments, the 0/45° configuration replicates visual assessment conditions used in quality control environments for flat, non-metallic coated surfaces such as automotive OEM finishes, coil-coated metal, architectural paints, and powder coatings. The instrument employs a thermally stabilized full-spectrum LED array spanning 400–700 nm, delivering superior photometric stability over xenon flash sources—critical for achieving long-term repeatability (≤0.03 ΔE*ab) across daily production shifts and multi-year calibration intervals.

Key Features

• Full-spectrum balanced LED illumination system with <100 ppm thermal drift per °C, enabling stable spectral output without warm-up delay or lamp aging compensation.
• Dual-mode UV control: User-selectable UV-included and UV-excluded measurement modes; factory-traceable UV calibration using NIST-traceable fluorescent standards (e.g., ISO 105-J03, AATCC TM183).
• Integrated 60° gloss sensor compliant with ASTM D523 and ISO 2813, providing simultaneous color + gloss data in a single measurement cycle—eliminating manual repositioning and inter-instrument correlation errors.
• Triple-aperture system (15.89 mm, 25.4 mm, 50.8 mm) with automatic aperture recognition and geometric correction algorithms for consistent color values regardless of field-of-view selection.
• 5-megapixel coaxial camera with 45° annular full-spectrum illumination captures high-fidelity sample images synchronized with spectral data—enabling spatial anomaly detection (e.g., orange peel, mottling, contamination) and archiving for audit trails.
• Industrial-grade 10.1-inch capacitive touchscreen with glove-compatible UI, offline operation capability, and real-time pass/fail decision logic based on user-defined tolerances (ΔL*, Δa*, Δb*, ΔE*ab, ΔGloss).

Sample Compatibility & Compliance

The Agera supports opaque, translucent, and textured coated substrates—including solvent-borne, water-borne, UV-curable, and high-solids formulations—without requiring masking or substrate compensation. Its 0/45° geometry inherently minimizes interference from metallic flake orientation and pearlescent pigment alignment, making it suitable for effect coatings when used with standardized viewing protocols. All optical components are certified to IEC 61000-4 electromagnetic compatibility standards. The instrument’s firmware and data management architecture support 21 CFR Part 11 compliance when deployed with HunterLab’s Universal Software Suite (v5.0+), including electronic signatures, audit trail logging, and role-based access control. Calibration verification adheres to ASTM E2539 and ISO 17025 traceability requirements via NIST-traceable ceramic tile standards.

Software & Data Management

Data acquisition, analysis, and reporting are managed through HunterLab’s Universal Software Suite—a platform validated for GxP environments. The software enables statistical process control (SPC) charting, batch deviation trending, formulation matching (with Delta-E optimization engine), and cross-instrument agreement validation. All measurement records include embedded metadata: timestamp, operator ID, aperture size, UV mode, gloss value, image thumbnail, and instrument serial number. Raw spectral data (10-nm intervals, 31 points) is exportable in CSV, XML, or CxF/XRGA formats for integration into LIMS or MES systems. Remote diagnostics utilize TLS 1.2–encrypted WebSocket connections; no inbound firewall ports required—support engineers initiate sessions only upon authenticated user consent.

Applications

The Agera serves as a primary color verification tool in QC laboratories for coating manufacturers, Tier-1 automotive suppliers, coil coaters, and R&D centers developing next-generation pigments and effect systems. Typical use cases include incoming raw material qualification (TiO₂, extenders, dispersants), in-process batch release testing, finished goods inspection against master standards, and supplier scorecard generation. Its dual-color-and-gloss capability streamlines ASTM D2244-compliant color difference reporting for coated panels. In regulatory contexts, the instrument supports USP color consistency requirements for pharmaceutical packaging coatings and ISO 12944 corrosion protection system audits.

FAQ

Does the Agera require annual recalibration by HunterLab service engineers?
No—routine user verification using supplied calibration tiles satisfies ISO 9001 and IATF 16949 requirements; however, NIST-traceable recalibration is recommended every 24 months or after physical impact or environmental exposure exceeding specification limits.
Can the Agera measure metallic or pearlescent coatings accurately?
Yes, when operated under standardized lighting/viewing conditions and paired with HunterLab’s Multi-Angle Color Analysis (MACA) add-on module, which extends measurement to 15°/25°/45°/75°/110° geometries for gonio-apparent effects.
Is the onboard camera image resolution sufficient for defect documentation in an audit?
Yes—the 5 MP sensor captures ≥100 µm feature resolution at standard working distance (12 mm), meeting ISO/IEC 17025 evidence retention requirements for nonconformance investigations.
How does remote support maintain data security during live diagnostics?
All remote sessions employ end-to-end TLS 1.2 encryption with ephemeral session keys; no credentials or spectral data are stored on HunterLab servers—connections terminate automatically after technician logout or 15 minutes of inactivity.
