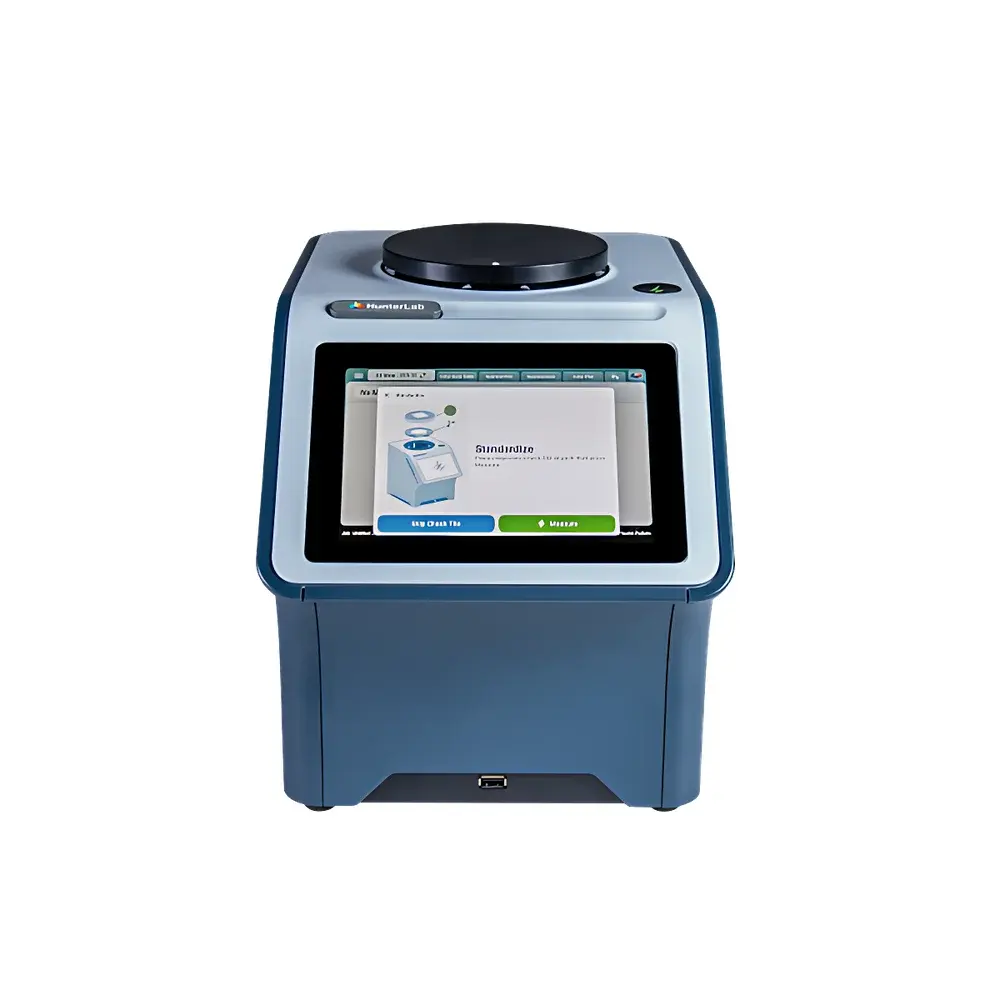

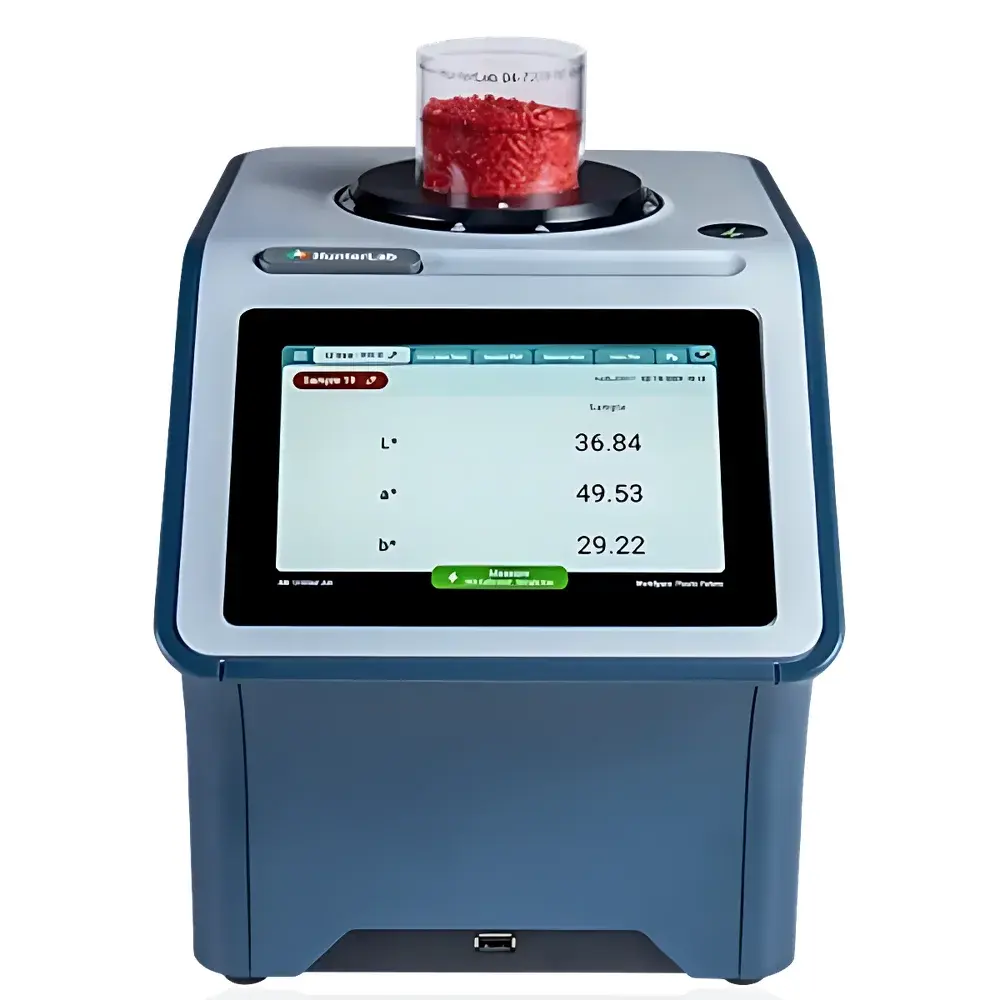

HunterLab Agera L2 Benchtop Spectrophotometer for Color Measurement and Gloss
| Brand | HunterLab |
|---|---|
| Origin | USA |
| Manufacturer Type | Authorized Distributor |
| Origin Category | Imported |
| Model | AgeraL2 |
| Product Type | Color Difference Meter |
| Instrument Type | Benchtop |
| Optical Geometry | 45/0° |
| Light Source | Full-spectrum Balanced LED Array |
| Spectral Range | 400 nm – 700 nm |
| Repeatability | ΔE*₀₀ ≤ 0.03 |
Overview
The HunterLab Agera L₂ is a high-precision benchtop spectrophotometer engineered for objective, visually correlated color measurement across reflective materials with low reflectance (down to 20% or lower). Operating on the CIE 45/0° optical geometry—where illumination is provided by a ring of LEDs at 45° and detection occurs perpendicularly at 0°—the instrument eliminates directional bias from surface texture, gloss, or anisotropy. Its full-spectrum balanced LED array replicates the spectral power distribution of CIE Standard Illuminant D65, enabling measurements that correlate directly with human visual perception under controlled daylight viewing conditions. Unlike traditional 0/45° or d/8° instruments, the Agera L₂’s 45/0° design ensures consistent performance on structured, directional, or low-gloss substrates common in coil-coated metal, automotive trim, safety signage, and pharmaceutical packaging. The system is calibrated traceably to NIST standards and supports inter-instrument agreement within ΔE*₀₀ ≤ 0.15 (based on CR-410 validation protocols), making it suitable for multi-site color control networks.
Key Features
- Large-area measurement port (up to 16× larger than conventional 45/0° spectrophotometers), minimizing sampling variance on textured, patterned, or oriented surfaces such as prepainted metal coils, embossed plastics, and woven textiles.
- Integrated high-resolution sample-viewing camera with real-time screen recording; captures synchronized image metadata with every measurement for audit-ready documentation, operator training, and alignment verification.
- Simultaneous acquisition of CIELAB color coordinates (L*, a*, b*, ΔE*₀₀) and 60° gloss value in a single press—eliminating manual mode switching and reducing operator-induced variability.
- “Visual Truth” spectral engine, combining optimized D65 LED illumination, dual-beam referencing, and advanced photometric correction algorithms to deliver results aligned with perceptual uniformity standards (CIEDE2000, CMC(l:c)).
- Rugged industrial-grade housing with thermal stabilization and vibration-dampened optics, ensuring long-term stability in production lab or QC floor environments.
Sample Compatibility & Compliance
The Agera L₂ is validated for use on non-transmissive, matte-to-semi-gloss reflective samples with reflectance ≥20%, including coil-coated steel/aluminum (e.g., PVDF, SMP, polyester finishes), recycled polymer sheets, retroreflective sheeting, coated paperboard, and opaque pharmaceutical tablets. It complies with ASTM D2244 (Standard Practice for Calculating Color Tolerances), ISO 11664-4 (CIE colorimetry), and meets the optical requirements of ISO 7724-1 for reflectance measurement. Data integrity conforms to FDA 21 CFR Part 11 when deployed with HunterLab’s QualX software suite, supporting electronic signatures, audit trails, and role-based access control for GLP/GMP-regulated environments.
Software & Data Management
Controlled via HunterLab’s QualX™ v5.2 software, the Agera L₂ enables centralized method management, spectral library curation, and statistical process control (SPC) charting. All measurements are stored with embedded EXIF metadata—including timestamp, operator ID, instrument serial number, environmental temperature/humidity (via optional sensor input), and the synchronized sample image. Export formats include CSV, XML, and PDF reports compliant with internal SOPs or external customer requirements (e.g., PPAP, AS9102). Cloud synchronization and API integration (RESTful) support enterprise-level LIMS and MES connectivity without proprietary middleware.
Applications
- Color release testing of continuous coil-coated metal products in steel service centers and appliance OEM lines.
- Batch-to-batch consistency monitoring for low-reflectance safety materials (e.g., DOT-compliant highway signage, railway crossing panels).
- Formulation development and QC of pigmented polymers where surface topography affects perceived hue (e.g., injection-molded automotive interior parts).
- Stability assessment of light-sensitive coatings under accelerated aging protocols (QUV, Xenon arc), tracking both chromatic shift and gloss loss over time.
- Regulatory submission support for color-critical pharmaceutical solid dosage forms, satisfying USP and ICH Q5C guidelines.
FAQ
What does “45/0° geometry” mean, and why is it preferred for coil-coated metal?
45/0° geometry uses annular 45° illumination and perpendicular 0° viewing to decouple color measurement from specular reflection—critical for textured or brushed metallic surfaces where 8°/d or d/8° geometries introduce gloss-dependent bias.
Can the Agera L₂ measure samples below 20% reflectance?
While optimized for ≥20% reflectance, the instrument may acquire valid data down to ~12% under controlled conditions; however, NIST-traceable calibration and specification compliance are guaranteed only within the validated 20–100% range.
Is the 60° gloss measurement ISO-compliant?
Yes—the gloss sensor adheres to ISO 2813 and ASTM D523 specifications for 60° specular gloss, with factory calibration traceable to NIST SRM 1920a.
How is data security handled in regulated environments?
QualX software implements full 21 CFR Part 11 functionality: user authentication, electronic signatures, immutable audit trails, and encrypted local/cloud storage—all validated per IQ/OQ protocols.
Does the camera replace the need for physical reference standards?
No—the camera supports alignment and contextual verification but does not substitute for certified ceramic or metallic tile standards used in daily instrument verification and calibration.
