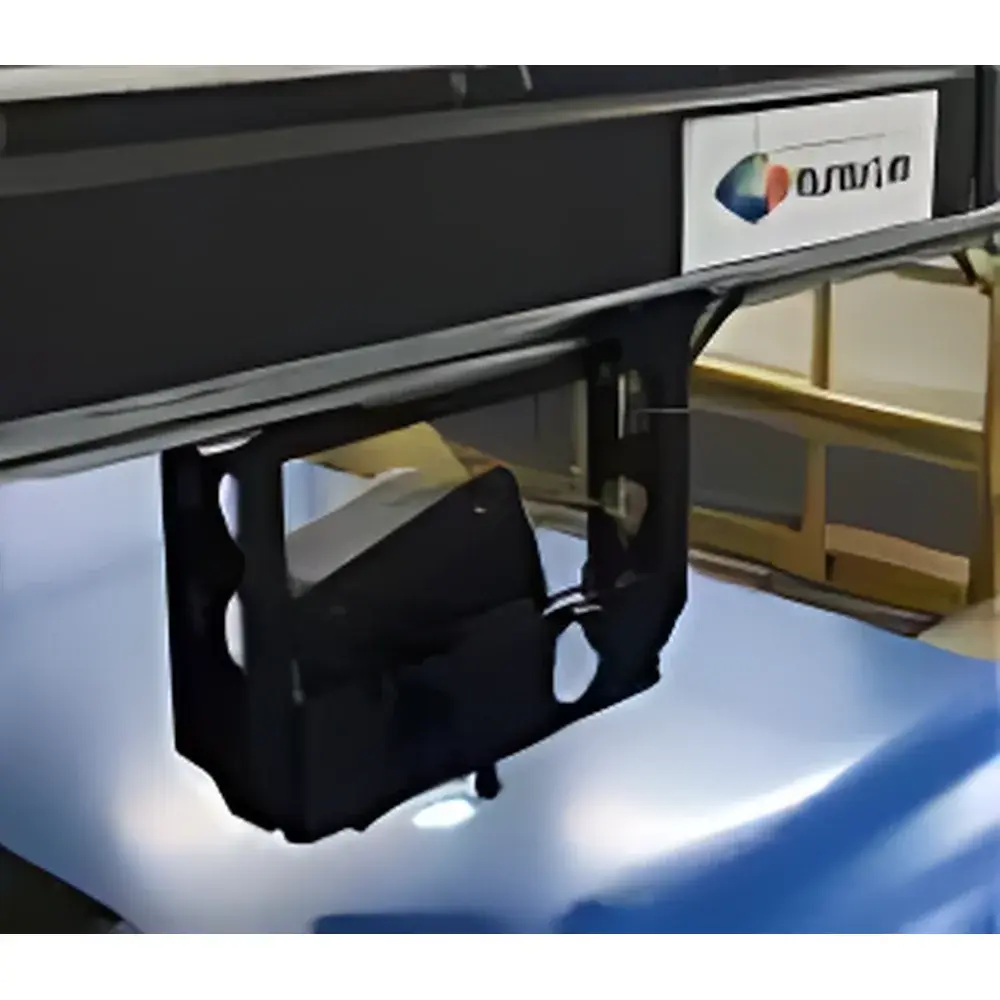

HunterLab SpectraTrend HT Food Industry In-Line Spectrophotometer
| Brand | HunterLab |
|---|---|
| Origin | USA |
| Model | SpectraTrend HT |
| Product Type | In-Line Spectrophotometer |
| Instrument Type | In-Line |
| Optical Geometry | 0/45° Integrating Sphere |
| Light Source | Full-Spectrum Balanced Solid-State LED System |
| Spectral Range | 400–700 nm |
| Repeatability | ΔE*ab ≤ 0.03 |
| IP Rating | NEMA 4 / IP56 |
| Measurement Speed | Up to 5 Hz (non-contact) |
| Height Detection | Integrated non-contact height sensor |
| Compliance | Supports LQM, PAT, Six Sigma, DMAIC, and GMP-aligned process control frameworks |
Overview
The HunterLab SpectraTrend HT is a purpose-engineered in-line spectrophotometer designed specifically for continuous, non-contact color and surface-height monitoring in food manufacturing environments. Operating on the principle of diffuse reflectance spectroscopy with a calibrated 0/45° optical geometry, it delivers traceable CIE-compliant color data (L*, a*, b*, ΔE*ab, etc.) directly from moving product streams—without physical contact or sample interruption. Its full-spectrum solid-state LED illumination ensures stable, drift-free spectral output across the visible range (400–700 nm), enabling high-fidelity color quantification under variable ambient lighting and thermal conditions typical of industrial processing lines. Unlike benchtop or handheld colorimeters, the SpectraTrend HT integrates real-time spectral acquisition, automated self-diagnostic routines, and synchronized height compensation—making it suitable for heterogeneous products such as baked goods, confectionery, dairy coatings, meat slices, and extruded snacks where surface topography affects reflectance.
Key Features
- True in-line operation with non-contact measurement at up to 5 Hz—enabling statistical process control (SPC) sampling frequency aligned with line speeds up to 1.5 m/s
- Integrated dual-sensor architecture: simultaneous acquisition of spectral reflectance and surface height via time-of-flight (ToF) or triangulation-based height sensing
- Automatic height compensation algorithm corrects color values for surface irregularities, conveyor belt vibration, and inconsistent product elevation—ensuring metrological consistency across uneven or stacked items
- NEMA 4 / IP56-rated enclosure engineered for washdown environments, resistant to moisture, dust, and incidental chemical exposure common in food-grade facilities
- Full-width motorized traverse system with programmable probe retraction and audible/visual alarm activation during maintenance or obstruction events
- Factory-calibrated spectral response traceable to NIST standards; supports automated recalibration at user-defined intervals without manual intervention or operator presence
Sample Compatibility & Compliance
The SpectraTrend HT accommodates a broad range of food substrates—including opaque solids, semi-translucent gels, textured surfaces, and coated products—without requiring sample preparation or optical coupling media. Its 0/45° geometry minimizes directional gloss effects while preserving sensitivity to chromatic variation caused by ingredient batch shifts, thermal degradation, or Maillard reaction progression. The instrument conforms to foundational quality frameworks including FDA’s Process Analytical Technology (PAT) initiative, ISO 9001:2015 clause 8.5.1 (control of production), and ICH Q8(R2) guidance on design space definition. It supports audit-ready data integrity through optional 21 CFR Part 11–compliant software modules, including electronic signatures, change control logs, and immutable measurement history archives.
Software & Data Management
Data acquisition and visualization are managed via HunterLab’s Universal Software Suite (USS), which provides real-time dashboards, SPC charting (X-bar/R, CUSUM), trend analysis, and configurable alarm thresholds. All measurements are timestamped, geotagged (if integrated with PLC/HMI), and exported in CSV, XML, or OPC UA formats for MES/SCADA ingestion. The system supports role-based access control, secure network authentication, and encrypted local storage. Raw spectral data (31-point 10-nm intervals) is retained alongside derived color metrics, enabling retrospective root-cause analysis—e.g., correlating hue shift with oven temperature excursions logged in DCS systems.
Applications
- Real-time monitoring of browning index in baked goods and roasted nuts
- Batch-to-batch consistency verification in chocolate tempering and coating lines
- Detection of oxidation-induced color drift in ground meats and plant-based analogs
- Control of caramelization uniformity in snack extrusion and frying processes
- Validation of natural colorant dispersion stability in dairy desserts and beverages
- Supporting Quality-by-Design (QbD) initiatives by establishing color-based critical process parameters (CPPs)
FAQ
How does the SpectraTrend HT handle varying product heights during measurement?
It employs an integrated non-contact height sensor that continuously updates the optical working distance; spectral data is dynamically corrected using empirically derived height-response models embedded in firmware.
Is calibration traceable to national standards?
Yes—each unit ships with a NIST-traceable calibration certificate covering both spectral irradiance and geometric alignment; annual verification protocols follow ASTM E308 and ISO/CIE 15339 guidelines.
Can it interface with existing PLC or SCADA systems?
Yes—via Ethernet/IP, Modbus TCP, or OPC UA; digital I/O signals support start/stop triggers, alarm outputs, and status feedback for closed-loop process adjustment.
What maintenance is required beyond scheduled calibration?
No routine optical cleaning is needed due to sealed optics and purge-compatible housing; only periodic inspection of window integrity and verification of mechanical traverse motion is recommended per ISO 17025 preventive maintenance schedules.
