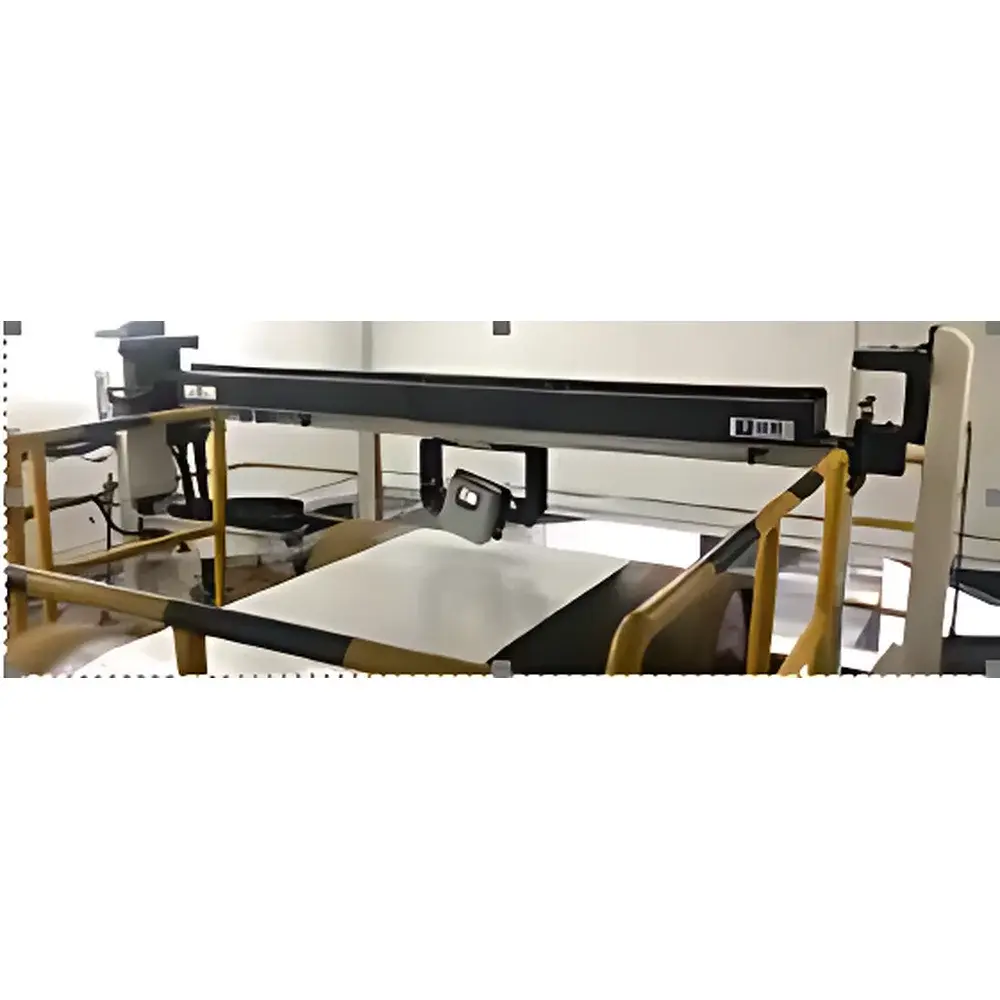

HunterLab SpectraTrend HT Leather In-Line Color Measurement System
| Brand | HunterLab |
|---|---|
| Origin | USA |
| Manufacturer Type | Authorized Distributor |
| Product Category | Imported Instrument |
| Model | SpectraTrend HT Leather In-Line Color Measurement System |
| Product Type | Spectrophotometric Colorimeter |
| Instrument Type | In-Line |
| Optical Geometry | 0/45° Integrating Sphere |
| Light Source | Full-Spectrum Balanced Solid-State LED Array |
| Spectral Range | 400–700 nm |
| Repeatability | ΔE*ab ≤ 0.03 |
Overview
The HunterLab SpectraTrend HT Leather In-Line Color Measurement System is an engineered solution for continuous, non-contact color monitoring directly on moving leather production lines. Based on spectrophotometric measurement principles using a calibrated 0/45° optical geometry, it captures spectral reflectance data across the visible spectrum (400–700 nm) with high photometric stability and repeatability (ΔE*ab ≤ 0.03). Unlike manual or benchtop instruments, the SpectraTrend HT operates in real time—acquiring measurements at programmable intervals as leather passes beneath its scanning head—enabling closed-loop process feedback, early deviation detection, and objective color consistency control from tanning through finishing. Its mechanical architecture integrates seamlessly into wet-end, drying, and finishing zones, with IP65-rated housing and thermal management suitable for ambient industrial environments typical of leather manufacturing facilities.
Key Features
- True in-line spectrophotometry: Real-time spectral acquisition synchronized with conveyor speed, eliminating sampling bias and human intervention.
- Full-width automated traverse mechanism: Motorized cross-web scanning ensures representative coverage across variable leather widths (up to 2.2 m), with automatic probe retraction and acoustic-optical alarm activation upon obstruction or misalignment.
- Self-calibrating optical system: Factory-traceable calibration maintained via scheduled auto-correction routines; user-definable calibration intervals minimize downtime without compromising metrological integrity.
- Stable solid-state illumination: Broadband LED source delivers consistent spectral power distribution over time and temperature—eliminating lamp aging drift common in xenon-based systems.
- Robust mechanical design: Stainless-steel housing, vibration-damped mounting interface, and sealed optical path engineered for long-term operation in humid, chemically exposed leather processing environments.
Sample Compatibility & Compliance
The SpectraTrend HT is optimized for heterogeneous, textured, and moisture-variable leather substrates—including bovine, ovine, and synthetic leathers at all stages (wet-blue, crust, finished). Its 0/45° geometry mitigates directional reflectance artifacts from grain structure and surface sheen, delivering measurement results highly correlated with lab-grade benchtop spectrophotometers (e.g., HunterLab UltraScan VIS). Data output conforms to CIE 1976 L*a*b*, L*C*h, and ΔE*ab metrics, supporting compliance with ISO 11664, ASTM D2244, and ISO 105-J03 for color difference evaluation. System validation documentation supports GLP-aligned implementation and audit readiness per ISO/IEC 17025 requirements for in-process quality instrumentation.
Software & Data Management
Controlled via HunterLab’s proprietary SpectraMagic NX HT software suite, the system provides centralized configuration, real-time dashboard visualization, and SPC-based trend analysis. Measurement data—including spectral curves, color coordinates, pass/fail status, and timestamped anomaly logs—are exported in CSV, XML, or OPC UA formats for integration into MES, SCADA, or ERP platforms (e.g., Siemens SIMATIC, Rockwell FactoryTalk). Audit trails record all operator actions, calibration events, and parameter changes—fully compliant with FDA 21 CFR Part 11 requirements when deployed in regulated quality systems. Remote diagnostics and firmware updates are supported over secure Ethernet connections.
Applications
- Real-time color consistency verification during dyeing and retanning processes.
- Automated detection of batch-to-batch variation in pigment dispersion or finish application.
- Correlation of in-line measurements with laboratory reference standards to validate process capability (Cp/Cpk).
- Root-cause analysis of color excursions linked to chemical dosing, pH shifts, or drying temperature deviations.
- Support for sustainability initiatives by reducing off-spec material through predictive color correction.
FAQ
How does the SpectraTrend HT ensure measurement alignment with lab instruments?
It uses identical CIE-standard observer functions and illuminants as HunterLab’s benchtop spectrophotometers, with factory-matched spectral response and inter-instrument agreement verified per ASTM E308 and ISO 13655.
Can the system operate under high-humidity conditions typical in leather drying zones?
Yes—the optical head features condensation-resistant optics, sealed electronics, and active thermal stabilization to maintain accuracy at up to 95% RH and 50°C ambient.
Is custom integration with existing PLC systems supported?
Yes—native Modbus TCP and optional PROFINET or EtherNet/IP gateways enable direct communication with major industrial controllers without middleware.
What maintenance is required beyond scheduled calibration?
No consumables or lamp replacements; only periodic cleaning of the quartz window and verification of traverse rail lubrication per quarterly preventive maintenance guidelines.
Does the system support multi-site data aggregation for global quality harmonization?
Yes—centralized cloud or on-premise database deployment allows synchronized color specifications, tolerance bands, and historical baselines across geographically distributed tanneries.
