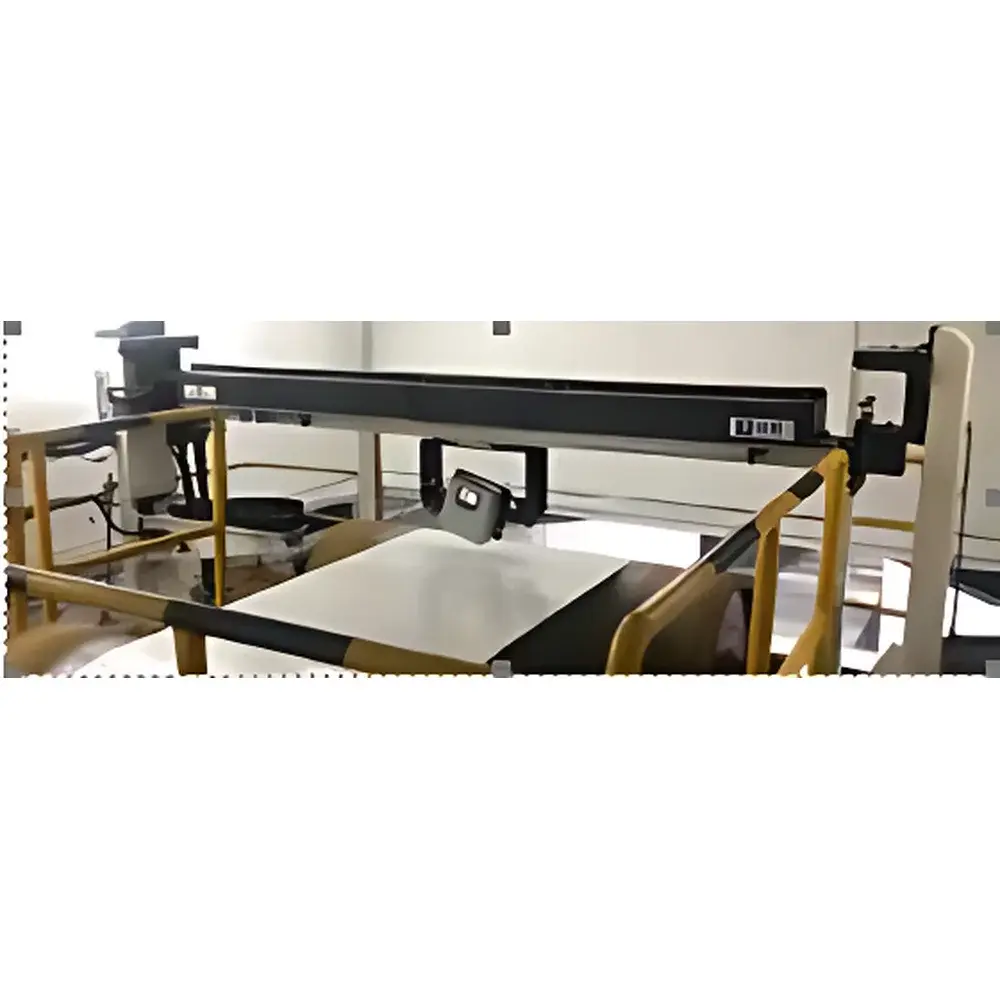

HunterLab SpectraTrend HT In-Line Food Color Measurement System

Overview

The HunterLab SpectraTrend HT is an industrial-grade, in-line spectrophotometric color measurement system engineered specifically for real-time color and height monitoring on food production lines. Unlike traditional benchtop or handheld colorimeters, the SpectraTrend HT employs a non-contact, scanning-based optical architecture grounded in CIE-compliant 0°/45° geometry with an integrating sphere. It captures full visible-spectrum reflectance data (400–700 nm at 10 nm bandwidth) at up to 5 measurements per second—enabling continuous, high-frequency process surveillance without interrupting throughput. Its core function is not merely color reporting, but closed-loop quality assurance: by correlating spectral reflectance with physical sample height in real time, it compensates for positional variance, conveyor speed fluctuations, and surface topography—critical for heterogeneous, irregular, or soft food products such as meat patties, baked goods, extruded snacks, and frozen entrées.

Key Features

• Non-contact, high-speed measurement at 5 Hz—eliminates mechanical wear, contamination risk, and operator dependency
• Simultaneous dual-parameter acquisition: CIE L*a*b*, ΔE*ab, and absolute sample height (up to 100 mm working distance)
• Full-spectrum solid-state LED illumination with photometric stability over >50,000 hours; no lamp replacement or warm-up required
• Automatic height-based color compensation algorithm—corrects for distance-induced spectral shift and angular deviation
• NEMA 4 / IP56-rated enclosure for washdown environments, compatible with USDA-FSIS, FDA, and EU hygiene standards
• Integrated audible/visual alarm system with programmable threshold triggers and automatic anomaly logging
• Self-calibrating design with user-defined calibration intervals; eliminates manual recalibration downtime and human error
• Full-width transverse probe movement mechanism for uniform coverage across wide conveyors (up to 1200 mm)

Sample Compatibility & Compliance

The SpectraTrend HT accommodates diverse food matrices—including textured, glossy, matte, translucent, or highly reflective surfaces—without requiring sample preparation or contact. Its optical design inherently suppresses background interference (e.g., conveyor belts, trays, or packaging substrates), isolating only the target product’s spectral signature. The system complies with key regulatory and quality frameworks: ASTM E308 (computing tristimulus values), ISO 11664-4 (CIE colorimetry), USP (Analytical Instrument Qualification), and supports PAT (Process Analytical Technology) implementation per FDA Guidance for Industry. Audit trails, electronic signatures, and 21 CFR Part 11–compliant data handling are enabled via EasyMatch QC software—facilitating GLP/GMP-aligned validation and routine IQ/OQ/PQ documentation.

Software & Data Management

HunterLab EasyMatch QC serves as the central interface for configuration, visualization, and export. It provides synchronized display of color metrics (L*, a*, b*, C*, h°, ΔE*ab, Yellowness Index, Whiteness Index) alongside real-time height profiles. Trend charts, spectral overlays, pass/fail heatmaps, and statistical process control (SPC) dashboards support DMAIC and Six Sigma workflows. Data is stored in vendor-neutral formats (CSV, XML) and exportable directly to Microsoft Excel, LIMS, MES, or SCADA systems. Role-based access control allows granular permission assignment (e.g., operator, QA supervisor, validation engineer). Custom report templates—configurable for shift summaries, batch certificates, or deviation investigations—ensure traceability from raw measurement to final release decision.

Applications

The SpectraTrend HT is validated across high-variability food manufacturing processes: continuous baking (bread, cookies, crackers), extrusion (snack pellets, cereal, pet food), thermal processing (meat patties, sausages, plant-based analogs), freezing (frozen meals, dough products), and coating operations (chocolate enrobing, glazing, dusting). It delivers consistent performance on products with dynamic surface geometry—such as puffed snacks, irregularly shaped pastries, layered sandwiches, or vacuum-packed items—where conventional colorimeters fail due to height sensitivity or specular reflection artifacts. Integration with PLCs enables automated rejection signaling and recipe adjustment feedback loops, reducing scrap rates and enabling first-pass yield optimization.

FAQ

How does the SpectraTrend HT handle varying conveyor speeds or inconsistent product spacing?
It uses real-time height tracking and adaptive sampling logic to trigger measurements only when product is within optimal detection range—ensuring consistent data density regardless of line velocity.
Can it distinguish between product color and conveyor belt background?
Yes—the system applies proprietary background suppression algorithms that isolate spectral contributions solely from the elevated product surface, ignoring underlying substrate reflectance.
Is the instrument suitable for USDA-inspected wet or steam-cleaned environments?
Yes—its NEMA 4/IP56 housing meets sanitary equipment requirements for frequent washdown with caustic or acidic solutions.
Does it require periodic recalibration against physical standards?
No—its self-calibrating optical path and stable LED source eliminate the need for manual reference tile checks during operation; scheduled verification remains optional per internal SOP.
How is data integrity maintained for regulatory audits?
EasyMatch QC logs all measurements with timestamps, operator IDs, environmental metadata, and system diagnostics—fully compliant with ALCOA+ principles and 21 CFR Part 11 audit trail requirements.
