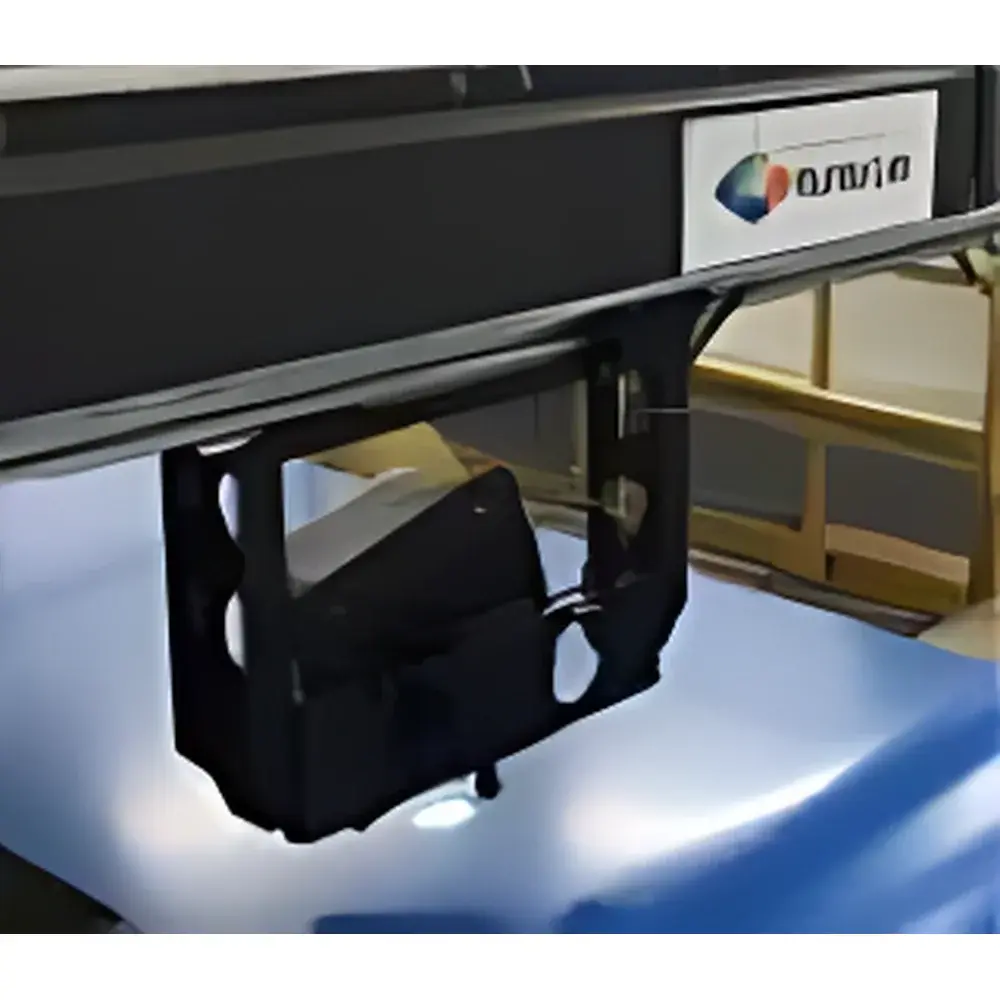

HunterLab SpectraTrend HT In-Line Paper Color Measurement System
| Brand | HunterLab |
|---|---|
| Origin | USA |
| Manufacturer Type | Authorized Distributor |
| Origin Category | Imported |
| Model | SpectraTrend HT In-Line Paper Colorimeter |
| Product Type | Spectrophotometric Color Measuring Instrument |
| Instrument Type | In-Line |
| Optical Geometry | 0°/45° Integrating Sphere |
| Light Source | Full-Spectrum Balanced Solid-State LED System |
| Spectral Range | 400–700 nm |
| Repeatability | ΔE*ab ≤ 0.03 |
Overview
The HunterLab SpectraTrend HT In-Line Paper Color Measurement System is a purpose-engineered, non-contact spectrophotometric sensor designed for continuous, real-time color and height monitoring on paper production lines. Based on 0°/45° optical geometry with an integrating sphere, it employs a thermally stable, full-spectrum solid-state LED light source (400–700 nm) to deliver laboratory-grade spectral reflectance data under dynamic industrial conditions. Unlike offline or handheld colorimeters, the SpectraTrend HT performs high-frequency measurements—up to five times per second—while simultaneously capturing both colorimetric values (CIE L*a*b*, ΔE*ab, Yellowness Index, Whiteness, etc.) and physical sample height (±0.1 mm resolution). This dual-parameter capability enables automatic compensation for web height variation, conveyor speed fluctuations, and surface topography—critical for maintaining measurement integrity across moving paper webs with variable caliper, moisture content, or coating uniformity.
Key Features
- True in-line operation with NEMA 4 / IP56-rated enclosure for dust- and water-resistant deployment in humid, high-speed paper mill environments
- Automated cross-web traverse system with programmable scan width coverage and collision-avoidance logic for probe retraction
- Real-time height-synchronized color correction: compensates for spectral shift due to distance variation between sensor and paper surface
- Self-calibrating architecture with user-defined calibration intervals—eliminating manual intervention, downtime, and operator exposure risks
- High-repeatability optical path (ΔE*ab ≤ 0.03) validated against ASTM E308 and ISO 11664-4 standards
- Gigabit Ethernet interface supporting Modbus TCP and OPC UA protocols for seamless integration into PLC-controlled DCS/MES systems
- Integrated audible/visual alarm system for out-of-tolerance events, with timestamped anomaly logging and traceable event history
Sample Compatibility & Compliance
The SpectraTrend HT is optimized for uncoated, coated, recycled, and specialty papers—including newsprint, kraft, boardstock, and tissue—across grammage ranges from 40 g/m² to 400 g/m². Its 100 mm working distance and 10 nm spectral bandwidth ensure robust performance on textured, glossy, or matte surfaces without requiring surface contact or pressure application. The system complies with Good Manufacturing Practice (GMP) principles as defined in FDA 21 CFR Part 11 for electronic records and signatures, supports audit-trail-enabled data capture, and aligns with Quality by Design (QbD) frameworks including PAT (Process Analytical Technology), Lean Six Sigma (DMAIC), and LQM (Laboratory Quality Management) requirements. All firmware and calibration routines are version-controlled and documented per ISO/IEC 17025:2017 clause 7.7.
Software & Data Management
HunterLab EasyMatch QC software serves as the central interface for configuration, visualization, and reporting. It provides synchronized display of color metrics and height data per measurement point, with pass/fail status indicators based on user-defined tolerances (e.g., CIEDE2000, ΔL*Δa*Δb*, or custom multi-parameter limits). Trend analysis includes SPC charts (X-bar/R, CUSUM), spectral overlay comparisons, and time-series delta-E mapping across the web width. Reports are exportable in PDF, CSV, or native Microsoft Excel formats; templates support configurable fields for batch ID, shift, operator, and machine ID. Role-based access control (RBAC) enforces secure user permissions, while database logging meets GLP/GMP audit requirements—including immutable timestamps, operator login IDs, and calibration event metadata.
Applications
Primary deployment targets include papermaking wet-end consistency control, coating station optimization, calendering quality verification, and reel-to-reel color uniformity validation. Secondary applications extend to corrugated board, label stock, security paper, and packaging substrates where color fidelity, brightness stability, and yellowness control directly impact brand perception and regulatory compliance (e.g., ISO 11475 for paper brightness). The system’s height detection functionality also supports thickness profiling and basis weight estimation when correlated with calibrated reference samples—enabling predictive maintenance alerts for roll wear or nip pressure drift.
FAQ
What is the recommended installation location for optimal accuracy on a paper machine?
Mounting should occur after final drying and calendering but before slitting—typically at the reel-up station—to capture stabilized color and surface morphology.
Does the SpectraTrend HT require periodic lamp replacement?
No. Its solid-state LED illumination system has a rated lifetime exceeding 100,000 hours with negligible spectral drift, eliminating consumable maintenance.
Can it interface with legacy DCS platforms lacking modern Ethernet infrastructure?
Yes—via optional protocol converters supporting RS-485 Modbus RTU or analog 4–20 mA output for L*, a*, b* channels.
How is inter-instrument agreement ensured across multiple units on one line?
Each unit undergoes factory spectral matching using NIST-traceable ceramic tiles and participates in HunterLab’s global instrument harmonization program.
Is spectral data stored locally or only accessible via network connection?
Raw 10-nm interval spectral data (31 points) is buffered onboard and transmitted continuously; local SD card logging is available as an optional module for redundant backup.
