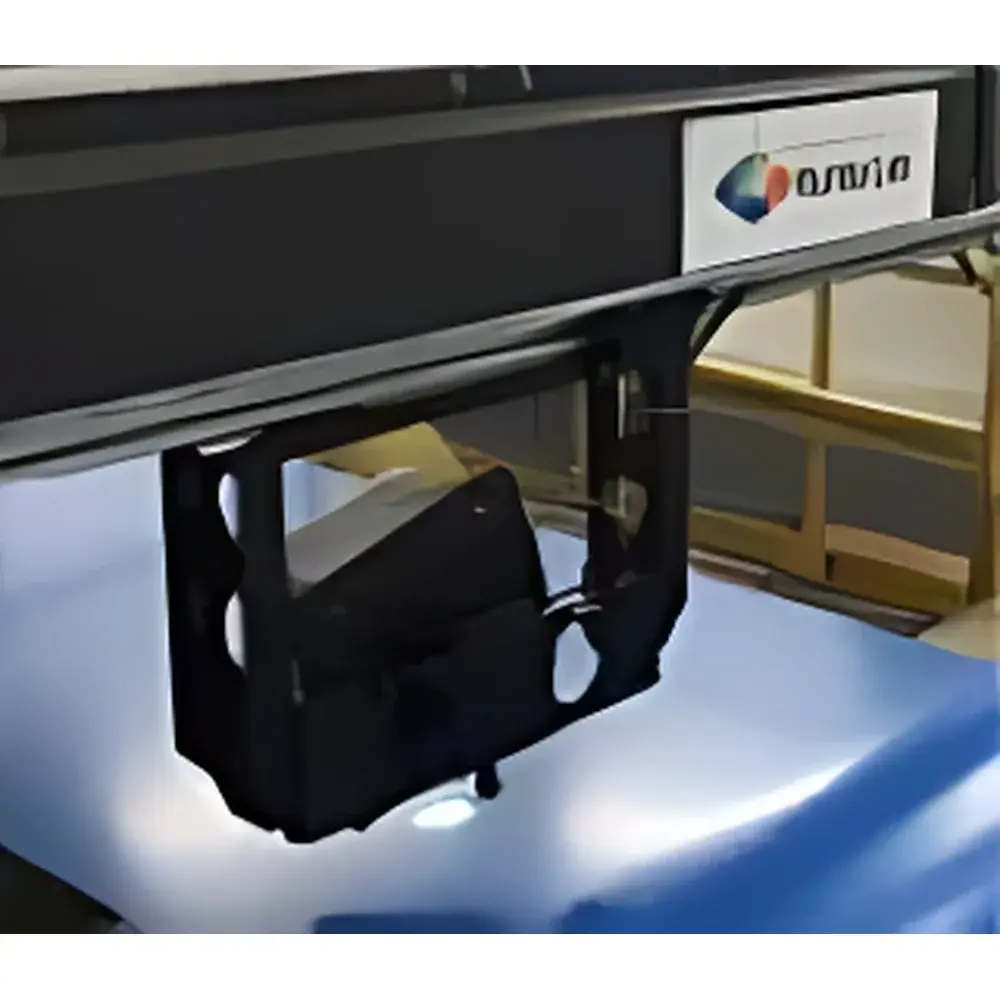

HunterLab SpectraTrend HT In-Line Plastic Color Measurement System

Overview

The HunterLab SpectraTrend HT is a purpose-engineered in-line spectrophotometric color measurement system designed exclusively for continuous, non-contact color and height monitoring of molten, extruded, or conveyed plastic profiles, pellets, films, and granules in industrial production environments. Operating on the principle of diffuse reflectance spectroscopy with a calibrated 0°/45° optical geometry, the SpectraTrend HT captures full spectral data (400–700 nm) at 10 nm resolution using a thermally stabilized solid-state LED light source. Its integrated height-sensing capability enables real-time geometric compensation—correcting for variations in sample distance, surface topography, and conveyor speed fluctuations—ensuring metrologically traceable color values (CIE L*a*b*, ΔE*ab, Yellowness Index, etc.) under dynamic process conditions. Unlike benchtop colorimeters, the SpectraTrend HT delivers laboratory-grade accuracy in harsh manufacturing settings, supporting Process Analytical Technology (PAT) frameworks, Lean Six Sigma initiatives, and FDA-aligned quality systems.

Key Features

• True in-line, non-contact measurement at up to 5 Hz sampling rate—no physical contact with hot, moving, or abrasive surfaces
• Simultaneous dual-parameter acquisition: spectral reflectance (400–700 nm) and object height (0–100 mm detection range)
• Automatic height-based color compensation algorithm—eliminates errors from sample standoff variation, belt vibration, or profile warpage
• NEMA 4 / IP56-rated rugged enclosure—designed for dust, moisture, and temperature fluctuations typical in extrusion, compounding, and pelletizing lines
• Full-width motorized traverse system with acoustic-optical alarm—enables safe probe retraction during maintenance or jam events
• Self-calibrating optical path with user-definable calibration intervals—reducing reliance on manual intervention and minimizing operator exposure risk
• Integrated Ethernet interface (10/100BASE-T)—supports direct connection to plant networks, PLCs (via Modbus TCP), SCADA, and MES without serial port limitations

Sample Compatibility & Compliance

The SpectraTrend HT accommodates a broad spectrum of plastic materials—including polyolefins (PP, PE), engineering resins (PC, ABS, PA), thermoplastic elastomers (TPE), PVC, and masterbatch-dosed compounds—regardless of gloss level, texture, or opacity. It maintains measurement consistency across irregular geometries (e.g., extruded profiles, blown film edges, injection-molded parts) by dynamically rejecting background interference (e.g., conveyor belt, stainless steel chute). The system complies with ASTM D2244 (Standard Practice for Calculation of Color Differences), ISO 11664 (Colorimetry), and supports audit-ready documentation required under FDA 21 CFR Part 11, EU GMP Annex 11, and ICH Q5E stability protocols. All spectral data are traceable to NIST-traceable standards via factory calibration certificates.

Software & Data Management

Controlled via HunterLab EasyMatch QC software, the SpectraTrend HT provides a validated, role-based interface compliant with GLP/GMP workflows. Users configure pass/fail tolerances per color standard (e.g., L* ±0.5, a* ±0.3), define custom reporting templates (PDF, Excel, CSV), and generate time-stamped trend charts, spectral overlays, and statistical process control (SPC) dashboards. Audit trails record all parameter changes, calibration events, and user actions. Data export supports automated transfer to LIMS, SAP QM, or Microsoft Power BI. Optional OPC UA integration enables bidirectional communication with DCS and IIoT platforms for closed-loop color correction.

Applications

The SpectraTrend HT is deployed across polymer processing stages: real-time color verification of extruded pipe, sheet, and profile; masterbatch dispersion monitoring in twin-screw extruders; batch-to-batch consistency validation in pellet production; and color drift detection during film blowing or thermoforming. It is equally effective for non-plastic applications requiring simultaneous color and dimensional feedback—such as baked goods (bread crust browning), coated metal strips, vinyl flooring, pharmaceutical tablets, and food pellets—where surface height variability impacts spectral response. Its robustness and metrological fidelity make it suitable for QS-9000, IATF 16949, and ISO 9001-certified production lines.

FAQ

What is the recommended minimum sample size for reliable measurement?
For stable results, the illuminated area should fully cover the sensor’s 25 mm diameter field-of-view; minimum detectable feature size is ~3 mm when height-compensated.
Can the SpectraTrend HT be integrated with existing PLC-based control systems?
Yes—native Modbus TCP and optional Profibus DP/Profinet gateways enable seamless integration with Allen-Bradley, Siemens, and Mitsubishi PLCs for real-time setpoint adjustment.
How often does the instrument require recalibration?
Factory calibration remains valid for 12 months under normal operating conditions; field verification using supplied ceramic tiles is recommended before each production shift.
Does the system support multiple color standards simultaneously?
Yes—up to 100 user-defined standards with independent tolerances, lighting conditions (D65, A, F2), and observer angles (2° or 10°) can be stored and recalled dynamically.
Is height measurement traceable to international length standards?
Height sensing is factory-calibrated against NIST-traceable gauge blocks; uncertainty is ±0.1 mm over the 0–100 mm operational range.
