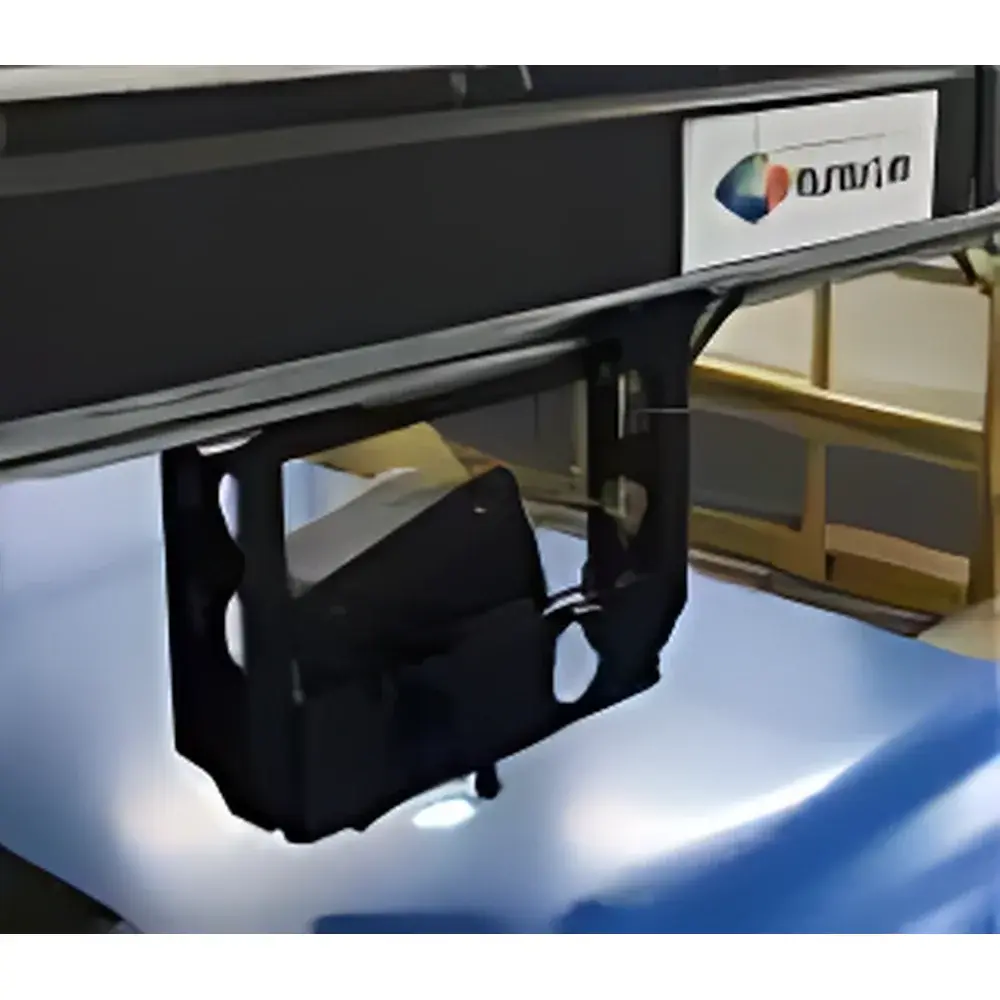

HunterLab SpectraTrend HT Online Paper Color Measurement System
| Brand | HunterLab |
|---|---|
| Origin | USA |
| Manufacturer Type | Authorized Distributor |
| Origin Category | Imported |
| Model | SpectraTrend HT |
| Product Type | Spectrophotometric Colorimeter |
| Instrument Type | In-Line |
| Optical Geometry | 0/45° Integrating Sphere |
| Light Source | Full-Spectrum Balanced Solid-State LED System |
| Spectral Range | 400–700 nm |
| Repeatability | ΔE*ab ≤ 0.03 |
Overview
The HunterLab SpectraTrend HT Online Paper Color Measurement System is an industrial-grade, non-contact spectrophotometer engineered for continuous, real-time color and height monitoring on paper manufacturing lines. Based on 0/45° optical geometry with an integrating sphere, it employs a full-spectrum, thermally stabilized solid-state LED light source (400–700 nm) to deliver laboratory-grade spectral reflectance data under dynamic production conditions. Unlike offline or handheld instruments, the SpectraTrend HT performs high-speed, synchronized measurements at up to 5 Hz—capturing both CIE L*a*b*, ΔE*ab, and physical sample height in a single acquisition cycle. Its design adheres to process analytical technology (PAT) principles defined in FDA Guidance for Industry (2004) and supports Quality by Design (QbD) frameworks aligned with ICH Q8(R3), ISO 9001:2015, and ISO/IEC 17025 requirements for measurement traceability and uncertainty management.
Key Features
- Real-time in-line color measurement with simultaneous height sensing—enabling automatic compensation for web elevation variations, belt speed fluctuations, and surface topography.
- NEMA 4 / IP56-rated rugged enclosure for reliable operation in high-humidity, dust-prone paper mill environments.
- 10 nm spectral bandwidth and 4-inch (100 mm) working distance—optimized for stable signal capture across variable caliper, gloss, and fiber orientation typical of uncoated, coated, and recycled paper grades.
- Auto-compensation algorithms correct for geometric and photometric deviations caused by sample height shifts—ensuring metrological consistency without manual recalibration.
- Ethernet-based communication (TCP/IP) with native Modbus TCP and OPC UA support—enabling seamless integration into PLC-controlled SCADA systems and MES platforms without serial port dependency or cable-length constraints.
- Self-diagnostic routines and scheduled auto-calibration—configurable via EasyMatch QC software to align with preventive maintenance intervals and GLP-compliant audit trails.
Sample Compatibility & Compliance
The SpectraTrend HT is validated for continuous measurement of moving paper webs—including kraft, bleached sulfate, newsprint, boardstock, and specialty packaging substrates—at line speeds up to 1,200 m/min. Its optical architecture complies with ASTM E308-23 (computing tristimulus values from spectral data), ISO 11664-4:2019 (CIE colorimetric observers), and TAPPI T 425 (color measurement of paper and paperboard). All firmware and calibration protocols are documented per FDA 21 CFR Part 11 requirements for electronic records and signatures, including user access control, audit logging, and secure data export. Height-sensing functionality meets ISO 2470-1:2019 (paper brightness) positional tolerance specifications.
Software & Data Management
HunterLab EasyMatch QC software provides centralized configuration, visualization, and reporting for single or multi-sensor deployments. It displays real-time L*a*b*, ΔE*ab, whiteness (CIE W10), yellowness (ASTM E313), and height metrics with pass/fail status overlays. Trend analysis includes SPC charts (X-bar/R, CUSUM), spectral deviation heatmaps, and batch-level comparative reports. Data exports support CSV, XML, and direct Microsoft Excel (.xlsx) formatting with customizable templates. Role-based permissions allow segregation of operator, supervisor, and administrator functions—supporting GMP-aligned workflow governance. Historical datasets are time-stamped, versioned, and stored with SHA-256 integrity checksums for regulatory review.
Applications
The SpectraTrend HT is deployed across pulp & paper production stages—from wet-end color adjustment and coating uniformity verification to reel-to-reel quality gatekeeping and final product release testing. It supports closed-loop control of dye dosing systems, enables rapid root-cause analysis of shade drift during grade changes, and reduces off-spec material generation by >35% in benchmark installations. While optimized for paper, its dual-sensing capability extends utility to continuous monitoring of extruded polymers, laminated films, corrugated board, and nonwoven textiles where surface geometry affects color perception. Integration with enterprise QMS platforms facilitates automated CAPA initiation upon out-of-tolerance events.
FAQ
What is the recommended calibration frequency for in-line operation?
Calibration interval is configurable in EasyMatch QC; typical deployment schedules range from 4 to 24 hours based on environmental stability and process criticality—supported by NIST-traceable ceramic tile standards.
Does the system require periodic lamp replacement?
No—solid-state LED illumination has a rated lifetime exceeding 100,000 hours with minimal spectral drift, eliminating consumable lamp costs and downtime.
Can SpectraTrend HT data be integrated with SAP QM or Siemens SIMATIC IT?
Yes—via standard Ethernet protocols (OPC UA, Modbus TCP) and custom API connectors developed under HunterLab’s OEM integration program.
How does height compensation improve color accuracy on uneven paper surfaces?
The integrated height sensor dynamically adjusts integration time and gain to maintain constant irradiance-to-reflectance ratio—correcting for cosine error and specular reflection variance induced by local caliper changes.
Is spectral data export compliant with ASTM E2534-22 for digital archiving?
Yes—raw 10-nm interval spectral reflectance data (31 points) is exportable in ASCII format conforming to ASTM E2534-22 Annex A1 for long-term spectral repository compliance.
