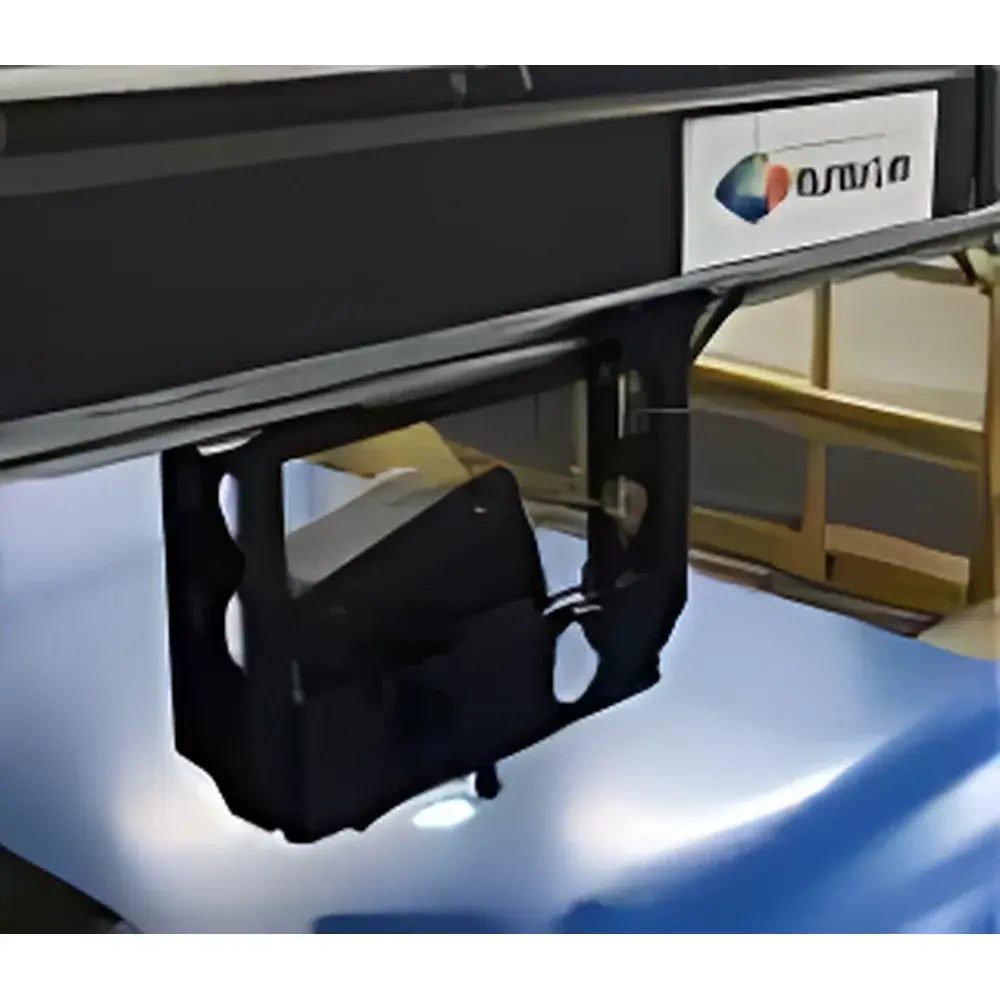

HunterLab STOL-S Series Online Food Colorimeter (Customizable)

Overview

The HunterLab STOL-S Series Online Food Colorimeter is an industrial-grade, in-line spectrophotometric color measurement system engineered for continuous, real-time color monitoring in food manufacturing environments. Utilizing a fixed 0/45° optical geometry with an integrating sphere and full-spectrum LED illumination, the STOL-S captures reflectance spectra across the visible range (400–700 nm) to compute CIE L*a*b*, L*C*h, and ΔE*ab values with metrological traceability to NIST standards. Unlike benchtop or handheld instruments, the STOL-S is designed for permanent integration into production lines—mounted directly above conveyors, chutes, or filling stations—to deliver non-contact, high-speed spectral acquisition at user-defined intervals (e.g., per unit, per second, or per batch). Its core purpose is process color consistency control: detecting subtle chromatic shifts caused by ingredient variability, thermal degradation, oxidation, or formulation drift before off-spec product reaches packaging.

Key Features

• In-line spectrophotometric architecture with robust IP65-rated housing, suitable for washdown environments compliant with USDA and FDA sanitary design principles.
• Automatic self-calibration with programmable interval scheduling (e.g., every 15 minutes, per shift, or on-demand), eliminating manual intervention and associated operator exposure risks.
• Full-width automated traverse mechanism enabling precise lateral scanning across wide product streams (up to 1.2 m), ensuring representative sampling across heterogeneous surfaces such as baked goods, cheese blocks, or confectionery coatings.
• Integrated acoustic-optic alarm system that triggers upon detection of color deviation exceeding user-defined tolerance thresholds (e.g., ΔE*ab > 0.8), with timestamped event logging.
• Optical path protection via purge air interface and sapphire window to resist moisture, dust, and condensation in high-humidity processing zones.
• Factory-aligned spectral response ensures data coherence with HunterLab’s laboratory-grade instruments (e.g., UltraScan VIS, MiniScan EZ), enabling direct correlation between inline process data and QC lab reference measurements under identical CIE illuminants (D65, A, F2).

Sample Compatibility & Compliance

The STOL-S accommodates diverse food matrices including but not limited to: liquid dairy (yogurt, cream), semi-solids (sauces, spreads), particulates (cereal flakes, dried fruit), and textured solids (baked bread crusts, extruded snacks). Surface finish, gloss level, and particle size distribution are accounted for via standardized 0/45° geometry, minimizing directional bias common in d/8° systems. The instrument complies with IEC 61326-1 (EMC for industrial environments), meets CE marking requirements, and supports audit-ready operation under FDA 21 CFR Part 11 when deployed with validated software configurations. Calibration traceability is maintained through annual NIST-traceable verification services offered by HunterLab-certified service partners.

Software & Data Management

The STOL-S operates with HunterLab’s Enterprise Color Management Software (ECMS), a Windows-based platform supporting OPC UA and Modbus TCP protocols for seamless integration into SCADA, MES, and Historian systems (e.g., Siemens WinCC, Rockwell FactoryTalk, OSIsoft PI). ECMS provides real-time dashboards, SPC charting (X-bar/R, CUSUM), automated report generation (PDF/CSV), and secure role-based access control. All color events—including out-of-tolerance alarms, calibration logs, and spectral snapshots—are time-stamped and stored with SHA-256 hash integrity verification. Audit trails satisfy GLP/GMP documentation requirements, including electronic signatures, change history, and user activity logs compliant with Annex 11 and ISO/IEC 17025.

Applications

• Real-time color grading of fresh produce (e.g., tomato ripeness index via a* trajectory)
• Batch-to-batch consistency verification in sauce and dressing blending lines
• Detection of Maillard reaction progression in baked goods and roasted nuts
• Monitoring pigment stability in natural colorant formulations (e.g., anthocyanins, turmeric extract)
• Inline validation of cleaning-in-place (CIP) efficacy via residual color carryover assessment
• Correlation of instrumental color with sensory panel outcomes using predictive modeling (PLS regression)

FAQ

Is the STOL-S compatible with existing factory automation infrastructure?
Yes—it supports industry-standard industrial communication protocols including EtherNet/IP, PROFINET, and Modbus TCP, enabling bidirectional data exchange with PLCs and MES platforms.
Can measurement intervals be adjusted without stopping production?
Yes—interval parameters, tolerance limits, and alarm thresholds are configurable remotely via ECMS without requiring physical access or line shutdown.
How is spectral data validated against laboratory instruments?
HunterLab provides cross-instrument calibration packages and spectral matching algorithms that align STOL-S output with UltraScan VIS or MiniScan EZ readings under identical measurement conditions and CIE observer settings.
What maintenance is required for long-term operational reliability?
Annual NIST-traceable recalibration, quarterly sapphire window inspection, and routine purge air filter replacement constitute the recommended preventive maintenance schedule.
Does the system support multi-language HMI interfaces?
ECMS supports English, Spanish, French, German, and simplified Chinese UI localization, with customizable label templates for operator-facing displays.
