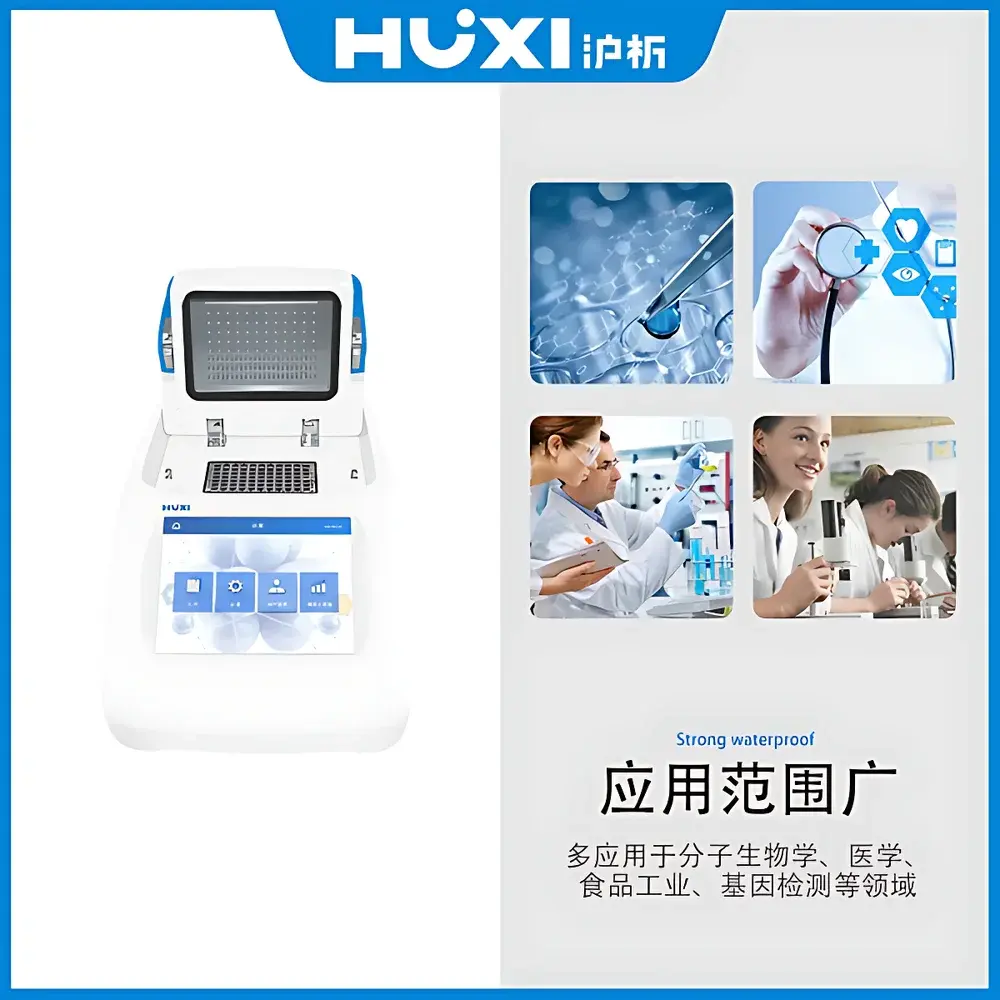

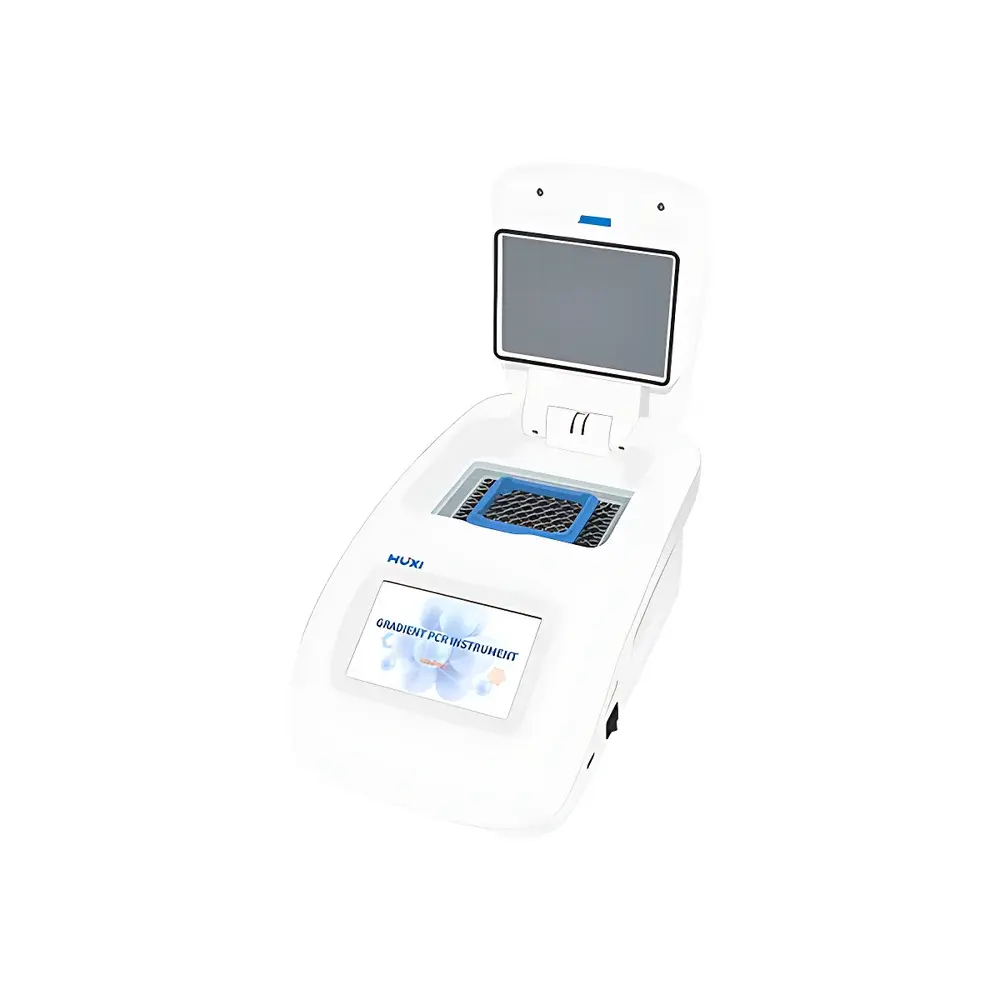

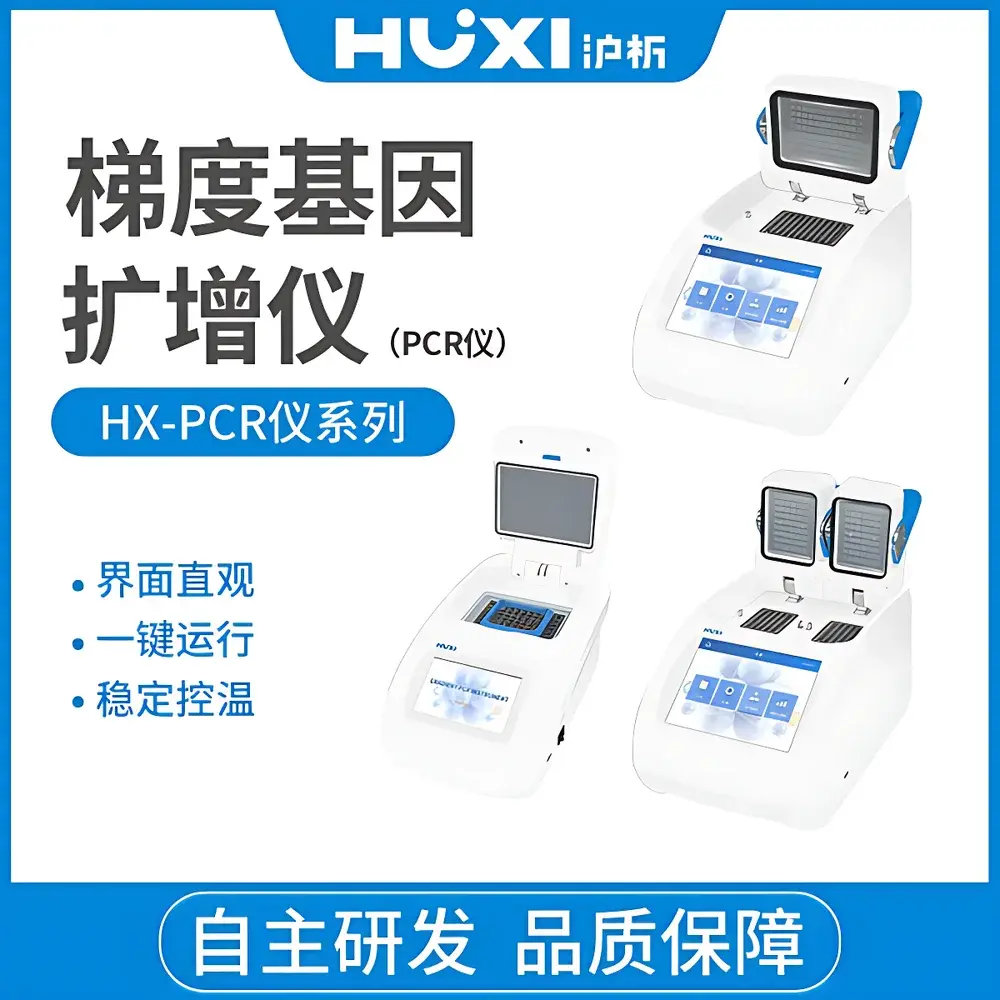

HUXI HX-PCR96 Gradient Thermal Cycler

Overview

The HUXI HX-PCR96 Gradient Thermal Cycler is a precision-engineered benchtop instrument designed for robust and reproducible nucleic acid amplification via the polymerase chain reaction (PCR). Built upon Peltier-based thermoelectric heating and cooling architecture, it delivers rapid thermal transitions and exceptional temperature fidelity across the full operational range of 0–105 °C. Its core functionality centers on gradient-enabled optimization—allowing simultaneous testing of 12 discrete temperature conditions across the block—to accelerate assay development for primer annealing, touchdown PCR, and multiplex reaction tuning. The system employs a closed-loop PID control algorithm coupled with real-time block temperature feedback, ensuring stable thermal profiles essential for high-fidelity DNA replication, especially in applications demanding stringent reproducibility such as clinical diagnostics validation, food pathogen screening, and academic gene expression studies.

Key Features

• High-performance thermoelectric module array (3 independent Peltier elements) enabling a maximum heating rate of 5 °C/s and cooling rate of 4.5 °C/s
• 12-zone gradient capability with programmable span from 0.1 to 42 °C, supporting empirical optimization of annealing temperatures without sequential runs
• Industrial-grade Linux-based operating system with deterministic real-time task scheduling—validated for uninterrupted 7×24 operation under laboratory conditions

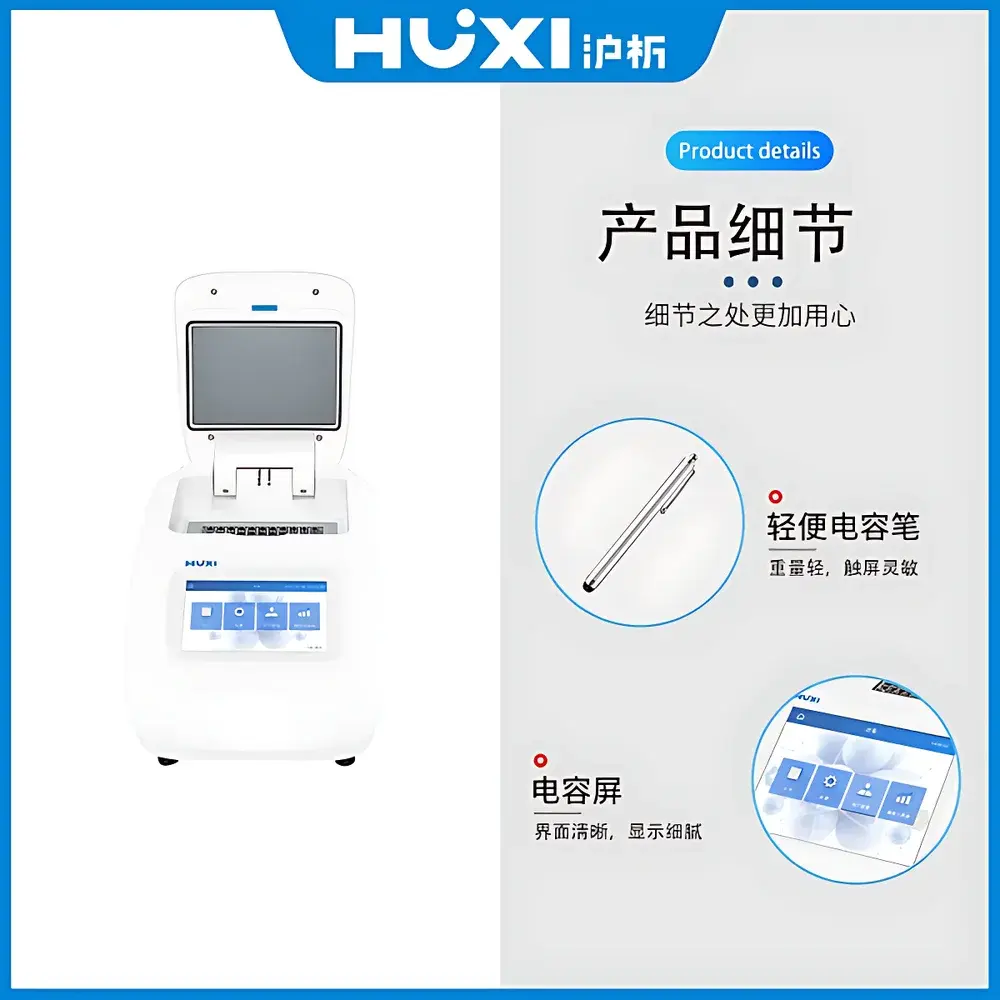

• 5-inch capacitive touchscreen interface with intuitive icon-driven navigation; supports protocol creation, editing, duplication, and password-protected user profiles
• Intelligent hot lid system (adjustable 30–110 °C) with auto-shutdown when block temperature falls below 30 °C or after program completion
• USB 2.0 port for direct protocol import/export, firmware updates, and audit-trail-compatible data logging to external flash storage
• Thermal block engineered for uniform heat distribution: ≤ ±0.25 °C well-to-well variation across all 96 positions under standard cycling conditions
• Comprehensive safety architecture including overtemperature cutoff, lid-open detection, and power-failure recovery with automatic resume from last completed step

Sample Compatibility & Compliance

The HX-PCR96 accommodates standard microtiter formats without adapter requirements: 96-well plates (semi-skirted or non-skirted), 12×8 or 8×12 tube strips, and individual 0.2 mL PCR tubes (20–23 mm height). All thermal specifications—including block accuracy (≤ ±0.2 °C), gradient accuracy (≤ ±0.3 °C), and ramp rate linearity—are verified per ISO/IEC 17025-accredited calibration procedures using NIST-traceable reference probes. While not pre-certified for IVD use, the instrument’s firmware architecture supports configuration locking, electronic signature capture, and time-stamped audit logs—enabling alignment with GLP, GMP, and FDA 21 CFR Part 11 requirements when deployed within validated laboratory workflows.

Software & Data Management

The embedded Linux OS provides deterministic execution of thermal profiles with sub-second timing resolution. Protocols are stored internally (>10,000 capacity) and backed up externally via USB mass storage class devices. Each saved program includes metadata: timestamp, operator ID, cycle count, and thermal profile checksum. Firmware supports optional remote monitoring via serial-over-USB (RS-232 emulation), facilitating integration into LIMS environments. All data exports comply with CSV and XML schema standards for traceability and third-party analysis software interoperability (e.g., Bio-Rad CFX Maestro, Thermo Fisher Connect).

Applications

• Optimization of primer annealing temperatures in novel assay development
• Touchdown PCR and long-range PCR (up to 20 kb) requiring precise ramp control and thermal stability
• High-throughput genotyping and SNP screening in agricultural biotechnology labs
• Pathogen detection in food safety testing (e.g., Salmonella, Listeria) per AOAC and ISO 16140 guidelines
• Pre-sequencing library amplification where bias minimization depends on uniform well-to-well thermal delivery
• Teaching laboratories requiring reliability, intuitive interface, and low maintenance overhead

FAQ

Does the HX-PCR96 support remote control via Ethernet or Wi-Fi?
No—communication is limited to USB 2.0 host-device mode for data transfer and firmware updates. Network connectivity is not implemented.
Can the thermal block be calibrated by the end user?
Field calibration requires authorized service tools and NIST-traceable reference sensors; routine verification using external probe kits is recommended per ISO 13485 Annex A guidance.
Is the instrument compliant with IEC 61010-1 for laboratory safety?
Yes—the design meets IEC 61010-1:2010 Edition 3 for electrical safety and electromagnetic compatibility (EMC Class B), with CE marking documentation available upon request.
What is the warranty coverage and service support structure?
Standard warranty is 24 months parts-and-labor; extended service plans include on-site preventive maintenance and priority technical escalation through HUXI’s Shanghai-based engineering team.
Are consumables or proprietary reagents required?
No—HX-PCR96 operates with universal 0.2 mL PCR tubes and plates; no vendor-locked consumables or licensing fees apply.
