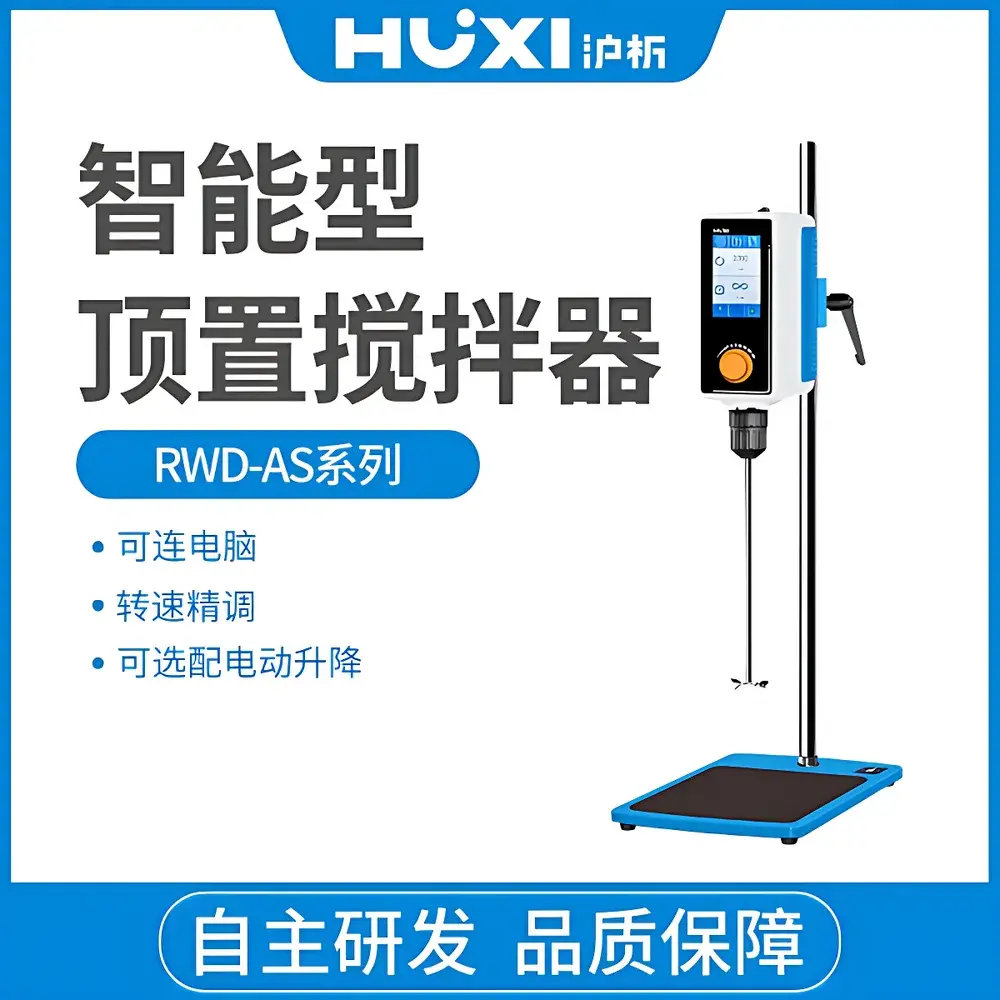

HUXI RWD50AS Intelligent Overhead Stirrer

Overview

The HUXI RWD50AS Intelligent Overhead Stirrer is an electronically controlled, microprocessor-driven laboratory stirring system engineered for precision, repeatability, and operational safety in demanding R&D and quality control environments. Designed around Couette flow principles, it delivers consistent shear input across a wide viscosity spectrum—from low-viscosity aqueous solutions to highly structured non-Newtonian systems—by maintaining set rotational speed regardless of load-induced torque fluctuations. Its overhead configuration eliminates contamination risks associated with magnetic stir bars and enables direct mechanical coupling to high-torque impellers, making it suitable for viscous dispersions, heterogeneous catalysis, polymerization reactions, and temperature-sensitive formulations requiring simultaneous stirring and thermal management.

Key Features

• Brushless DC motor architecture: Eliminates carbon dust generation, ensuring sample integrity in sterile, cleanroom, or analytical-grade applications where particulate contamination must be avoided.
• High-torque output: Rated at up to 40 N·cm, supporting robust mixing of medium-to-high viscosity samples (up to 100,000 mPa·s) without speed droop or thermal runaway.
• 4.3-inch capacitive LCD touchscreen interface: Glove-compatible operation with intuitive icon-based navigation; features screen lock mode, real-time RPM display, and trend visualization of torque response during operation.
• Intelligent start-up profile: Programmable soft-start function minimizes splashing and vortex formation during initial acceleration—critical for volatile solvents or low-surface-tension media.

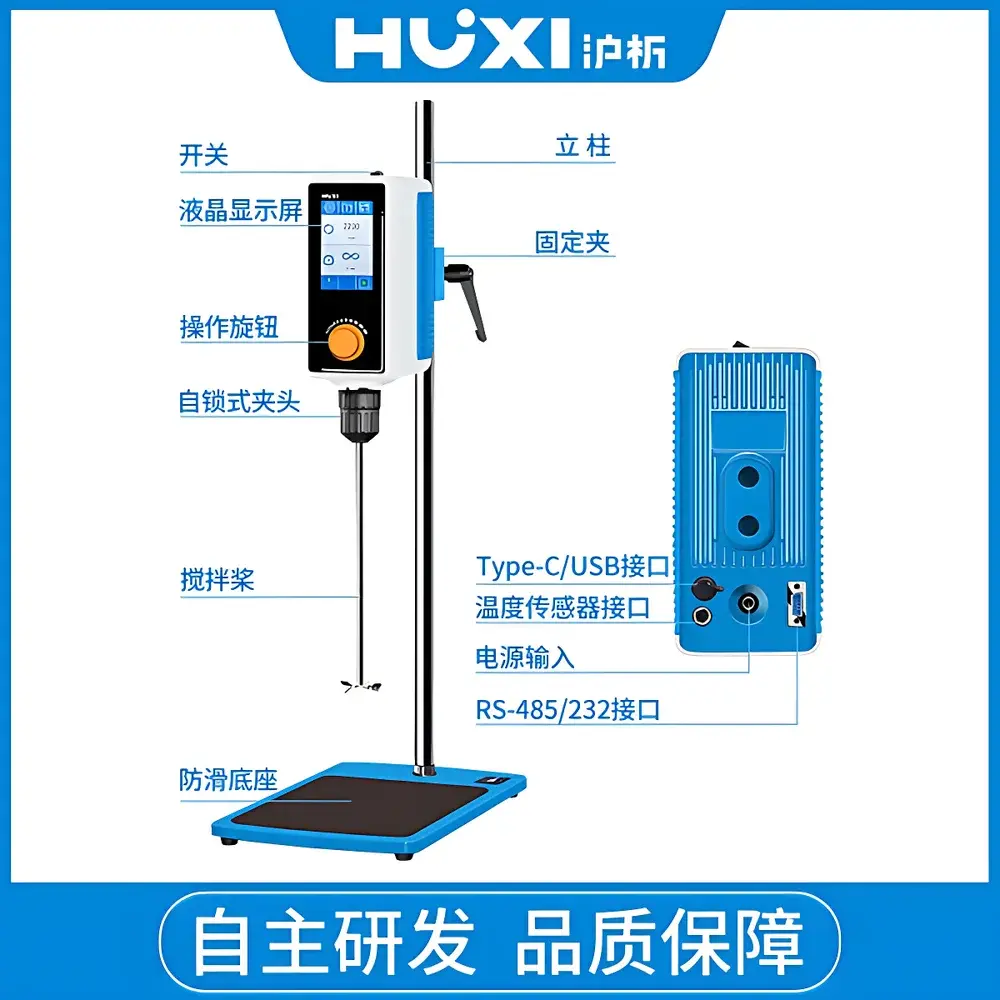

• Self-aligning quick-release chuck: Corrosion-resistant polymer construction resists degradation from organic solvents (e.g., chloroform, DMF, THF); audible click confirmation ensures proper impeller seating and prevents eccentric rotation.
• Dual support rod mounting system: Provides enhanced mechanical stability during extended runs or high-torque conditions; accommodates standard lab frame clamps and integrates seamlessly with jacketed reactors or temperature-controlled baths.
• Comprehensive electronic protection suite: Integrated overcurrent, short-circuit, and thermal overload detection triggers automatic shutdown with visual and audible alarm—compliant with IEC 61010-1 safety requirements for laboratory equipment.
• Optimized thermal management: Redesigned motor housing and airflow pathways reduce acoustic noise to ≤55 dB(A) at 1 m distance and extend service life under continuous duty cycles.

Sample Compatibility & Compliance

The RWD50AS supports glass, stainless steel, PTFE-coated, and Hastelloy impellers for compatibility with corrosive, abrasive, or ultra-pure process streams. Its −160 °C to +600 °C operating envelope—when used with compatible external heating/cooling systems—enables integration into cryogenic synthesis, high-temperature catalytic testing, and accelerated stability studies. The unit meets CE marking requirements per Directive 2014/30/EU (EMC) and 2014/35/EU (LVD), and its electrical isolation design conforms to EN 61326-1 for laboratory measurement and control equipment. While not intrinsically rated for hazardous areas, optional ATEX-compliant enclosures are available upon request for solvent-rich environments.

Software & Data Management

Equipped with RS485 and USB Type-C interfaces, the RWD50AS supports bidirectional communication with HUXI’s proprietary PC-based control software (v3.2+). This platform enables remote parameter setting, real-time data logging (RPM, torque, elapsed time), and execution of multi-step protocols—including up to 99 programmable segments with variable speed, duration, and direction (forward/reverse). Audit trails include timestamped operator ID, parameter changes, and fault events—supporting GLP/GMP documentation needs. Data export formats include CSV and Excel-compatible .xlsx, facilitating integration into LIMS or statistical process control workflows.

Applications

• Pharmaceutical formulation development: Homogenization of suspensions, emulsions, and semi-solid dosage forms under controlled shear and temperature.
• Chemical process optimization: Kinetic studies of esterification, transesterification, and condensation reactions in jacketed glass reactors.
• Materials science: Dispersion of nanoparticles (e.g., graphene oxide, TiO₂) in polymer matrices; rheological preconditioning prior to viscometry or DSC analysis.
• Food & cosmetic R&D: Viscosity stabilization of creams, gels, and sauces; sensory consistency validation across batch scales.
• Biotechnology: Cell culture media preparation with oxygen-sensitive components; gentle agitation during enzymatic digestion protocols.

FAQ

Is the RWD50AS compatible with third-party temperature probes or PID controllers?
Yes—the device accepts analog 0–10 V or 4–20 mA signals via optional I/O expansion module for closed-loop temperature synchronization with external baths or heating mantles.
Can the torque trend graph be exported independently?
Yes—torque vs. time profiles are logged alongside RPM and can be extracted as time-series datasets for post-run analysis in MATLAB or Python.
What impeller types are recommended for high-viscosity polymer melts?
Anchor, helical ribbon, and double-helix impellers with diameters ≥60% of vessel ID are advised; maximum recommended viscosity is 100,000 mPa·s at 25 °C.
Does the unit support FDA 21 CFR Part 11-compliant electronic signatures?
Native support requires HUXI’s validated software package (optional add-on), which includes role-based access control, audit trail encryption, and electronic signature capture.
How often does the motor require maintenance?
The brushless motor is maintenance-free for ≥10,000 hours of operation; annual inspection of chuck wear and thermal sensor calibration is recommended for GxP environments.
