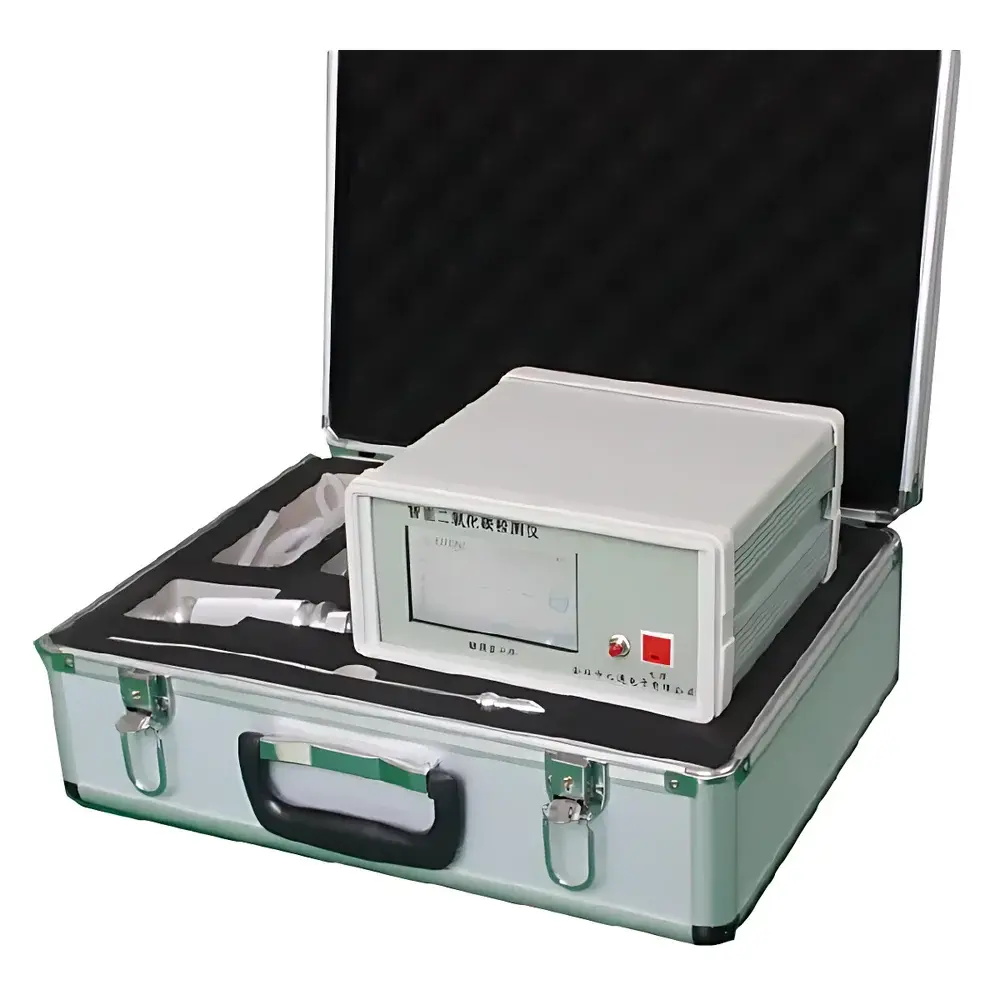

HX-1200 Intelligent NDIR Carbon Dioxide Analyzer

Overview

The HX-1200 Intelligent NDIR Carbon Dioxide Analyzer is a field-deployable, multi-parameter environmental monitoring instrument engineered for high-fidelity, real-time quantification of carbon dioxide (CO₂) concentration alongside ambient temperature and relative humidity. It employs dual-beam non-dispersive infrared (NDIR) spectroscopy — a reference-standard method specified in ISO 8573-1, ASTM D6245, and EN 13779 — to achieve selective, interference-resistant detection of CO₂ across its primary range of 0–10,000 ppm. The optical path is thermally stabilized and sealed against dust and condensation, ensuring long-term baseline stability and minimal zero drift (<±2 ppm/30 days). Unlike electrochemical or metal-oxide sensors, the NDIR architecture delivers inherent specificity to CO₂ without cross-sensitivity to CO, CH₄, SO₂, or common VOCs. The integrated sampling pump enables active draw-through sampling from ducts, confined spaces, or remote locations up to 30 meters away via flexible PTFE tubing, supporting both spot-checking and time-weighted average (TWA) assessments per OSHA and ACGIH guidelines.

Key Features

• Dual-channel NDIR optical module with temperature-compensated detector and reference cell for enhanced signal integrity and drift suppression
• Simultaneous triple-parameter acquisition: CO₂ (ppm/mg/m³), temperature (°C), and relative humidity (%RH) — all synchronized and timestamped
• 3.5-inch capacitive color touchscreen with intuitive icon-based UI, supporting English language interface and on-device data review (min/max/avg/peak values)
• Built-in rechargeable lithium-ion battery enabling >200 hours of continuous operation; supports hot-swap charging during measurement
• USB 2.0 interface compliant with CDC/ACM class protocols — no driver installation required on Windows/macOS/Linux for direct CSV export
• Configurable dual-stage alarm: visual (flashing red LED + screen highlight) and audible (85 dB @ 30 cm), with user-defined thresholds for CO₂, temperature, and RH
• Robust industrial enclosure (IP54-rated) with anti-glare screen coating and rubberized impact-resistant housing for field durability

Sample Compatibility & Compliance

The HX-1200 is validated for use with ambient air, indoor workplace atmospheres, HVAC duct streams, greenhouses, fermentation chambers, and classroom environments. It complies with core regulatory frameworks governing indoor air quality (IAQ) monitoring, including ASHRAE Standard 62.1 (Ventilation for Acceptable Indoor Air Quality), EU Directive 2009/125/EC (Eco-design requirements), and China’s GB/T 18204.2–2014 (Method for Determination of Carbon Dioxide in Public Places). Its NDIR methodology aligns with the fundamental principles of ISO 12039 (Determination of CO₂ in stack gases) and supports GLP-aligned data integrity when used with timestamped storage and USB export. No calibration gas certification is required for routine operation; however, periodic verification using certified 1000 ppm CO₂ standard (NIST-traceable) is recommended every 6 months per ISO/IEC 17025 guidance.

Software & Data Management

Data are stored locally in non-volatile memory with full metadata: date, time, CO₂ value, temperature, RH, and pump status. Each of the 256 records is individually addressable and exportable as UTF-8 encoded CSV via USB. The onboard file system supports chronological sorting and filter-by-range queries. While the device does not include proprietary PC software, exported files are natively compatible with Microsoft Excel, MATLAB, Python (pandas), and laboratory information management systems (LIMS). Audit trail functionality is maintained through immutable timestamps and absence of editable fields — consistent with FDA 21 CFR Part 11 expectations for electronic records in non-GMP but regulated IAQ applications (e.g., school health inspections, occupational hygiene reporting).

Applications

• Indoor air quality assessment in offices, schools, hospitals, and museums per ASHRAE IAQ guidelines
• Occupational safety monitoring in breweries, wineries, cold storage facilities, and biogas handling areas
• Validation of demand-controlled ventilation (DCV) system performance in smart buildings
• Field verification of CO₂ scrubber efficiency in controlled-environment agriculture (CEA) and vertical farms
• Environmental health investigations by municipal health supervision institutes and provincial CDC laboratories
• Educational demonstrations of gas kinetics, respiration physiology, and climate-related CO₂ dynamics

FAQ

What calibration standards are recommended for routine verification?
Certified CO₂ gas mixtures traceable to NIST (e.g., 1000 ppm in synthetic air, ±1% uncertainty) are advised for semi-annual verification. Zero calibration may be performed using CO₂-scrubbed air (e.g., soda lime filtered) or ambient outdoor air (400–420 ppm baseline).
Can the HX-1200 measure CO₂ in high-humidity or condensing environments?
The sensor module includes hydrophobic particulate filtration and internal dew-point compensation; however, sustained exposure to >95% RH or visible condensation may impair optical window clarity and is outside rated operating conditions.
Is the USB interface compatible with modern macOS and Linux distributions?
Yes — the device enumerates as a standard CDC ACM serial device; no additional drivers are needed. Terminal emulators (e.g., screen, minicom) or custom Python scripts can read real-time streaming output if enabled via menu setting.
Does the built-in pump support quantitative flow control or only passive aspiration?
The diaphragm pump operates at a fixed nominal flow rate of 0.8–1.2 L/min, optimized for NDIR cell residence time and signal-to-noise ratio. Flow is not user-adjustable but remains stable across battery voltage decay and inlet backpressure ≤5 kPa.
How is measurement uncertainty characterized across the full 0–10,000 ppm range?
Per manufacturer technical documentation, expanded uncertainty (k=2) is ±(20 ppm + 1.5% of reading) below 2000 ppm, and ±(30 ppm + 2.0% of reading) from 2000–10,000 ppm, based on inter-laboratory comparison studies under ISO 5725-2 conditions.
