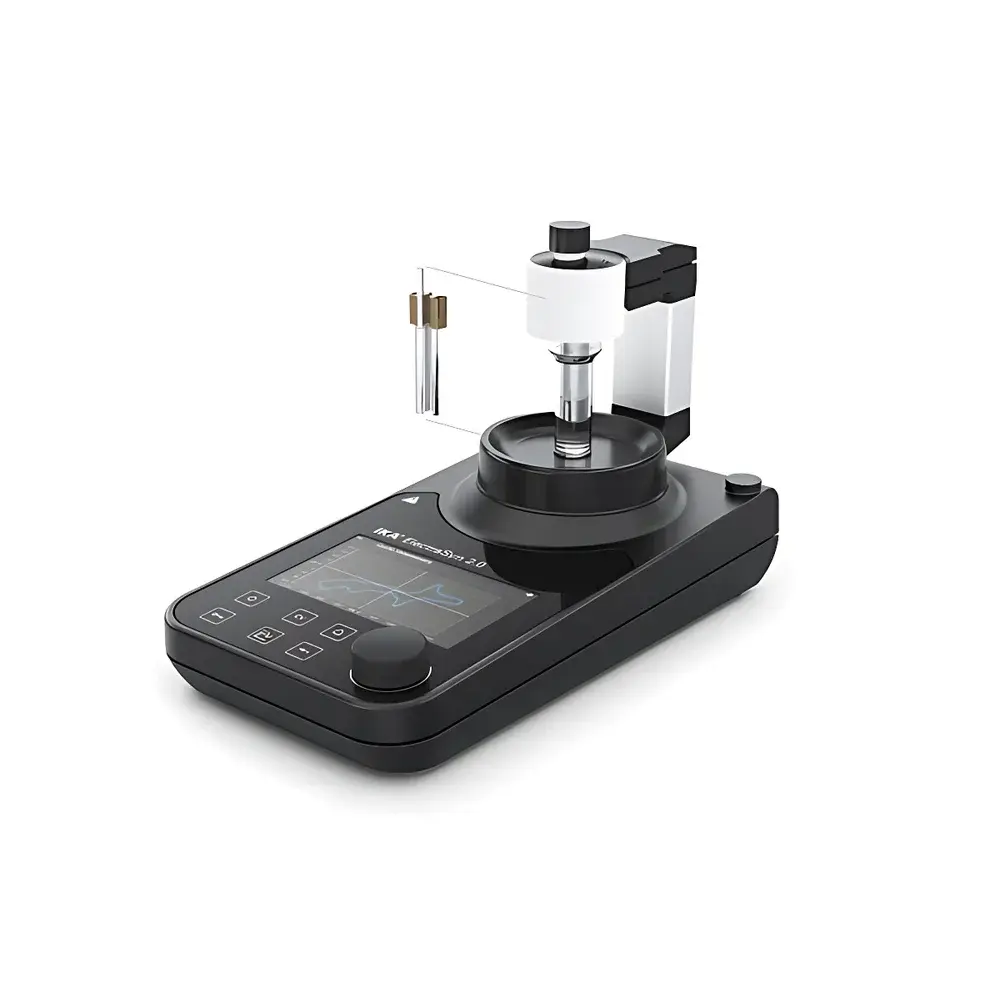

IKA ElectraSyn 2.0 Electrochemical Synthesis Station

Overview

The IKA ElectraSyn 2.0 Electrochemical Synthesis Station is an integrated, benchtop platform engineered for precision-controlled electrosynthesis in modern organic chemistry laboratories. Unlike conventional potentiostats or standalone stirrers, the ElectraSyn 2.0 implements a unified electrochemical cell control architecture grounded in three co-engineered functional domains: galvanostatic/potentiostatic regulation, magnetic stirring with real-time speed feedback, and modular analytical interfacing. Its design philosophy stems from a multi-year collaborative development effort between IKA and Professor Phil S. Baran’s laboratory at The Scripps Research Institute—aimed explicitly at bridging mechanistic electrochemistry with scalable synthetic methodology. The system operates on a constant-voltage or constant-current paradigm compliant with standard three-electrode configurations (working, counter, reference), enabling reproducible faradaic transformations under inert or controlled-atmosphere conditions. It supports both batch-mode single-vessel reactions and high-throughput parallel experimentation via optional 6-position reaction rotors—making it suitable for reaction scouting, optimization studies, and method transfer across academic and industrial R&D settings.

Key Features

• Integrated tri-functional architecture combining potentiostat/galvanostat, magnetic stirrer, and analytical interface in one compact unit
• TFT graphical display with intuitive rotary encoder for real-time parameter adjustment and live monitoring of voltage, current, and rotational speed
• High-resolution electrochemical control: 0.01 V output voltage resolution and 0.1 mA current resolution with ±0.01 V and ±0.1 mA measurement accuracy
• Stirring motor delivering 50–1500 rpm with ±10 rpm setting accuracy and compatibility with standard 8–16 mm PTFE-coated stir bars
• Chemically resistant front panel housing rated IP40 per DIN EN 60529, ensuring durability against common organic solvents and electrolyte splashes
• USB interface for direct connection to host PC; compatible with IKA Labworldsoft software for automated protocol execution and data logging
• Modular expansion capability—including optional 6-position reaction rotor, HTS adapter kits, and electrode accessory packs (glassy carbon, Pt, Ag/AgCl)

Sample Compatibility & Compliance

The ElectraSyn 2.0 accommodates standard 10 mL single-neck round-bottom reaction vessels as supplied in the base package, with mechanical support fixtures ensuring stable positioning during electrochemical operation. Optional accessories extend compatibility to multi-vial arrays and custom cell geometries. All electrical and mechanical components conform to IEC 61010-1 safety standards for laboratory equipment. The system supports GLP-compliant workflows through timestamped data export, user-accessible audit trails (when used with Labworldsoft v5.0+), and full traceability of applied potentials, current profiles, and stirring parameters. While not certified for GMP manufacturing environments, its metrological stability and documentation features align with preclinical and process research requirements under ISO/IEC 17025 and ASTM E2500 guidance.

Software & Data Management

IKA Labworldsoft serves as the native control and analysis environment for the ElectraSyn 2.0. The software enables creation and storage of reusable electrochemical protocols—including ramped potential sweeps, chronoamperometric sequences, and multi-step synthetic routines with synchronized stirring events. Raw data streams (voltage, current, rpm) are logged at user-defined intervals and exported in CSV or proprietary .iwd format for downstream analysis in MATLAB, Origin, or Python-based cheminformatics pipelines. Audit trail functionality records operator ID, session timestamps, parameter changes, and firmware version—supporting regulatory readiness for FDA 21 CFR Part 11–aligned environments when deployed with appropriate IT infrastructure and access controls.

Applications

• Medicinal chemistry: C–H functionalization, dehalogenation, reductive amination, and oxidative coupling under mild, catalyst-free conditions
• Method development for scalable electrosynthetic routes targeting API intermediates and complex heterocycles
• Electrocatalyst screening using standardized three-electrode cells and interchangeable working electrodes
• Teaching laboratory implementation of foundational electrochemical concepts—including redox kinetics, diffusion-controlled currents, and supporting electrolyte effects
• High-throughput reaction optimization via integration with 6-position rotors and automated liquid handling systems

FAQ

Can the ElectraSyn 2.0 operate in constant-current mode?

Yes—it supports both potentiostatic and galvanostatic control modes with programmable setpoints and real-time feedback.
Is remote operation possible via Ethernet or Wi-Fi?

No native Ethernet or Wi-Fi module is included; communication is limited to USB 2.0. Network-enabled control requires third-party middleware or PC-based relay solutions.
What electrode types are supported out-of-the-box?

The standard package includes graphite electrodes; optional accessories provide glassy carbon, platinum, and Ag/AgCl reference electrodes.
Does the system meet FDA 21 CFR Part 11 requirements?

The hardware itself does not carry Part 11 certification, but when paired with validated Labworldsoft configurations and institutional procedural controls, it can support Part 11–compliant data integrity practices.
Can it be used with non-aqueous electrolytes such as LiPF₆ in EC/DMC?

Yes—the sealed stirrer housing and chemically inert front panel permit safe operation with common aprotic battery electrolytes, provided appropriate cell containment and fume hood use are maintained.
