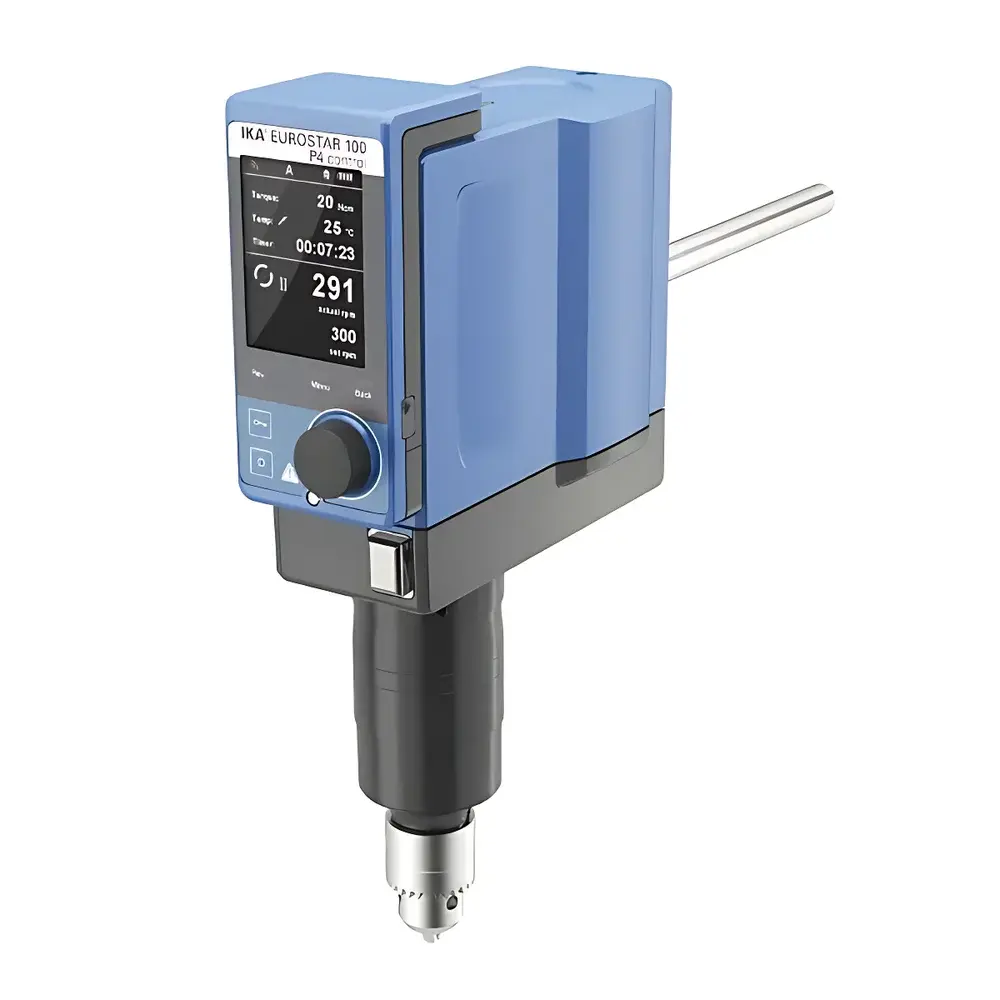

IKA EUROSTAR 100 P4 control Overhead Stirrer

Overview

The IKA EUROSTAR 100 P4 control is a high-performance overhead stirrer engineered for precision mixing, dispersion, and homogenization in demanding laboratory environments. Utilizing a brushless DC motor architecture, it delivers exceptional torque stability, low maintenance requirements, and extended service life—critical attributes for continuous operation in QC/QA labs, pharmaceutical R&D, and chemical process development. Its core measurement principle relies on real-time digital feedback of rotational speed, torque, and temperature via integrated sensors, enabling closed-loop control during viscosity-sensitive protocols. Designed for scalability from small-scale formulation trials to pilot-batch preparation (up to 100 L aqueous volume), the unit meets foundational mechanical and electrical safety standards aligned with IEC 61010-1 and conforms to EMC Directive 2014/30/EU. Its modular design supports integration into automated workflows and complies with documentation requirements for GLP and GMP-regulated settings where traceability of stirring parameters is essential.

Key Features

• Brushless DC motor ensures zero carbon dust generation, consistent torque delivery across the full speed range (10–300 rpm), and >20,000-hour operational lifespan without commutator wear.
• Real-time torque monitoring with ±30 N·cm accuracy and dynamic trend visualization on the 3.5-inch TFT display enables early detection of rheological transitions (e.g., gelation, phase separation, or polymer crosslinking).
• Integrated PT1000 temperature sensing (DIN EN 60751 Class A) provides traceable thermal feedback with 0.1 K resolution and validated accuracy of ±0.5 K — suitable for reaction calorimetry support and exothermic process control.
• Programmable timer (1–6000 min) with automatic shutdown and repeat-cycle capability supports unattended overnight experiments and standardized SOP execution.
• Reversible rotation and intermittent operation modes allow for controlled de-agglomeration, suspension maintenance, and shear-sensitive material handling.
• Wireless remote control (WH 11) with 150 m line-of-sight range enables safe operation behind fume hoods or within containment enclosures while maintaining full parameter access.
• RS232 and USB interfaces support bidirectional data logging and instrument control via third-party LIMS or custom SCADA systems; audit trail export compatible with FDA 21 CFR Part 11 requirements when paired with compliant software.

Sample Compatibility & Compliance

The EUROSTAR 100 P4 control accommodates a broad spectrum of sample types—from low-viscosity solvents to highly structured non-Newtonian fluids (up to 100,000 mPa·s). Its robust 320 N·cm maximum torque output sustains stable agitation under high-load conditions typical of pigment dispersions, nanoparticle suspensions, and viscous polymer melts. The 0.5–10 mm universal clamp jaw secures standard glass, PTFE-coated, or custom-engineered impellers (e.g., anchor, helical ribbon, or turbine configurations). All electrical components comply with CE marking directives, including Low Voltage Directive 2014/35/EU and RoHS 2011/65/EU. The IP40 enclosure rating protects against solid objects ≥1 mm but is not intended for wet or splash-prone environments; optional splash guards are available per IKA accessory catalog.

Software & Data Management

Data acquisition is natively supported through IKA’s labworldsoft® software (v5.0+), which provides synchronized time-stamped logging of speed, torque, temperature, and timer status. Export formats include CSV and XML for downstream statistical analysis (e.g., JMP, Minitab) or integration into electronic lab notebooks (ELN). The system records operator ID, method name, timestamp, and error events—fulfilling ALCOA+ principles (Attributable, Legible, Contemporaneous, Original, Accurate) for regulated environments. Firmware updates are delivered via USB stick with cryptographic signature verification to ensure integrity. Audit trails are immutable and retain full history of parameter changes, including user-initiated reversals or torque limit adjustments.

Applications

• Pharmaceutical: Dissolution testing support, granulation fluid bed mixing, and sterile suspension preparation under ISO 14644-1 Class 5 hood conditions.
• Materials Science: Carbon nanotube dispersion in epoxy matrices, ceramic slurry homogenization, and battery electrode slurry conditioning prior to coating.
• Food & Beverage: Emulsion stability assessment (e.g., mayonnaise, dressings), starch gelatinization kinetics, and yeast propagation media blending.
• Academic Research: Teaching rheology fundamentals, polymer solution viscoelasticity mapping, and catalytic reaction mixing optimization.
• Chemical Synthesis: Controlled addition of reagents in Grignard or lithiation reactions where exotherm management requires simultaneous temperature and torque feedback.

FAQ

Does the EUROSTAR 100 P4 control support external temperature probes other than the supplied PT1000 (H 67.60)?
Yes — it accepts any two-wire or four-wire PT1000 sensor compliant with DIN EN 60751 Class A; calibration certificates must be retained for GLP audits.
Can torque data be exported in real time during operation?
Yes — via RS232 or USB using ASCII protocol; polling intervals as low as 100 ms are configurable in labworldsoft®.
Is the unit suitable for use in explosion-proof areas?
No — it lacks ATEX or IECEx certification; for hazardous locations, consult IKA’s EX series stirrers.
What is the recommended recalibration interval for torque and temperature channels?
Annual verification is advised per ISO/IEC 17025; IKA-certified service centers provide NIST-traceable calibration reports.
How does the safety lockout function integrate with facility access control systems?
The programmable lockout operates locally via PIN or RFID tag (WH 11); network-level integration requires middleware compatible with OPC UA or Modbus TCP.
