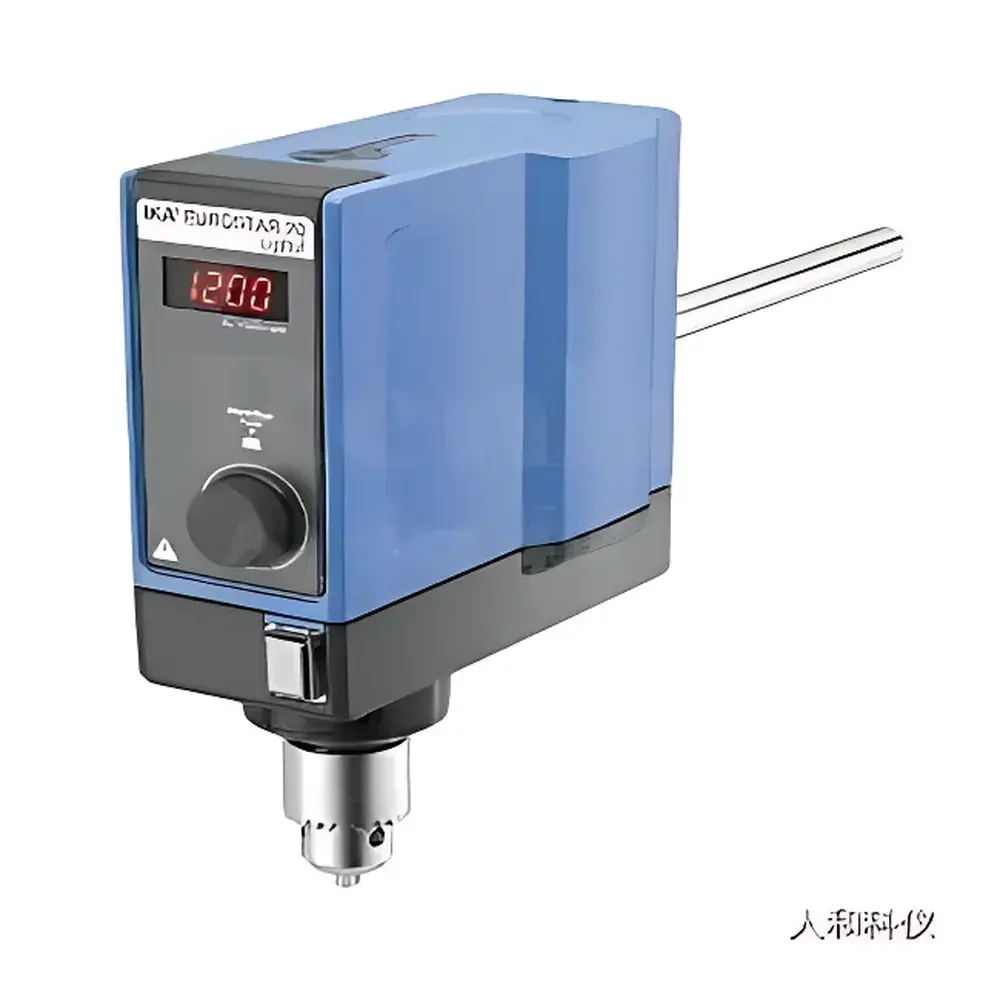

IKA EUROSTAR 20 digital Electronic Laboratory Stirrer

Overview

The IKA EUROSTAR 20 digital is a precision-engineered electronic laboratory stirrer designed for reliable, reproducible mixing across diverse aqueous and low-to-medium viscosity applications. Built on a brushless DC motor architecture, it eliminates carbon brush wear—ensuring long-term speed stability, reduced maintenance, and consistent torque delivery up to 20 N·cm. Its microprocessor-controlled closed-loop speed regulation continuously monitors actual shaft rotation against the setpoint and dynamically adjusts power output to maintain target speed—even during viscosity fluctuations or transient load changes. This real-time feedback system delivers high rotational fidelity (±1 rpm accuracy above 300 rpm), making it suitable for protocols requiring strict kinetic control, such as dissolution testing, buffer preparation, reagent homogenization, and cell suspension handling in life science and quality control labs.

Key Features

• Brushless DC motor with 42 W continuous output power and 100% duty cycle capability for uninterrupted operation
• Closed-loop speed control with real-time deviation correction—maintains set speed under variable load conditions
• Digital LED display showing precise rpm value; intuitive rotary encoder for smooth, stepless speed adjustment (0/30–2000 rpm)
• Integrated safety circuitry: automatic shutdown upon motor stall, thermal overload, or excessive current draw
• Conical base design ensures coaxial alignment and secure chuck engagement for vibration-free operation at all speeds
• Hollow shaft (11 mm inner diameter) allows insertion of temperature probes or pH electrodes without interrupting stirring
• Robust housing combining die-cast aluminum (heat-dissipating base) and chemically resistant thermoplastic polymer (upper enclosure)
• IP42-rated ingress protection—suitable for standard laboratory environments with non-condensing humidity ≤80 % RH
• Compact footprint (86 × 248 × 208 mm) and low acoustic emission profile (<50 dB(A)) optimized for benchtop integration

Sample Compatibility & Compliance

The EUROSTAR 20 digital supports mixing volumes up to 15 L of water-equivalent media, accommodating common lab vessels including beakers (up to 3 L), cylindrical glass reactors (up to 10 L), and jacketed flasks. It handles viscosities up to 10,000 mPa·s using standard anchor, paddle, or propeller impellers—compatible with ISO-standard clamping diameters (0.5–10 mm). While not certified for hazardous area use (ATEX/IECEx), its electrical design complies with EN 61010-1:2019 for laboratory equipment safety. The unit meets EMC requirements per EN 61326-1 and carries CE marking. No intrinsic safety certification is provided; users must verify suitability for specific process chemistry prior to deployment.

Software & Data Management

This standalone stirrer operates without external software or connectivity interfaces (no USB, RS232, or analog outputs). All operational parameters—including speed setpoint, real-time rpm, error codes (e.g., E1 = overload, E2 = sensor fault), and status indicators—are conveyed via front-panel LED display and tactile feedback. Error logging is retained until cleared manually, supporting basic troubleshooting and GLP-aligned documentation when paired with lab notebook entries. For traceable workflows requiring electronic records, integration with third-party data acquisition systems may be achieved via optional external tachometer sensors and programmable logic controllers (PLCs), though native FDA 21 CFR Part 11 compliance is not implemented.

Applications

• Preparation of homogeneous aqueous solutions, buffers, and culture media in microbiology and molecular biology labs
• Stirring of reaction mixtures in synthetic chemistry where moderate shear and temperature stability are critical
• Standardized dissolution testing per USP and Ph. Eur. 2.9.3 protocols using calibrated impeller geometry
• Continuous blending of suspensions and emulsions in pharmaceutical formulation development
• Supporting ASTM D2196 viscosity measurement procedures with controlled agitation prior to Brookfield analysis
• QC/QA sample conditioning for spectrophotometric, titrimetric, or gravimetric assays requiring uniform dispersion

FAQ

Does the EUROSTAR 20 digital support bidirectional rotation?
No. It operates in a single fixed direction only.
Can it be used with magnetic stir bars?
No. This is a mechanical overhead stirrer and does not incorporate magnetic coupling.
Is the device compatible with vacuum or pressure reactor systems?
It is not rated for sealed pressurized or vacuum environments; use requires atmospheric venting of the vessel.
What maintenance is required for the brushless motor?
None beyond periodic cleaning of the chuck and shaft interface; the motor has no consumable brushes and requires no lubrication.
How is over-torque protection implemented?
Hardware-based current sensing triggers immediate power cutoff if torque demand exceeds 20 N·cm for >2 seconds, preventing mechanical damage to the drive train.
