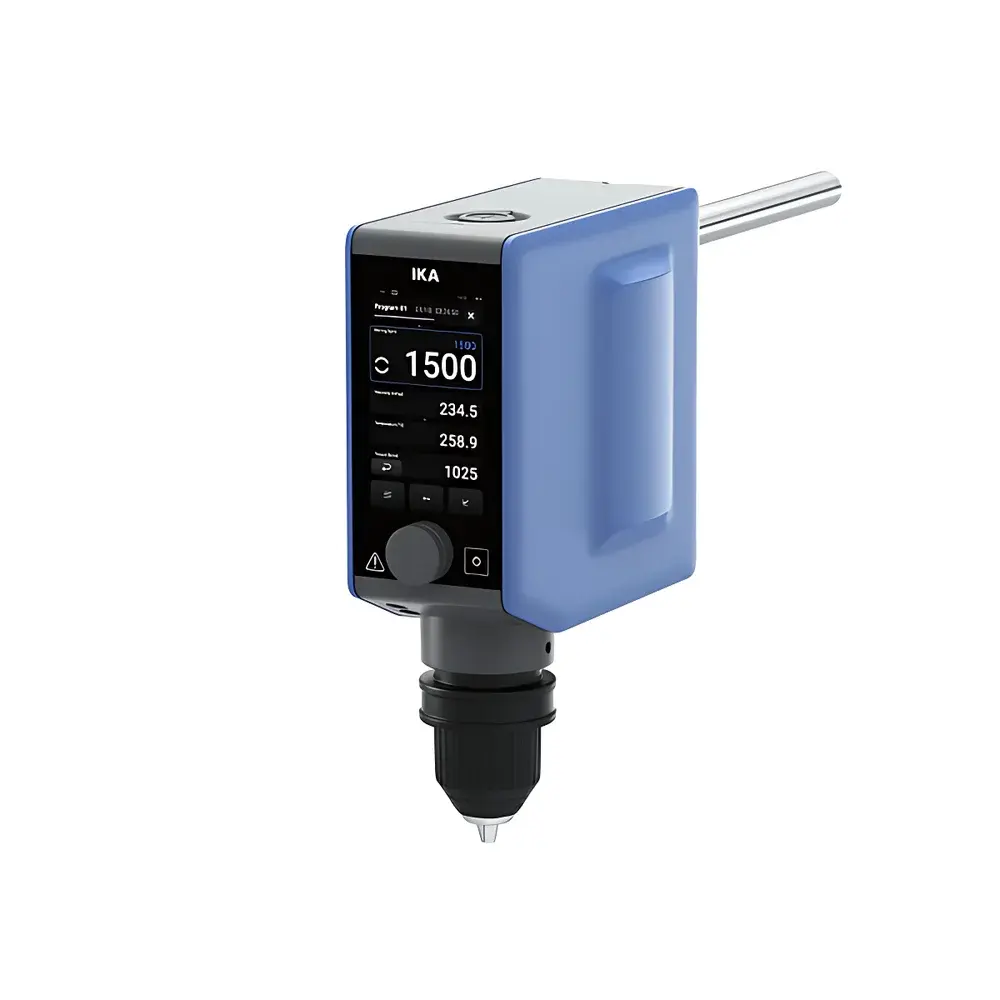

IKA EUROSTAR 60 control Overhead Stirrer

Overview

The IKA EUROSTAR 60 control is a high-precision electronic overhead stirrer engineered for demanding laboratory applications requiring reproducible mixing, dispersion, and reaction monitoring under controlled mechanical conditions. Based on Couette flow principles and torque-based rheological inference, this instrument delivers real-time measurement of rotational resistance—enabling indirect viscosity estimation without requiring dedicated rheometry hardware. Its brushless DC motor architecture ensures stable speed maintenance across wide viscosity ranges (up to 50,000 mPa·s), while maintaining ±1 rpm speed accuracy above 300 rpm and ±3 rpm below—critical for kinetic studies, polymerization control, and suspension homogenization. Designed for continuous operation (100% duty cycle), the unit integrates a built-in torque sensor calibrated to ±1 N·cm, allowing dynamic tracking of process evolution—such as gel point detection, crystallization onset, or emulsion stability—directly from torque or derived viscosity trends.

Key Features

• Brushless DC motor with thermal and overload protection: Ensures silent, vibration-minimized operation (<52 dB(A)) and long-term reliability without carbon brush wear.
• IP54-rated housing (cast aluminum + thermoplastic polymer): Provides dust resistance and protection against water splashes—suitable for humid or solvent-prone lab environments.
• TFT touchscreen interface: Displays real-time values for speed, torque, viscosity (calculated), elapsed time, and external PT1000 temperature readings—with customizable parameter layout and no-key chuck operation.
• Intelligent torque-speed coupling: Delivers constant 100 N·cm torque up to 200 rpm; linear reduction to 60 N·cm at 2000 rpm—optimized for both high-torque low-speed viscoelastic mixing and high-shear dispersion.
• Bi-directional rotation and programmable intermittent mode: Enhances particle suspension, prevents vortex formation, and supports staged reagent addition protocols.
• Vibration sensor and automatic shutdown: Detects abnormal mechanical resonance or shaft imbalance—preventing damage to vessels, seals, or drive couplings.
• Multi-protocol digital connectivity: Native support for USB-C, RS232, Ethernet, Wi-Fi, and WLAN enables seamless integration into automated workflows and LIMS environments.

Sample Compatibility & Compliance

The EUROSTAR 60 control accommodates stirring shafts with diameters from 0.5 to 10 mm—including hollow-shaft configurations (11 mm internal diameter) for inline temperature probe insertion during operation. It supports standard laboratory glassware (e.g., beakers, jacketed reactors, and multi-neck flasks) up to 60 L volume (water-equivalent). The integrated PT1000 interface complies with DIN EN 60751 Class A tolerance (±0.5 K), enabling accurate thermal correlation with torque profiles in exothermic/endothermic reactions. Device certification includes CE marking, RoHS compliance, and adherence to DIN EN 60529 for ingress protection. While not inherently GMP-compliant, its audit-trail-capable software interface (via Labworldsoft®) supports 21 CFR Part 11-aligned data integrity practices when deployed in regulated QC/QA settings.

Software & Data Management

The stirrer natively communicates with IKA’s Labworldsoft® platform—a validated laboratory automation suite supporting method scripting, real-time graphing (torque vs. time, viscosity vs. speed), and timestamped data export (CSV, PDF). All parameter changes, start/stop events, and alarm triggers are logged with operator ID and system timestamp—facilitating GLP-aligned record retention. Remote control via Ethernet or Wi-Fi allows centralized management across multi-station setups. Data synchronization supports CSV ingestion into MATLAB®, Python (pandas), or statistical process control (SPC) tools for advanced trend analysis—e.g., correlating torque inflection points with reaction conversion rates determined by offline HPLC or FTIR.

Applications

• Chemical synthesis: Monitoring polymerization kinetics, hydrogenation progress, or catalytic coupling reactions via torque-derived viscosity thresholds.
• Pharmaceutical formulation: Homogenizing suspensions, preparing ointments, and controlling granulation fluidity in high-shear wet massing trials.
• Materials science: Dispersing nanomaterials (CNTs, graphene oxide) in viscous polymer matrices; evaluating shear-thinning behavior of battery slurries.
• Food & beverage R&D: Emulsifying dressings, hydrating hydrocolloids (xanthan, guar gum), and optimizing yeast propagation in bioreactor seed trains.
• Environmental testing: Mixing sediment cores with extraction solvents under standardized agitation per ASTM D3740 or ISO 5667-16 protocols.

FAQ

Does the EUROSTAR 60 control support direct viscosity output in centipoise (cP)?
Yes—when paired with a calibrated viscosity standard and configured via Labworldsoft®, torque values are converted to cP using the IKA-defined power-law model; however, absolute viscosity accuracy depends on impeller geometry, calibration, and fluid Newtonian behavior.
Can it operate unattended overnight?
Yes—its 100% duty cycle rating, thermal cutoff, and programmable timer (1–6000 min) enable fully autonomous runs; optional watchdog logic via Labworldsoft® can halt operation upon deviation from set torque/speed thresholds.
Is the PT1000 temperature interface compatible with third-party probes?
Yes—any PT1000 sensor meeting DIN EN 60751 Class A specifications (e.g., from Omega, Endress+Hauser, or Watlow) may be used; calibration offset adjustment is supported in the device firmware.
What safety certifications does it hold for use in explosion-hazard areas?
The EUROSTAR 60 control is not ATEX- or IECEx-certified; it is intended for general laboratory use outside classified hazardous zones.
How is torque linearity verified during routine maintenance?
IKA provides traceable calibration kits with certified reference loads; users may perform in-house verification using the built-in torque zero-point and full-scale test points accessible via service mode.
