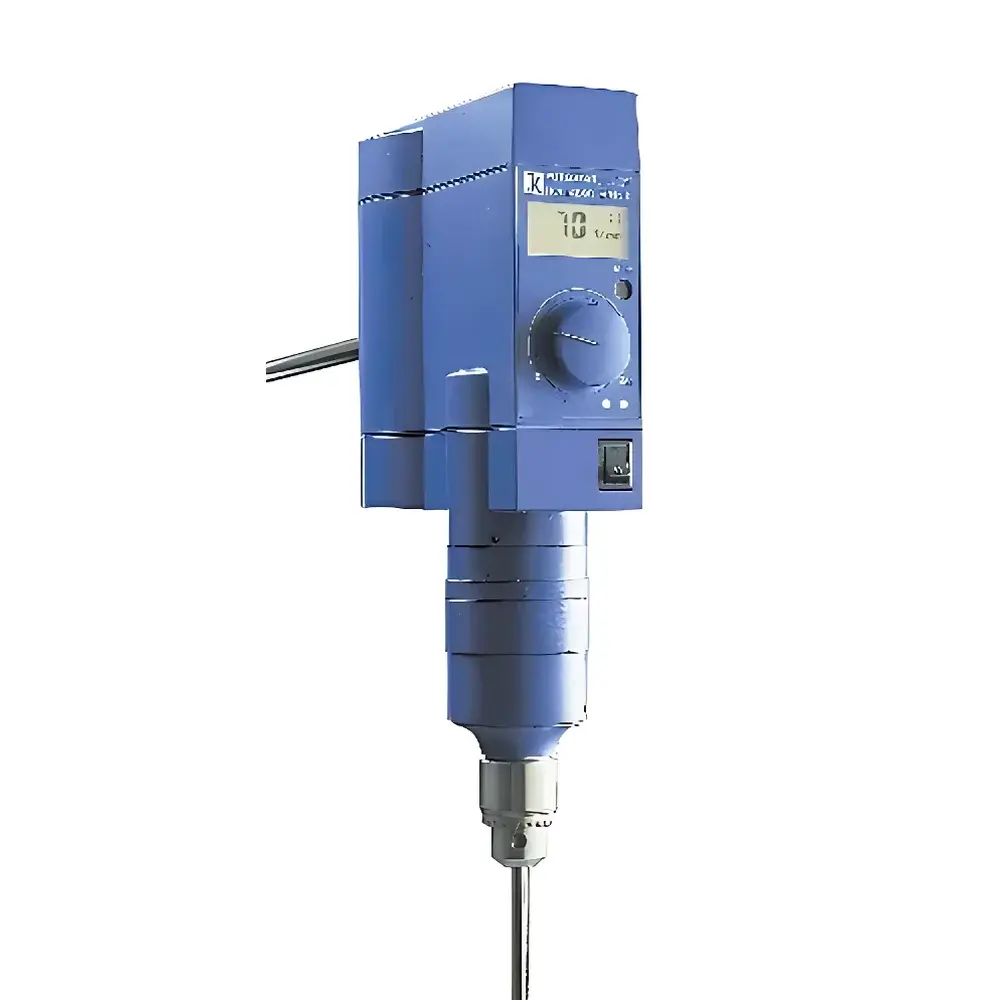

IKA Eurostar Power Control P4 Overhead Electronic Stirrer

Overview

The IKA Eurostar Power Control P4 is a high-performance overhead electronic stirrer engineered for precision mixing and dispersion of demanding laboratory samples—including highly viscous, shear-sensitive, or temperature-controlled media. Based on robust electromagnetic torque transmission and microprocessor-regulated speed control, the P4 operates via Couette flow principles in cylindrical vessels, ensuring reproducible shear profiles across scalable volumes up to 40 L of aqueous media. Its design adheres to DIN EN 60529 (IP42) for dust and drip resistance, supporting stable operation in standard ISO Class 7–8 laboratory environments. Unlike gear-driven systems, the P4 employs direct-drive brushless motor architecture with integrated thermal monitoring, eliminating mechanical backlash and enabling true zero-speed start-up—critical for fragile emulsions, polymer solutions, and suspension-based formulations requiring controlled nucleation kinetics.

Key Features

• Microprocessor-based speed regulation with real-time feedback loop ensures ±1% speed accuracy across the full 4–530 rpm range, even under variable load conditions.
• Continuous torque sensing (0–200 N·cm) with dynamic trend display enables viscosity profiling without external rheometers—particularly valuable for process development and QC batch consistency checks.
• Four-stage buffer gradient control mitigates mechanical shock during acceleration/deceleration, reducing vortex formation and particle attrition in heterogeneous suspensions.
• Non-penetrating impeller mounting system accommodates standardized clamp diameters (0.5–10 mm), supporting interchangeable axial, helical, and anchor-type stirrers per ASTM D1893 and ISO 3219 compliance protocols.
• Dual analog output (0–10 V) and RS232 interface allow synchronized data logging of speed, torque, and runtime into validated laboratory information management systems (LIMS) or ELN platforms.
• Full-duty-cycle rating (100% S1 duty cycle) with active thermal cut-off and overload protection ensures uninterrupted operation during extended synthesis or dissolution testing.

Sample Compatibility & Compliance

The P4 is validated for use with glass, stainless steel, and jacketed reactor vessels ranging from 500 mL to 40 L capacity. Its torque stability at low speeds (<20 rpm) supports gentle homogenization of cell cultures and protein aggregates, while high-torque delivery at mid-range speeds (200–530 rpm) facilitates efficient dispersion of nanomaterials and pigment concentrates. The device meets essential safety and electromagnetic compatibility requirements per IEC 61000-6-2/6-3 and carries CE marking for EU laboratory deployment. For regulated environments, its RS232 and analog outputs support 21 CFR Part 11–compliant audit trails when paired with IKA Labworldsoft® v5.0+ (validated configuration available upon request). It is routinely deployed in GLP-compliant method development labs performing USP dissolution testing and ISO 17025-accredited viscosity verification workflows.

Software & Data Management

IKA Labworldsoft® serves as the native control and documentation platform for the Eurostar Power Control P4. The software provides remote parameter setting, real-time graphical plotting of torque vs. time/speed, and automated export of CSV- or Excel-formatted datasets with timestamped metadata (operator ID, vessel ID, ambient T/RH, calibration certificate traceability). All measurement sessions generate immutable .iws project files containing raw sensor values, event logs (e.g., overload triggers, power interruptions), and user-defined annotation fields—fully compatible with electronic signature workflows under FDA and EMA guidelines. Optional integration with third-party SCADA systems is supported via Modbus RTU over RS232 or OPC UA gateways.

Applications

• High-viscosity polymer solution preparation (e.g., PVP, HPMC, xanthan gum) where torque trending correlates directly with molecular weight distribution.
• Temperature-controlled crystallization studies in jacketed reactors (–10 °C to +350 °C compatible vessels), leveraging stable low-RPM agitation to minimize secondary nucleation.
• Pharmaceutical suspension formulation development per Ph. Eur. 2.9.35, including uniformity-of-dose testing of micronized APIs in aqueous vehicles.
• Chemical synthesis scale-up trials where consistent shear history between R&D (500 mL) and pilot (20 L) batches is critical for reaction yield and byproduct profile reproducibility.
• Quality control of industrial coatings and adhesives, using torque deviation thresholds to flag batch-to-batch rheological drift beyond ±5% tolerance limits.

FAQ

Does the P4 support automatic speed ramping profiles?
Yes—Labworldsoft® allows programmable multi-step speed ramps with dwell times, slope control, and torque-based termination triggers.
Is the analog output calibrated and traceable to national standards?
All analog channels are factory-calibrated against NIST-traceable torque and speed references; calibration certificates are supplied with each unit.
Can the P4 be integrated into a GMP manufacturing execution system (MES)?
When configured with Labworldsoft® Validation Package and connected via RS232-to-Ethernet bridge, it supports structured data exchange compliant with ISA-88 and ISA-95 frameworks.
What maintenance intervals are recommended for continuous 24/7 operation?
No scheduled lubrication is required; annual verification of torque sensor linearity and thermal cutoff response is advised per IKA Service Bulletin SB-P4-2023.
Is the P4 compatible with explosion-proof laboratory environments?
The base unit is not ATEX-certified; however, IKA offers the EX version (Eurostar Power Control P4-EX) with intrinsic safety barriers for Zone 2/22 applications.
