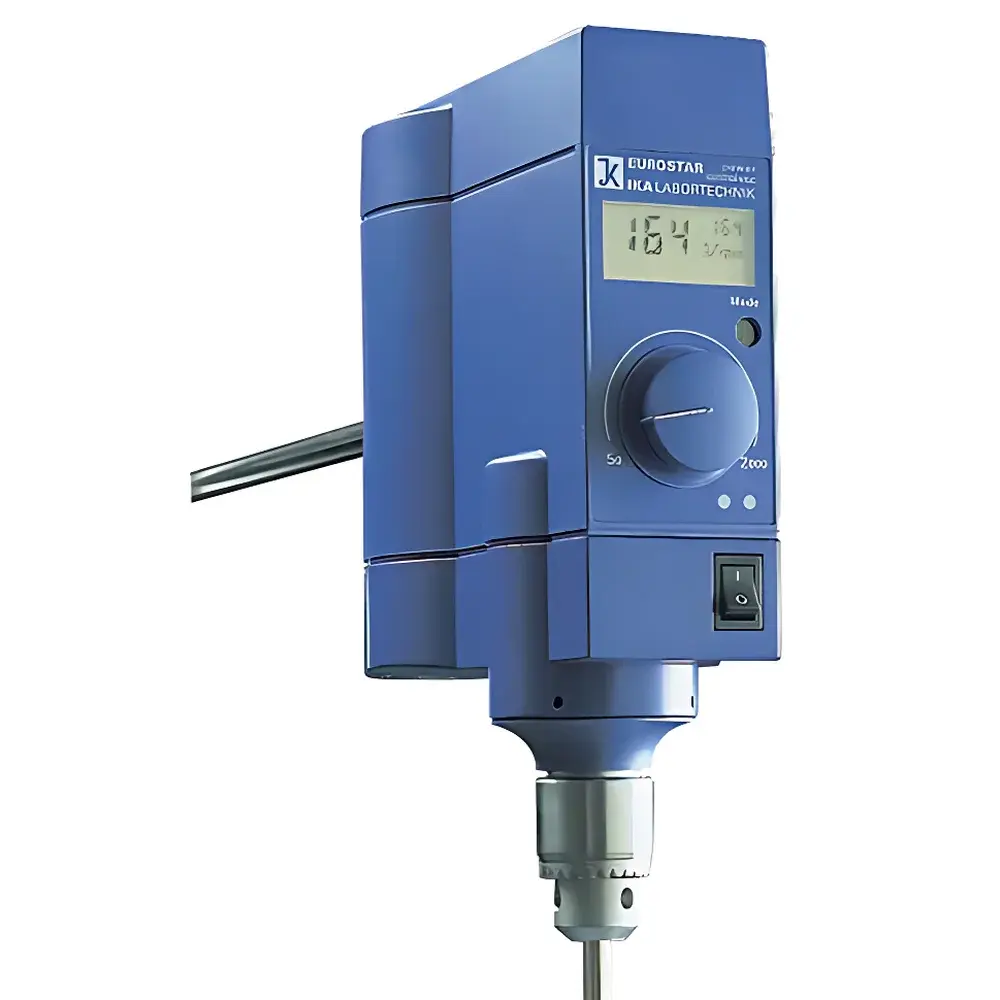

IKA Eurostar Power Control Viscometric Stirrer

Overview

The IKA Eurostar Power Control is a high-performance digital overhead stirrer engineered for precision mixing and viscometric characterization of medium-to-high viscosity liquids in research, quality control, and pilot-scale laboratory environments. Unlike conventional magnetic stirrers, this unit employs a robust brushless motor coupled with a penetrating shaft drive mechanism—enabling direct mechanical coupling to impellers, anchors, or helical blades for reliable torque transmission across demanding rheological regimes. Its microprocessor-controlled architecture ensures true constant-speed operation independent of load fluctuations, making it suitable for applications where speed stability directly impacts process repeatability—such as polymer solution homogenization, suspension stabilization, catalyst slurry preparation, and emulsion development. The absence of mechanical gearboxes eliminates stepwise speed transitions and associated wear, supporting continuous, silent, and maintenance-free operation over extended duty cycles.

Key Features

• Stepless speed regulation from 20 to 2000 rpm via digital encoder feedback—no gear shifting required
• Real-time torque monitoring with analog output signal for external data acquisition systems
• Dual digital display showing both setpoint and actual rotational speed with ±1 rpm resolution
• Integrated electronic overload protection and intelligent safe-start algorithm preventing abrupt acceleration
• Penetrating shaft design compatible with standard ISO 2259–compatible stirring elements (e.g., PTFE-coated anchors, dissolving discs, propellers)
• Low-noise brushless DC motor meeting IEC 60034–30 efficiency class IE3 standards
• RS232 serial interface enabling bidirectional communication with PC-based lab automation software
• Compliance with IEC 61010-1 for electrical safety in laboratory equipment and CE marking per EU Directive 2014/30/EU (EMC) and 2014/35/EU (LVD)

Sample Compatibility & Compliance

The Eurostar Power Control is validated for use with Newtonian and non-Newtonian fluids up to 40 L working volume in glass or stainless-steel vessels (diameter ≤ 300 mm). It accommodates viscosities ranging from ~10 mPa·s (water-like) to >50,000 mPa·s (high-viscosity pastes), provided appropriate impeller geometry and vessel aspect ratio are selected. All wetted parts comply with USP Class VI and FDA 21 CFR 177.2600 for incidental food contact. While the unit itself does not include temperature control, it is routinely integrated into jacketed reactor systems conforming to ASTM E2877-22 (Standard Guide for Calibration of Temperature-Controlled Laboratory Reactors). Documentation supports GLP-compliant audit trails when used with validated labworldsoft® v4.x configurations.

Software & Data Management

When connected via RS232 to a Windows-based host system running IKA’s labworldsoft® software (v4.3 or later), the Eurostar Power Control enables full remote parameter configuration, real-time graphing of speed/torque profiles, and timestamped CSV export of operational logs. The software supports method-driven workflows—including ramped speed protocols, hold steps, and torque-triggered event logging—aligned with ISO/IEC 17025 requirements for measurement traceability. Audit trail functionality meets FDA 21 CFR Part 11 criteria when deployed with user authentication, electronic signatures, and immutable log archiving enabled. Data integrity is further reinforced through cyclic redundancy check (CRC) validation on all transmitted command packets.

Applications

• Rheological screening of industrial coatings, adhesives, and sealants under controlled shear conditions
• Preparation of uniform suspensions for pharmaceutical oral suspensions (per USP )
• Homogenization of battery electrode slurries prior to coating and drying
• Dispersion of nanomaterials (e.g., graphene oxide, metal oxides) in polymeric matrices
• Accelerated stability testing of cosmetic emulsions per ISO 29621
• In-process mixing verification during GMP-compliant API synthesis campaigns

FAQ

Does the Eurostar Power Control support temperature integration?
No—the unit is a dedicated overhead stirrer without built-in heating or cooling. However, it is mechanically and electrically compatible with external temperature-controlled reactors equipped with stirrer ports and RS232-enabled controllers.
Can torque values be exported in real time?
Yes—via the analog torque output (0–10 V) or digitally through RS232 using labworldsoft®’s streaming mode, enabling synchronization with external DAQ systems such as National Instruments LabVIEW or MATLAB.
What impeller types are recommended for high-viscosity applications?
Anchor, helical ribbon, and double-helical impellers conforming to DIN 28131 are preferred for viscosities above 5,000 mPa·s; maximum tip speed should remain below 2.5 m/s to avoid cavitation or excessive heat generation.
Is firmware update capability available?
Yes—firmware upgrades are performed via RS232 using IKA’s proprietary FlashTool utility, with version history and checksum verification included in each release package.
How is calibration traceability maintained?
Speed calibration is verified annually using NIST-traceable tachometers (e.g., Monarch Instruments Model 2200); torque calibration requires periodic verification with certified torque transducers per ISO 376. Certificate of Conformance is supplied with each unit.
