IKA HABITAT cell Advanced Benchtop Bioreactor System

Overview

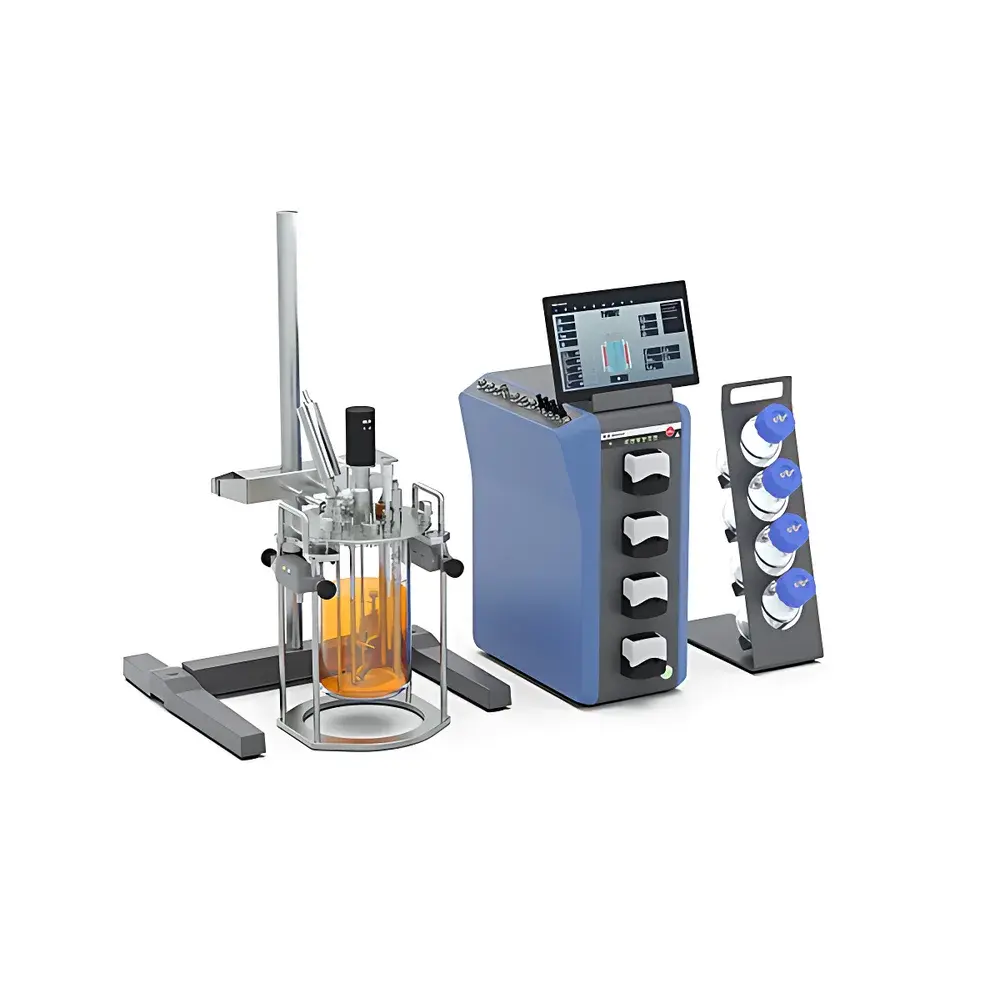

The IKA HABITAT cell Advanced Benchtop Bioreactor System is a modular, GMP-aligned laboratory-scale bioprocessing platform engineered for precise control and real-time monitoring of mammalian, insect, microbial, and algal cell cultures. Based on proven Couette-type mixing dynamics and integrated process analytical technology (PAT), the system enables reproducible operation across batch, fed-batch, and perfusion modes. Its core architecture separates control intelligence (via the dedicated control tower) from physical actuation (vessel, sensors, actuators), ensuring scalability, traceability, and compliance-ready configuration. Designed for ISO Class 5–7 clean bench environments, the HABITAT cell supports both single-use and reusable glass vessel configurations — with borosilicate glass vessels available in jacketed or single-wall variants (0.5 L to 10 L nominal working volume). The system’s open communication architecture (Ethernet, RS232, USB, WiFi) allows seamless integration into existing laboratory informatics infrastructure, including LIMS and MES platforms.

Key Features

• Modular Control Tower Architecture: Centralized I/O hub integrating gas mass flow control, peristaltic pumping, sensor signal conditioning, and thermal management — all synchronized via deterministic real-time firmware.
• Chaotic Mixing Mode: A proprietary agitation algorithm based on chaotic dynamical systems theory, delivering enhanced homogeneity and reduced shear stress compared to conventional constant-RPM or ramped profiles — validated for sensitive suspension cultures (e.g., CHO, HEK293).
• Four-Channel Independent Gas Delivery: Precision mass flow controllers (MFCs) for Air, O₂, N₂, and CO₂ with full-range adjustability (0–2000 cc/min), ±2% FS accuracy, and pressure-compensated output up to 3000 mbar inlet.
• Quadruple Watson Marlow Peristaltic Pumps: Reversible, speed-controlled (30–400 rpm), calibrated pump heads supporting acid/base titration, antifoam dosing, nutrient feeding, and harvest — compatible with silicone tubing (ID 0.5–4.8 mm, flow range 0.3–270 mL/min).

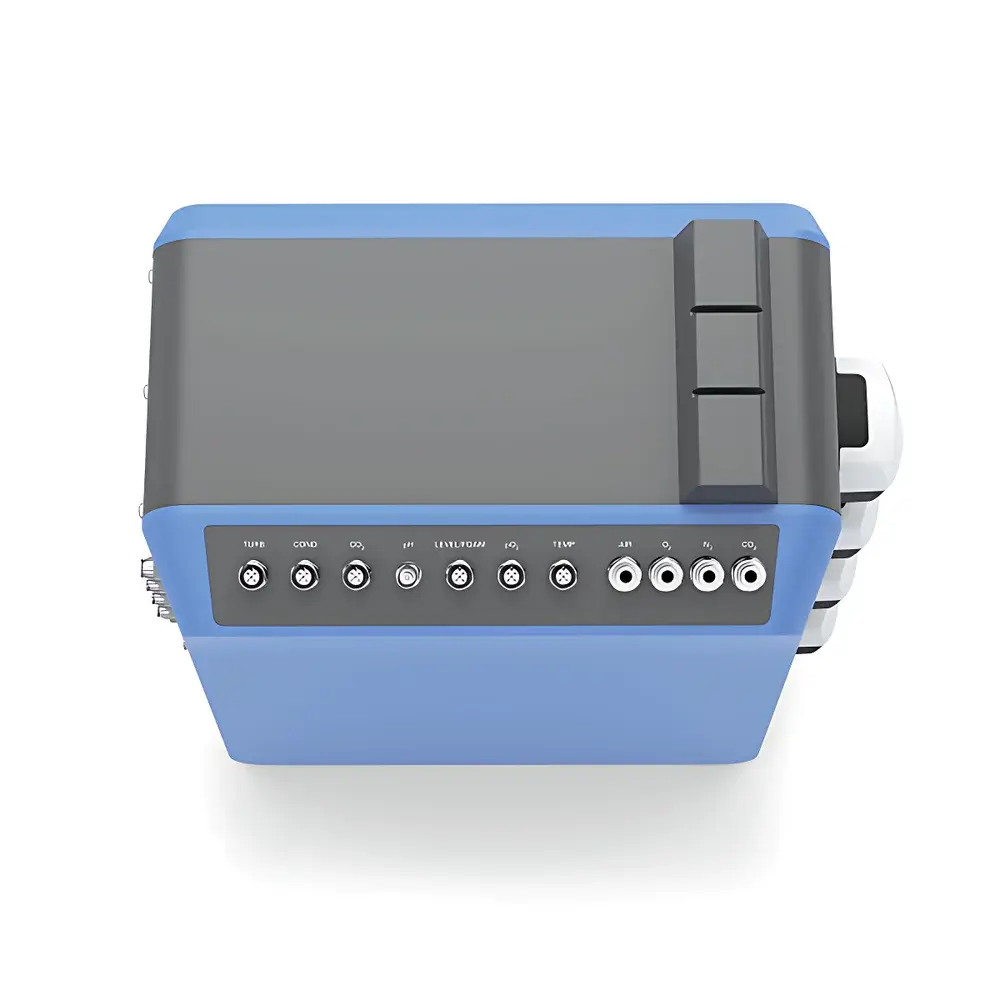

• Comprehensive Sensor Integration: Native support for pH, dissolved oxygen (pO₂), temperature (PT1000), level, and foam detection — with optional expansion for CO₂, conductivity, and turbidity via standardized analog/digital interfaces.
• Intuitive 10.4″ Tablet-Based HMI: Touchscreen interface running embedded Linux OS with IKA BioControl software — featuring graphical trend visualization, audit-trail-enabled calibration workflows, and automated event logging compliant with ALCOA+ principles.

Sample Compatibility & Compliance

The HABITAT cell accommodates a broad spectrum of biological systems: adherent and suspension mammalian cells, yeast (e.g., S. cerevisiae), bacteria (E. coli, B. subtilis), filamentous fungi, and photosynthetic microorganisms (when equipped with optional LED illumination modules). Vessels are constructed from DIN ISO 3585-certified borosilicate glass (Duran®), autoclavable at 121°C for ≥30 min, and fully compatible with SIP (steam-in-place) protocols when used with jacketed configurations and external circulators. The system meets mechanical safety requirements per EN 61010-1 and electromagnetic compatibility per EN 61326-1. Optional 21 CFR Part 11-compliant software includes electronic signatures, role-based access control, immutable audit trails, and secure data export — supporting GLP, GMP, and ISO 13485 quality systems. All sensor calibrations (pH, pO₂, temperature) follow documented SOPs aligned with ASTM E2070 and USP .

Software & Data Management

IKA BioControl software provides full lifecycle process management: from setup and calibration to real-time control, alarm handling, and post-run analysis. Calibration routines guide users stepwise through two-point pH, zero/span pO₂, and temperature offset verification — with automatic timestamped records stored in encrypted SQLite databases. Process data (≥100 parameters at 1 Hz resolution) are logged to internal 32 GB SSD storage and simultaneously mirrored to network shares via SMB/CIFS or SFTP. Trend charts support overlay, zoom, derivative calculation, and annotation. Export formats include CSV, PDF reports (with digital signature), and OPC UA server connectivity for enterprise SCADA integration. The software architecture supports multi-user environments with configurable permissions (Operator, Technician, Administrator) and auto-restart recovery after power interruption.

Applications

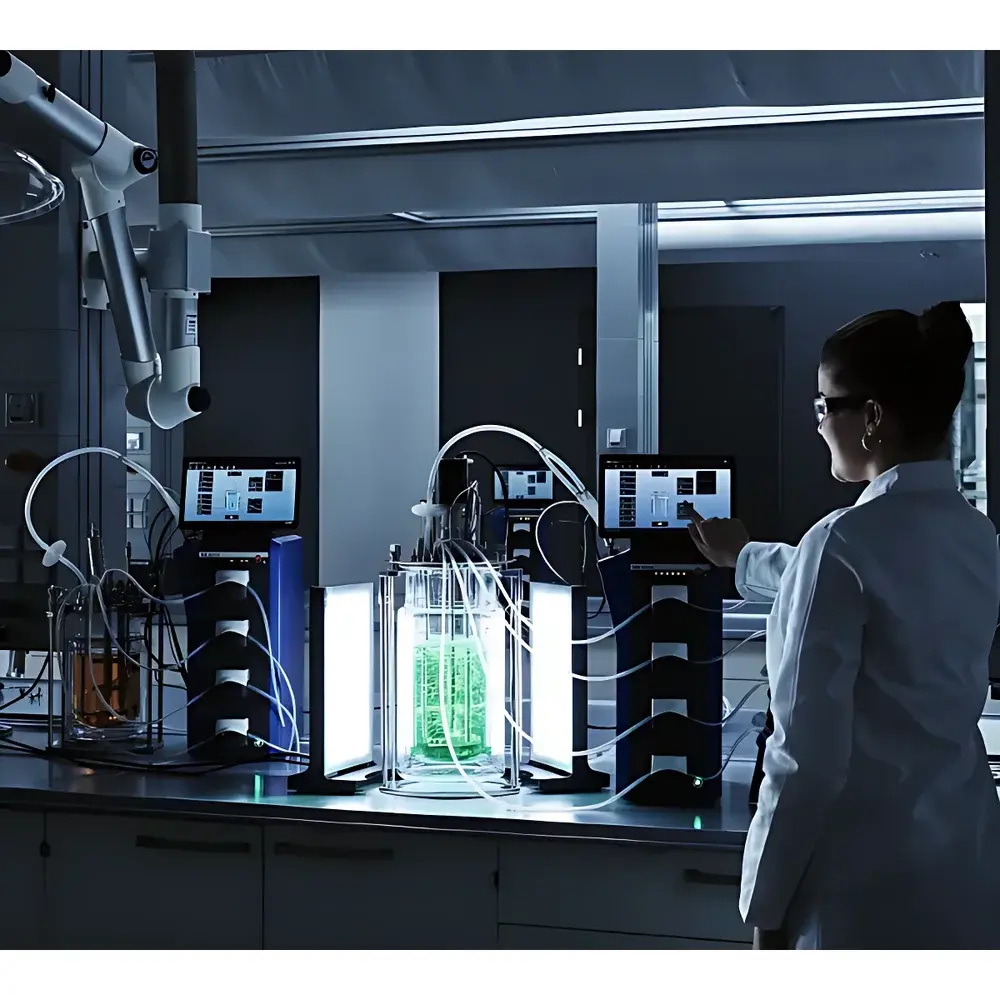

The HABITAT cell serves as a primary tool in upstream bioprocess development labs for: monoclonal antibody (mAb) expression optimization in CHO cells; vaccine antigen production in insect cell systems (Sf9, Sf21); high-yield recombinant protein fermentation in E. coli; metabolic engineering studies in yeast; and photobioreactor trials for bioactive compound synthesis in cyanobacteria and microalgae. Its modularity supports DOE-based experimental design — enabling parallel evaluation of pH setpoints, DO cascade strategies, feed profiles, and mixing regimes. Academic researchers use it for teaching bioreactor fundamentals, while QC/QA teams deploy it for media qualification, seed train validation, and comparability studies under controlled environmental conditions (5–40°C ambient, ≤80% RH).

FAQ

Is the HABITAT cell suitable for GMP manufacturing environments?
Yes — when configured with Part 11-compliant software, stainless-steel accessories, and qualified vessels, the system meets foundational requirements for Phase I–III clinical material production under EU Annex 1 and FDA guidance.
Can I integrate third-party sensors (e.g., inline NIR, Raman probes)?
Yes — the control tower provides four analog inputs (0–10 V / 4–20 mA) and two digital I/O channels, supporting OEM sensor integration with user-defined scaling and alarm logic.
What vessel sizes and configurations are available?
Standard offerings include 0.5 L, 1 L, 2 L, 5 L, and 10 L borosilicate glass vessels — in single-wall (heating-blanket compatible) and double-jacketed (thermostatic circulation compatible) variants.
Does the system support remote monitoring and control?
Yes — via Ethernet or WiFi, users can access live data, modify setpoints, and review historical trends using any modern web browser or the dedicated IKA BioControl mobile app (iOS/Android).
How is sterility maintained during operation?
All fluid paths are sterilizable by steam (121°C, 30 min); gas lines include 0.2 µm hydrophobic filters; vessel ports feature ISO-KF or SMS sanitary fittings; and the control tower’s sealed electronics compartment prevents contamination ingress during routine operation.
