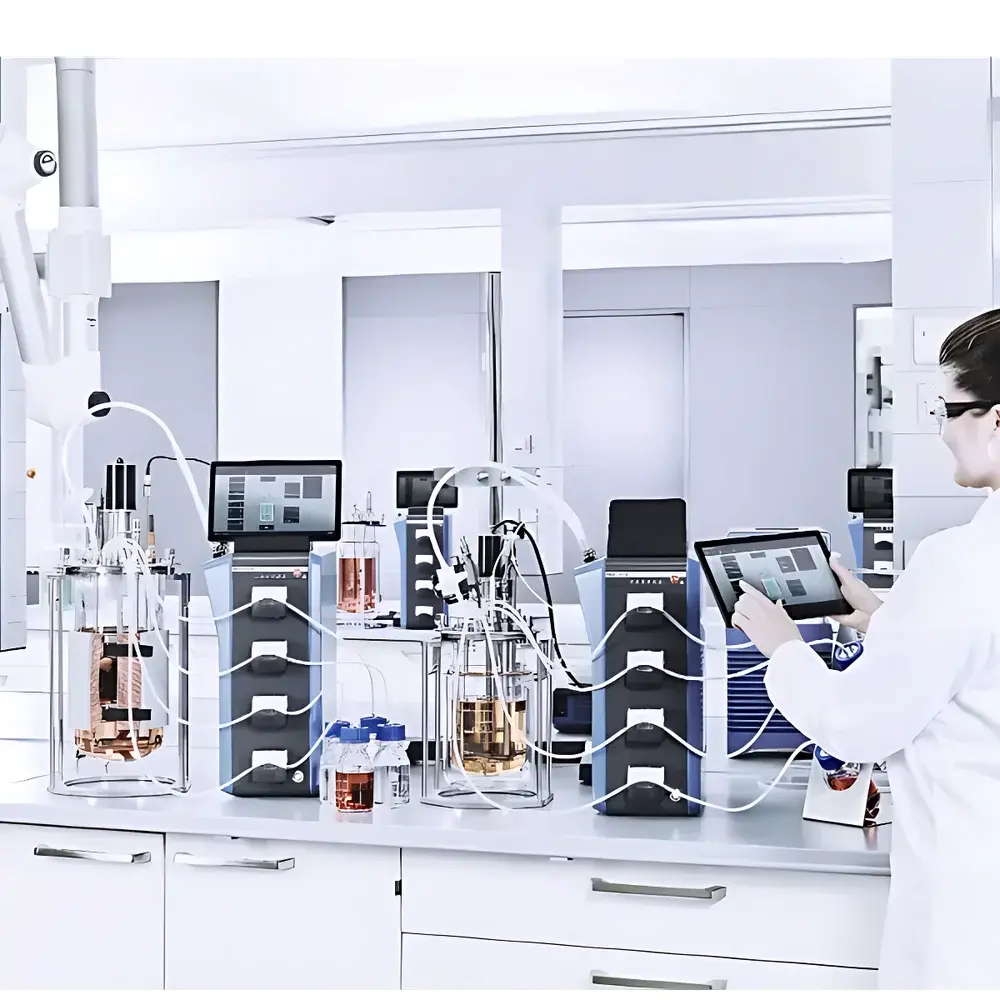

IKA HABITAT ferment cct Advanced Benchtop Bioreactor System

Overview

The IKA HABITAT ferment cct is an advanced, modular benchtop bioreactor system engineered for precise, reproducible, and scalable cultivation of mammalian cells, microbial strains, and photosynthetic organisms under strictly controlled physiological conditions. Built upon a robust control tower architecture, the system integrates real-time monitoring and closed-loop regulation of critical process parameters—including pH, dissolved oxygen (DO), temperature, agitation, gas composition, and liquid addition—within a compact footprint (223 × 402 × 450 mm). Its core operational principle relies on coupled feedback control loops governed by dedicated PID processors, enabling dynamic response to metabolic shifts during batch, fed-batch, or perfusion culture modes. Unlike conventional stirred-tank reactors relying solely on laminar or turbulent mixing regimes, the HABITAT implements Chaotic Mixing—a mathematically optimized impeller motion protocol that enhances mass transfer homogeneity, reduces shear stress gradients, and improves nutrient/gas distribution across heterogeneous cell populations. The system is fully compatible with both single-use and reusable glass vessels (0.5–10 L working volume), and its modular design allows seamless reconfiguration as a fermenter (with IKA HRC 2 thermostatic circulator), photobioreactor (via optional LED illumination panel), or high-fidelity bioprocess development platform.

Key Features

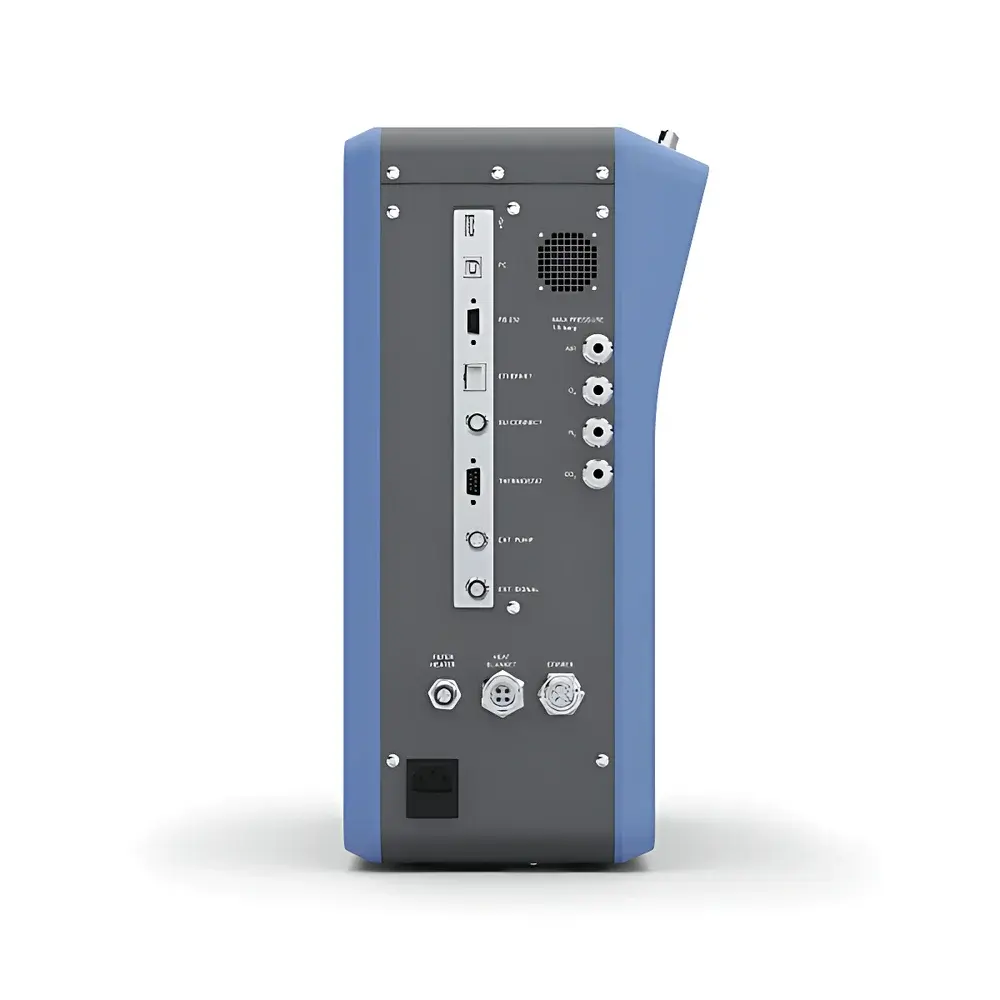

• Integrated control tower with four independently regulated mass flow controllers (MFCs) for Air, O₂, N₂, and CO₂—enabling precise gas blending across 0–20,000 cc/min per line, with ≤2% full-scale repeatability
• Four programmable Watson-Marlow 114DV peristaltic pumps supporting bidirectional operation, calibrated flow delivery (1–270 mL/min), and configurable assignments (acid, base, antifoam, feed)
• Chaotic Mixing algorithm implemented via digitally synchronized motor control—proven to improve mixing efficiency by >35% versus standard ramped profiles in viscous or shear-sensitive cultures
• 10.4-inch industrial-grade tablet PC with intuitive touch interface, embedded 32 GB non-volatile memory, and real-time visualization of all sensor channels and actuator states

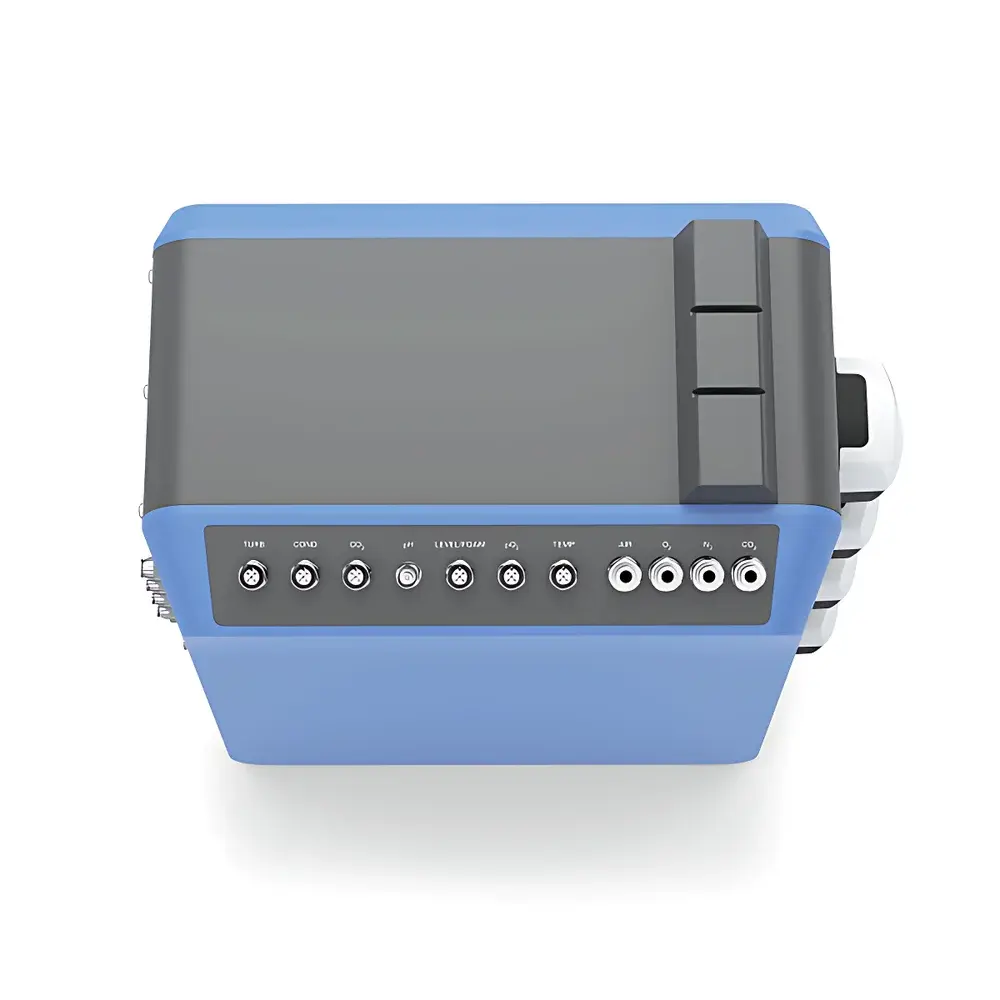

• Comprehensive sensor support: integrated inputs for pH, DO, PT1000 temperature, level, foam, CO₂, conductivity, and turbidity—no external signal conditioning required
• Full calibration traceability: guided, step-by-step calibration routines for pH, DO, and temperature sensors—with automatic timestamped logging compliant with ALCOA+ principles
• Robust safety architecture: dual thermal cutoffs (fixed 75 °C hardware limit + software-configurable upper bound), pressure-regulated gas manifolds (200–3000 mbar input), and IP20-rated enclosure suitable for ISO Class 7 laboratory environments

Sample Compatibility & Compliance

The HABITAT ferment cct supports a broad spectrum of biological systems—from suspension-adapted CHO and HEK293 cells to aerobic bacteria (e.g., E. coli, Bacillus subtilis) and filamentous fungi. Its flexible vessel configuration accommodates both jacketed and single-wall glass reactors, as well as disposable bioreactor bags (via certified single-use interface). All wetted materials comply with USP Class VI and EU 10/2011 food-contact standards. Regulatory alignment includes native support for FDA 21 CFR Part 11 requirements through optional software licensing—featuring role-based access control, electronic signatures, immutable audit trails, and 21-day automated backup retention. The system meets essential requirements of ISO 13485:2016 (for medical device manufacturing), ASTM E2500-13 (for pharmaceutical process validation), and EU GMP Annex 11 (Computerized Systems). Full documentation packages—including IQ/OQ protocols, risk assessments (FMEA), and sensor calibration certificates—are available upon request.

Software & Data Management

Control and data acquisition are managed via IKA’s proprietary BioControl Suite, deployed on the embedded Android-based tablet. The software provides synchronized multi-parameter trending, customizable alarm thresholds (with email/SMS notification via optional gateway), and export in CSV, PDF, or ASTM E1384-compliant .xmi format. Process data—including raw sensor outputs, setpoint histories, actuator commands, and calibration metadata—are stored with SHA-256 hashing for integrity verification. The system supports direct integration into enterprise MES/LIMS platforms via OPC UA (v1.04) and RESTful API endpoints. For regulated environments, the Part 11-compliant version enforces 21 CFR §11.10(a) requirements: electronic records are protected against unauthorized modification, and signature events include user ID, timestamp, and reason-for-change annotation. All software updates undergo rigorous regression testing and are distributed with digital signatures verified at boot time.

Applications

• Monoclonal antibody production in CHO cell fed-batch processes, with integrated pH/DO cascade control and glucose-limited feeding strategies
• High-density E. coli fermentation for recombinant protein expression, leveraging O₂/N₂ blending to maintain optimal redox potential

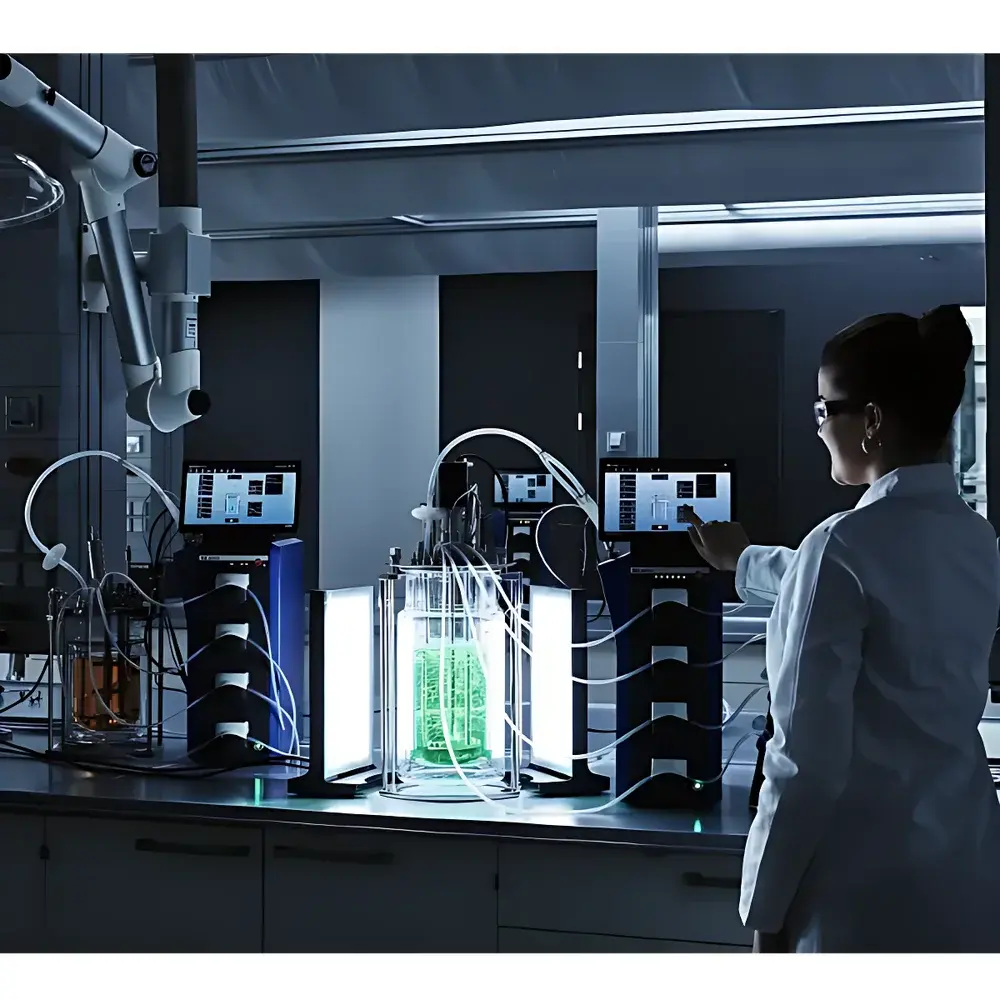

• Algal biomass cultivation under controlled photoperiod and CO₂ enrichment, enabled by optional LED illumination coupling
• Stem cell expansion in microcarrier-based suspension cultures, where Chaotic Mixing minimizes aggregate formation and improves viability
• Process characterization studies for QbD (Quality by Design) submissions, generating DOE-compliant datasets for CPP identification
• Bioprocess training and education—supporting hands-on instruction in bioreactor operation, sensor calibration, and control theory fundamentals

FAQ

What vessel configurations are supported?
The HABITAT ferment cct accepts both reusable borosilicate glass vessels (0.5–10 L, single-wall or double-jacketed) and certified single-use bioreactor bags via standardized clamp interfaces.
Is remote monitoring possible without local network access?
Yes—via optional cellular modem integration or cloud-enabled gateway, allowing secure TLS 1.2-encrypted access from off-site locations using standard web browsers.
How does Chaotic Mixing differ from conventional agitation control?
It applies deterministic yet non-repeating impeller velocity sequences derived from Lorenz attractor models, eliminating dead zones and reducing localized shear exposure by up to 40% compared to fixed-RPM or linear-ramp profiles.
Can the system be validated for GMP manufacturing?
Yes—complete validation documentation (DQ/IQ/OQ/PQ templates), 21 CFR Part 11 readiness assessment reports, and third-party certification support are available through IKA’s Regulatory Affairs team.
What maintenance is required for long-term reliability?
Annual recalibration of MFCs and sensor transmitters is recommended; pump tubing replacement every 6 months under continuous operation; firmware updates provided free-of-charge for the product’s 10-year support lifecycle.
