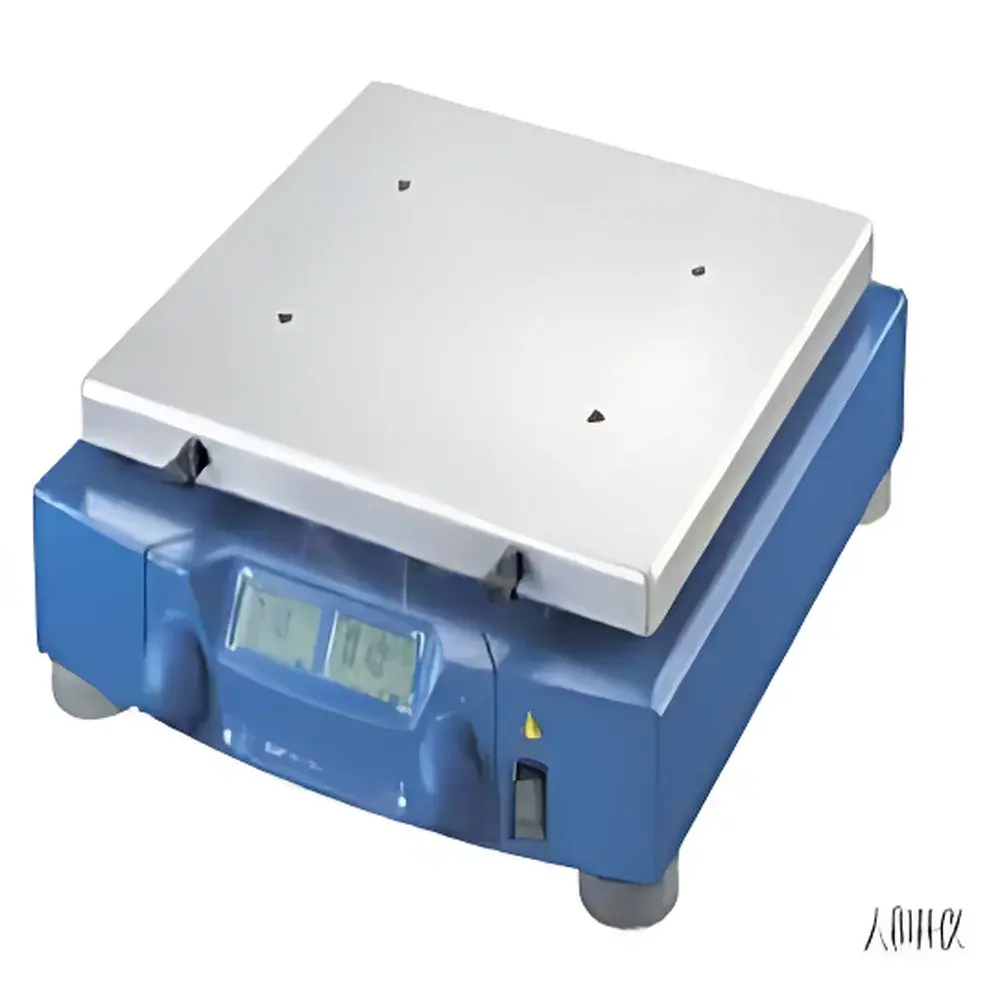

IKA HS 260 control Reciprocal Shaker
| Brand | IKA |
|---|---|
| Origin | Germany |
| Model | HS 260 control |
| Timer Range | 1–599 min |
| Oscillation Frequency | 10–300 rpm |
| Stroke Length | 20 mm |
| Temperature Range | 5–50 °C |
| Platform Quantity | 1 |
| Max Load Capacity | 7.5 kg |
| Display | LCD (speed & timer) |
| Control Interface | RS-232, analog output |
| Power Supply | 220–240 V / 100–120 V, 50/60 Hz |
| Input Power | 45 W |
| Protection Rating | IP21 |
| Dimensions (W×H×D) | 360 × 100 × 420 mm |
| Weight | 8.8 kg |
| Ambient Operating Conditions | 5–50 °C, ≤80 % RH |
Overview
The IKA HS 260 control is a precision-engineered reciprocal shaker designed for consistent, reproducible agitation of samples in life science and bioprocessing laboratories. Utilizing a robust electromagnetic drive system, it delivers linear reciprocating motion with a fixed stroke length of 20 mm—optimized for uniform mixing, suspension of cells, solubilization of reagents, and gentle yet effective homogenization of low-viscosity biological media. Unlike orbital or rotary shakers, the HS 260 control’s back-and-forth motion minimizes vortex formation while maximizing surface contact between liquid phases and container walls—critical for applications such as hybridization, ELISA plate washing, and blotting membrane incubation. Its compact footprint (360 × 420 mm base) and low-profile design (100 mm height) allow seamless integration into biosafety cabinets, cold rooms, and shared benchtop environments without compromising accessibility or ergonomic workflow.
Key Features
- Microprocessor-controlled speed regulation with high-resolution LCD display showing real-time rpm and remaining timer duration
- Precise digital timing function covering 1 to 599 minutes, plus continuous operation mode for extended assays
- Stable, low-vibration mechanical architecture engineered for long-term reliability and minimal cross-contamination risk
- Integrated electronic braking system for rapid, controlled deceleration—essential for sensitive cell cultures and fragile assay plates
- RS-232 serial interface and analog voltage output (0–10 V) enabling direct integration with lab automation systems and centralized monitoring platforms
- Compliance with DIN EN 60529 IP21 rating ensures protection against vertically falling drips and solid objects ≥12.5 mm—suitable for standard laboratory environments
- Universal dual-voltage power supply (100–120 V / 220–240 V, 50/60 Hz) supports global deployment without external transformers
Sample Compatibility & Compliance
The HS 260 control accommodates a wide range of vessel formats—including standard microtiter plates (96-/384-well), test tubes (up to 50 mL), flasks (Erlenmeyer and baffled), and custom cuvettes—via interchangeable clamping accessories (sold separately). Its 7.5 kg maximum load capacity includes platform, clamps, and sample vessels, ensuring mechanical stability even at upper-speed settings (300 rpm). The device operates within an ambient temperature range of 5–50 °C and relative humidity up to 80 %, making it compatible with refrigerated incubators and warm-room applications. While not an integrated incubator, its thermal compatibility allows safe placement inside climate-controlled enclosures when used with external temperature monitoring. The instrument conforms to IEC 61010-1 safety standards for laboratory electrical equipment and supports audit-ready documentation workflows required under GLP and ISO/IEC 17025-accredited quality systems.
Software & Data Management
Full remote operation and parameter logging are enabled through IKA’s labworldsoft® software—a validated Windows-based platform supporting multi-instrument control, method archiving, and electronic signature functionality. Users can define, store, and recall complete shaking protocols—including ramp profiles, pause intervals, and conditional triggers—ensuring inter-laboratory method transfer consistency. All executed runs generate timestamped log files compliant with FDA 21 CFR Part 11 requirements when configured with user authentication and audit trail activation. The RS-232 interface permits bidirectional communication for real-time status polling and error reporting, while the analog output enables connection to PLCs or SCADA systems for facility-wide environmental integration.
Applications
- Hybridization and pre-hybridization steps in Southern/Northern/Western blotting workflows
- Antibody incubation and wash cycles in immunoassay development and QC testing
- Suspension culture maintenance of adherent and non-adherent mammalian cell lines
- DNA/RNA extraction buffer mixing and protein precipitation steps
- Calibration standard preparation requiring homogeneous dispersion across replicate wells
- Environmental microbiology—shaking of enrichment broths and selective media prior to plating
FAQ
Is the HS 260 control suitable for use inside a CO₂ incubator?
No—the unit is not rated for humidified, elevated-CO₂ environments. It may be placed externally and connected via tubing or used in ambient-temperature incubators with independent climate control.
Can multiple HS 260 control units be synchronized via labworldsoft®?
Yes—labworldsoft® supports simultaneous configuration, start/stop commands, and data aggregation across up to 16 IKA devices on a single network segment.
What clamping options are available for microplate handling?
IKA offers dedicated 96-well and 384-well universal plate holders (Order Nos. 0002020000 and 0002020100), as well as adjustable tube racks for 13–50 mL formats.
Does the instrument support password-protected parameter locking?
Yes—labworldsoft® allows administrator-defined access levels and write-protection for critical parameters including max rpm, timer limits, and motor duty cycle thresholds.
Is calibration certification included with purchase?
Factory calibration data is provided; optional UKAS-accredited calibration services (traceable to NIST standards) are available upon request through authorized IKA service centers.
