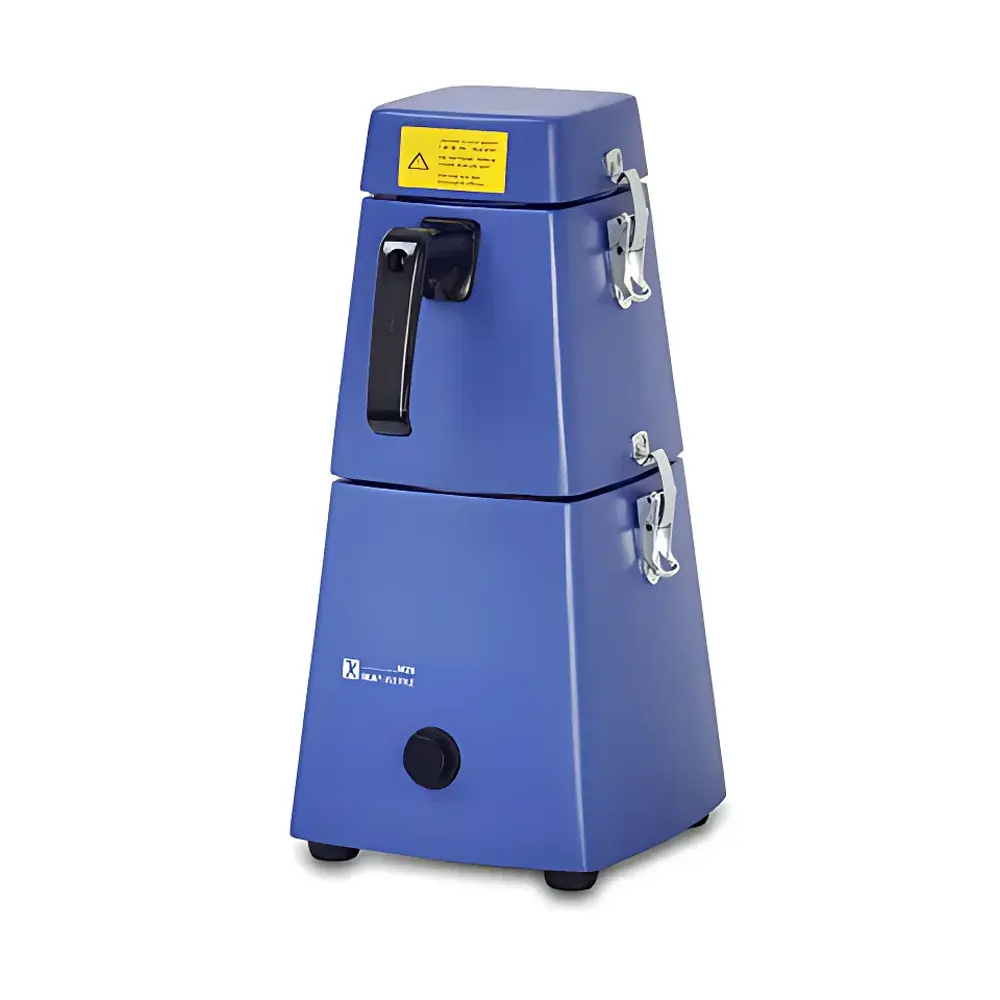

IKA M20 Universal Grinder

Overview

The IKA M20 Universal Grinder is a high-performance, benchtop batch grinder engineered for reproducible size reduction of brittle and moderately hard solid materials under dry conditions. Based on high-speed rotor-stator impact and shear mechanics, the M20 delivers consistent particle size distribution through controlled mechanical energy transfer—ideal for sample homogenization prior to analytical procedures such as X-ray fluorescence (XRF), inductively coupled plasma (ICP) analysis, or gravimetric assay preparation. Its compact footprint, robust stainless-steel construction (chamber: 1.4301; rotor and cutting tools: 1.4034), and thermally managed operation support routine use in QC laboratories, pharmaceutical development labs, and academic research facilities where trace contamination control and process repeatability are critical.

Key Features

• Interchangeable grinding chambers driven by a single motor—enabling rapid method switching without hardware reconfiguration
• Jacketed grinding chamber with standardized hose connections for external water circulation cooling, maintaining sample integrity during extended operation
• Optional dry ice–assisted cooling within the chamber for heat-sensitive or low-melting-point materials (e.g., polymers, waxes, certain APIs)
• Integrated thermal duty cycle logic: 7-minute active grinding followed by 10-minute cooldown period to prevent motor overheating and ensure long-term operational stability
• Quick-release chamber design with minimal crevices—facilitating full disassembly, visual inspection, and compliance with cleaning validation protocols (e.g., ASTM E3029, ISO 22000 hygiene requirements)
• CE-compliant electromagnetic compatibility and safety architecture, conforming to DIN EN 60529 (IP21 rating) for protection against vertically falling solids and limited ingress of moisture

Sample Compatibility & Compliance

The M20 accommodates feed materials up to 7 mm in maximum dimension and hardness ≤5 Mohs (e.g., limestone, gypsum, dried plant tissue, ceramic precursors, pharmaceutical excipients). It excludes highly abrasive (e.g., silicon carbide), fibrous (e.g., cellulose-rich biomass), or ductile metals unsuitable for shear-dominated comminution. All wetted parts comply with EU Directive 2002/72/EC for food-contact materials and meet USP Class VI plastic equivalency standards for metallic components. The absence of RS232 or analog outputs reflects its design intent as a standalone mechanical processing tool—not an integrated automation node—thereby simplifying qualification under FDA 21 CFR Part 11 when used in non-critical GMP environments (e.g., pre-formulation screening).

Software & Data Management

The IKA M20 operates without embedded firmware or digital control interface; all parameters—including speed (fixed at 20,000 rpm), run time, and cooling activation—are manually initiated via front-panel toggle switches. This analog architecture eliminates software validation burdens while supporting straightforward IQ/OQ execution per GAMP 5 Annex 11 principles. Process records (start/stop timestamps, operator ID, batch ID, ambient temperature/humidity logs) must be maintained externally in lab notebooks or LIMS-integrated electronic batch records. Optional integration with IKA Labworld software (via third-party relay modules) enables basic run logging but does not support real-time parameter modulation or audit trail generation.

Applications

• Preparation of homogeneous powders for quantitative elemental analysis (XRF, AAS, ICP-OES)
• Size reduction of geological core samples prior to geochemical assay
• Homogenization of herbal extracts and botanical matrices for HPTLC or GC-MS profiling
• Routine grinding of tablet fragments for content uniformity testing (USP )
• Production of reference material sub-samples meeting ISO Guide 35 metrological traceability requirements
• Particle size conditioning for BET surface area measurement (ASTM D3663) and laser diffraction analysis (ISO 13320)

FAQ

Can the M20 be used for cryogenic grinding with liquid nitrogen?
No. The grinding chamber lacks structural reinforcement and sealing provisions required for LN₂ exposure; only dry ice–based cooling is validated.
Is the M20 suitable for grinding soft metals like aluminum or zinc?
No. Ductile metals may wrap around the rotor or cause excessive wear; the device is specified only for brittle materials ≤5 Mohs hardness.
Does the M20 require calibration or periodic metrological verification?
Speed and timing are fixed mechanical functions with no user-adjustable setpoints; however, annual verification of rotational speed (via tachometer) and thermal cutoff response is recommended per ISO/IEC 17025 Clause 6.4.6.
What cleaning agents are compatible with the stainless-steel grinding chamber?
Aqueous alkaline cleaners (pH 10–12), ethanol, and isopropanol are approved; chlorinated solvents and strong oxidizers (e.g., nitric acid) must be avoided to preserve passive layer integrity on 1.4301 steel.
Can multiple operators share one M20 unit without cross-contamination risk?
Yes—provided chamber disassembly, ultrasonic cleaning (with 2% SDS solution), and visual residue inspection are performed between users, satisfying ALCOA+ data integrity expectations for shared equipment.
