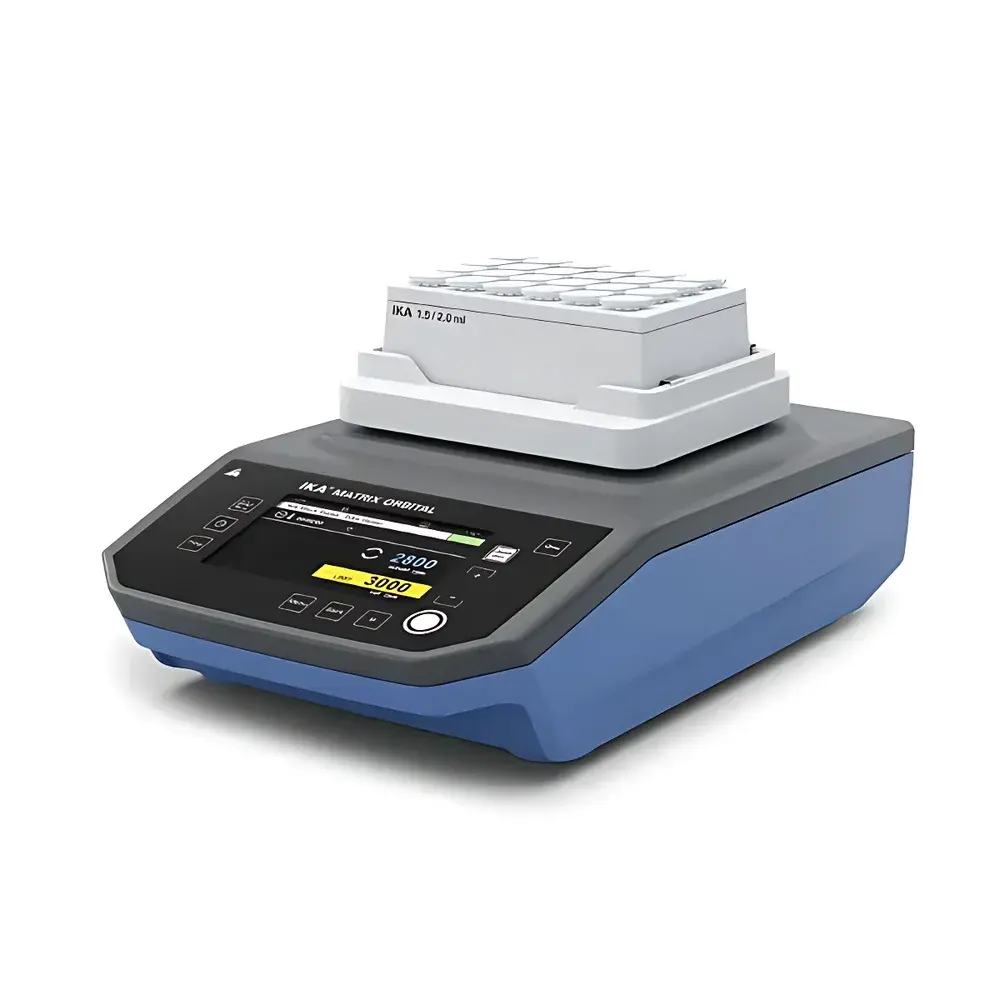

IKA MATRIX Orbital Orbital Shaker

Overview

The IKA MATRIX Orbital is a precision-engineered orbital shaker designed for consistent, contamination-free mixing in life science laboratories. Operating on the principle of controlled circular motion with a fixed 3 mm orbit diameter, it generates uniform shear forces across samples—ideal for resuspension, homogenization, and incubation-coupled mixing tasks. Unlike reciprocating or vortex shakers, orbital motion minimizes foaming and sample splashing while maximizing reproducibility across microvolume formats. Its robust aluminum die-cast housing ensures mechanical stability during extended operation at speeds up to 3000 rpm, supporting applications ranging from ELISA plate washing and PCR master mix preparation to RNA/DNA stabilization and cell culture maintenance. The device complies with IEC 61010-1 safety standards and is CE-marked for use in research environments governed by GLP-aligned workflows.

Key Features

• Orbital motion with precisely calibrated 3 mm orbit diameter for optimal fluid dynamics in low-volume vessels
• Wide speed range (0–3000 rpm) with fine 10 rpm resolution and ±30 rpm accuracy for method transferability
• TFT display with intuitive menu navigation and real-time parameter feedback (speed, time, status)
• Dual operation modes: continuous run and programmable timer (1 second to 100 hours)
• Universal platform accommodating multiple vessel configurations—including 96-well microtiter plates, standard PCR plates, deep-well plates (DWP), and tube racks for 24×0.5 mL, 24×1.5 mL, or 24×2.0 mL tubes
• IP21-rated enclosure providing protection against vertically falling drips and solid objects >12.5 mm—suitable for standard laboratory benchtop deployment
• Integrated RS232 and USB interfaces enabling remote control, data logging, and integration into automated lab systems
• Energy-efficient design with 80 W nominal power draw and universal 100–240 V AC input compatibility

Sample Compatibility & Compliance

The MATRIX Orbital is validated for use with biological and diagnostic samples requiring gentle yet effective mixing—including whole blood, serum, plasma, nucleic acid extracts, protein solutions, and immunoassay reagents. Its non-contact orbital drive eliminates cross-contamination risks between wells or tubes, making it suitable for high-sensitivity assays such as qPCR and ELISA where carryover must be avoided. The instrument meets DIN EN 60529 (IP21), IEC 61010-1 (Safety Requirements for Electrical Equipment for Measurement, Control, and Laboratory Use), and RoHS directives. While not certified for GMP manufacturing environments per se, its stable performance, audit-ready timer logs, and interface traceability support compliance with FDA 21 CFR Part 11 when deployed within validated SOPs.

Software & Data Management

Via RS232 or USB connection, the MATRIX Orbital supports bidirectional communication with host PCs running IKA LabWorld software or third-party LIMS-compatible platforms. Users can configure, execute, and archive mixing protocols—including speed profiles, dwell times, and repeat cycles—with timestamped event logs. All timer settings are retained after power cycling, and firmware updates are delivered via USB without external service intervention. The system maintains full operational history (start/stop timestamps, speed deviations, error codes) for internal QA review and regulatory documentation requirements.

Applications

• Resuspension of lyophilized reagents and pelletized cells
• Homogenization of viscous biological fluids prior to centrifugation or analysis
• Incubation-mixing of enzyme reactions, antigen-antibody binding, and ligand-receptor assays
• Pre-analytical processing of clinical specimens (e.g., serum separation, anticoagulant mixing)
• High-throughput screening workflows involving multiwell plate-based assays
• Stabilization of temperature-sensitive biomolecules during cold-room or ambient mixing

FAQ

Is the MATRIX Orbital suitable for use inside refrigerated or CO₂ incubators?
No—it is rated for ambient operation only (5–40 °C) and lacks environmental sealing for humid or pressurized enclosures.
Can the shaker accommodate custom plate formats beyond those listed?
Yes, provided the footprint fits within the 200 × 120 mm platform and total mass remains ≤0.3 kg; users may install third-party adapters with mechanical anchoring.
Does the device support password-protected protocol locking for shared lab environments?
Not natively—the interface does not include user authentication—but external software control via LabWorld enables role-based access when integrated into networked lab systems.
What maintenance is required for long-term reliability?
Routine cleaning of the platform surface and periodic inspection of the drive coupling are recommended; no lubrication or calibration is needed under normal operating conditions.
Is the RS232 interface compatible with modern Windows/macOS systems lacking legacy serial ports?
Yes—USB-to-RS232 adapters meeting FTDI or CP210x chipset specifications ensure full interoperability with current operating systems.
