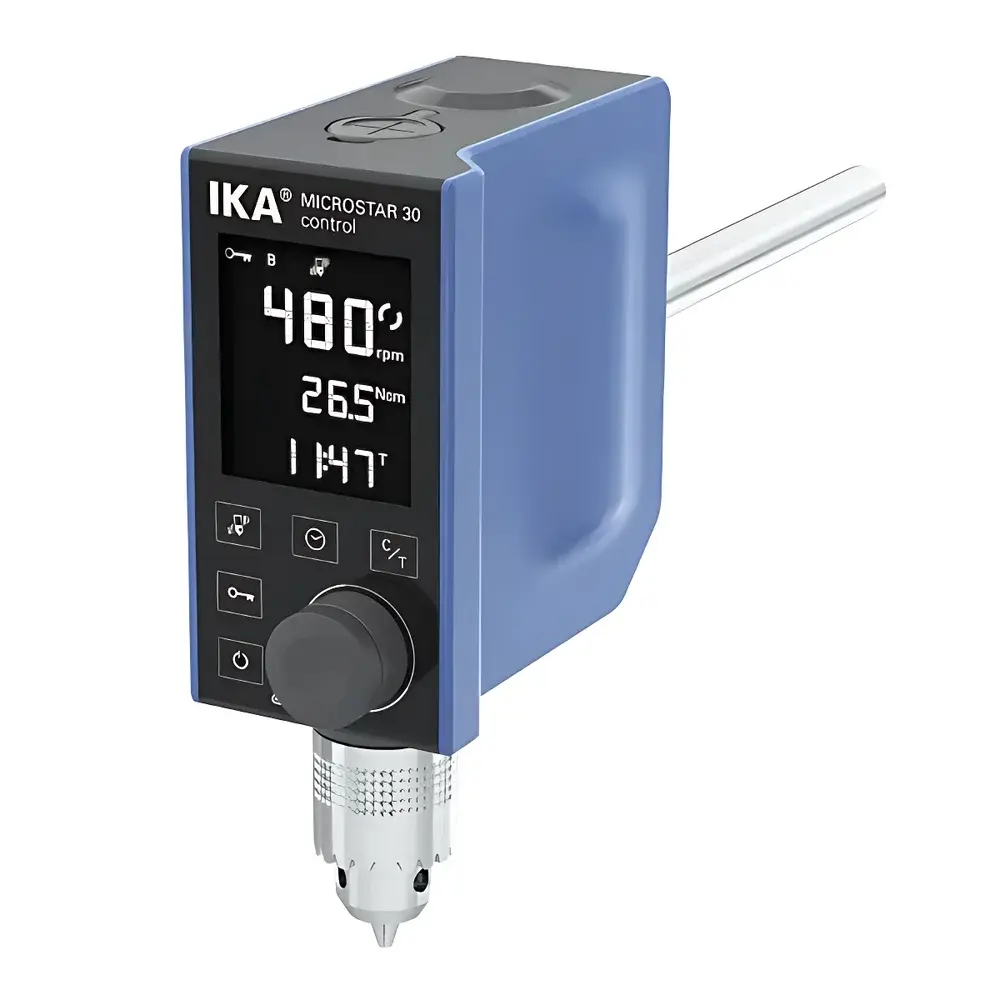

IKA MICROSTAR 30 control Overhead Stirrer

Overview

The IKA MICROSTAR 30 control is a precision-engineered overhead stirrer designed for demanding laboratory applications requiring stable torque delivery, high reproducibility, and extended continuous operation. Based on brushless DC motor technology, it eliminates carbon brush wear—ensuring long-term speed stability, reduced maintenance, and consistent performance across viscosity ranges up to 20,000 mPa·s. Its microprocessor-controlled drive system maintains set rotational speed regardless of load fluctuations, enabling reliable mixing of low- to high-viscosity media—including polymer solutions, suspensions, and viscous reaction mixtures—in volumes up to 20 L (water-equivalent). The unit complies with IEC 61000-6-3 (EMC emission) and IEC 61000-6-2 (immunity), and its robust cast aluminum and thermoplastic housing meets IP54 ingress protection for resistance against dust and water splashes in standard laboratory environments.

Key Features

• Brushless DC motor architecture for zero brush degradation, minimal electromagnetic interference, and extended service life
• Real-time torque monitoring with digital display and ±3 N·cm measurement deviation—critical for detecting phase transitions or gelation during reaction monitoring
• Integrated PT1000 temperature sensor interface supporting Class A accuracy per DIN EN 60751 (±0.5 K), enabling synchronized thermal and mechanical process control
• Hollow shaft design (8.5 mm internal diameter) allows insertion of temperature probes, pH electrodes, or sampling needles without interrupting agitation
• Vibration detection circuit automatically halts operation upon abnormal mechanical resonance—preventing damage to drive components and ensuring operator safety
• USB 2.0 port supports firmware updates and time-stamped parameter logging (speed, torque, temperature, timer) compatible with IKA’s labworldsoft® software suite
• Bluetooth 4.2 LE connectivity enables wireless configuration, remote start/stop, and real-time data streaming to iOS/Android devices via the official IKA app
• Programmable timer (0–6000 min) with LCD feedback supports unattended overnight reactions and standardized SOP execution
• Key-lock function prevents accidental parameter changes during routine operation—a requirement under GLP-compliant workflows

Sample Compatibility & Compliance

The MICROSTAR 30 control accommodates a broad spectrum of sample types—from aqueous buffers and organic solvents to aggressive reagents and abrasive slurries—thanks to its chemically resistant thermoplastic housing and stainless-steel chuck assembly. Its 0.5–8.2 mm clamping range accepts standard laboratory impellers (e.g., paddle, propeller, anchor, and helical types) as well as custom shafts. When used with optional accessories (e.g., IKA RW 20 digital controller or RS 1500 temperature probe), the system supports ASTM D2196 (viscosity of non-Newtonian materials) and ISO 2555 (solution viscosity determination) test protocols. Data integrity is reinforced by audit-trail-capable logging via labworldsoft®, aligning with FDA 21 CFR Part 11 requirements for electronic records in regulated QC/QA labs.

Software & Data Management

Integration with labworldsoft® provides full traceability: all operational parameters—including timestamped speed, torque, temperature, and elapsed time—are exportable in CSV or PDF formats. The software supports multi-device synchronization, user access levels (admin/operator), and automated report generation compliant with ISO/IEC 17025 documentation standards. Firmware updates delivered via USB ensure ongoing compatibility with evolving regulatory expectations and instrument functionality enhancements. No cloud dependency is required; local network deployment satisfies data sovereignty requirements common in pharmaceutical and academic institutions.

Applications

• Controlled synthesis of polymers and nanocomposites where shear history directly impacts molecular weight distribution
• Emulsion and suspension stabilization studies requiring precise torque feedback to assess droplet coalescence onset
• Bioreactor seed train preparation with oxygen-sensitive cultures—enabled by gentle yet consistent low-speed agitation (down to 30 rpm)
• High-temperature catalytic reactions (up to +350 °C with compatible probes) monitored in real time for exothermic event detection
• Quality control testing of adhesives, coatings, and pastes per ASTM D1084 or ISO 2557
• Method development for dissolution testing (USP Apparatus 2) using calibrated impeller geometry

FAQ

Does the MICROSTAR 30 control support external temperature feedback loops for closed-loop speed adjustment?

No—it displays temperature but does not modulate speed based on thermal input. Speed and temperature are independently controlled parameters.
Can the hollow shaft accommodate a glass-coated temperature probe without compromising seal integrity?

Yes, provided the probe outer diameter is ≤8.0 mm and is inserted only when the shaft is stationary. No dynamic sealing is provided; the design assumes static insertion.
Is the USB interface compatible with Windows 11 and macOS Ventura?

Yes—drivers and labworldsoft® v4.2+ are certified for both operating systems. No virtual COM port emulation is required.
What is the calibration interval recommendation for torque and temperature functions?

IKA recommends annual verification against traceable standards (e.g., torque calibrator per ISO 376, PT1000 reference bath per DIN 12879). Full recalibration is available through authorized service centers.
Does Bluetooth operation affect measurement accuracy or introduce latency?

No—Bluetooth operates exclusively for configuration and status polling. All real-time control and data acquisition occur locally via the embedded microcontroller; wireless communication introduces no timing jitter to critical measurements.
