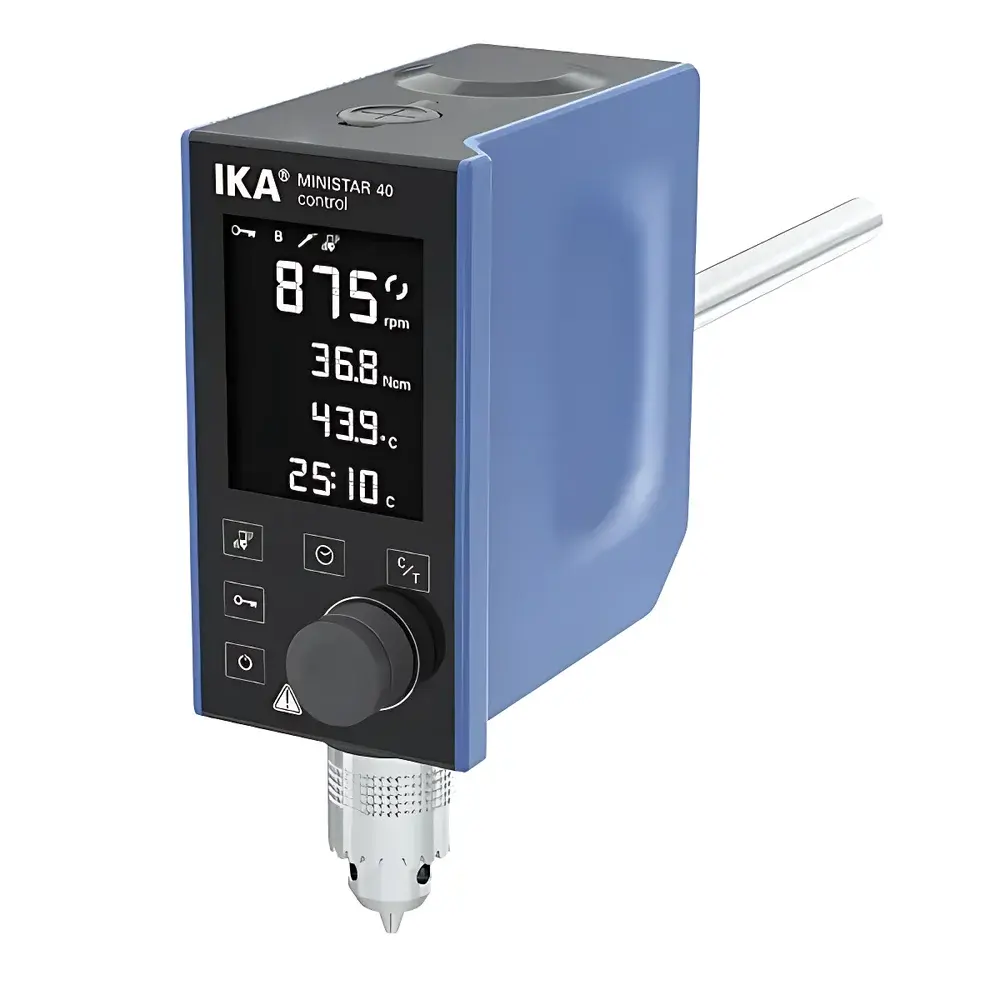

IKA MINISTAR 40 control Overhead Stirrer

Overview

The IKA MINISTAR 40 control is a precision-engineered overhead stirrer designed for demanding laboratory applications requiring high torque stability, accurate speed control, and extended operational reliability. Based on brushless DC motor technology, it eliminates carbon brush wear—ensuring consistent rotational performance over thousands of operating hours without maintenance-induced drift. Its core measurement principle relies on closed-loop microprocessor-controlled feedback, dynamically adjusting power delivery to maintain set speed across varying load conditions—including highly viscous media up to 30,000 mPa·s. The device is optimized for top-entry mixing in glass or stainless-steel vessels (up to 25 L with water-equivalent viscosity), making it suitable for reaction monitoring, polymer dissolution, suspension homogenization, and controlled crystallization protocols where reproducible shear input is critical.

Key Features

• Brushless DC motor architecture delivering 46 W mechanical output and 42 W shaft power—enabling stable operation under high-viscosity loads without thermal throttling.
• High-resolution LCD display showing real-time speed (rpm), torque (N·cm), elapsed time (min), and optional temperature (°C) when paired with PT1000 probe.
• Precision speed control via analog rotary encoder with ±1 rpm setting resolution and certified deviation limits per DIN/ISO standards: ±1% above 300 rpm; ±3 rpm below 300 rpm.
• Integrated vibration detection system automatically halts rotation upon detecting abnormal mechanical resonance—protecting both drive unit and vessel integrity.
• Hollow shaft design (8.5 mm internal diameter) permits insertion of temperature probes, pH electrodes, or sampling needles during stationary or low-speed operation—enabling true multi-parameter process monitoring.
• Full IP54 ingress protection rating ensures operational safety in humid or splash-prone environments typical of chemical synthesis labs and QC facilities.
• USB and Bluetooth interfaces support firmware updates, parameter logging, and remote configuration via IKA’s labworldsoft® platform—fully compliant with GLP audit-trail requirements (time-stamped event logs, user access control).

Sample Compatibility & Compliance

The MINISTAR 40 control accommodates standard laboratory stirring elements—including paddle, propeller, anchor, and helical impellers—with clamping diameters from 0.5 to 8.2 mm. Its robust cast aluminum and thermoplastic housing resists common organic solvents, dilute acids/bases, and cleaning agents, satisfying ISO 15190:2020 laboratory equipment chemical resistance guidelines. Temperature sensing with PT1000 probes adheres to DIN EN 60751 Class A tolerances (±0.5 K at 0 °C), validated for use in USP sterile compounding workflows and ASTM D2196 viscosity correlation studies. All electrical components meet CE, UL/CSA 61010-1, and RoHS directives. The instrument supports 21 CFR Part 11-compliant data capture when used with labworldsoft® in validated configurations.

Software & Data Management

IKA labworldsoft® provides full bidirectional communication via USB or Bluetooth, enabling real-time parameter streaming, scheduled start/stop sequences, and automated report generation. Logged datasets include timestamped speed, torque, temperature, and runtime—exportable as CSV or PDF for integration into LIMS or ELN systems. Firmware updates preserve calibration constants and retain user-defined presets. Audit trail functionality records operator ID, parameter changes, and system events—meeting ALCOA+ principles (Attributable, Legible, Contemporaneous, Original, Accurate) required under GMP and ISO/IEC 17025 accreditation frameworks.

Applications

• Controlled emulsification of pharmaceutical suspensions under defined shear profiles.
• Viscosity-dependent polymer dissolution kinetics in solvent systems (e.g., PVDF in NMP).
• Long-duration catalytic hydrogenation reactions requiring constant agitation and thermal monitoring.
• Preparation of nanomaterial dispersions where particle aggregation must be minimized via precise shear rate control.
• QC testing of industrial lubricants and adhesives per ASTM D2196 and ISO 2555 methodologies.
• Teaching laboratories demonstrating Newtonian/non-Newtonian fluid behavior with real-time torque feedback.

FAQ

Does the MINISTAR 40 control support external temperature feedback for automatic speed adjustment?
No—it displays temperature but does not implement closed-loop thermal compensation. Speed remains manually or timer-set; temperature is monitored only for process documentation.
Can the hollow shaft accommodate a standard 6-mm temperature probe?
Yes—the 8.5-mm internal diameter allows passage of most rigid 6-mm sheathed PT1000 or thermocouple probes during static or low-speed operation.
Is the USB interface compatible with macOS and Linux systems?
Yes—labworldsoft® offers native installers for Windows, macOS (10.15+), and Ubuntu LTS (20.04+); device enumeration follows CDC ACM class standards.
What is the maximum allowable ambient temperature for continuous operation?
40 °C at ≤80% relative humidity—verified per IEC 60068-2-2 and IEC 60068-2-78 environmental stress testing protocols.
How is torque calibrated at the factory?
Torque sensors undergo traceable calibration using NIST-traceable deadweight loading rigs; certificate includes uncertainty budget per ISO/IEC 17025 Annex A.3.
