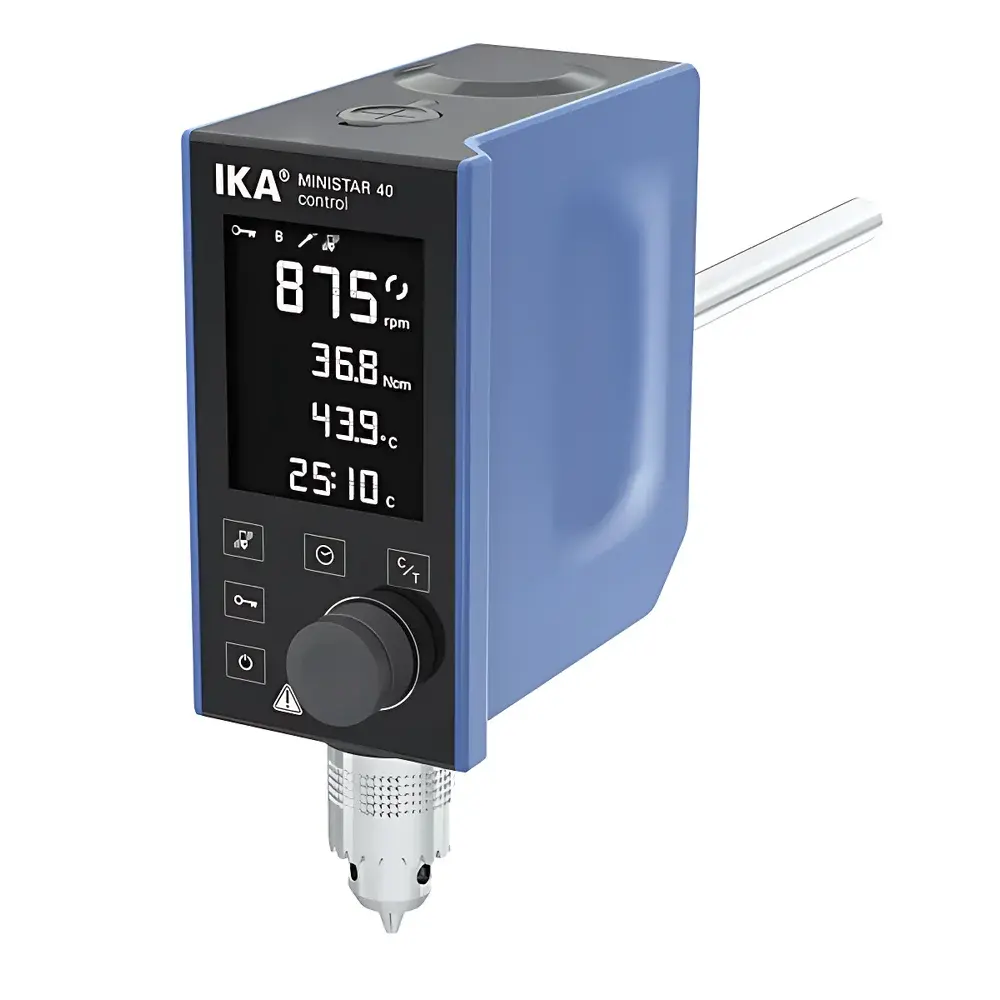

IKA MINISTAR 40 control Overhead Stirrer

Overview

The IKA MINISTAR 40 control is a high-precision, microprocessor-controlled overhead stirrer engineered for demanding laboratory mixing and dispersion tasks where reproducibility, stability, and chemical resistance are critical. Designed and manufactured in Staufen, Germany, it operates on brushless DC motor technology—eliminating carbon brush wear, reducing maintenance, and ensuring long-term speed stability under variable load conditions. Its core function is mechanical agitation via rotational torque transmission through a hollow shaft (8.5 mm internal diameter), enabling simultaneous insertion of temperature probes or auxiliary sensors during operation. The device implements closed-loop speed regulation using real-time back-EMF feedback, maintaining setpoint accuracy within ±1 rpm above 300 rpm—a specification aligned with ISO 8503-2 and ASTM D2196 requirements for viscosity-dependent mixing consistency. With a maximum torque output of 40 N·cm and capability to handle viscosities up to 30,000 mPa·s in aqueous systems, the MINISTAR 40 control supports scalable process development from R&D benchtop to pilot-scale formulation work.

Key Features

• Brushless DC motor architecture delivering zero maintenance, silent operation, and extended service life under continuous duty (100% duty cycle rated)
• Hollow stainless-steel stirring shaft (8.5 mm ID) permitting in-situ insertion of PT1000 temperature probes or pH electrodes without interrupting mixing
• Integrated high-resolution LCD display showing real-time values for speed (rpm), torque (N·cm), temperature (°C), and elapsed time (min)
• Electronic speed control via precision potentiometer with fine-tuning resolution down to 1 rpm; digital lock function prevents accidental parameter changes
• Intelligent vibration detection system that triggers automatic shutdown upon detecting abnormal mechanical resonance—enhancing operator safety and equipment longevity
• Dual connectivity: USB port for firmware updates and parameter logging (CSV export); Bluetooth 4.2 for wireless configuration and monitoring via IKA’s labworldsoft® desktop application
• Chemically inert housing composed of anodized aluminum and halogen-free thermoplastic polymer (UL94 V-0 rated), compliant with DIN EN 60529 IP54 for dust and splash resistance

Sample Compatibility & Compliance

The MINISTAR 40 control accommodates a broad range of sample types—including corrosive solvents (e.g., concentrated acids, chlorinated hydrocarbons), high-viscosity polymer melts, abrasive suspensions, and temperature-sensitive biological media—thanks to its chemically resistant shaft clamping system and non-reactive housing materials. It accepts standard stirring elements (propellers, anchors, dissolvers) with shank diameters from 0.5 mm to 8 mm. When paired with a calibrated PT1000 sensor (Class A per DIN IEC 751), the system meets temperature measurement traceability requirements for GLP-compliant documentation. Its design conforms to IEC 61000-6-3 (EMC emissions) and IEC 61000-6-2 (immunity), and supports audit-ready data integrity when used with labworldsoft® under FDA 21 CFR Part 11-compliant configurations (electronic signatures, audit trails, user access controls).

Software & Data Management

IKA labworldsoft® serves as the central platform for remote operation, protocol automation, and regulatory-compliant data handling. Through Bluetooth or USB connection, users can define multi-step mixing sequences—including ramped speed profiles, timed hold phases, and conditional torque-triggered actions—and export timestamped datasets with metadata (operator ID, instrument serial number, environmental conditions). All recorded parameters—including speed deviation history, torque trend logs, and thermal drift profiles—are stored in encrypted .csv or .xlsx formats compatible with LIMS integration. The software supports electronic signature workflows and generates PDF reports compliant with ISO/IEC 17025 documentation standards.

Applications

• Formulation development of adhesives, coatings, and battery slurries requiring precise shear history control
• Homogenization of nanoparticle dispersions and colloidal suspensions in pharmaceutical pre-formulation studies
• Controlled dissolution testing per USP and , especially for poorly soluble APIs in surfactant-containing media
• Temperature-coupled polymerization reactions monitored in real time via integrated PT1000 feedback
• Quality control of industrial lubricants and greases across viscosity grades (ISO VG 32–680)
• Environmental sample preparation including soil slurry homogenization prior to heavy metal extraction (EPA Method 3050B)

FAQ

Does the MINISTAR 40 control support external temperature control loops (e.g., integration with circulators)?

Yes—it features analog voltage output (0–10 V) for PID-based feedback to external heating/cooling units when used with optional IKA RH basic or RV 10 rotary evaporator controllers.
Can the torque measurement be calibrated in-house?

Torque calibration requires factory service using NIST-traceable dead-weight standards; however, users may perform verification checks using certified reference fluids per ASTM D2983.
Is the USB interface compatible with macOS and Linux systems?

USB communication is class-compliant HID; driver-free operation is supported on Windows 10/11, macOS 12+, and Ubuntu 20.04 LTS+ via standard CDC ACM protocols.
What is the maximum permissible ambient humidity for continuous operation?

The unit is rated for operation at ≤80% relative humidity (non-condensing), as validated per IEC 60068-2-78 testing protocols.
How does the vibration detection algorithm differentiate between process-induced oscillation and mechanical fault?

It analyzes RMS acceleration amplitude across three orthogonal axes over 200 ms windows; shutdown is triggered only when broadband energy exceeds 0.8 g RMS for ≥5 consecutive windows—excluding transient startup transients.
