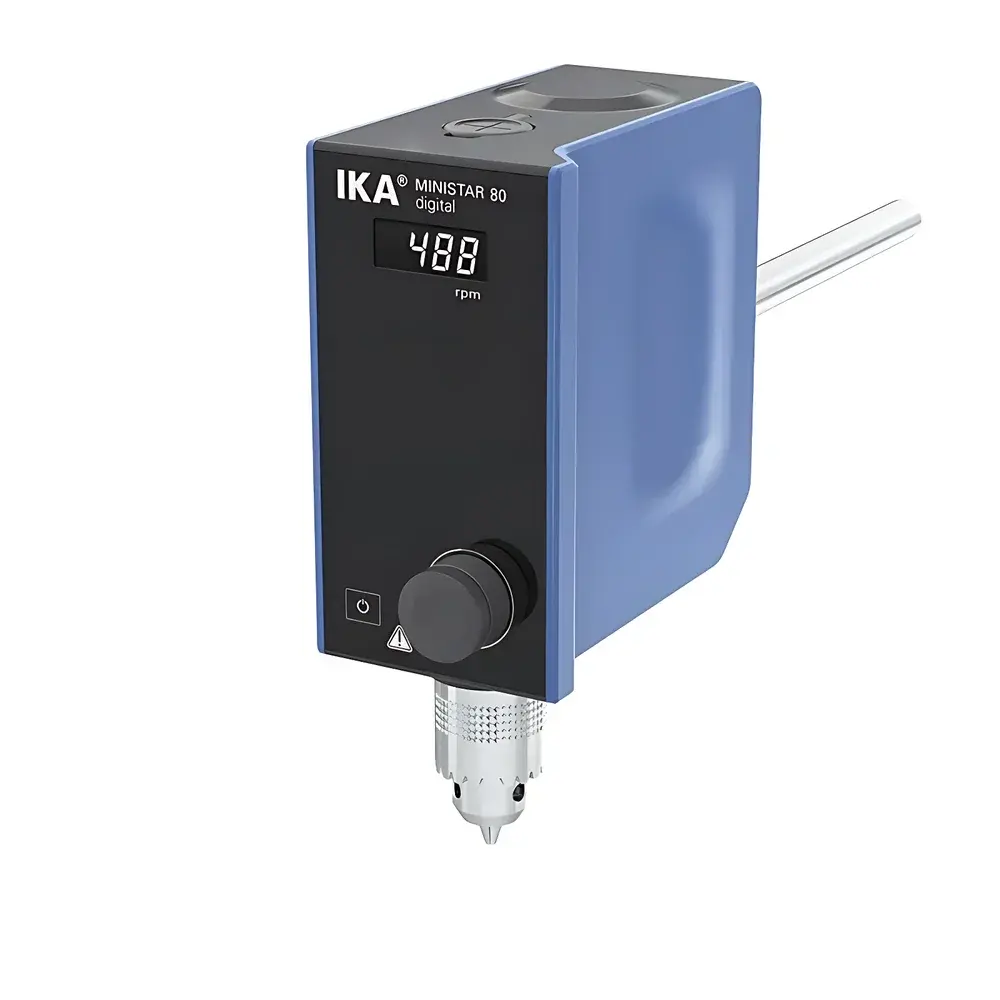

IKA MINISTAR 80 digital Overhead Stirrer

Overview

The IKA MINISTAR 80 digital is a compact, high-performance overhead stirrer engineered for precision mixing and dispersion in research laboratories, quality control environments, and small-scale production settings. Designed around brushless DC motor technology, it delivers consistent torque output across its full speed range (50–500 rpm), ensuring stable rotational dynamics even under variable load conditions—critical for reproducible rheological behavior in viscous or non-Newtonian media. Unlike gear-driven or brushed motor systems, the brushless architecture eliminates mechanical wear, reduces electromagnetic interference, and supports extended continuous operation (100 % duty cycle) without thermal derating. Its hollow shaft design (8.5 mm internal diameter) permits simultaneous insertion of temperature probes, pH electrodes, or sampling tubes during agitation—enabling real-time process monitoring without interrupting mixing. The unit complies with DIN EN 60529 (IP54 rating), confirming protection against dust ingress and water splashes from any direction—making it suitable for use in humid or chemically active lab environments.

Key Features

• Brushless DC motor delivering constant torque up to 80 N·cm across the entire speed range—ensuring stable performance regardless of viscosity changes.
• High-resolution LED display with ±1 rpm setting accuracy and calibrated speed feedback (±1 % deviation above 300 rpm; ±3 rpm below).
• Hollow shaft configuration (8.5 mm ID) allows integration of ancillary sensors or feed lines without stopping operation.
• Fixed chuck clamp accommodating stirring rods from 0.5 mm to 8.2 mm diameter—compatible with standard IKA and third-party impellers including propeller, paddle, and anchor types.
• Robust cast aluminum housing with thermoplastic polymer coating provides mechanical stability, corrosion resistance, and ESD-safe surface properties.
• Integrated USB interface enables firmware updates and future software expansion—supporting traceable calibration logs and parameter backup per GLP-compliant workflows.
• Energy-efficient design: 0.5 W standby power draw and optimized 24 V DC power conversion minimize operational cost and heat generation.

Sample Compatibility & Compliance

The MINISTAR 80 digital accommodates aqueous and organic solutions, suspensions, emulsions, and moderately viscous polymer melts—up to 60,000 mPa·s—without stalling or speed drift. Its torque delivery remains linear through viscosity gradients typical of pharmaceutical suspensions (e.g., USP ), food hydrocolloid gels, or battery slurry formulations. The device meets IEC 61000-6-3 (EMC emission limits) and IEC 61000-6-2 (immunity), and conforms to essential safety requirements under the Low Voltage Directive (2014/35/EU). While not inherently 21 CFR Part 11 compliant, audit-trail-capable software extensions (via USB-upgradable firmware) support GxP-aligned documentation when integrated into validated laboratory information management systems (LIMS).

Software & Data Management

Firmware updates are delivered via USB connection using IKA’s standardized configuration utility—available for Windows and Linux platforms. Though the base unit lacks built-in data logging, the USB interface enables external triggering and synchronization with time-stamped acquisition systems (e.g., LabVIEW, MATLAB, or custom Python scripts). Future firmware releases may introduce configurable speed ramps, hold timers, and event-based output signals—facilitating automated batch protocols in regulated environments. All parameter configurations—including speed setpoints, ramp profiles, and user-defined presets—are stored in non-volatile memory and persist after power cycling.

Applications

• Homogenization of cell culture media and buffer solutions in life science labs.
• Mixing of catalyst slurries and electrode pastes in battery R&D facilities.
• Dispersion of nanomaterials in solvent-based carriers under inert atmosphere gloveboxes (leveraging hollow shaft for probe insertion).
• Preparation of calibration standards for viscometry and particle size analysis instrumentation.
• Stirring during titration, dissolution testing (USP ), and accelerated stability studies where thermal or shear sensitivity demands precise speed control.

FAQ

Is the MINISTAR 80 digital compatible with IKA’s RW 20 or Eurostar digital accessories?
Yes—the fixed chuck design and shaft geometry maintain mechanical and dimensional compatibility with IKA’s legacy stirrer accessories, including universal clamps, magnetic couplings, and temperature-controlled reactor stands.
Can the hollow shaft be used for inline pH or conductivity measurement during stirring?
Yes—provided the probe diameter is ≤8.2 mm and the probe housing is chemically resistant to the sample matrix. No additional sealing is required at rest; however, dynamic sealing is not supported.
Does the unit support analog or digital I/O for integration into automated lab platforms?
No native analog I/O is present; however, USB communication allows bidirectional command execution (e.g., speed change, start/stop) via SCPI-like syntax, enabling integration with PLCs or central orchestration software.
What maintenance is required for long-term reliability?
No routine lubrication or brush replacement is needed due to the brushless motor architecture. Periodic visual inspection of chuck integrity and shaft runout (using dial indicator) is recommended every 6 months under heavy use.
Is CE marking valid for both EU and UK markets?
Yes—the device carries CE marking per Machinery Directive 2006/42/EC and EMC Directive 2014/30/EU, and remains accepted in Great Britain under UKCA transitional provisions until December 31, 2024.
