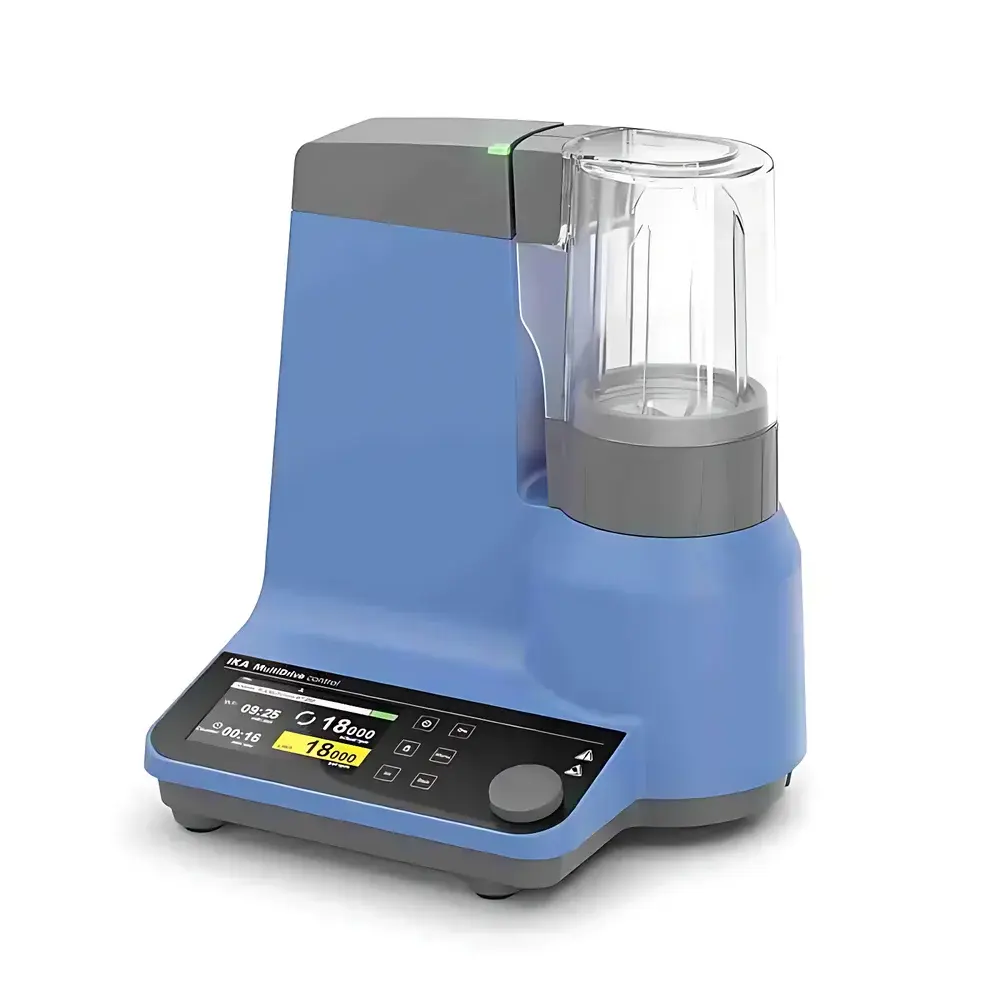

IKA MultiDrive Control BT Package Grinder

Overview

The IKA MultiDrive Control BT Package is a high-performance, programmable benchtop grinder engineered for reproducible, scalable comminution of hard and brittle materials in research, quality control, and production laboratories. Based on a brushless DC motor architecture, it delivers precise mechanical energy input through controlled rotational impact and shear forces—enabling consistent particle size reduction via cutting, impact, mixing, and dispersion mechanisms. Unlike conventional grinders relying on fixed-speed operation or analog controls, the MultiDrive Control integrates real-time process monitoring, vessel recognition, and temperature-aware operation—making it suitable for applications requiring traceability, method validation, and regulatory compliance (e.g., ISO 17025-accredited labs, GLP environments). Its modular design supports interchangeable grinding vessels—including dry grinding cups (MI), homogenizing cups (BL), rotor-stator dispersing units (DI), and sterilizable disposable cups (MT 150 and BT250)—ensuring adaptability across sample matrices without cross-contamination.

Key Features

• Brushless DC motor delivering 800 W mechanical output power and 1000 W electrical input—optimized for thermal stability and extended service life under cyclic loading.
• Wide speed range (3000–20,000 rpm) with ±5 % speed accuracy, enabling fine-tuned control over kinetic energy transfer for both coarse fragmentation and sub-10 µm fine grinding.
• Integrated high-resolution TFT touchscreen interface with multilingual support, graphical protocol navigation, and real-time parameter visualization (speed, time, temperature, weight).
• Onboard weighing system (5–4000 g range, 1 g resolution, ±(0.3% + 2) g accuracy) eliminates manual sample transfer—reducing handling errors and contamination risk during pre-grinding mass determination.
• RFID-enabled vessel recognition ensures automatic detection of cup type, material compatibility, and maximum safe operating parameters—preventing mismatched configurations and enforcing method integrity.
• Temperature monitoring (–50 °C to +120 °C, ±1 K accuracy, 0.1 K resolution) supports cryogenic grinding and exothermic process control—critical for thermolabile compounds or polymer composites.
• Duty-cycle management (5 min ON / 10 min OFF) prevents motor overheating during intensive operations; programmable intermittent mode enhances particle uniformity in hard-sample processing.
• Bluetooth 5.0 and USB 2.0 interfaces enable remote parameter configuration, real-time data logging, firmware updates, and integration into LIMS or ELN platforms.

Sample Compatibility & Compliance

The MultiDrive Control BT Package accommodates diverse solid and semi-solid samples—including ceramics, alloys, pharmaceutical tablets, plant tissues, bone, and polymer granules—provided they fall within hardness and moisture limits appropriate for mechanical impact comminution. Dry grinding cups (MI series) are validated for ambient and cryogenic milling; homogenizing cups (BL) and rotor-stator dispersers (DI) support wet-milling and suspension-based dispersion protocols. Disposable cups (MT 150, BT250) meet ISO 13485 requirements for single-use medical device manufacturing environments. The instrument complies with IEC 61000-6-3 (EMC), IEC 61000-6-2 (immunity), and carries CE, UL/cUL, and RoHS certifications. Its firmware architecture supports audit-trail generation and user-access-level configuration—facilitating alignment with FDA 21 CFR Part 11 and EU Annex 11 expectations where electronic records are subject to regulatory review.

Software & Data Management

IKA’s LabWorldSoft™ (v4.0+) provides full remote control, method library management, and raw data export (CSV, PDF, XML). Each grinding cycle logs timestamped metadata—including vessel ID (via RFID), setpoints, actual speed/temp/weight trajectories, and operator credentials—enabling full traceability per ISO/IEC 17025 clause 7.7. Bluetooth connectivity permits mobile tablet-based operation within laboratory workspaces, while USB tethering enables direct integration with lab informatics systems. All stored protocols are encrypted and version-controlled; password-protected administrator access restricts calibration adjustments and system-level settings—supporting multi-user environments with defined SOP enforcement.

Applications

• Pharmaceutical: Pre-formulation particle size analysis, excipient blending verification, and tablet hardness correlation studies.
• Materials Science: Preparation of homogeneous powder feeds for XRD, SEM-EDS, or laser diffraction particle sizing (e.g., before Mastersizer analysis).
• Environmental: Homogenization of soil, sediment, or sludge samples prior to heavy metal extraction (EPA Method 3050B).
• Food & Agriculture: Cell disruption of cereal grains, spice grinding for volatile compound retention, and feedstock homogenization for NIR calibration.
• Academic Research: Reproducible sample preparation for mechanochemical synthesis, catalyst support grinding, or nanocomposite precursor milling.

FAQ

Is the grinding chamber included in the BT Package?
No—the MultiDrive Control BT Package includes only the base unit with integrated weighing, RFID reader, and Bluetooth/USB interfaces. Grinding vessels (MI, BL, DI, MT 150, BT250) are sold separately and must be selected based on application-specific requirements.
Can the instrument operate continuously for >5 minutes?
No—it enforces a mandatory 10-minute cooldown interval after each 5-minute operational cycle to maintain motor longevity and thermal safety. Extended processing requires automated sequencing via LabWorldSoft™ with inter-cycle pauses.
Does the system support GMP-compliant electronic signatures?
Yes—when used with LabWorldSoft™ in validated mode, the system supports role-based user authentication, electronic signature capture for method execution, and immutable audit trails compliant with 21 CFR Part 11 Subpart B.
What is the minimum sample mass required for accurate weighing?
The integrated scale has a lower detection limit of 5 g; for masses below this threshold, external analytical balance verification is recommended prior to loading.
Are spare parts and service available globally?
Yes—IKA maintains authorized service centers across North America, EMEA, and APAC regions; all critical components—including motor assemblies, load cells, and TFT modules—are stocked and replaceable under standard warranty (24 months).
