IKA SY Stand Reaction Vessel Support System
| Brand | IKA |
|---|---|
| Origin | Germany |
| Model | SY Stand |
| Dimensions (W × H × D) | 500 × 950 × 580 mm |
| Weight | 20 kg |
| Vessel Compatibility | Jacketed reactors from 500 mL to 5000 mL |
| Mounting Type | Adjustable vertical support stand for overhead stirring systems |
Overview

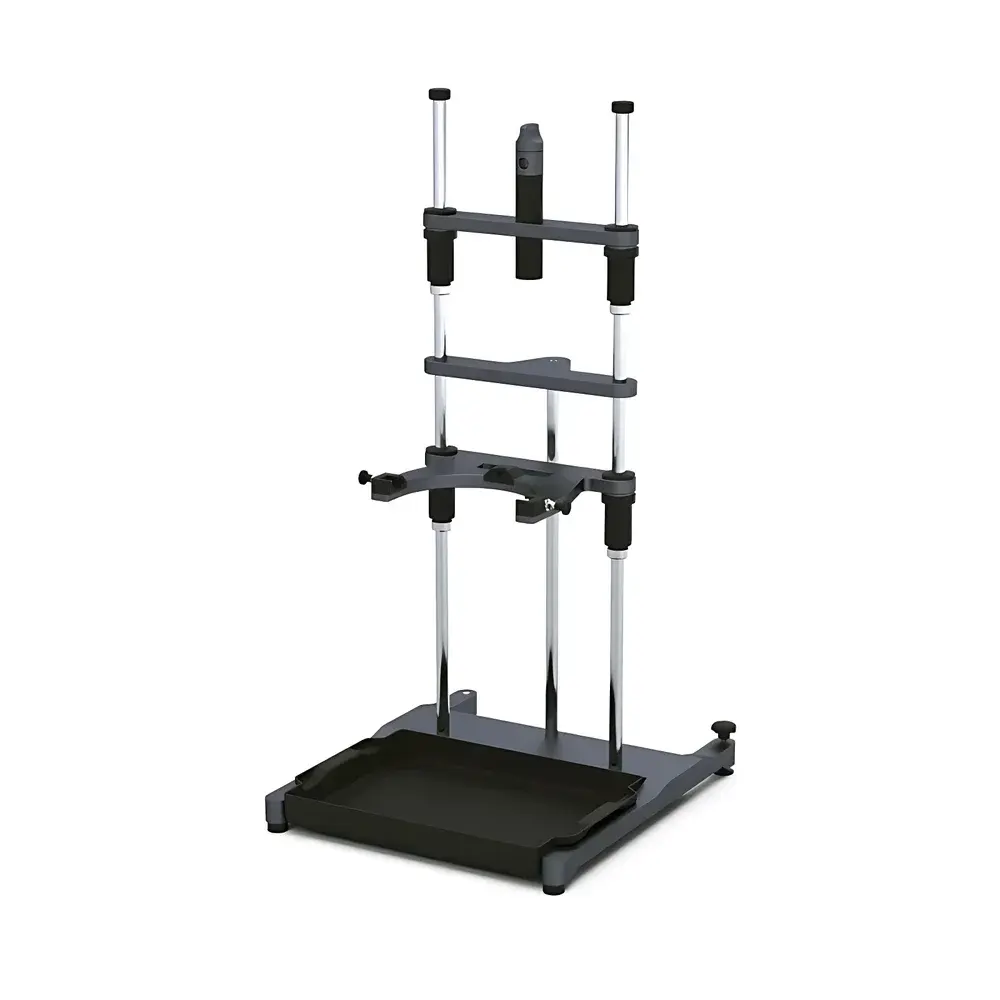

The IKA SY Stand is an engineered mechanical support system designed exclusively for use with IKA’s EasySyn series of jacketed laboratory reactors. It serves as a rigid, height-adjustable mounting platform that ensures precise vertical alignment between overhead stirrers (e.g., RW 20, RCT basic, or Eurostar digital models) and reaction vessels ranging from 500 mL to 5000 mL capacity. Unlike generic lab stands, the SY Stand integrates ergonomic design principles with mechanical stability—its telescopic column and locking collar allow continuous height adjustment within a 950 mm total profile, enabling optimal operator posture and consistent torque transmission during high-viscosity or exothermic reactions. The system operates on a passive mechanical principle: no electronics, no software, and no power supply—relying instead on robust aluminum alloy construction and precision-machined interfaces to maintain coaxiality between drive shaft and impeller shaft under dynamic load.
Key Features
- Ergonomic height adjustment: Continuous vertical travel via knurled locking collar; accommodates operators from 155 cm to 195 cm without compromising wrist or shoulder alignment.
- Modular compatibility: Designed for seamless integration with IKA EasySyn reactor vessels (including glass and stainless-steel jacketed variants) and all IKA overhead stirrers equipped with ISO 21640–compliant flange mounts.
- Stability-optimized base: 500 mm × 580 mm rectangular footprint with non-slip rubber feet provides >3× static overturning resistance margin at maximum vessel load (5 L water-equivalent).
- Tool-free assembly: Pre-aligned guide rails and snap-in bracket clamps eliminate need for calipers or shims during initial setup or reconfiguration.
- Corrosion-resistant finish: Anodized aluminum structure rated to ISO 9223 Class C3 for indoor laboratory environments with occasional solvent vapor exposure.
Sample Compatibility & Compliance
The SY Stand itself does not contact samples or process media; it functions solely as a structural interface. Its design supports all standard IKA EasySyn jacketed reactors—including those certified to DIN EN ISO 15190:2019 (laboratory safety) and compliant with pressure ratings up to 2 bar(g) at 150 °C (per vessel specification). When used in conjunction with IKA-certified stirrers and temperature control units (e.g., RC 2000), the full system meets GLP documentation requirements for traceable setup parameters (height, vessel ID, stirrer model). No electrical or pneumatic certifications apply to the SY Stand alone, as it contains no active components.
Software & Data Management
The SY Stand is a purely mechanical subsystem and includes no embedded firmware, connectivity ports, or data logging capability. All operational parameters—including installed height, vessel type, and stirrer model—are recorded manually in lab notebooks or integrated into electronic lab notebook (ELN) systems via user-entered metadata fields. For laboratories operating under FDA 21 CFR Part 11 compliance, height settings may be documented as “controlled setup variables” alongside batch records, with change history maintained through ELN audit trails. IKA’s LabWorldSoft platform does not interface with the SY Stand, though it can log associated stirrer and temperature controller data when deployed in parallel.
Applications
This support system is routinely deployed in synthetic organic chemistry labs conducting multi-step catalytic reactions (e.g., Suzuki couplings, hydrogenations, or Grignard additions) where reproducible agitation geometry directly impacts mass transfer rates and local shear profiles. It is also employed in polymerization studies requiring extended run times (>24 h) under controlled temperature gradients—where mechanical drift or misalignment would otherwise introduce batch-to-batch viscosity variance. Academic teaching labs utilize the SY Stand to standardize student setups across varying body dimensions, reducing repetitive strain injury (RSI) risk during prolonged operation. In QC environments supporting ICH Q5A-compliant bioprocess development, the SY Stand enables consistent reactor positioning for comparative thermal mapping studies using calibrated IR thermography.
FAQ
Does the SY Stand include a stirrer or heating/cooling unit?
No. The SY Stand is a passive support frame only. Stirring motors, circulators, and sensors must be selected and purchased separately.
Can it accommodate non-IKA reactors?
Only if the reactor features a compatible ISO 21640–type top flange and falls within the specified dimensional envelope (max. 5000 mL volume, ≤220 mm neck OD). IKA does not validate or guarantee performance with third-party vessels.
Is calibration required for the SY Stand?
No calibration is defined or necessary, as it contains no measurement function. However, users should verify mechanical squareness annually using a dial indicator and reference surface plate per internal SOPs.
What maintenance is recommended?
Wipe down with isopropanol after solvent exposure; inspect locking collar threads quarterly for debris; lubricate elevation mechanism with dry PTFE grease every 12 months.
Is the SY Stand suitable for vacuum or pressure applications?
Yes—provided the mounted reactor and its seals are rated for the intended pressure differential. The SY Stand contributes no additional pressure boundary or vacuum integrity.
