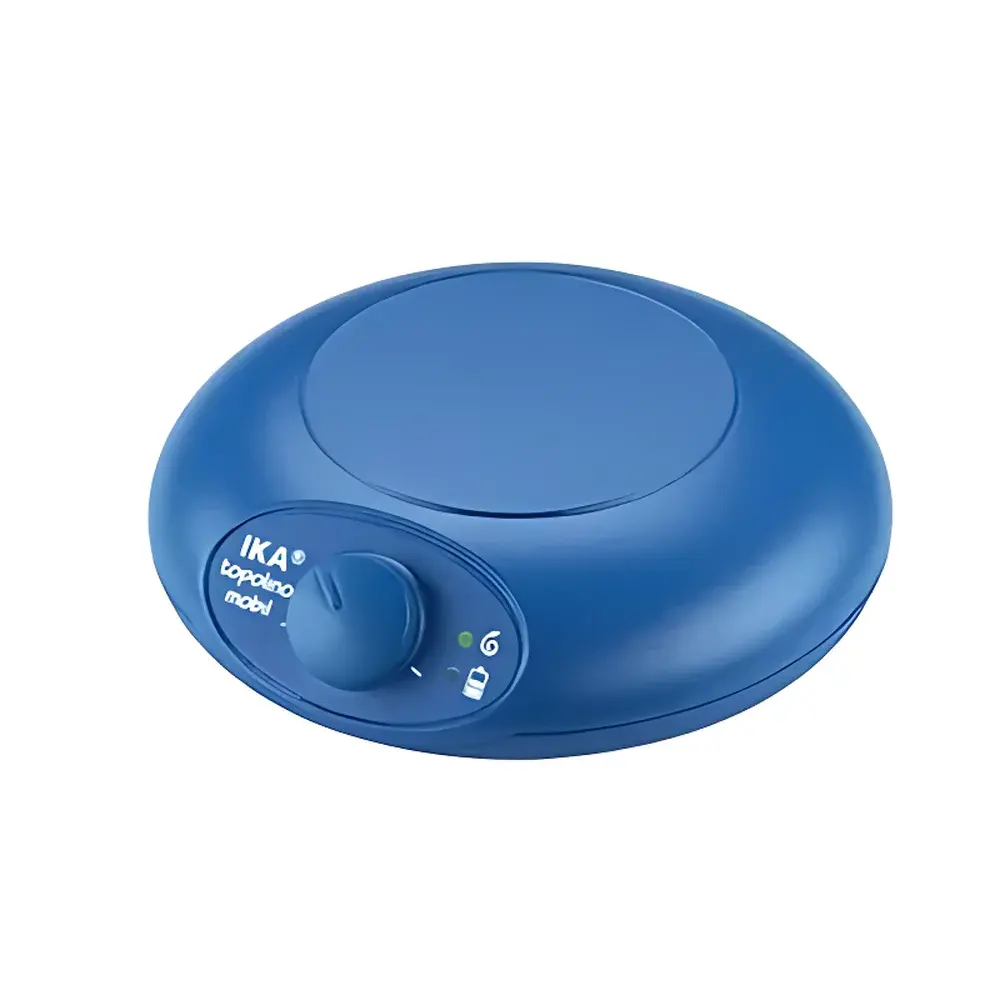

IKA Topolino mobil Portable Magnetic Stirrer

Overview

The IKA Topolino mobil is a compact, battery-powered portable magnetic stirrer engineered for precision mixing in field laboratories, teaching environments, quality control stations, and mobile analytical workflows. Unlike conventional benchtop stirrers requiring fixed power outlets, the Topolino mobil leverages a brushless DC motor and integrated rechargeable AA battery system to deliver stable, maintenance-free rotational torque without carbon brushes—ensuring long-term reliability and consistent speed control across variable load conditions. Its operating principle relies on electromagnetic coupling between the internal rotating permanent magnet assembly and externally placed magnetic stir bars, enabling efficient agitation of aqueous and low-viscosity non-aqueous solutions up to 250 mL. Designed for ISO/IEC 17025-compliant environments where portability and operational independence are critical, the device maintains mechanical stability and thermal neutrality during extended operation—eliminating heat transfer from motor to sample, a key requirement for temperature-sensitive biochemical assays and reagent preparation.

Key Features

• Brushless DC motor architecture ensures zero wear, no sparking, and silent operation—ideal for quiet laboratory zones and classroom demonstrations.
• True variable-speed control over 500–1800 rpm with high reproducibility (< ±2% deviation at setpoint), calibrated against traceable reference standards.
• IP20-rated enclosure provides protection against solid objects ≥12.5 mm; suitable for general lab use under controlled ambient conditions (5–40 °C, ≤80% RH).
• Modular power architecture supports three operational modes: (a) standalone battery-only operation, (b) AC adapter-only mode (no battery installed), or (c) hybrid configuration with both battery and adapter connected for uninterrupted runtime.
• Polypropylene (PP) work plate offers chemical resistance to common solvents, acids, and bases—compatible with routine cleaning using 70% ethanol or isopropanol.
• Ergonomic form factor (140 × 42 × 140 mm) and sub-750 g weight enable seamless integration into glove boxes, biosafety cabinets, or transportable lab kits.

Sample Compatibility & Compliance

The Topolino mobil is validated for use with standard PTFE- or glass-coated magnetic stir bars up to 30 mm in length, supporting homogeneous dispersion in volumes ranging from 10 mL to 250 mL of water-miscible liquids. It is not intended for viscous media (>500 mPa·s), suspensions containing abrasive particles, or applications requiring temperature regulation. The device complies with DIN EN 60529 (IP20), EN 61000-6-3 (EMC emission limits), and EN 61000-6-2 (immunity requirements). While it does not incorporate temperature sensing or feedback control, its passive thermal design aligns with USP guidelines for ancillary equipment used in analytical method validation where thermal drift must be minimized.

Software & Data Management

The Topolino mobil operates as a stand-alone hardware device with no embedded firmware, network interface, or data logging capability—consistent with IKA’s design philosophy for entry-level portable instruments intended for GLP/GMP-adjacent workflows where audit trail simplicity is prioritized. All operational parameters (speed setting, runtime, charge status) are indicated via LED indicators only. No software installation, driver dependency, or cloud connectivity is required. This architecture eliminates cybersecurity vulnerabilities and simplifies 21 CFR Part 11 compliance pathways when deployed in regulated QC/QA settings where electronic records are managed externally (e.g., via LIMS-integrated logbooks).

Applications

• Routine dissolution testing in pharmaceutical labs where mobility between fume hoods and analytical stations is essential.
• Field-deployable preparation of calibration standards for ion chromatography or ICP-MS analysis.
• Student-led experiments in undergraduate chemistry and biology curricula requiring safe, low-voltage stirring platforms.
• In-process mixing of reagents during environmental water sampling campaigns—operable from vehicle-mounted power banks or solar-charged battery packs.
• Supporting ISO 17025-accredited calibration labs performing volumetric flask homogenization prior to titrant standardization.

FAQ

Can the Topolino mobil be used with corrosive solvents such as concentrated HCl or NaOH?
Yes—the PP work plate and sealed motor housing resist short-term exposure to diluted mineral acids and alkalis; however, prolonged contact with >1 M concentrations is not recommended without verification of compatibility per IKA Chemical Resistance Guide.
Is speed calibration traceable to national metrology institutes?
Speed output is factory-calibrated against NIST-traceable tachometric references; calibration certificates are available upon request (IKA Calibration Service Code: CAL-TOPM-01).
Does the device support continuous operation beyond 12 hours?
Battery runtime is rated for 8–12 h at 1200 rpm under standard load; for extended duty cycles, use AC adapter mode or implement scheduled battery swaps in accordance with IKA’s Battery Maintenance Protocol v2.1.
What stir bar dimensions ensure optimal coupling efficiency?
Maximum torque transfer occurs with cylindrical stir bars 20–30 mm in length and 5–6 mm in diameter; elliptical or flea-type bars may reduce stability above 1500 rpm.
Is the Topolino mobil compliant with RoHS and REACH directives?
Yes—certified per EU Directive 2011/65/EU (RoHS2) and Regulation (EC) No 1907/2006 (REACH), with full material declaration available in IKA’s Technical Documentation Portal (TD-ID: TOPM-DOC-EN-2024).
