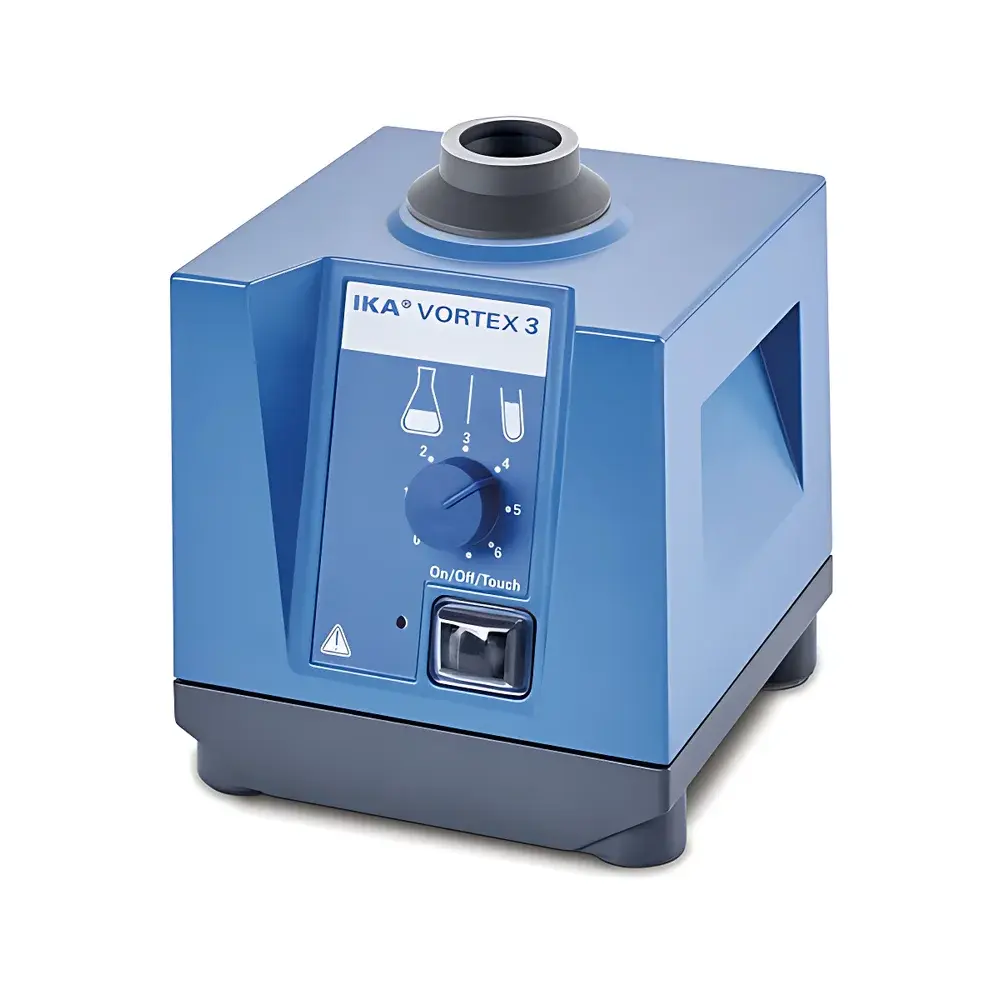

IKA VORTEX 3 Vortex Mixer

Overview

The IKA VORTEX 3 is a precision-engineered vortex mixer designed for reproducible sample homogenization in life science, clinical diagnostics, and quality control laboratories. It operates on the principle of orbital shaking—generating controlled circular motion via an eccentric drive mechanism—to induce rapid fluid agitation within tubes, vials, microplates, or flasks. Unlike linear shakers, the VORTEX 3’s 4 mm orbit diameter ensures efficient mixing even with low-volume samples (e.g., 0.2–2 mL in Eppendorf tubes), while maintaining mechanical stability at speeds up to 2500 rpm. Its compact footprint (127 × 136 × 149 mm) and lightweight construction (4.5 kg) enable seamless integration onto crowded benchtops without compromising structural rigidity. The unit features a zinc die-cast base for vibration damping and thermal mass management, complemented by silicone anti-slip feet that isolate operational resonance—critical for high-speed pulse operation and extended continuous runs.

Key Features

• Two-mode operation: Instant touch-activated pulse mixing (ideal for quick resuspension) and fully adjustable continuous mode for sustained homogenization.
• True 0–2500 rpm variable speed control with digital RPM display—enabling precise method transfer across users and shifts.
• Robust mechanical architecture: Eccentric ball-bearing drive system ensures long-term rotational accuracy and minimal maintenance.
• Thermally optimized motor design: 10 W output power with enhanced ventilation, enabling 100% duty cycle operation without thermal throttling.
• IP21-rated enclosure provides protection against vertically falling drips and solid objects >12.5 mm—suitable for standard laboratory environments per DIN EN 60529.
• Low-noise operation (<55 dB(A) at 2500 rpm) and vibration-isolated base support sensitive instrumentation nearby (e.g., balances, spectrophotometers).

Sample Compatibility & Compliance

The VORTEX 3 supports diverse sample containers through a modular accessory system. Three primary mounting platforms—VG 3.1 (standard clamp), VG 3.2 (handheld circular adapter), and VG 3.3 (universal platform)—interface with seven specialized inserts. These include VG 3.31 (54-position Eppendorf tube holder), VG 3.32–3.35 (for 10–20 mm diameter tubes), VG 3.36 (Erlenmeyer flask clamp, 100–250 mL), and VG 3.37 (96-well microplate carrier). All accessories are engineered to maintain consistent orbital transmission across load variations, ensuring uniform mixing performance regardless of vessel geometry or fill volume. The system complies with general laboratory safety standards (IEC 61010-1) and supports GLP-aligned workflows through repeatable speed settings and mechanical traceability—though it does not include electronic audit trail or 21 CFR Part 11 compliance features, as it lacks data logging or network connectivity.

Software & Data Management

The IKA VORTEX 3 is a stand-alone electromechanical instrument with no embedded firmware, software interface, or digital connectivity options (no RS232, USB, or analog output). Speed calibration and operational parameters are managed exclusively via front-panel controls and real-time digital RPM readout. This design prioritizes reliability, electromagnetic compatibility, and ease of validation in regulated environments where software qualification burdens must be minimized. Users record operating conditions manually or integrate the device into SOP-driven processes using external documentation systems. For laboratories requiring automated protocol execution or electronic record retention, IKA offers higher-tier models (e.g., VORTEX GENIUS 3) with optional PC interface modules—but the VORTEX 3 remains purpose-built for simplicity, durability, and method consistency without digital dependencies.

Applications

This vortex mixer is routinely deployed in molecular biology (DNA/RNA extraction, PCR setup, enzyme reaction mixing), clinical microbiology (blood culture suspension, antigen-antibody incubation), pharmaceutical QC (dissolution testing prep, excipient dispersion), and industrial hygiene (air sampling filter elution). Its ability to rapidly resuspend pellets in microcentrifuge tubes—without vortex-induced foaming or aerosol generation—makes it especially valuable in biosafety Level 2 (BSL-2) labs. The VG 3.37 microplate adapter enables uniform mixing of ELISA plates prior to washing steps, improving assay reproducibility. When paired with the VG 3.36 Erlenmeyer clamp, the unit supports scalable mixing of larger volumes (up to 250 mL) during buffer preparation or cell culture passaging—maintaining laminar flow characteristics essential for shear-sensitive suspensions.

FAQ

Is the VORTEX 3 suitable for mixing viscous solutions?
Yes—its 10 W motor and eccentric bearing system deliver high torque at low speeds, supporting effective mixing of glycerol-based reagents, agarose gels, or serum-containing media when operated below 1500 rpm.
Can the unit be used inside a cold room or incubator?
It is rated for ambient temperatures between 5–40 °C and relative humidity ≤80 %. Operation below 5 °C may affect silicone foot elasticity and motor lubrication; condensation risks require environmental assessment prior to installation.
Are replacement fuses or service parts available?
IKA supplies certified spare parts including motor assemblies, control boards, and fuse kits (order codes available in the official IKA Service Manual v3.2). Field repairs must be performed by authorized IKA service centers to maintain CE conformity.
Does the VORTEX 3 meet ISO/IEC 17025 requirements for accredited testing labs?
While the device itself is not ISO/IEC 17025-certified, its consistent speed accuracy, mechanical traceability, and DIN EN 60529 compliance support method validation under Clause 6.4 (Equipment). Calibration certificates for speed verification are obtainable through IKA-accredited metrology partners.
How often should the eccentric drive mechanism be serviced?
Under normal use (≤4 hrs/day), no scheduled maintenance is required. Visual inspection of the rubber coupling and bearing play every 12 months is recommended; IKA specifies a mean time between failures (MTBF) of >25,000 hours for the drive train.
