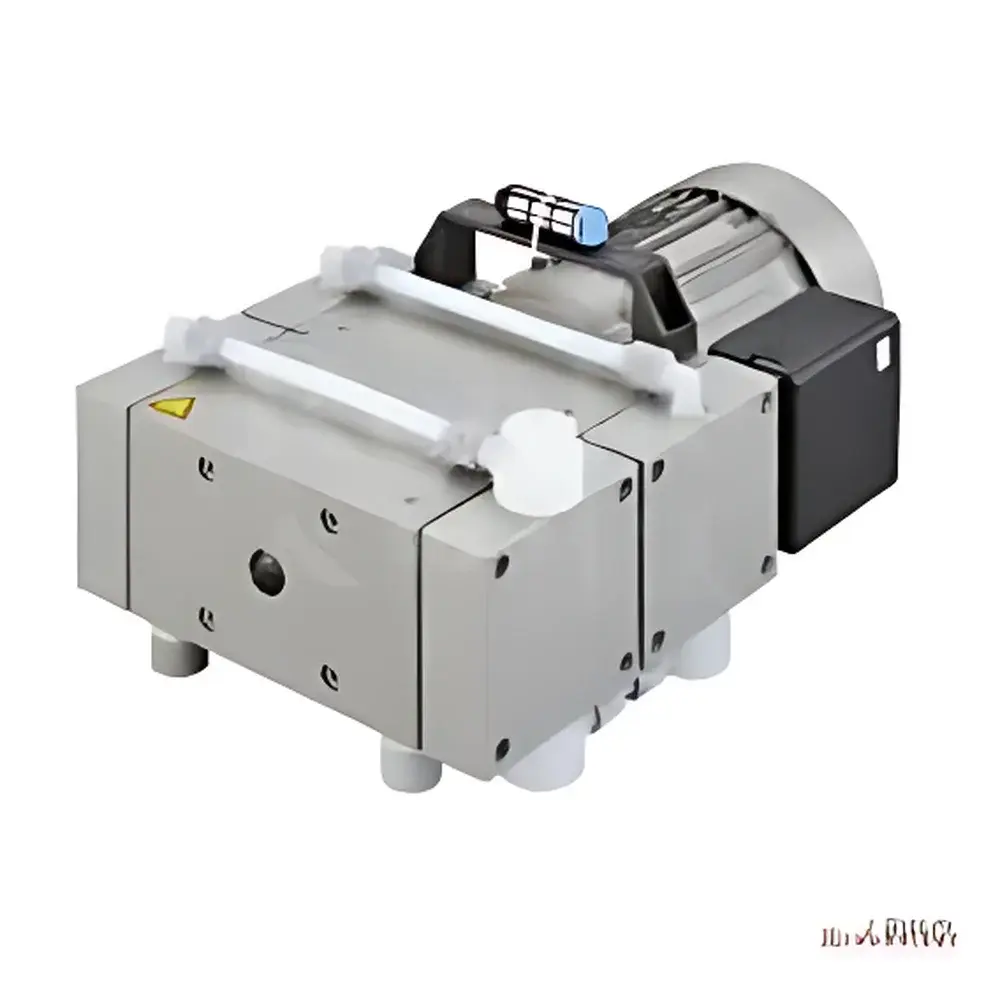

ILMVAC MPC601T Chemical-Resistant Three-Stage Diaphragm Vacuum Pump

Overview

The ILMVAC MPC601T is a high-performance, three-stage oil-free diaphragm vacuum pump engineered for continuous, reliable operation in chemically aggressive laboratory environments. Unlike rotary vane or scroll pumps, the MPC601T employs a fully sealed, PTFE-coated multi-stage diaphragm mechanism that eliminates lubricating oil and prevents internal corrosion—making it inherently compatible with solvents, acids, bases, and halogenated vapors commonly encountered in synthesis, purification, and analytical workflows. Its dry-running architecture ensures zero oil backstreaming, eliminating contamination risks in sensitive applications such as solvent recovery, vacuum distillation, and lyophilization. Designed and manufactured in Germany under strict ISO 9001 quality control, the MPC601T delivers stable base pressure below 2 mbar (absolute) and consistent pumping speed of 75 L/min (4.5 m³/h) at 50 Hz—performance validated across temperature ranges from 5 °C to 40 °C and ambient humidity up to 80% RH (non-condensing). The pump operates without cooling water or external exhaust treatment, aligning with modern lab sustainability goals and reducing infrastructure dependencies.

Key Features

• Triple-stage diaphragm design with reinforced PTFE-composite membranes and stainless-steel valve plates for extended service life under corrosive load
• Fully oil-free, dry-running operation—no lubricants, no oil mist, no vapor back-diffusion into vacuum chambers
• Integrated thermal overload protection and automatic restart delay after shutdown to prevent motor stress during frequent cycling
• Low-vibration, brushless AC motor rated for continuous duty at 220 V, 50/60 Hz with IP54 ingress protection
• DN16 KF quick-release exhaust flange for rapid integration with standard vacuum manifolds and trap assemblies
• Compact footprint (230 × 380 × 169 mm) and optimized mass distribution (32.8 kg) enabling benchtop or mobile cart mounting without structural reinforcement

Sample Compatibility & Compliance

The MPC601T is routinely deployed in applications involving aggressive chemical media—including concentrated HCl and HNO₃ vapors, acetone, THF, chloroform, and ethyl acetate—without performance degradation or material swelling. All wetted surfaces are constructed from chemically inert materials: PTFE-coated diaphragms, EPDM elastomer seals, and 316L stainless-steel housing components. The pump meets CE marking requirements per EU Machinery Directive 2006/42/EC and Electromagnetic Compatibility Directive 2014/30/EU. It complies with RoHS 2011/65/EU restrictions on hazardous substances and supports GLP-compliant documentation through traceable serial-number-based calibration records issued by ILMVAC’s German production facility.

Software & Data Management

While the MPC601T operates as a standalone analog device (no embedded controller or digital interface), its stable vacuum output and predictable power draw make it fully compatible with third-party vacuum monitoring systems. When integrated with pressure transducers (e.g., capacitance manometers) and programmable logic controllers (PLCs), the pump supports automated vacuum ramping, endpoint detection, and audit-trail generation per FDA 21 CFR Part 11 requirements when paired with validated SCADA platforms. Optional analog 0–10 V or 4–20 mA feedback modules (sold separately) enable real-time vacuum level monitoring and closed-loop process control in GMP-regulated environments.

Applications

• Vacuum distillation of heat-sensitive organic compounds and pharmaceutical intermediates
• Continuous vacuum filtration in gravimetric analysis and solid-phase extraction (SPE)
• Concentration of aqueous and organic extracts under reduced pressure (rotary evaporation support)
• Primary vacuum source for freeze-dryers (lyophilizers) in biopharmaceutical R&D
• Evacuation of glove boxes and desiccators containing moisture- or oxygen-sensitive reagents
• Gas sampling and headspace analysis preparation where hydrocarbon-free vacuum is mandatory

FAQ

Is the MPC601T suitable for use with halogenated solvents such as dichloromethane or carbon tetrachloride?

Yes—the PTFE-coated diaphragms and 316L stainless-steel wetted parts provide full resistance to halogenated organics, including long-term exposure at elevated vapor pressures.
Does the pump require periodic maintenance or membrane replacement?

Diaphragms are rated for ≥10,000 hours of continuous operation under nominal load; routine inspection every 6 months is recommended, but no scheduled oil changes or filter replacements are needed.
Can the MPC601T be mounted vertically or inverted?

No—it must be operated in the factory-specified horizontal orientation to ensure proper diaphragm actuation and thermal dissipation; deviation voids warranty and compromises vacuum stability.
What is the maximum permissible inlet gas temperature?

Inlet gas must not exceed 40 °C continuously; for intermittent exposure to vapors above this threshold, an inline condenser or cold trap is required upstream.
Is the pump compliant with noise emission limits for ISO 14001-certified laboratories?

At 62 dB(A) measured at 1 m distance under full load, it meets ISO 7779 and EU Directive 2000/14/EC Stage II noise requirements for laboratory equipment.
