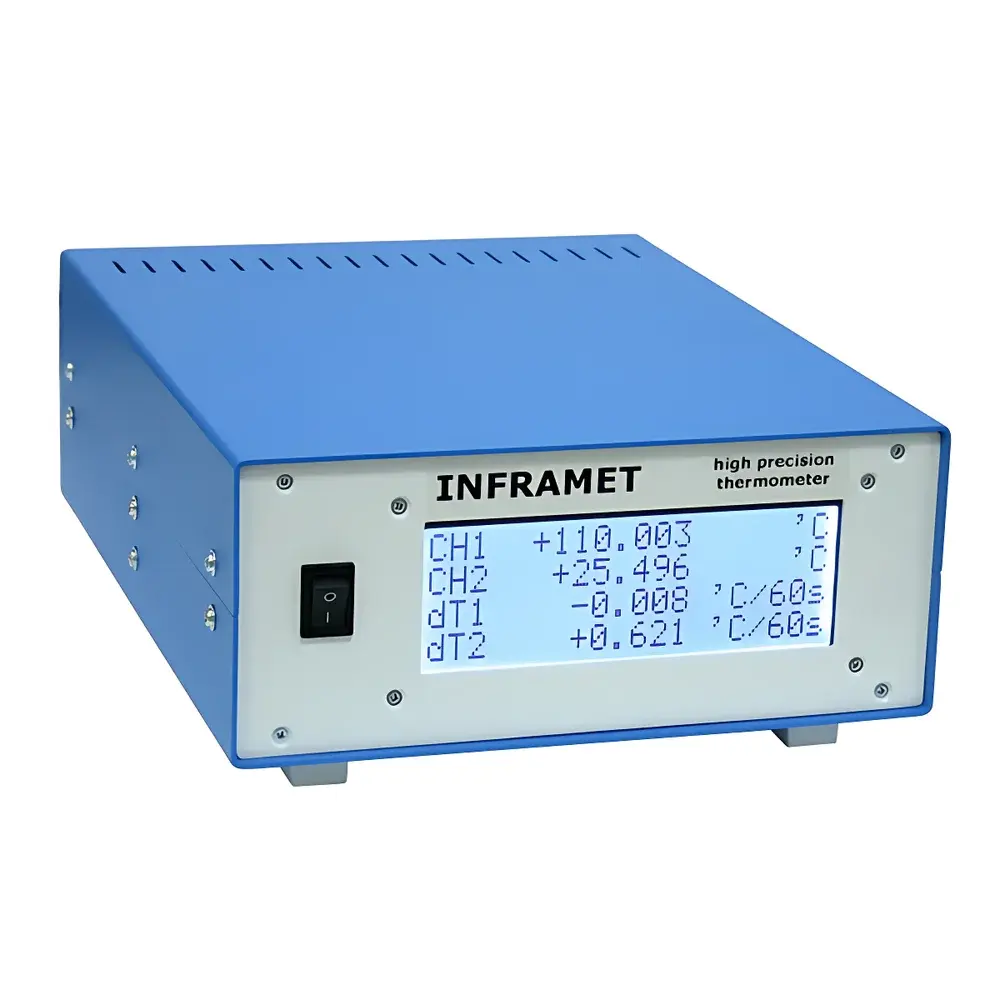

Inframet TM-6 Ultra-Precision Reference Thermometer

Overview

The Inframet TM-6 Ultra-Precision Reference Thermometer is a metrologically traceable, high-stability resistance thermometer system engineered for primary and secondary calibration of infrared blackbody sources used in thermal imaging validation, radiometric testing, and temperature measurement system verification. Unlike conventional industrial thermometers, the TM-6 operates on the fundamental principle of precision platinum resistance thermometry (PRT), compliant with IEC 60751:2022 Class A specifications for 100 Ω DIN platinum RTDs. Its design centers on long-term stability, minimal drift, and ultra-low uncertainty—enabling its use as a reference standard in accredited calibration laboratories and ISO/IEC 17025-compliant facilities. The instrument serves two distinct operational roles: as a field-deployable verification tool for blackbody source uniformity and emissivity validation, and as a laboratory-grade reference for calibrating thermal imagers, IR cameras, and radiation thermometers against NIST-traceable standards. Its extended recalibration intervals—up to six years for monitoring applications (e.g., routine blackbody stability checks in camera test systems) and three years for measurement-critical applications (e.g., calibration of IR radiometers per ASTM E1256 or ISO 18434-1)—are validated under controlled environmental conditions and documented in the manufacturer’s type evaluation report.

Key Features

• Ultra-high resolution of 0.001 °C across full operating range, achieved via 24-bit delta-sigma ADC architecture and low-noise analog signal conditioning
• Traceable measurement uncertainty: ±0.006 °C at 25 °C, scaling linearly with deviation from reference point (±0.005 °C × |T − 25 °C|), certified per ISO/IEC 17025-accredited calibration certificate
• Dual-channel configuration option supporting simultaneous readout of two independently calibrated PT-100 probes—ideal for differential temperature mapping of blackbody apertures or cross-checking thermal gradients
• Probe-optimized electronics: Input circuitry matched to Inframet’s proprietary TCB, DAB, MTB, BLIQ, and MAB series blackbodies, while maintaining full compatibility with third-party blackbodies via standard 4-wire PT-100 interface
• Ruggedized aluminum enclosure (IP20-rated) with shock-absorbing elastomer feet and thermally stable internal layout minimizing self-heating effects
• Large-format, high-contrast LED display with configurable units (°C/°F/K), auto-ranging, and real-time statistical indicators (min/max/avg/delta)

Sample Compatibility & Compliance

The TM-6 is explicitly designed for integration into infrared radiometry workflows involving medium- and low-temperature blackbody references. It supports all Inframet blackbody models—including TCB (−40 °C to +120 °C), DAB (−20 °C to +100 °C), MTB (−50 °C to +150 °C), BLIQ (liquid nitrogen-cooled, −100 °C to +50 °C), and MAB (−40 °C to +300 °C)—and maintains compatibility with blackbodies from FLIR, Mikron, CI Systems, and other manufacturers through standardized PT-100 sensor interfaces. All configurations comply with EN 61326-1:2013 (EMC requirements for laboratory equipment) and EN 61010-1:2010 (safety requirements for electrical equipment). For regulated environments, the TM-6 meets data integrity prerequisites for GLP and GMP applications when used with audit-trail-enabled logging software; it does not incorporate embedded electronic signatures but supports external 21 CFR Part 11-compliant data acquisition systems.

Software & Data Management

The TM-6 operates as a standalone instrument with no mandatory software dependency. However, optional USB-to-RS232 interface modules enable connection to host PCs running Inframet’s TM-Control Suite—a Windows-based application providing real-time data streaming, multi-session logging (CSV/TXT), statistical analysis (standard deviation, trend plots), and automated calibration report generation aligned with ISO 17025 Annex C templates. Raw measurement data includes timestamp (RTC-synced), channel ID, probe serial number, ambient temperature compensation flag, and uncertainty budget components. Exported files retain metadata required for traceability audits, including calibration certificate IDs, reference standard identifiers, and environmental condition logs (ambient T/RH during measurement).

Applications

• Primary calibration of infrared blackbody sources used in thermal imager performance testing (per ASTM E1933, ISO 18434-1)
• Verification of spatial uniformity and temporal stability of blackbody cavity temperatures during qualification of IR camera test benches
• Reference-grade temperature monitoring in metrology labs performing inter-laboratory comparisons under CIPM MRA frameworks
• Validation of emissivity settings and aperture temperature profiles in radiometric calibration facilities
• Long-term drift assessment of blackbody controllers and feedback loops in R&D environments
• Supporting uncertainty budget development for ISO/IEC 17025 accreditation of infrared thermometry services

FAQ

What is the recommended recalibration interval for the TM-6 in a GMP-regulated environment?
For measurement-critical applications governed by FDA 21 CFR Part 11 or EU Annex 11, Inframet recommends recalibration every 12 months, regardless of the extended 3-year metrological interval—aligned with typical quality system requirements for reference standards.
Can the TM-6 be used with non-Inframet blackbodies?
Yes. The instrument accepts any standard 4-wire PT-100 (100 Ω DIN Class A) sensor. Mechanical adapters or custom probe mounts may be required depending on the blackbody’s sensor port geometry.
Does the TM-6 support external temperature compensation (e.g., for lead wire resistance)?
Yes. Automatic 4-wire lead resistance compensation is performed continuously during measurement; no manual correction is required.
Is the uncertainty specification valid for both TM-6L and TM-6M variants?
Yes—the stated uncertainty applies identically to both models. The difference lies solely in probe construction (low-temperature vs. high-temperature RTD elements) and thermal response time, not in base instrument electronics or algorithmic uncertainty.
How is traceability established for TM-6 calibration certificates?
Each unit ships with a UKAS-accredited calibration certificate (ISO/IEC 17025) linking measurements directly to NPL or PTB primary standards via documented chain-of-custody and uncertainty propagation analysis.
