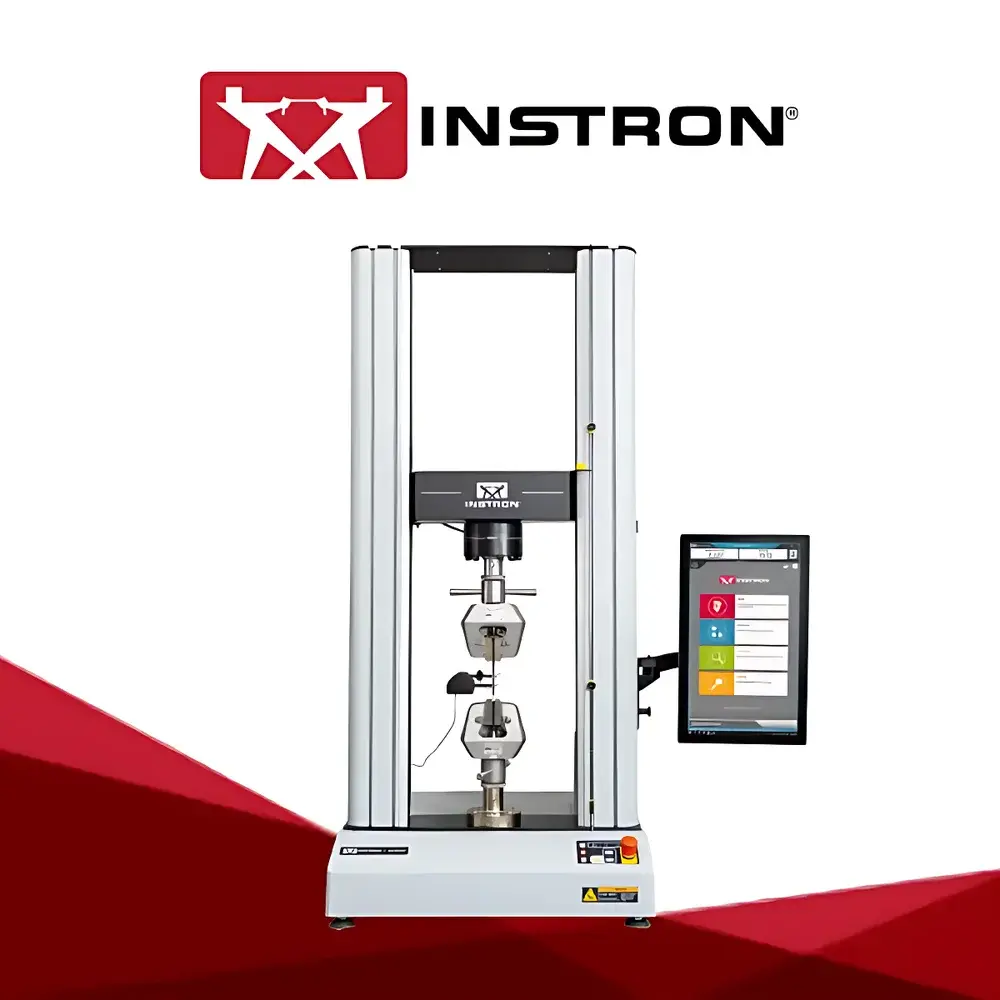

Instron 3400 Series Dual-Column Desktop Electromechanical Universal Testing Machine

Overview

The Instron 3400 Series dual-column electromechanical universal testing machine is engineered for high-precision static mechanical testing across research, quality control, and production environments. Based on servo-controlled electromechanical actuation and compliant with ISO 7500-1 and ASTM E4 standards for force verification, the system delivers traceable, repeatable measurements of tensile, compressive, flexural, peel, puncture, friction, and shear behavior in solid materials and components. Its rigid dual-column frame—available in standard and extended-height configurations—minimizes deflection under load and ensures alignment stability during high-force tests up to 100 kN. Designed for integration into regulated workflows, the 3400 Series supports GLP/GMP-aligned test execution through hardware-enforced safety protocols and software-based audit trails.

Key Features

• Patented Operator Protection Architecture: Dynamically manages system state throughout setup and test execution, enforcing safe entry/exit conditions and preventing inadvertent motion during operator interaction.
• Real-Time LED Status Indicators: Front-panel visual feedback clearly distinguishes between Safe Mode, Active Test, and Fault states—ensuring unambiguous system awareness at all times.
• Collision Detection & Auto-Stop: Monitors real-time force during manual crosshead movement or return; triggers immediate stop upon unexpected contact to safeguard both specimen integrity and load cell calibration.
• Intelligent Pneumatic Clamp Control (optional): Limits clamp closing pressure and velocity during setup to reduce risk of operator injury—particularly critical in high-throughput labs handling small or fragile specimens.
• Maintenance-Free Brushless AC Servo Motor: Rated for continuous operation—including 10-day uninterrupted creep and relaxation tests—at frequencies up to 0.5 Hz (at 25 °C), with minimal thermal drift and no brush wear concerns.
• Dedicated Control Panel: Features tactile start/stop/return buttons, variable-speed jog controls, and integrated status lighting—optimized for glove-compatible use and rapid workflow transitions.

Sample Compatibility & Compliance

The 3400 Series accommodates a broad spectrum of specimen geometries and material classes—including polymers, composites, elastomers, thin films, textiles, adhesives, biomedical devices (e.g., sutures, stents, wound dressings), automotive trim, and packaging substrates. Its compatibility with over 300 Instron-certified grips, fixtures, and environmental accessories enables standardized testing per ASTM D638, D790, D1876, ISO 527, ISO 178, ISO 1133, GB/T 1040, and USP requirements. Force transducers are factory-calibrated to ISO 376 Class 0.5 or Class 1 accuracy, with full-scale linearity verified from 0.4% to 100% FS. All models comply with CE Machinery Directive 2006/42/EC, UL 61010-1, and IEC 61000-6-2/6-4 electromagnetic compatibility standards.

Software & Data Management

Controlled exclusively by Bluehill Universal software (v4.0+), the 3400 Series provides validated, CFR 21 Part 11-compliant test method development, execution, and reporting. The software features role-based user permissions, electronic signatures, automated audit trail logging (including parameter changes, test initiation, and data export events), and built-in uncertainty calculation per GUM (JCGM 100:2008). Raw data is stored in vendor-neutral .csv and .xml formats, while test reports support customizable templates aligned with internal SOPs or external regulatory submissions. Optional Bluehill Connect enables remote monitoring, predictive maintenance alerts, and secure cloud-based data backup via Instron’s certified infrastructure.

Applications

This platform serves as a primary mechanical characterization tool in ISO 17025-accredited laboratories and FDA-registered manufacturing sites. Typical applications include: tensile modulus and yield strength measurement of thermoplastic injection-molded parts; peel adhesion quantification of pressure-sensitive labels; compression testing of orthopedic foam implants; flexural stiffness evaluation of printed circuit board laminates; and cyclic fatigue assessment of elastomeric seals under controlled humidity and temperature conditions. Its modular design allows seamless adaptation—from routine QC checks on incoming raw materials to advanced R&D studies requiring multi-axis loading sequences or synchronized video extensometry.

FAQ

What load capacity options are available for the 3400 Series?
The system is offered in five maximum load configurations: 5 kN, 10 kN, 30 kN, 50 kN, and 100 kN—each with corresponding force transducer calibration certificates traceable to NIST standards.
Is Bluehill Universal software included with the system?
Yes—every 3400 Series system ships with a perpetual license for Bluehill Universal, including base functionality, method creation tools, and standard report generation modules.
Can the 3400 Series be used in a regulated environment requiring 21 CFR Part 11 compliance?
Yes—when configured with Bluehill Universal’s Validation Package (including IQ/OQ documentation, electronic signature enablement, and audit trail activation), the system meets FDA 21 CFR Part 11 and EU Annex 11 requirements.
Does the system support third-party extensometers or environmental chambers?
Yes—Instron provides native driver support for all its contacting and non-contacting extensometers (e.g., AutoX 750, Video Extensometer VE), as well as seamless integration with environmental chambers from Instron and select OEM partners (e.g., ESPEC, Angelantoni).
What is the warranty coverage for the 3400 Series?
Instron provides a standard 2-year limited warranty covering parts, labor, and travel for defects in materials and workmanship—extendable to 3 or 5 years via InstronCare service agreements.
