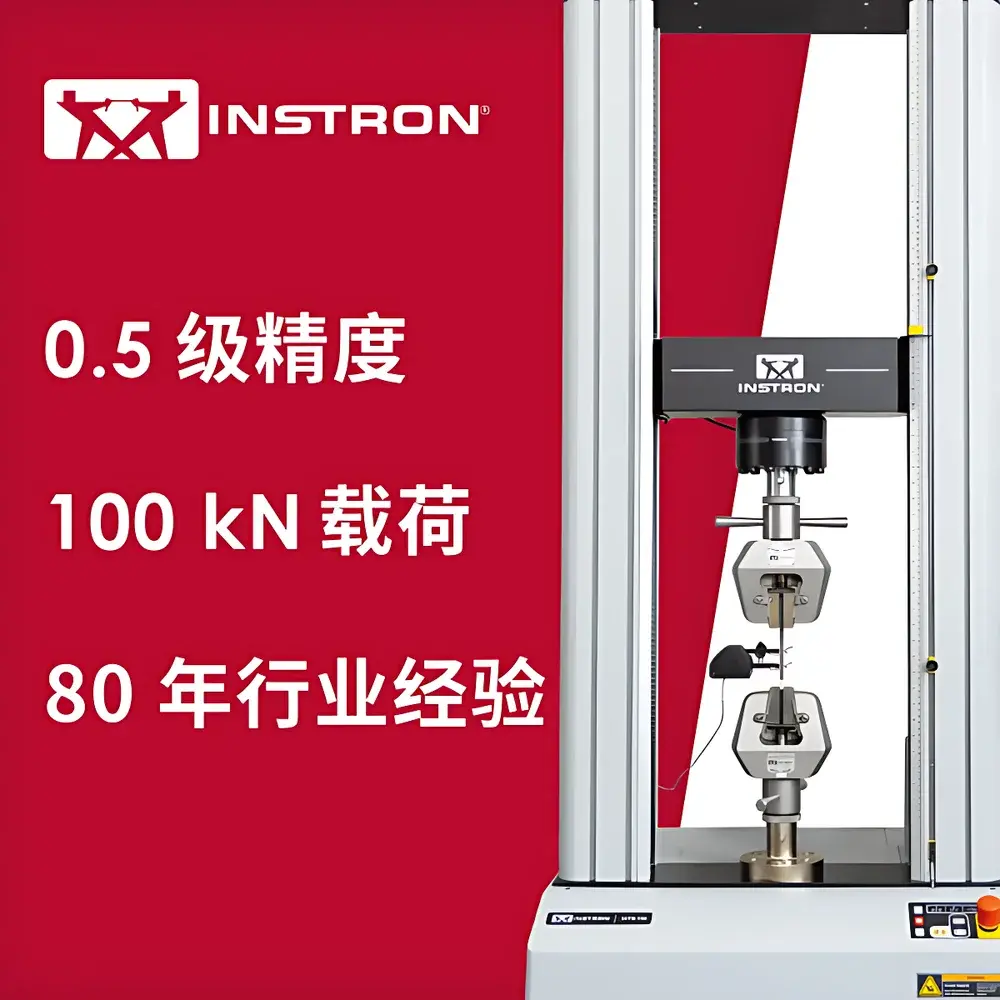

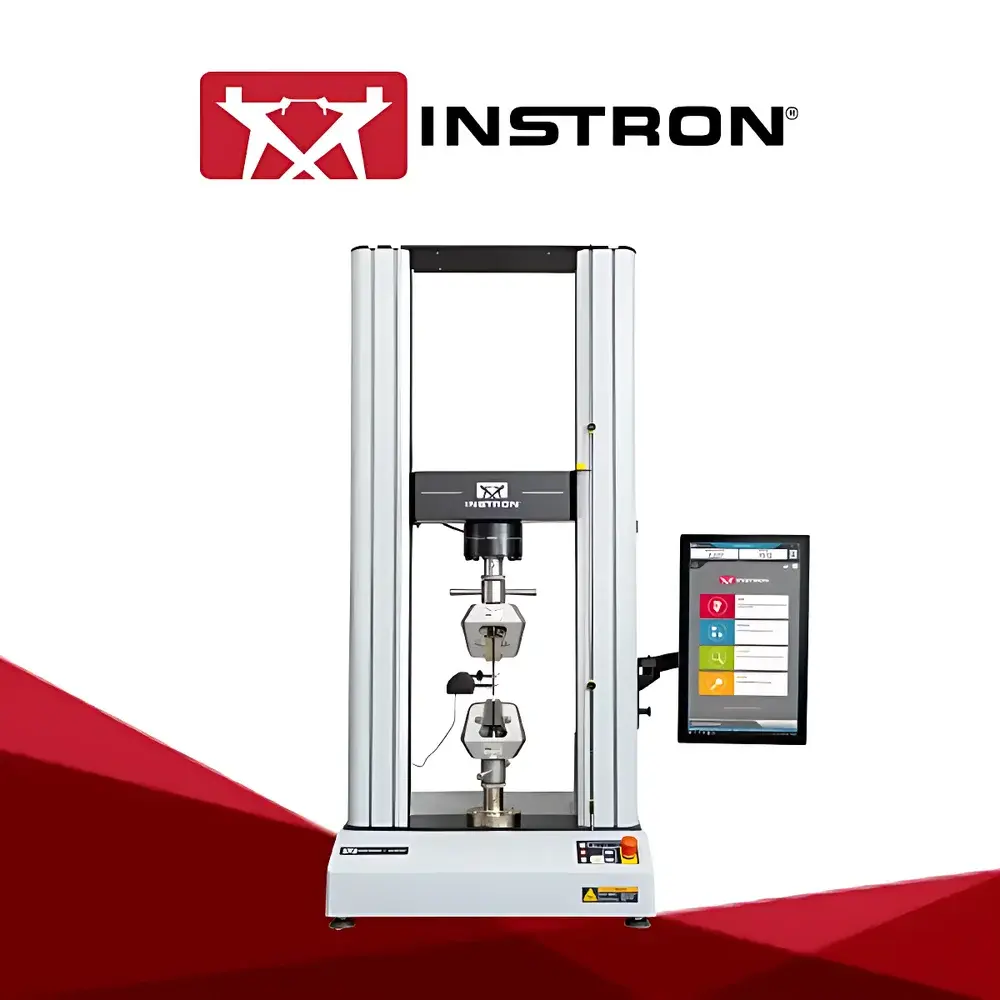

Instron 34TM-100 100 kN Dual-Column Tabletop Universal Testing Machine

Overview

The Instron 34TM-100 is a dual-column, tabletop universal testing machine engineered for precision mechanical characterization of materials across tensile, compression, flexure, peel, puncture, friction, and shear test modes. Built on Instron’s proven electromechanical architecture, it employs a high-stiffness load frame (180 kN/mm), brushless AC servo motor drive, and closed-loop digital control to deliver repeatable, traceable, and standards-compliant results in regulated and R&D environments. Its 100 kN capacity bridges mid-force applications—such as structural composites, metallic fasteners, polymer laminates, and biomedical devices—where high rigidity, sub-micron positioning resolution (16.78 nm), and dynamic response (up to 1 kHz synchronized data acquisition) are critical for capturing transient deformation behavior and time-dependent phenomena including creep and stress relaxation.

Key Features

• Operator Protection Architecture: Patented safety system that enforces state-aware workflow logic—automatically disabling hazardous motion when access doors are open or safety interlocks are triggered, with real-time LED status indicators confirming safe mode entry/exit.
• Collision Detection & Mitigation: Real-time force-based detection during manual crosshead movement or return sequences halts motion immediately upon contact, minimizing risk of fixture damage or specimen crushing.
• Smart Pneumatic Clamp Control (Optional): Limits clamp closing pressure and velocity during setup, reducing pinch-point hazards without compromising clamping repeatability.
• Intuitive Touch Panel Interface: Dedicated tactile controls—including variable-speed jog, start/stop, return, and LED status feedback—enable rapid, glove-compatible operation independent of PC connectivity.
• Continuous Duty Performance: Brushless servo motor supports uninterrupted cyclic testing for up to 10 days at frequencies up to 0.5 Hz (at 25°C), validated for long-duration fatigue and creep protocols.
• Modular Height Options: Standard (E1) and extended-height (E2) configurations accommodate diverse specimen geometries—from thin films to tall composite columns—while maintaining full compliance with ASTM E4, ISO 7500-1, and GB/T 228.1 calibration requirements.

Sample Compatibility & Compliance

The 34TM-100 is fully compatible with Instron’s extensive portfolio of standardized grips, fixtures, and environmental accessories—including wedge-action, pneumatic, hydraulic, and custom-designed solutions—as documented in the official Instron Accessories Handbook. It executes tests in strict accordance with international material standards, including but not limited to ASTM D638 (tensile plastics), ASTM C39 (concrete compression), ISO 527 (plastics tensile), ISO 178 (flexural), and GB/T 228.1 (metallic materials). The system meets Class 0.5 and Class 1 accuracy per ISO 7500-1 and ASTM E4 for force measurement, and its displacement transducer satisfies ISO 204 and ASTM E83 requirements for extensometer-grade positional fidelity. When configured with optional GLP/GMP-compliant Bluehill Universal software, the platform supports 21 CFR Part 11 audit trails, electronic signatures, and role-based user permissions for regulated QC laboratories.

Software & Data Management

Controlled exclusively via Bluehill Universal software, the 34TM-100 delivers a unified interface for method development, real-time visualization, automated reporting, and raw data export (CSV, XML, PDF). The software embeds over 100 pre-validated test methods aligned with ASTM, ISO, and GB standards, each with built-in pass/fail criteria, statistical post-processing (e.g., modulus calculation, yield point determination per ISO 6892-1), and customizable report templates. All test sequences are version-controlled, timestamped, and stored with full metadata—including operator ID, environmental conditions, calibration history, and instrument configuration logs. Raw force-displacement-strain datasets are captured synchronously at up to 1 kHz, enabling high-fidelity analysis of viscoelastic transitions, fracture initiation, and hysteresis loops. Data integrity is preserved through encrypted local storage and optional network backup integration with LIMS or ELN platforms.

Applications

• Mechanical validation of aerospace-grade carbon fiber laminates under quasi-static and low-cycle loading
• Compression testing of orthopedic implant materials (e.g., UHMWPE, PEEK, Ti-6Al-4V) per ISO 14801 and ASTM F2193
• Tensile evaluation of elastomeric seals and gaskets across temperature ranges using optional environmental chambers
• Flexural stiffness and failure analysis of printed circuit board substrates (FR-4, polyimide) per IPC-TM-650
• Peel and adhesion strength quantification of medical device packaging per ASTM F88 and ISO 8510-2
• Creep rupture assessment of geosynthetic polymers per ASTM D6992 and ISO 13431

FAQ

What standards does the 34TM-100 comply with for force measurement accuracy?

It conforms to ISO 7500-1 Class 0.5 and Class 1, and ASTM E4, verified via certified reference load cells traceable to NIST.
Can the system perform tests requiring environmental conditioning?

Yes—when integrated with Instron’s range of environmental chambers (−70°C to +350°C) and humidity controllers, all mechanical and thermal parameters remain fully synchronized within Bluehill Universal.
Is remote monitoring or automation supported?

The system supports Ethernet/IP and Modbus TCP protocols for integration into factory automation networks, and offers programmable API access via Bluehill Universal’s .NET SDK for custom LIMS or MES workflows.
What maintenance is required for long-term reliability?

The brushless servo motor and precision ball-screw drive are sealed and lubricated for life; only periodic verification of load cell calibration, crosshead alignment, and emergency stop functionality is recommended per ISO/IEC 17025 preventive maintenance schedules.
How is data security ensured in regulated environments?

With Bluehill Universal’s 21 CFR Part 11 module enabled, all user actions, method changes, and result modifications are cryptographically logged with immutable timestamps and operator authentication—fully auditable during FDA, ISO 13485, or GLP inspections.
