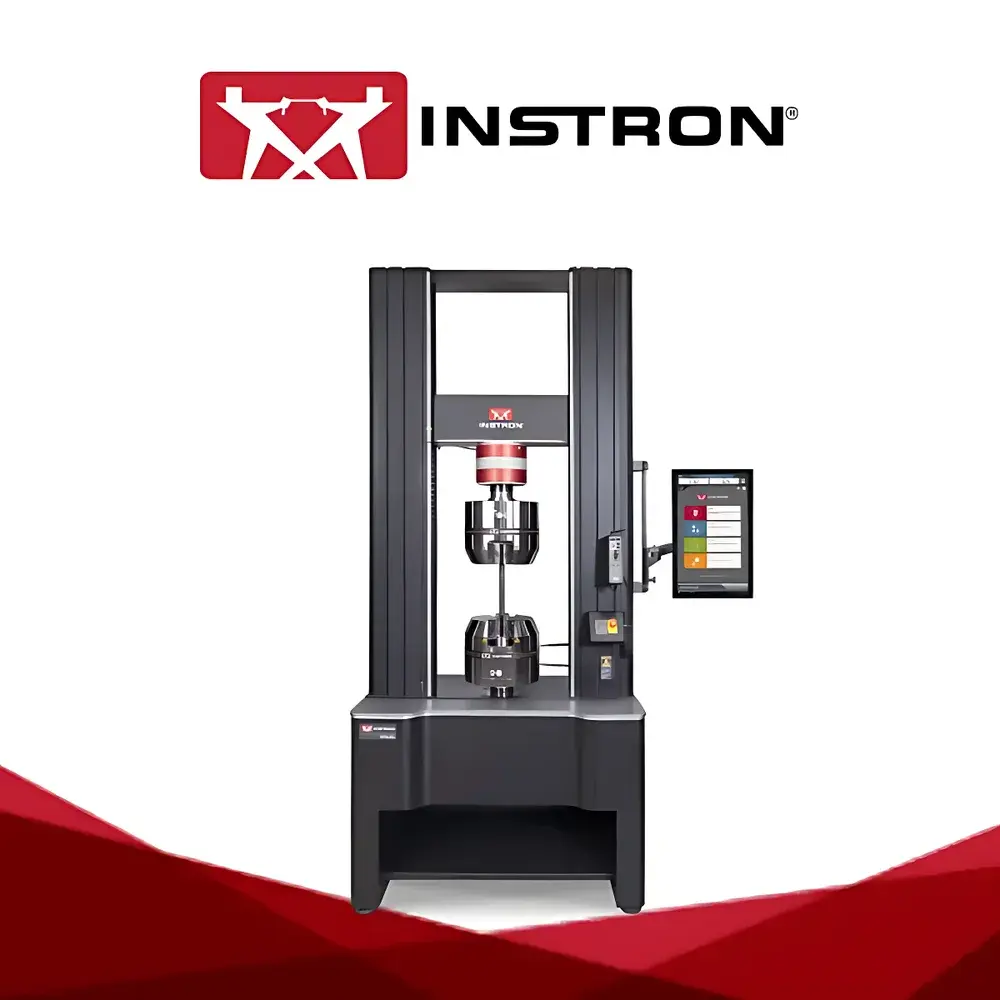

Instron 6800 Series Floor-Model Universal Testing Machine

Overview

The Instron 6800 Series Floor-Model Universal Testing Machine is an electromechanical static testing system engineered for high-force mechanical property evaluation of metals, polymers, composites, elastomers, adhesives, biomedical devices, and advanced materials. Operating on the principle of controlled displacement or load application via a precision servo-controlled actuator, the 6800 Series delivers traceable, repeatable force–displacement–strain data in accordance with international standard test methods. Its robust structural architecture—featuring optimized frame stiffness, vibration-damping base design, and sealed internal compartments—ensures metrological stability under sustained loading conditions, including multi-day creep and relaxation protocols. Designed for compliance with ISO 17025-accredited laboratories, the system meets essential requirements for GLP and GMP environments where auditability, calibration traceability, and instrument qualification are mandatory.

Key Features

• High-Force Capability: Configurable up to 300 kN maximum load capacity, supporting both high-strength metallic tensile testing and large-section composite compression per ASTM D695, ISO 14126, and EN 25270.
• Class 0.5 Load Accuracy: Achieved using Instron 2580-series load cells (±0.5% of reading from 0.1% to 100% FS with Advanced Performance option), certified to ISO 7500-1 and ASTM E4 standards.
• Enhanced Structural Integrity: Reinforced cast-iron base with 12 mm wear-resistant coated steel tabletop; patented airflow channeling minimizes particulate ingress into critical drive and sensor zones.
• Ergonomic Operator Interface: Adjustable-height base (B2 option), concave front profile for improved fixture access, tactile control handle with programmable function keys, and micro-adjustment dial for precise specimen positioning.
• Integrated Safety Architecture: Patented operator protection system enforces state-aware workflow logic—automatically limiting crosshead speed during setup, enforcing safety interlocks, and providing real-time visual status cues via Bluehill® Universal interface.
• Collision Protection Logic: Real-time force-based detection halts crosshead movement during jog or return operations upon contact, preventing damage to fixtures, load cells, and delicate specimens.

Sample Compatibility & Compliance

The 6800 Series accommodates a broad spectrum of specimen geometries and mechanical behaviors through full compatibility with Instron’s catalog of over 300 standardized fixtures—including wedge-action grips, pneumatic clamps, bend fixtures, peel assemblies, friction testers, and custom-designed tooling. Test configurations are pre-validated against major international standards, including ASTM D638/D3039/D7264, ISO 6892-1/527-1/178, GB/T 228.1–2021, and EN 10002-1. All systems are CE-marked and conform to applicable EU Machinery Directive (2006/42/EC), Low Voltage Directive (2014/35/EU), and EMC Directive (2014/30/EU) requirements. Optional IQ/OQ documentation packages support FDA 21 CFR Part 11 compliance for regulated industries.

Software & Data Management

Controlled exclusively by Bluehill® Universal software, the 6800 Series enables method-driven test execution with automated sequence definition, real-time pass/fail evaluation, and synchronized acquisition across force (up to 5 kHz), displacement (±0.01 mm or 0.05% of reading), and strain channels. The software supports ASTM/ISO-compliant reporting templates, customizable result exports (CSV, PDF, XML), and built-in audit trail functionality compliant with 21 CFR Part 11 Annex 11 and ISO/IEC 17025:2017 clause 7.7. Calibration records, user permissions, and electronic signatures are fully managed within the secure database environment. Data integrity is preserved via timestamped raw channel logging and checksum-verified file storage.

Applications

• Tensile strength, yield point, and modulus determination for aerospace alloys and automotive sheet metal (ASTM E8, ISO 6892-1)
• Compression testing of concrete cores, foam materials, and orthopedic implant components (ASTM C39, ISO 844, ISO 7206-4)
• Flexural analysis of thermoset laminates and fiber-reinforced polymer beams (ASTM D7264, ISO 14125)
• Peel, shear, and lap-shear characterization of pressure-sensitive adhesives and medical device bonding (ASTM D903, ISO 8510-2)
• Cyclic fatigue and stress-relaxation profiling for elastomeric seals and soft tissue simulants (ASTM D412, ISO 37)
• Friction and coefficient-of-friction measurement per ASTM D1894 and ISO 8295

FAQ

What load cell accuracy class does the 6800 Series achieve?
The system achieves Class 0.5 performance per ISO 7500-1 and ASTM E4 when equipped with 2580-series load cells and the Advanced Performance option.
Is Bluehill® Universal software included with the system?
Yes—Bluehill® Universal is supplied as standard firmware and desktop application, with perpetual license and no subscription fee.
Can the 6800 Series perform long-duration creep tests?
Yes—its brushless AC servo motor and thermally stable frame architecture support continuous operation for up to 10 days without maintenance interruption.
Does the system meet regulatory requirements for pharmaceutical or medical device testing?
With optional IQ/OQ documentation, electronic signature capability, and audit-trail-enabled Bluehill® Universal, it supports validation under FDA 21 CFR Part 11, EU Annex 11, and ISO 13485 quality management systems.
What environmental conditions are required for optimal operation?
Operating temperature range is +5°C to +40°C (41°F to 104°F); relative humidity 10–90% non-condensing at 20°C; IP2X-rated enclosure requires additional protective measures in dusty or corrosive atmospheres.
