Instron Bluehill Universal Operator Control Panel
| Brand | Instron |
|---|---|
| Origin | USA |
| Manufacturer Type | Manufacturer |
| Product Category | Imported |
| Model | BLUEHILL® UNIVERSAL |
| Pricing | Upon Request |
Overview
Instron Bluehill Universal Operator Control Panel is an integrated hardware-software solution engineered to modernize material and component mechanical testing workflows on Instron universal testing systems. It combines the Bluehill Universal software platform — a standards-compliant, audit-ready test control and data analysis environment — with a purpose-built industrial touch interface. The system operates on the principle of real-time closed-loop control: it acquires load, displacement, and strain signals from Instron’s load cells, extensometers, and motion controllers; executes preconfigured test methods (e.g., tensile, compression, flexure, peel, shear) per ASTM E4, ASTM D638, ISO 6892-1, ISO 178, and USP ; and delivers synchronized, traceable results in accordance with GLP and GMP documentation requirements. Unlike legacy PC-based interfaces, this panel eliminates peripheral dependency (mouse/keyboard), embedding full test execution capability directly at the point of use — reducing operator movement, minimizing procedural variability, and supporting ergonomic compliance per ISO 11228-3 (manual handling) and ANSI/HFES 100-2020 (human factors engineering).
Key Features
- 15.6″ or 20.5″ industrial-grade capacitive touchscreen display with optical bonding for glare resistance and glove-compatible operation
- Fully integrated Bluehill Universal software v4.x or later — licensed per system, supporting method creation, execution, and post-test analysis without external workstation dependency

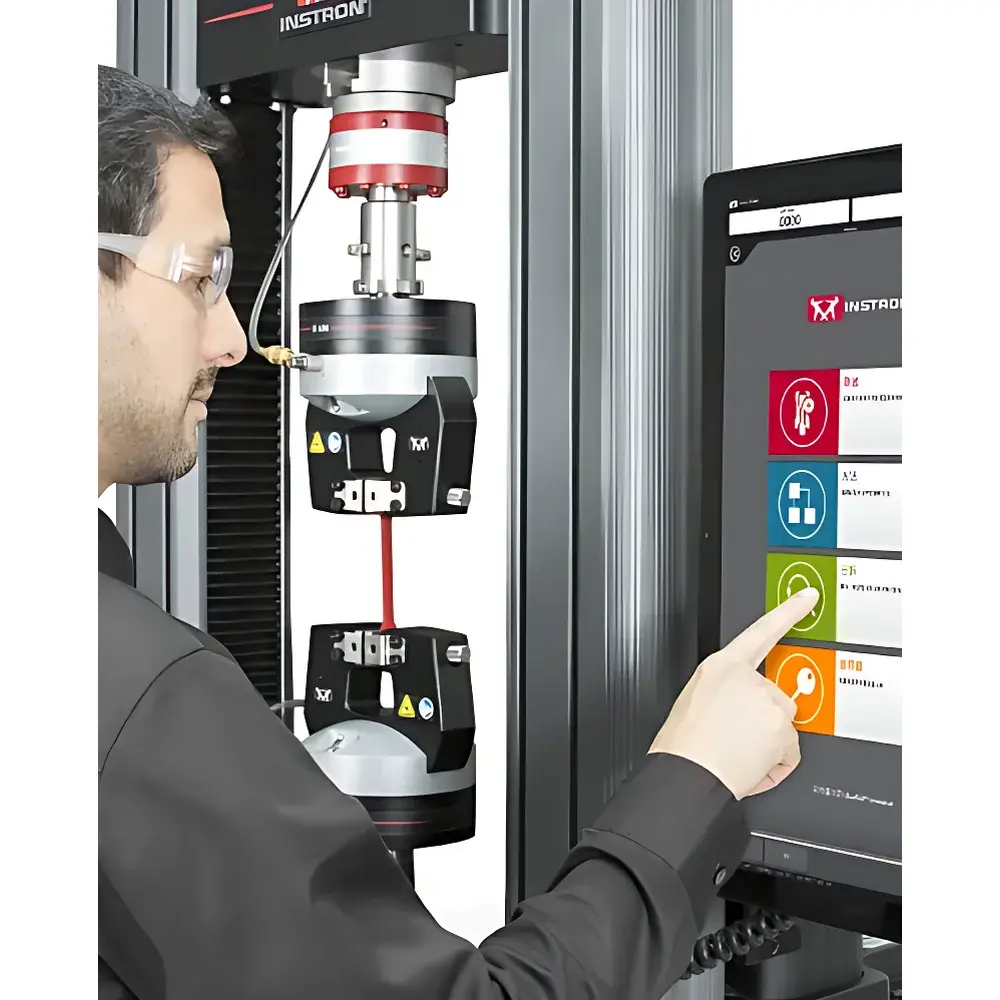

- Adjustable mounting options: tilt-and-swivel rack mount or low-profile desktop stand, enabling optimal positioning within 60 cm of the test frame per ISO 9241-5 ergonomics guidelines

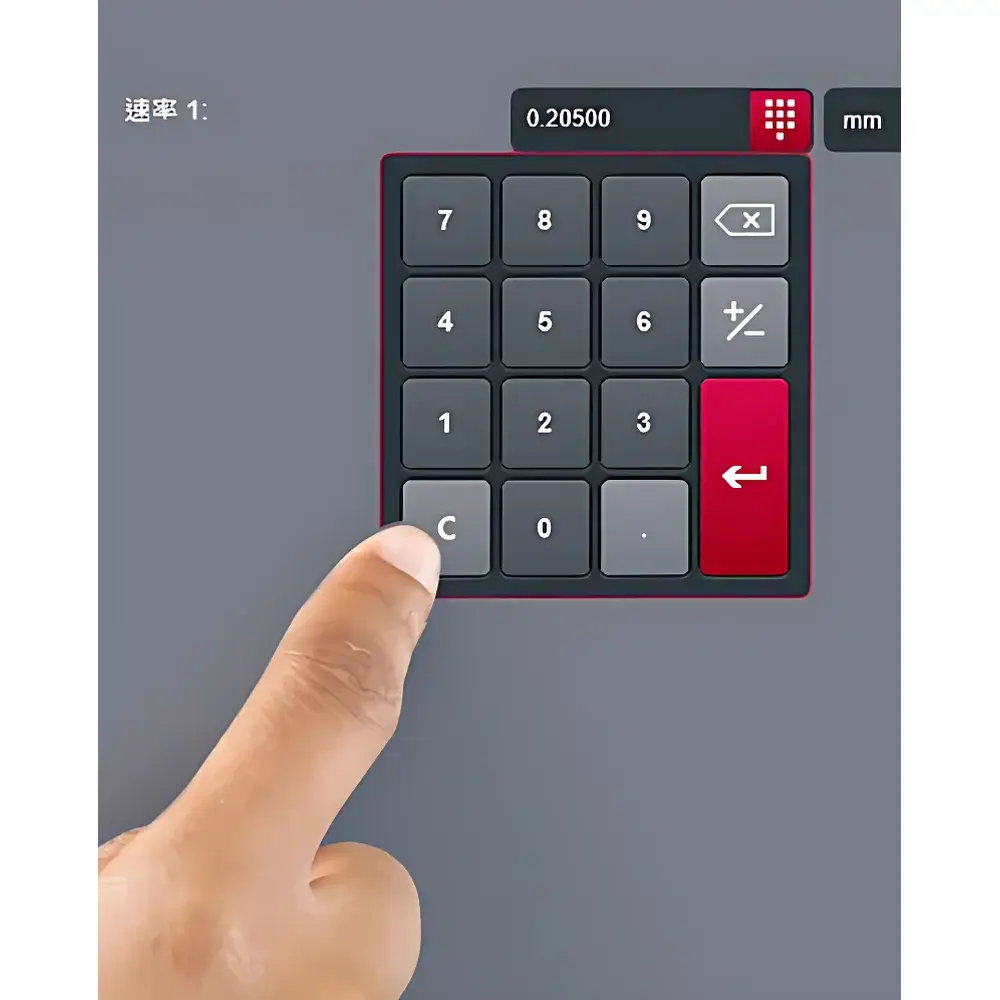

- Optimized touch-centric UI with oversized actionable zones (>12 mm), contextual toolbars, and gesture-enabled navigation (swipe-to-scroll, pinch-to-zoom on curves)
- Real-time test monitoring with dual-channel waveform overlay, live pass/fail status indicators, and dynamic safety interlock visualization
- Built-in method templating engine compliant with ASTM E1447 and ISO/IEC 17025 documentation traceability requirements
- Native support for Instron’s AutoX750 extensometer, BlueWave video extensometry, and pneumatic grip actuation via embedded I/O drivers
Sample Compatibility & Compliance
The Bluehill Universal Operator Control Panel is compatible with all Instron electromechanical and hydraulic testing systems manufactured from 2010 onward, including the 3300, 5500, 5900, 6800, and 8800 series frames. It supports standardized specimen geometries defined in ASTM E8/E8M (tension), ASTM C39 (concrete compression), ISO 527-2 (plastics), and EN 10002-1 (metals). Software validation packages are available to support FDA 21 CFR Part 11 compliance, including electronic signature capture, audit trail logging (with immutable timestamps and user attribution), and role-based access control (RBAC) for QA/QC, operator, and administrator profiles. System-level validation documentation adheres to IQ/OQ/PQ protocols aligned with ISO/IEC 17025:2017 Clause 7.7 and ASTM E2500-13.
Software & Data Management

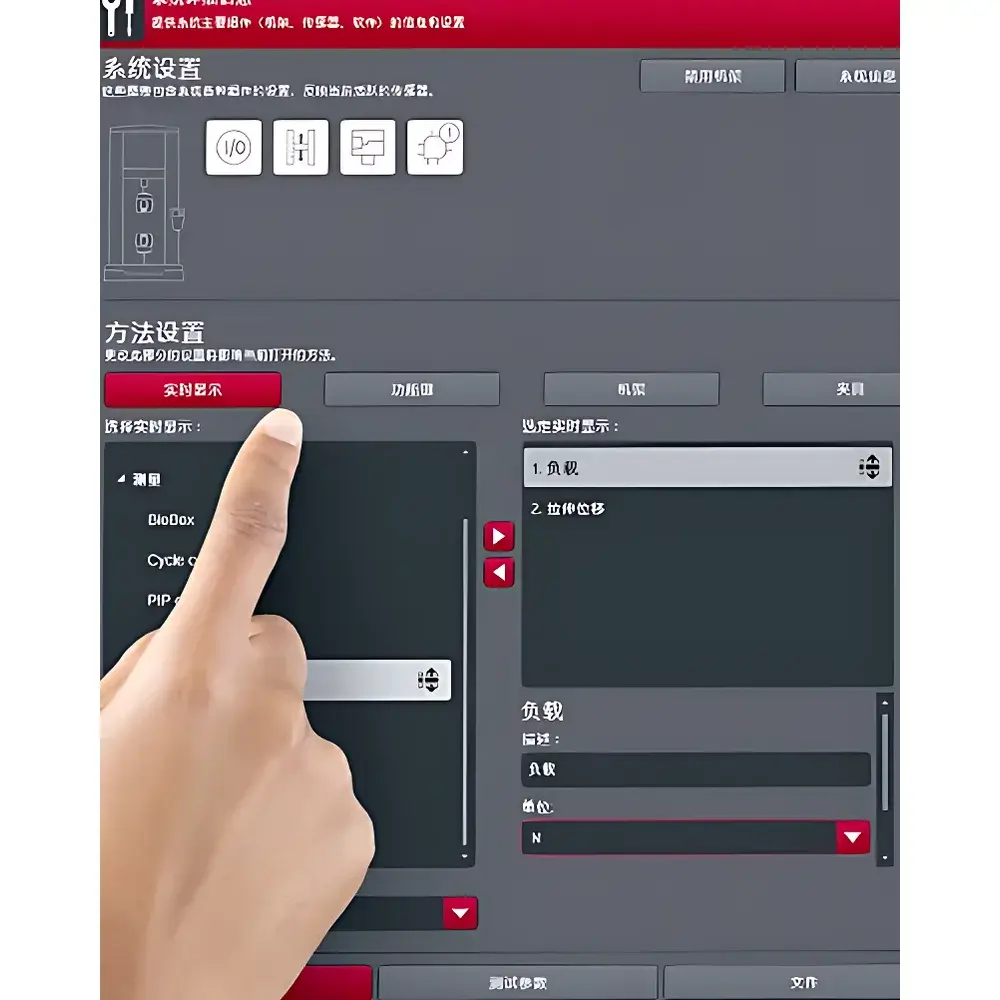

Bluehill Universal software provides a unified environment for test method development, execution, reporting, and data archival. It features a drag-and-drop test sequence builder, formula editor for custom calculations (e.g., modulus derivation, energy absorption integrals), and automated report generation in PDF/A-1b, Excel (.xlsx), and XML formats. All raw data files are stored in vendor-neutral HDF5 format with embedded metadata (test parameters, calibration certificates, environmental conditions). Data export supports direct integration with LIMS platforms via ODBC or REST API endpoints. Audit trails record every user action — including method edits, result overrides, and calibration events — with SHA-256 hashing for integrity verification. Backup and restore functions comply with NIST SP 800-33 and ISO 27001 Annex A.8.2.3 requirements.
Applications
- Quality control laboratories performing routine tensile, compression, and bend testing per ISO 9001-certified processes
- R&D environments conducting cyclic fatigue, creep, and stress relaxation studies with user-defined waveforms (sine, triangle, ramp, custom CSV-loaded)
- Medical device manufacturers validating polymer sutures, orthopedic implants, and packaging per ISO 11607 and ASTM F88
- Aerospace suppliers executing composite laminate testing per Boeing BMS 7-116 and Airbus AITM 1-0002
- Academic materials science labs requiring reproducible, pedagogically structured test protocols with student-accessible templates
FAQ
Is Bluehill Universal compatible with non-Instron test frames?
No — the control panel is designed exclusively for Instron electromechanical and hydraulic testing systems with supported controller firmware (e.g., WaveMatrix 4, Dynacell, or Advanced Controller).
Does the panel require a separate Windows PC to operate?
No — the industrial touchscreen includes an embedded Intel Core i5 processor, 8 GB RAM, and Windows 10 IoT Enterprise OS preloaded with Bluehill Universal software.
Can existing Bluehill 3 users upgrade to Bluehill Universal on this panel?
Yes — qualified systems may migrate via Instron’s certified upgrade path, including method conversion utilities and backward-compatible data import modules.
What cybersecurity standards does the system meet?
It conforms to IEC 62443-3-3 SL2 requirements for industrial control systems, with disabled USB ports by default, TLS 1.2+ encrypted communications, and regular security patching through Instron’s Lifecycle Support Program.
