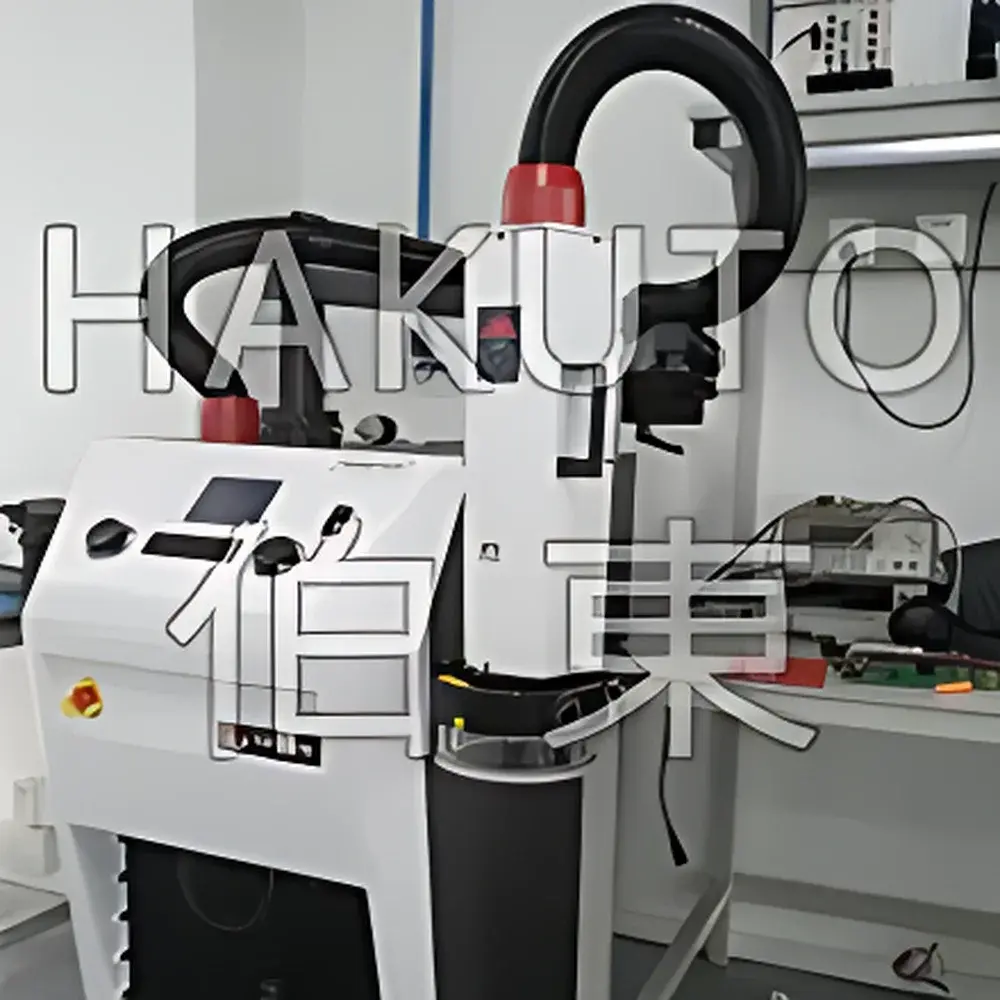

inTEST ATS-545-M-k ThermoStream Rapid Thermal Test System for Automotive Semiconductor ICs
| Brand | inTEST–Temptronic |
|---|---|
| Origin | USA |
| Model | ATS-545-M-k |
| High Temp Range | 0 to 225 °C |
| Low Temp Range | −75 to 0 °C |
| Thermal Shock Range | −75 to +225 °C (50 Hz) |
| Temperature Stability | ±1 °C |
| Ramp Rate (Heating) | ≤10 s from −55 to +125 °C |
| Ramp Rate (Cooling) | ≤10 s from +125 to −55 °C |
Overview
The inTEST ATS-545-M-k ThermoStream Rapid Thermal Test System is an engineered solution for high-fidelity, localized thermal stress testing of automotive-grade integrated circuits (ICs) under powered operational conditions. Unlike conventional environmental chambers that rely on bulk air convection or mechanical thermal shock with long dwell times, the ATS-545-M-k employs a closed-loop, forced-air thermofluidic architecture—delivering precisely controlled, high-velocity heated or chilled gas directly onto individual devices under test (DUTs) mounted on PCBs. Its core principle leverages rapid heat transfer via laminar airflow modulated by dual-stage Peltier-based heating/cooling modules and high-efficiency heat exchangers, enabling sub-second thermal transients while maintaining traceable temperature stability per ASTM E2293 and ISO/IEC 17025-compliant metrology practices. Designed specifically for AEC-Q200-qualified component validation and ISO 26262 functional safety development workflows, it supports real-time junction temperature correlation during electrical stimulation—critical for identifying latent failure mechanisms such as electromigration, solder joint fatigue, and threshold voltage drift in MCUs, power management ICs, DRAM, and MEMS sensors.
Key Features
- Rapid thermal transition: Achieves full ramp from −55 °C to +125 °C (or vice versa) in ≤10 seconds—equivalent to >18 °C/s average rate—enabling accelerated temperature cycling per JEDEC JESD22-A104 and AEC-Q100 stress profiles.
- Localized DUT targeting: Delivers focused thermal flux to a single IC (down to 2 mm² footprint) without affecting adjacent components—eliminating cross-talk artifacts common in chamber-based systems.
- Real-time thermal feedback: Integrated Pt100 sensor within the quartz viewport provides closed-loop temperature monitoring at the DUT surface with ±1 °C accuracy and 0.1 °C resolution.
- Programmable multi-point thermal sequencing: Supports up to three user-defined setpoints (e.g., −40 °C → 25 °C → 125 °C) with independent dwell, ramp, and hold parameters—fully scriptable via Ethernet or USB interface.
- Controlled gas delivery: Output flow range 4–18 scfm of oil-free, desiccated compressed air (dew point < −40 °C), compliant with IPC-9701 requirements for moisture-sensitive device handling.
- Modular integration-ready: Standard 19″ rack-mount chassis with RS-232, Ethernet (TCP/IP), and analog I/O interfaces for synchronization with parametric testers (e.g., Teradyne UltraFLEX, Advantest T2000) and boundary-scan controllers.
Sample Compatibility & Compliance
The ATS-545-M-k accommodates standard JEDEC trays, custom fixtures, and bare-die carriers—including flip-chip BGA, QFN, and LGA packages up to 35 mm × 35 mm. Its non-contact thermal delivery eliminates mechanical loading, making it suitable for fragile wafer-level packaged devices and thin-die stacks. The system meets key automotive qualification standards including AEC-Q100 Grade 0/1 thermal cycling, ISO 16750-4 (road vehicle environmental conditions), and IATF 16949-aligned calibration traceability. All firmware and control logic are designed to support GLP/GMP audit readiness, with optional 21 CFR Part 11-compliant electronic signatures and immutable audit trails when paired with inTEST’s certified software suite.
Software & Data Management
Control is managed through inTEST’s ThermoStream Control Software (v5.2+), a Windows-based application supporting both manual operation and automated test sequence scripting using Python-compatible API hooks. The software logs timestamped temperature, flow rate, pressure, and external trigger signals at 10 Hz resolution, exporting data in CSV, HDF5, and XML formats compatible with MATLAB, JMP, and industry-standard SPC platforms. Calibration certificates include NIST-traceable uncertainty budgets per ISO/IEC 17025 Annex A. Optional integration with test management systems (TMS) enables automatic pass/fail flagging against user-defined thermal excursion limits and direct linkage to defect tracking databases (e.g., Jira, ServiceNow).
Applications
- Functional validation of automotive MCUs across ASIL-B/C operating envelopes
- Thermal characterization of SiC/GaN power modules under dynamic load switching
- Early-life failure screening (ELF) of ADAS vision processors and radar SoCs
- Junction-to-case thermal resistance (RθJC) mapping under bias conditions
- Correlation studies between thermal transient response and IR thermography or T3Ster measurements
- Qualification of new packaging technologies (e.g., embedded die, fan-out WLP) per AEC-Q200 Rev D
FAQ
What distinguishes ThermoStream technology from traditional thermal shock chambers?
ThermoStream uses directed, high-velocity gas flow rather than ambient chamber air exchange—enabling localized, rapid, and repeatable thermal transitions without thermal mass lag or PCB-level thermal gradients.
Can the ATS-545-M-k operate continuously at extreme setpoints like −75 °C or +225 °C?
Yes—continuous operation is supported within its specified thermal envelope; however, sustained exposure above +150 °C requires optional high-temp nozzle kits and flow-rate derating per inTEST Technical Bulletin TB-ATS-545-03.
Is remote monitoring and control possible over corporate networks?
Yes—Ethernet connectivity supports secure remote access via TLS 1.2 encrypted sessions, with role-based user permissions and syslog forwarding for enterprise IT integration.
How is temperature uniformity validated across the DUT surface?
Uniformity is verified per ASTM E2293 using a calibrated micro-thermocouple array (±0.2 °C accuracy) mapped across the standard 25 mm × 25 mm test zone—typical deviation is < ±0.5 °C at steady state.
Does the system comply with FDA or EU regulatory documentation requirements for medical-grade electronics testing?
While primarily designed for automotive applications, the ATS-545-M-k’s Part 11-ready software option and IQ/OQ documentation package meet baseline requirements for IEC 62304 Class C and ISO 13485 environments upon customer-specific validation protocol execution.
