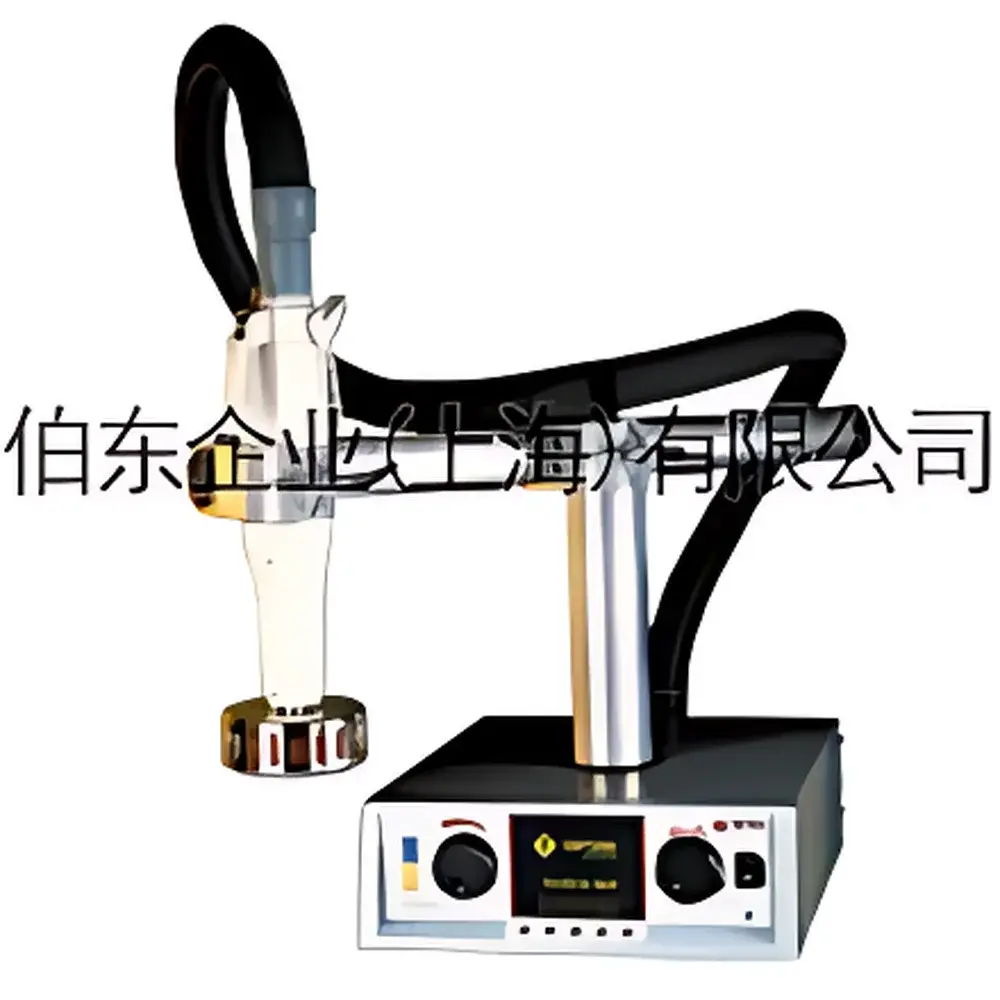

inTEST ThermoStream ATS-505 Benchtop Thermal Shock Test System

Overview

The inTEST ThermoStream ATS-505 is a high-performance, benchtop thermal shock test system engineered for precision temperature cycling and localized thermal stress evaluation of electronic components and assemblies. Unlike conventional environmental chambers, the ATS-505 employs a forced-air convective thermal stream delivery architecture—based on advanced compressor-driven refrigeration and resistive heating—to achieve rapid, repeatable, and spatially targeted thermal transitions without cryogenic fluids (e.g., LN₂ or LCO₂). Its core principle leverages dynamic airflow modulation to deliver calibrated thermal energy directly to the device under test (DUT), enabling real-time thermal response characterization with minimal thermal mass interference. Designed for R&D laboratories, failure analysis labs, and reliability engineering teams, the ATS-505 supports accelerated thermal qualification per JEDEC JESD22-A104 (Temperature Cycling), JESD22-A106 (Thermal Shock), and IPC-9701 (Performance Qualification of Printed Board Assemblies). Its compact footprint, intuitive rotary control interface, and NIST-traceable temperature accuracy make it ideal for iterative thermal design validation and pre-compliance screening.

Key Features

• Ultra-fast thermal transition: heats from 0°C to +125°C in under 3 minutes; cools from +125°C to 0°C in under 4 minutes—enabling high-throughput thermal shock profiling
• Fluorocarbon-free refrigeration system: uses environmentally compliant, non-toxic, non-flammable refrigerant meeting EPA SNAP and EU F-Gas Regulation requirements
• NIST-traceable temperature accuracy of ±1.0°C across full operating range (−20°C to +225°C), verified at point-of-use via integrated T- or K-type thermocouple inputs
• Localized DUT targeting: delivers focused thermal streams to individual ICs, solder joints, or discrete components on PCBs—without affecting adjacent devices or board-level thermal gradients
• Dual-mode operation: supports both automated thermal shock sequences and manual real-time temperature override for exploratory thermal mapping
• Embedded self-diagnostic firmware: detects airflow blockage, refrigerant pressure anomalies, heater fault conditions, and sensor drift—logging events with timestamps for GLP/GMP traceability
• Modular field-replaceable subsystems: compressor module, heating assembly, and airflow manifold are designed for tool-less removal and hot-swap replacement—minimizing downtime

Sample Compatibility & Compliance

The ATS-505 accommodates a broad spectrum of electronic test specimens—including bare die, flip-chip packages, QFNs, BGAs, multi-die modules, hybrid RF assemblies, and populated PCBs up to 200 mm × 200 mm. Its open-stream architecture eliminates chamber wall thermal lag and enables direct thermal coupling to surface-mounted sensors or embedded thermistors. The system complies with key industry standards for thermal testing instrumentation, including ISO/IEC 17025 calibration requirements for test equipment, ASTM E2582-19 (Standard Practice for Thermal Shock Testing of Electronic Components), and USP for thermal stability assessment of microelectronics used in regulated medical devices. All factory calibrations include documented uncertainty budgets aligned with ILAC-MRA guidelines, and optional IQ/OQ documentation packages support FDA 21 CFR Part 11–compliant validation workflows.

Software & Data Management

Native control is provided via the front-panel rotary encoder and LED display, supporting standalone operation without host dependency. For integration into automated test environments, the ATS-505 features dual digital interfaces: IEEE-488 (GPIB) and RS-232—both fully supported by inTEST’s open-architecture command set (SCPI-compatible syntax). A certified LabVIEW™ driver (NI LabVIEW 2018–2023 compatible) enables seamless incorporation into ATE platforms, HALT/HASS test suites, or custom Python-based data acquisition pipelines. All temperature profiles, runtime logs, error codes, and thermocouple readings are timestamped and stored internally (16 MB non-volatile memory) with export capability via USB-C to CSV or XML. Audit trails include operator ID (via optional network authentication), parameter change history, and calibration event metadata—meeting ALCOA+ principles for data integrity in regulated QA/QC settings.

Applications

• Qualification testing of automotive-grade SoCs under AEC-Q100 Grade 0/1 thermal shock profiles
• Thermal boundary analysis of underfill materials and TIMs in 3D-stacked IC packages
• Failure mode isolation during JEDEC JESD22-A106 thermal shock stress on wafer-level CSPs
• Real-time junction temperature monitoring during power cycling of GaN HEMTs and SiC MOSFETs
• Pre-screening of solder joint reliability in lead-free assemblies prior to reflow simulation
• Thermal coefficient of resistance (TCR) mapping across heterogeneous sensor arrays on flexible substrates
• Validation of thermal management strategies for high-power RF front-end modules in 5G infrastructure

FAQ

Does the ATS-505 require liquid nitrogen or dry ice for low-temperature operation?

No. It utilizes a closed-loop, compressor-based refrigeration system with an eco-friendly refrigerant—eliminating reliance on consumable cryogens and associated safety hazards.
Can the system perform temperature ramping at user-defined rates outside the standard specifications?

Yes. Through SCPI commands or LabVIEW, users may configure custom ramp rates within the physical limits of the thermal actuation system—subject to stability constraints below ±1.5°C deviation.
Is NIST-traceable calibration included with shipment?

Each unit ships with a factory calibration certificate documenting as-tested performance against NIST-traceable reference standards, including measurement uncertainty at three points across the operational range.
What maintenance intervals are recommended for long-term reliability?

Compressor oil and filter replacement every 24 months; airflow path inspection and thermocouple verification every 6 months; full system recalibration recommended annually or after 500 operational hours—whichever occurs first.
How does the ATS-505 differ from traditional thermal chambers in terms of thermal inertia?

Conventional chambers exhibit significant thermal mass lag due to insulated walls and large air volumes. The ATS-505’s directed airflow architecture reduces effective thermal time constant by >85%, enabling sub-second response to setpoint changes at the DUT surface.
