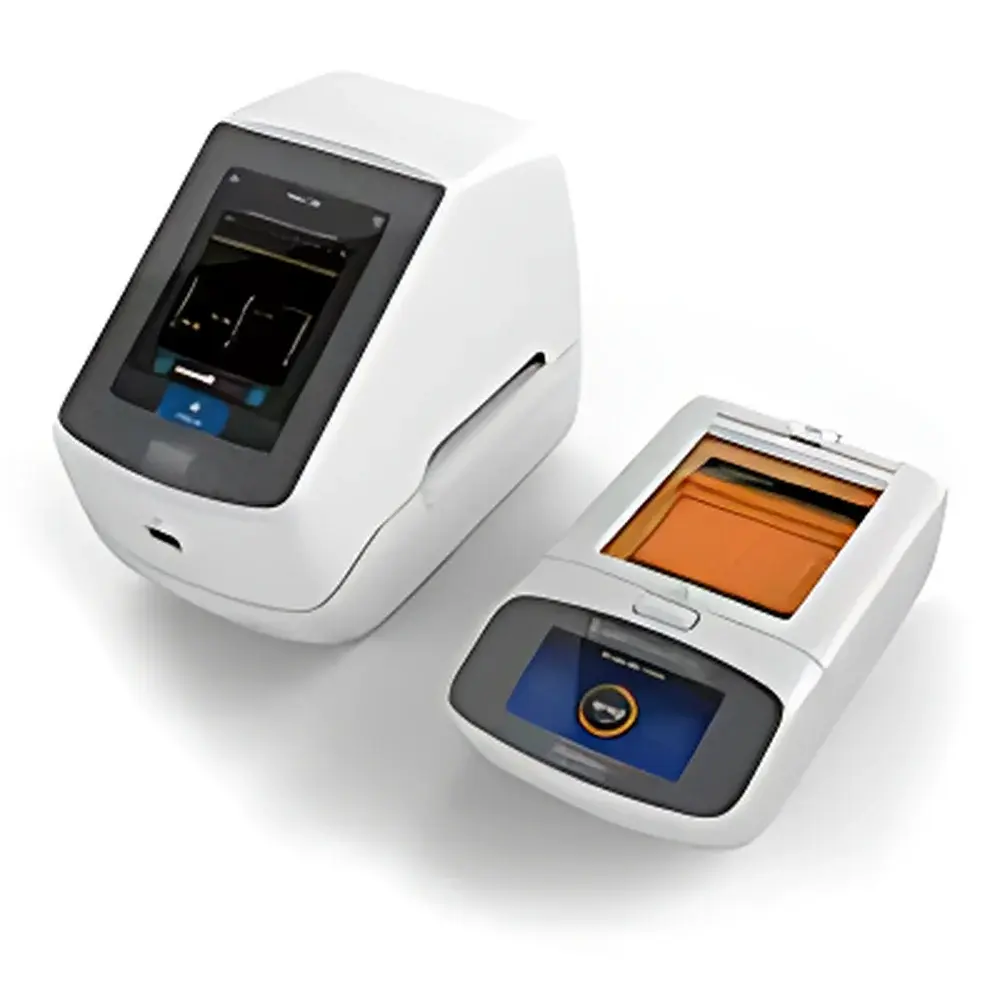

Invitrogen E-Gel Power Snap Electrophoresis and Imaging System

Overview

The Invitrogen E-Gel Power Snap Electrophoresis and Imaging System is an integrated benchtop platform engineered for rapid, safe, and reproducible nucleic acid separation and real-time visualization. Unlike conventional horizontal electrophoresis setups requiring separate power supplies, gel trays, UV transilluminators, and external imaging systems, the Power Snap consolidates electrophoretic separation, blue-light excitation, optical capture, and image processing into a single self-contained unit. It operates on the principle of constant-voltage electrophoresis through pre-cast, ready-to-load E-Gel agarose gels—eliminating manual gel pouring, buffer preparation, and ethidium bromide handling. The system utilizes a built-in blue-light transilluminator (470 nm peak emission) paired with an amber filter optimized for SYBR Safe and SYBR Gold nucleic acid stains, enabling real-time monitoring without UV exposure hazards. Designed for routine molecular biology workflows—including PCR product verification, restriction digest analysis, and cloning QC—the Power Snap delivers full electrophoretic run-to-image turnaround in as little as 15 minutes.

Key Features

• Integrated electrophoresis and imaging in one compact benchtop unit—no external camera, computer, or power adapters required
• Pre-programmed run protocols tailored to specific E-Gel agarose gel types (e.g., 0.8%, 1.2%, 2.0% w/v), ensuring consistent field strength and migration time
• Touchscreen interface with intuitive graphical workflow navigation and on-device image preview, annotation, and export
• Blue-light transilluminator (470 ± 15 nm) with integrated amber filter for enhanced signal-to-noise ratio when visualizing SYBR Safe- or SYBR Gold-stained DNA
• Low-voltage internal power conversion (240 V AC input → regulated DC output) for operator safety and compliance with IEC 61010-1 electrical safety standards
• 12-lane capacity per 3.2 cm wide pre-cast gel—compatible exclusively with Invitrogen E-Gel agarose formats (not compatible with standard slab gels or polyacrylamide)

Sample Compatibility & Compliance

The E-Gel Power Snap is validated exclusively for use with Invitrogen E-Gel pre-cast agarose gels containing integrated electrodes and proprietary buffer reservoirs. It supports DNA fragments ranging from 50 bp to >10 kb, depending on gel concentration and run duration. No post-electrophoresis staining or destaining steps are required, significantly reducing hands-on time and chemical exposure risk. The system conforms to GLP-aligned documentation practices: all imaging sessions log timestamp, gel type, protocol ID, and user ID automatically. While not certified for GMP production environments, its design supports audit-ready operation in academic, diagnostic, and R&D labs adhering to ISO/IEC 17025 quality management principles. It meets CE marking requirements for laboratory equipment (2014/30/EU EMC Directive and 2014/35/EU Low Voltage Directive).

Software & Data Management

The embedded firmware includes a lightweight image acquisition and management suite. Captured gel images are saved in TIFF format with embedded metadata (exposure time, gain setting, protocol name, date/time stamp). Users can apply basic contrast enhancement, lane profiling, and molecular weight estimation using pre-loaded DNA ladder references (e.g., 100 bp DNA Ladder, GeneRuler 1 kb Plus). Export options include USB flash drive transfer (FAT32 formatted) and network-based file sharing via optional Ethernet module (sold separately). No proprietary desktop software installation is needed—images are immediately viewable and shareable in standard viewers. Audit trail functionality records all user-initiated actions (e.g., protocol selection, image capture, deletion), supporting traceability under FDA 21 CFR Part 11–aligned lab practices where electronic records are maintained.

Applications

• Routine PCR product verification and size confirmation prior to sequencing or cloning
• Restriction enzyme digestion QC and plasmid linearization validation
• cDNA synthesis and RT-PCR amplicon screening
• CRISPR editing efficiency assessment via T7E1 or Surveyor nuclease assays (when combined with appropriate E-Gel formats)
• Teaching laboratory applications where safety, speed, and reproducibility are critical
• High-throughput colony screening with direct lysis and loading onto E-Gel EX gels

FAQ

Is the E-Gel Power Snap compatible with non-Invitrogen pre-cast gels or homemade agarose gels?
No. The system is mechanically and electrically engineered only for Invitrogen E-Gel cartridges, which incorporate integrated electrodes and sealed buffer chambers.
Can I use ethidium bromide with this system?
Ethidium bromide is not recommended. The blue-light transilluminator and amber filter are optimized for SYBR Safe and SYBR Gold; EtBr requires UV excitation and poses greater mutagenic risk.
Does the system support quantitative densitometry?
It provides semi-quantitative band intensity comparison within a single gel image but does not include calibration curves or inter-gel normalization features required for rigorous quantification.
What is the expected lifetime of the built-in LED transilluminator?
Rated for >10,000 hours of operational use under normal laboratory conditions, with no user-serviceable replacement parts—service must be performed by authorized Invitrogen technical support centers.
Is remote monitoring or control possible?
No. The system operates as a standalone instrument with no Wi-Fi, Bluetooth, or cloud connectivity; all interaction occurs via the front-panel touchscreen.
