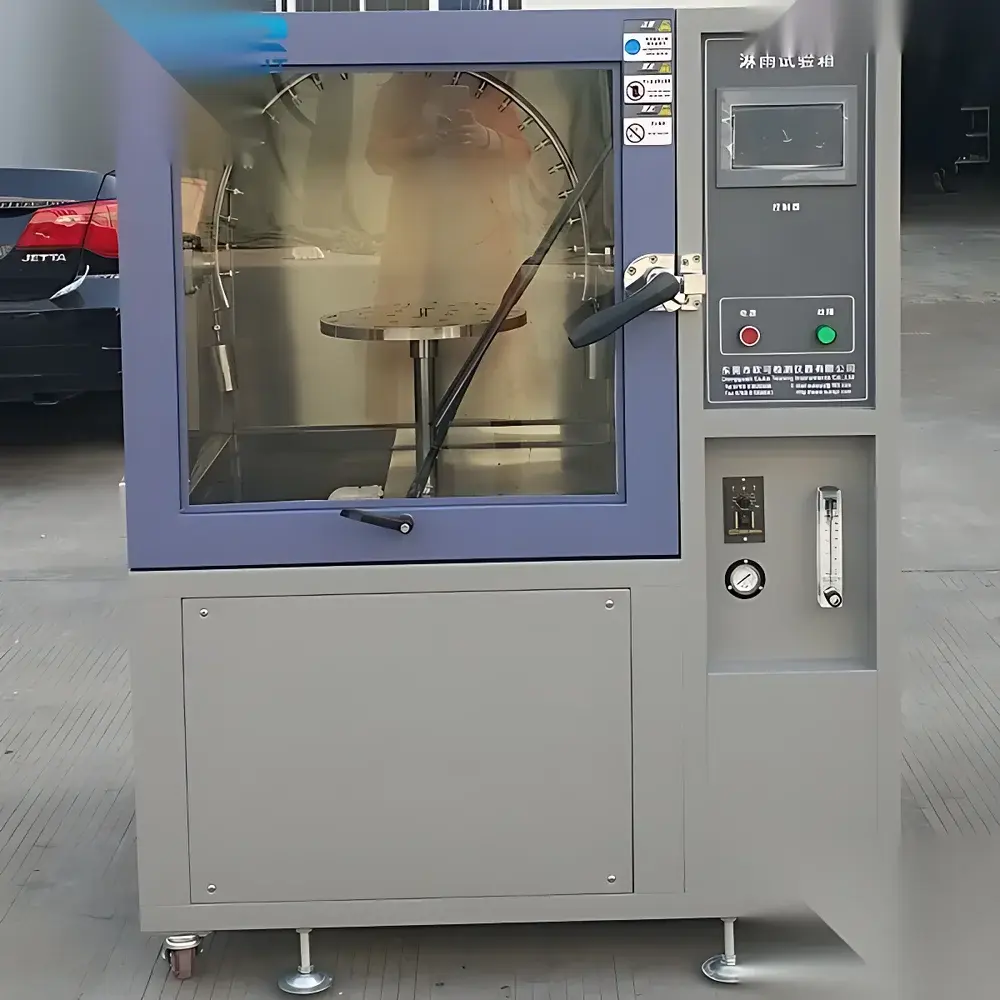

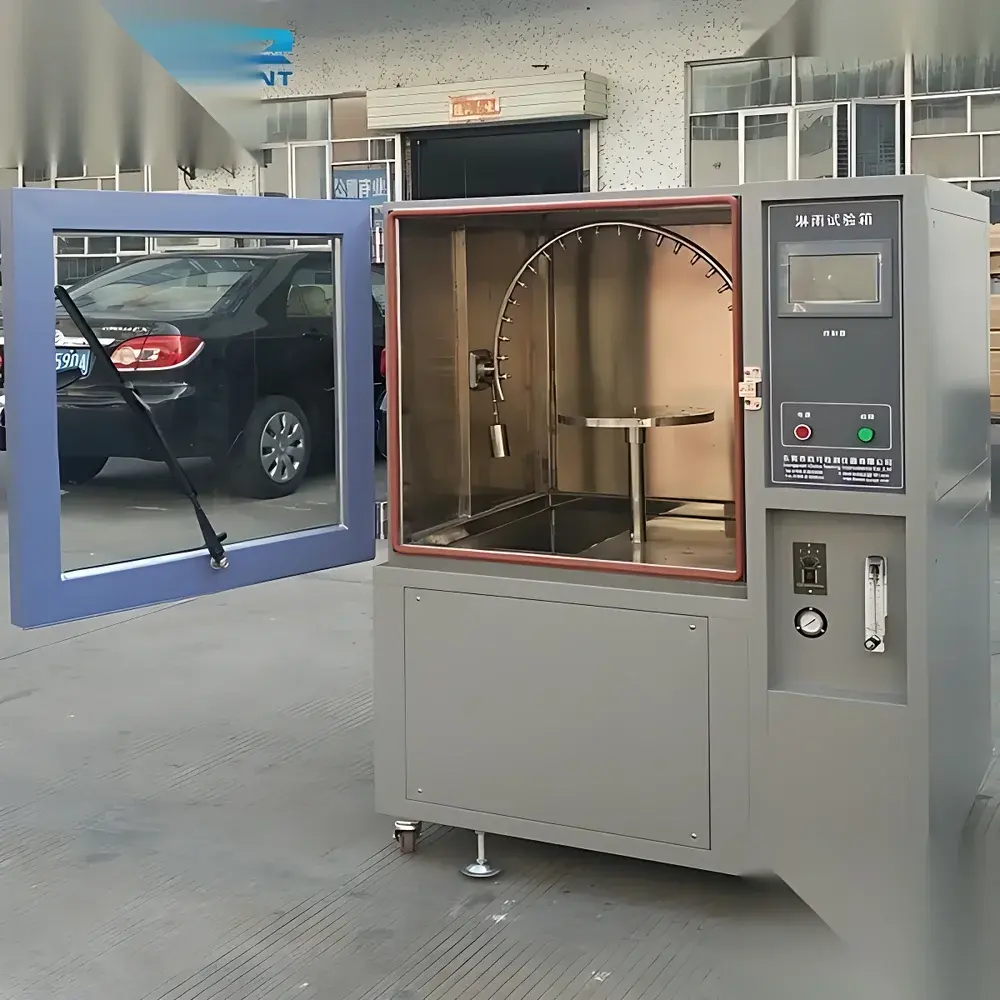

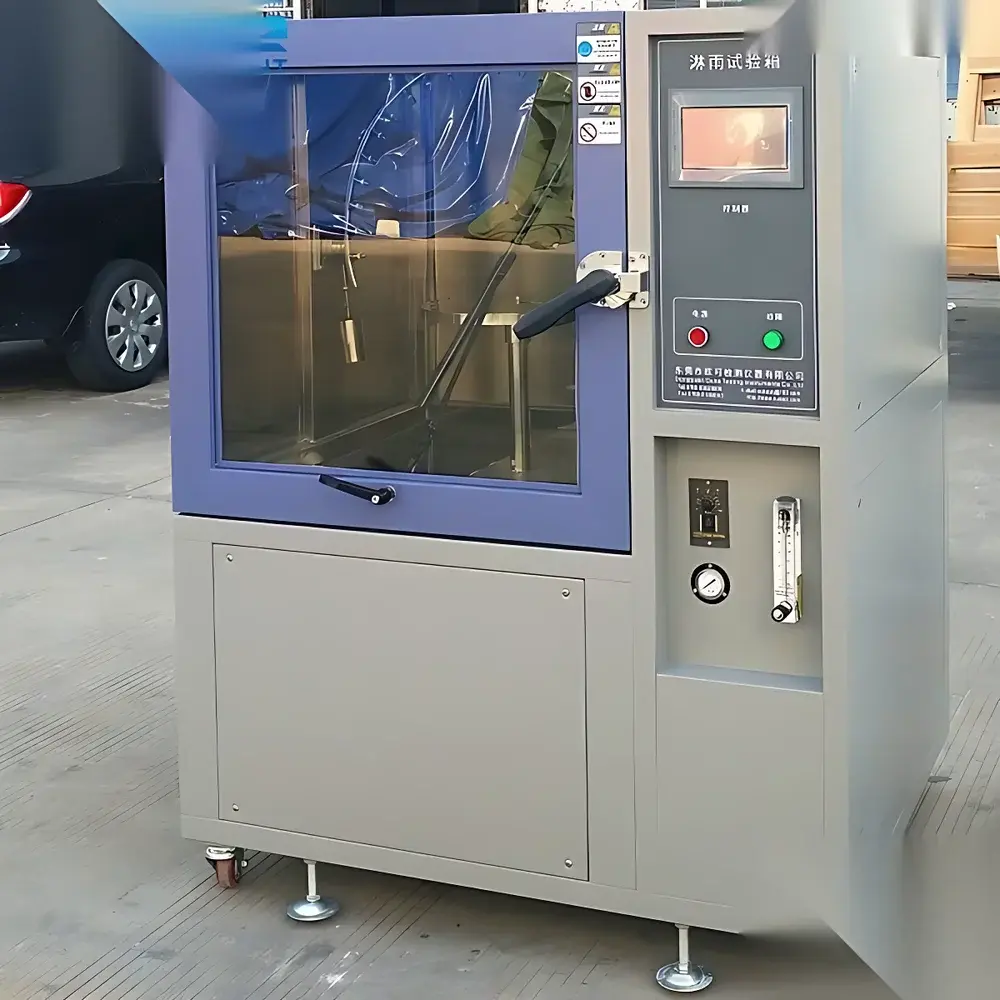

IPX3/IPX4 Rain Resistance Test Chamber for E-Bikes

Overview

The IPX3/IPX4 Rain Resistance Test Chamber for E-Bikes is a precision-engineered environmental simulation system designed to evaluate the ingress protection (IP) performance of electric bicycle components and complete assemblies against water exposure under standardized test conditions. Based on the principles of controlled directional water projection—employing calibrated oscillating spray arms, programmable sample rotation, and regulated hydraulic pressure—the chamber replicates real-world rain, splashing, and dripping environments in accordance with internationally recognized electrotechnical enclosure testing protocols. Unlike generic climate chambers, this system is specifically configured to accommodate e-bike frames, battery housings, display units, controller enclosures, and lighting modules up to 100 cm × 100 cm × 100 cm in dimension. Its modular architecture ensures compliance with the physical test requirements defined in IEC 60529 (equivalent to GB/T 4208–2008), while supporting functional validation per GB/T 10485–2007 (identical to ISO 20653:2013 for road vehicles) and GB/T 4942.2–1993 (IEC 60034-5).

Key Features

• Adjustable oscillating spray arm with selectable angular sweep: ±45°, ±60°, ±90°, or ±180°—precisely reproducible via servo-controlled actuation
• Motorized turntable with continuous 0–1 rpm variable-speed control (standard) and optional infinitely adjustable speed range (0–5 rpm)
• Stainless steel 304 brushed-panel construction with structural reinforcement using welded channel steel frame for long-term mechanical stability
• Dual-stage water filtration system (5 µm pre-filter + activated carbon post-filter) integrated into closed-loop supply to prevent nozzle clogging and ensure consistent droplet distribution
• Calibrated stainless steel spray ring (Ø400 mm / Ø500 mm configurable) with uniformly spaced 0.4 mm diameter orifices at 50 mm pitch, enabling repeatable water flux density
• High-visibility tempered glass observation door (fully sealed, anti-fog coated) for real-time visual monitoring without interrupting test continuity
• Integrated safety interlocks: leakage current detection, short-circuit protection, motor thermal overload cutoff, and emergency stop circuit compliant with IEC 61000-6-2/6-4

Sample Compatibility & Compliance

This chamber accommodates full-size e-bike subassemblies—including integrated battery packs, motor controllers, LCD instrument clusters, and front/rear light modules—within its 1000 mm × 1000 mm × 1000 mm test volume. The turntable’s load capacity supports up to 50 kg with center-of-gravity stability optimized for asymmetric e-bike geometries. All operational parameters—including water flow rate (measured via inline digital flow meter), pressure regulation (0.05–0.15 MPa), and oscillation frequency (0.5–3 Hz)—are traceably adjustable and documented for audit readiness. The system satisfies mandatory conformity assessment requirements for CE marking (EN 60529), China Compulsory Certification (CCC) Annex IV (GB/T 4208), and automotive-grade validation referenced in UN ECE R136 (for two-wheel vehicle electrical systems). Full test logs—including timestamped parameter sets, duration, and pass/fail status—are generated in accordance with GLP-compliant data integrity practices.

Software & Data Management

Control is executed via an industrial-grade PLC-based HMI interface with embedded SD-card logging. The system records all critical test variables—including actual vs. setpoint oscillation angle, turntable rotational velocity, real-time flow rate (L/min), and cumulative test time—in CSV format with UTC timestamps. Exported logs are compatible with LIMS integration and support 21 CFR Part 11-compliant electronic signature add-ons (optional). Firmware updates are delivered via secure USB handshake, and configuration backups can be scheduled automatically. No cloud dependency or third-party subscription is required—ensuring data sovereignty and network isolation suitable for regulated manufacturing environments.

Applications

• Validation of IPX3-rated enclosures against vertically falling drops at 60° tilt (simulating light rain)
• IPX4 verification of resistance to water splashing from any direction (180° oscillation mode)
• Pre-certification screening for EN 15194-compliant e-bike electrical systems prior to notified body testing
• R&D durability assessment of conformal-coated PCBs, potting compounds, and gasketed junction boxes
• Supplier qualification audits requiring documented evidence of ingress protection consistency across production batches
• Root cause analysis of field failures linked to moisture-induced corrosion or insulation breakdown

FAQ

What standards does this chamber directly support?
It is engineered to execute test procedures specified in GB/T 4208–2008 (IEC 60529), GB/T 10485–2007 (ISO 20653), and GB/T 4942.2–1993, with full parameter traceability for certification body audits.
Can the chamber perform IPX5 or IPX6 tests?
No—this model is purpose-built for IPX3 and IPX4 only. IPX5/IPX6 require higher-pressure jet nozzles, different flow calibration, and structural reinforcement not included in this configuration.
Is water temperature control available?
Standard operation assumes ambient-temperature deionized or filtered tap water (15–30°C). Temperature-regulated water supply is not integrated but may be added via external chiller loop (custom quotation required).
How often must the filters be replaced?
The 5 µm pre-filter requires replacement every 200 operational hours; the activated carbon stage every 600 hours—both intervals are logged and flagged via HMI alert.
Does the system include calibration documentation?
Yes—a factory calibration certificate (traceable to NIM, China) is supplied, covering flow meter linearity (±1.5% FS), angular position repeatability (±0.3°), and turntable speed accuracy (±0.02 rpm).
