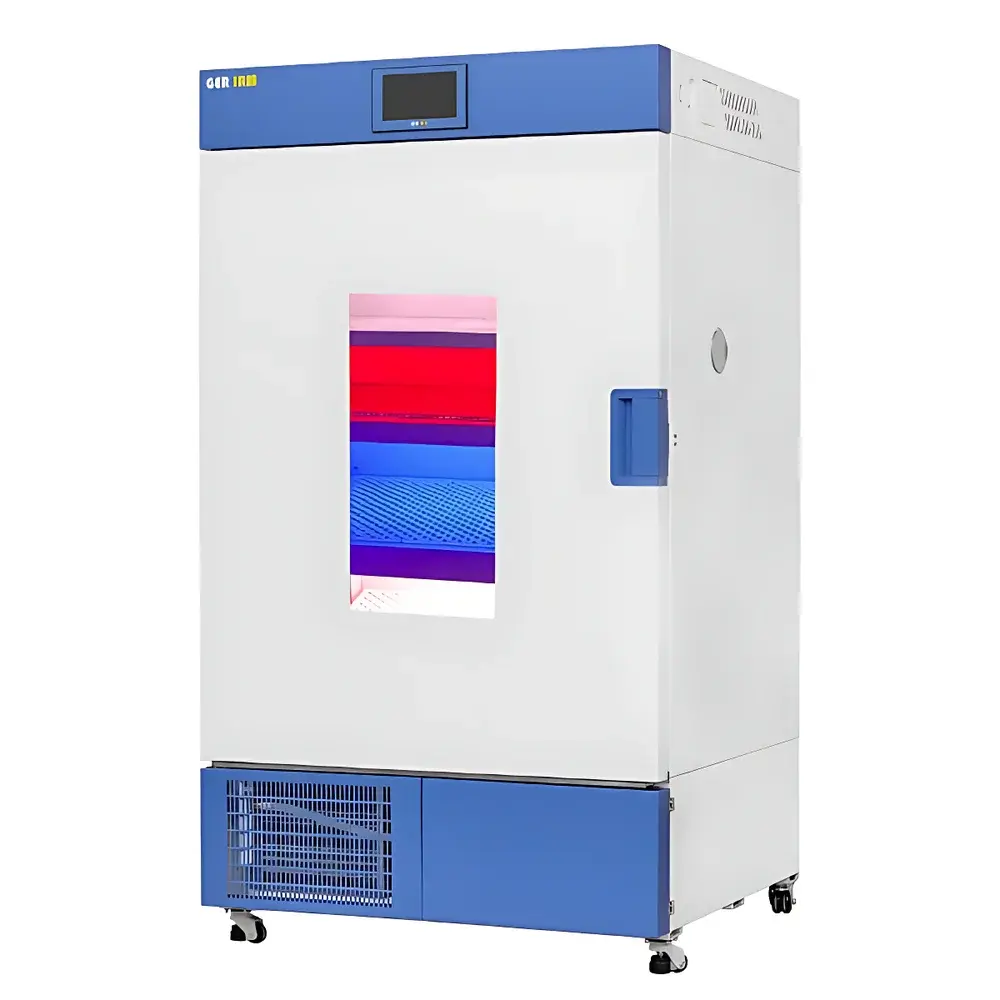

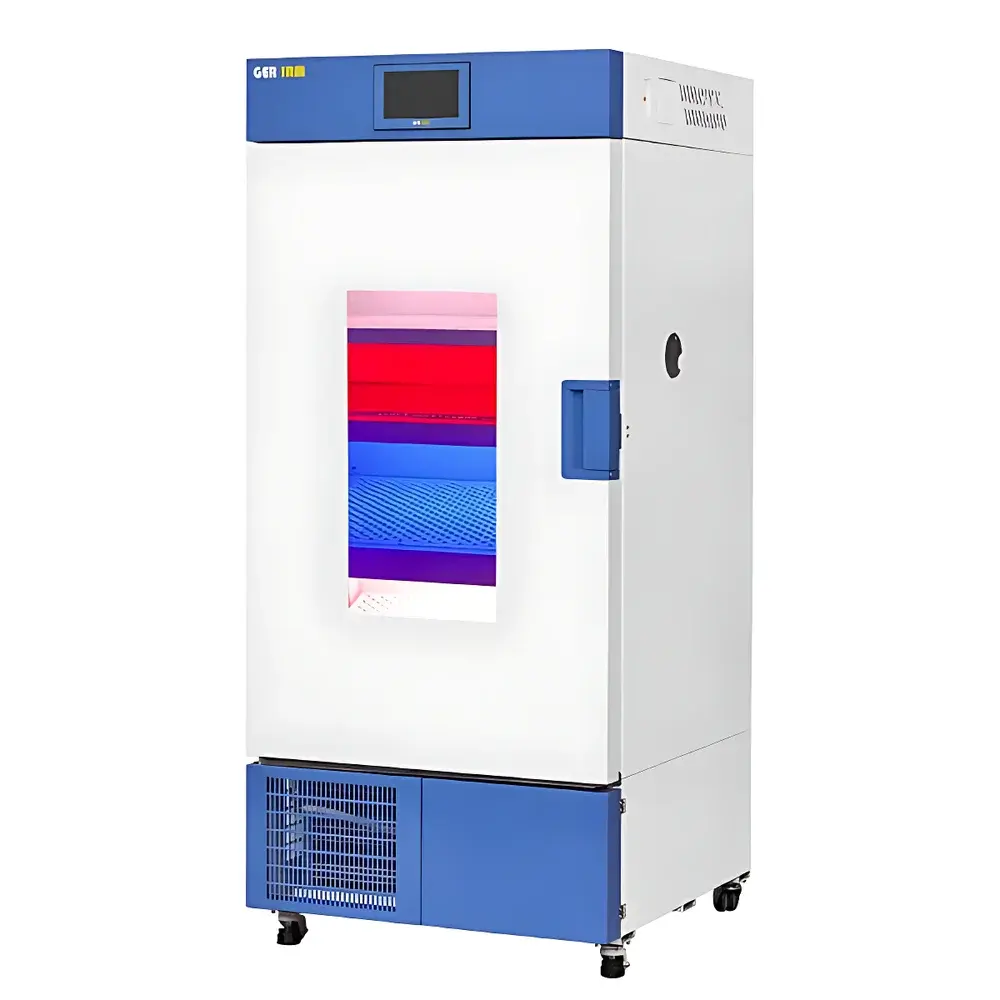

IRM IAL260 Algal Growth Chamber with LED Illumination and Precision Environmental Control

Overview

The IRM IAL260 Algal Growth Chamber is a purpose-engineered environmental control system designed specifically for reproducible, long-term cultivation of microalgae, cyanobacteria, and photosynthetic model organisms under tightly regulated photobiological conditions. It operates on the principle of active climate regulation—integrating precision thermoelectric and refrigeration-based temperature control, uniform LED-driven photosynthetic irradiance, and optional humidity and CO₂ modulation—to replicate natural or experimental growth environments with high fidelity. Unlike general-purpose incubators, the IAL260 implements IRM’s proprietary iHACC (intelligent Humidity and Airflow Control & Compensation) algorithm to maintain stable thermal gradients across multiple shelves, minimizing vertical stratification and ensuring consistent physiological responses across replicate cultures. Its architecture supports continuous operation at temperatures ≥20°C without defrost interruption—a critical requirement for uninterrupted algal batch or semi-continuous culture protocols.

Key Features

• Shelf-integrated LED illumination system delivering uniform PPFD (0–500 µmol/m²/s) across the full cultivation area; spectral output optimized for chlorophyll a/b absorption peaks in the visible range (400–700 nm)
• Intelligent PID-controlled temperature regulation with ±0.3°C fluctuation and ±1.0°C uniformity (measured at 20°C on a single shelf); dual-range operation (0–65°C ambient, 10–65°C under illumination)
• Variable-speed centrifugal airflow system to prevent desiccation of surface-grown cultures while maintaining laminar exchange and thermal homogeneity
• 7-inch capacitive touchscreen interface supporting three-tier user permissions (administrator/operator/visitor), full audit trail logging (events, alarms, parameter changes), and GLP-compliant data traceability
• Embedded 4G cellular module (optional) enabling remote monitoring, real-time alarm notification, and secure web-based access via Android/iOS apps or desktop browsers
• Integrated water management system: auto-fill reservoir with overflow protection, wastewater recirculation loop, and low-maintenance internal tank design (for humidity-equipped variants)
• Comprehensive safety architecture including independent overtemperature cutoff, leak-current protection, door-open alarm, compressor overpressure shutdown, condenser fan thermal monitoring, and sensor fault detection
• Two 50-mm diameter pass-through ports (left/right) for tubing, probes, or gas lines; heavy-duty locking casters for lab mobility and reconfiguration

Sample Compatibility & Compliance

The IAL260 accommodates standard algal culture vessels—including Erlenmeyer flasks (up to 2 L), flat-panel photobioreactors, multi-well plates, and agar plates—across four adjustable stainless-steel shelves (2 standard, up to 4 fully configured). Its chamber geometry (640 × 450 × 1060 mm internal) permits vertical stacking of stacked culture racks while preserving minimum clearance for airflow and light penetration. The system complies with IEC 61000-6-3 (EMC emissions) and IEC 61000-6-2 (immunity), and its electrical safety design meets IEC 61010-1 for laboratory equipment. When equipped with humidity and CO₂ modules, it supports protocols aligned with ASTM D5540 (algal growth inhibition testing) and ISO 8692 (freshwater algal toxicity assays). All operational logs—including setpoint history, alarm timestamps, and user actions—are timestamped and exportable via USB for regulatory review or method validation under GLP/GMP frameworks.

Software & Data Management

The embedded firmware provides native support for three operational modes: constant-setpoint (holding), time-scheduled (on/off cycles), and multi-segment programmable profiles (up to 30 steps per program). Real-time trend curves for temperature, light intensity, and (if installed) RH/CO₂ are rendered on-screen with zoom and annotation capabilities. All data—including raw sensor outputs, event logs, and configuration snapshots—can be exported in CSV format directly to USB storage. Optional printer integration enables hard-copy generation of run summaries and calibration certificates. For networked deployment, the 4G module supports TLS 1.2-encrypted communication and integrates with third-party LIMS platforms via Modbus TCP or RESTful API endpoints (documentation available upon request). Audit trails comply with FDA 21 CFR Part 11 requirements when used with enabled electronic signatures and role-based access controls.

Applications

• Controlled-environment studies of photosynthetic efficiency, nutrient limitation responses, and stress physiology in Chlamydomonas reinhardtii, Dunaliella salina, Scenedesmus obliquus, and other model microalgae
• Standardized toxicity screening per OECD 201 and ISO 8692 using algal growth rate endpoints
• Bioprocess development for lipid accumulation, carotenoid production, or hydrogen evolution under defined photoperiods and spectral compositions
• Long-term strain maintenance and cryopreservation pre-conditioning under non-sterile but environmentally stable conditions
• Education and training in plant physiology, phycology, and environmental toxicology laboratories requiring robust, repeatable growth platforms

FAQ

What is the maximum recommended culture height inside the chamber?
The IAL260 supports sample heights up to 1000 mm; however, optimal uniformity of PPFD and airflow is maintained for cultures ≤200 mm tall per shelf layer.
Can the LED spectrum be customized beyond white light?
Yes—optional monochromatic (e.g., 450 nm blue, 660 nm red) or multi-channel tunable LED arrays are available as factory-configured upgrades.
Is the system validated for ISO/IEC 17025-compliant calibration?
IRM provides NIST-traceable calibration certificates for temperature and light sensors; on-site IQ/OQ documentation packages are available for GxP environments.
Does the chamber support CO₂ enrichment without humidity control?
Yes—the IALHC series allows independent selection of CO₂ (0–5000 ppm) and humidity (30–95% RH) modules; the base IAL260 model excludes both unless specified.
How frequently does the auto-fill water reservoir require manual refilling?
Under typical 60% RH operation at 25°C, the integrated reservoir supports ≥72 hours of continuous humidification before refill; wastewater recirculation extends this interval by ~40%.
