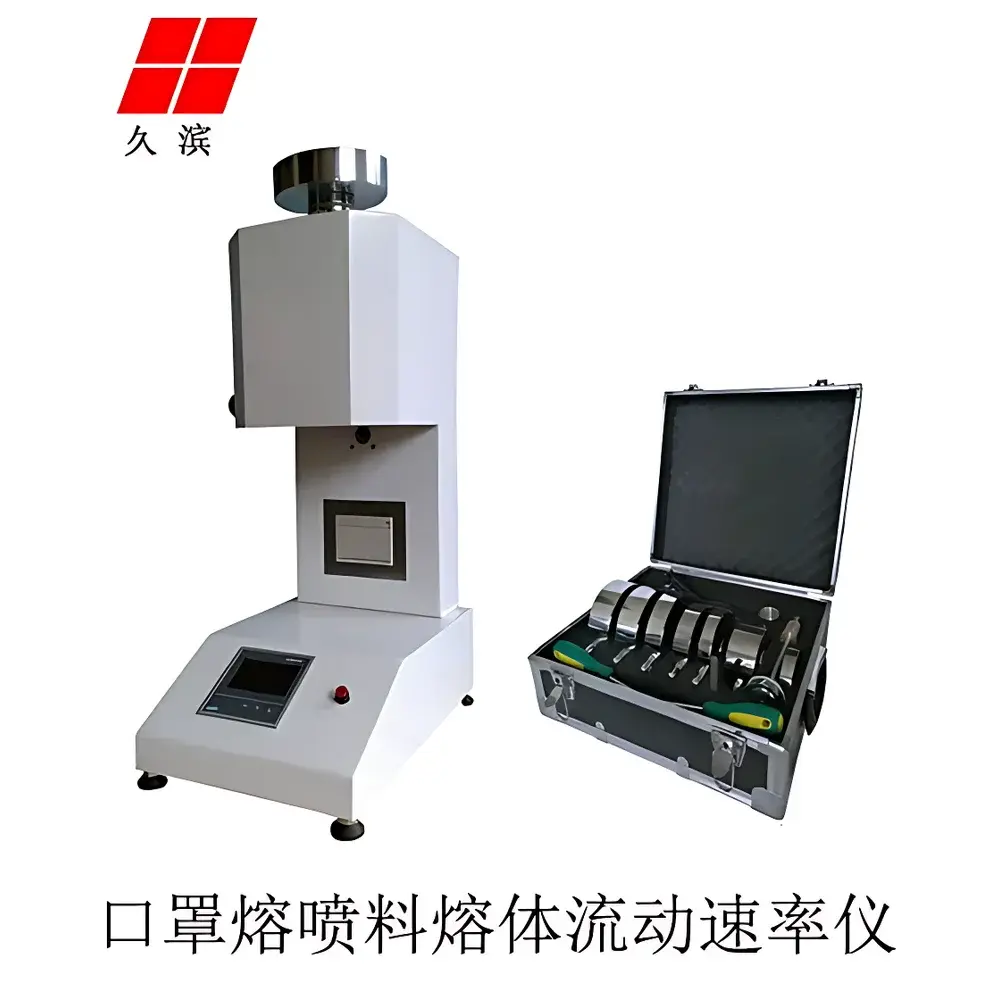

JB-400H Melt Flow Rate Tester for High-MFR Polypropylene Spunbond Materials

Overview

The JB-400H Melt Flow Rate Tester is an engineered solution for precise determination of melt mass-flow rate (MFR) and melt volume-flow rate (MVR) of thermoplastic polymers—specifically optimized for high-melt-flow-rate polypropylene (PP) used in spunbond nonwoven production. Operating on the principle of extrusion plastometry, the instrument applies a standardized load to molten polymer extruded through a defined die (2.095 mm diameter, 8.000 mm length) at controlled temperature, measuring either mass extruded over a fixed time interval (per ISO 1133–1 and ASTM D1238) or volumetric displacement via piston travel. Its thermal architecture delivers ±0.2 °C temperature stability across the full operating range (ambient to 400 °C), critical for reproducible characterization of low-viscosity, high-MFR PP grades where minor thermal drift directly impacts flow accuracy.

Key Features

• High-precision PID-controlled heating cylinder with dual-zone thermal profiling to minimize axial temperature gradients and ensure uniform melt conditioning.
• Dedicated calibration protocol for high-MFR materials (up to 1500 g/10 min), including reduced dwell times and accelerated purge cycles to prevent thermal degradation during repeated testing.
• Motorized piston drive option available for automated load application and synchronized extrudate cutting—reducing operator dependency and improving inter-laboratory reproducibility.
• Integrated digital encoder system with 0.01 mm resolution tracks real-time piston displacement, enabling MVR calculation and flow curve analysis (e.g., shear rate vs. apparent viscosity).
• Stainless-steel barrel and die assembly conforming to ISO 1133 Annex A specifications; corrosion-resistant surface finish suitable for halogenated and filled PP formulations.
• Modular weight set compliant with ISO 1133 Table 1: standard masses (0.325, 1.200, 2.160, 3.800, 5.000, 10.000, 21.600 kg) with traceable NIST-traceable calibration certificates.

Sample Compatibility & Compliance

The JB-400H accommodates granular, pelletized, and flaked thermoplastics—including homopolymer and copolymer PP, PE, PS, ABS, PC, and POM—with particular validation for spunbond-grade PP exhibiting MFR values from 30 to 1500 g/10 min (230 °C/2.16 kg). It supports multi-load testing sequences required for flow activation energy calculations (e.g., ASTM D3835) and complies with regulatory test method requirements for QC release in medical-grade and automotive-grade polymer supply chains. Instrument validation documentation aligns with GLP principles and supports audit readiness for ISO/IEC 17025-accredited laboratories. All mechanical and thermal performance verifications follow manufacturer-defined protocols traceable to national metrology institutes.

Software & Data Management

The optional JB-Link software suite provides full instrument control, real-time data visualization, and automated report generation in PDF and CSV formats. It enforces user-level access controls, electronic signatures, and full audit trail functionality compliant with FDA 21 CFR Part 11 for regulated environments. Raw data—including timestamped temperature logs, load application events, piston position traces, and cut timing—is stored with immutable metadata. Exported reports include test parameters, environmental conditions, calibration status, and uncertainty estimates per GUM (JCGM 100:2008) methodology. Data integrity safeguards include checksum verification and automatic backup to network drives or cloud repositories.

Applications

• Quality control of high-MFR PP resins supplied to nonwoven fabric manufacturers for medical masks, hygiene products, and filtration media.
• R&D screening of catalyst systems and molecular weight modifiers during PP polymerization development.
• Process validation for extrusion-grade PP used in thin-wall injection molding and fine-fiber spinning applications.
• Supplier qualification testing under IATF 16949 and VDA 6.3 frameworks for automotive interior components.
• Regulatory submission support for USP and EP 2.1.12 compliance in pharmaceutical packaging polymer assessments.
• Interlaboratory round-robin studies coordinated by national standards bodies (e.g., CNAS, NIM) for method harmonization.

FAQ

What temperature stability is achieved during extended MFR testing at 230 °C?
The JB-400H maintains ±0.2 °C deviation over 30-minute dwell periods, verified using calibrated Pt100 sensors and certified reference materials (e.g., NIST SRM 3451).
Can the instrument measure MFR for PP grades exceeding 1000 g/10 min without material degradation?
Yes—optimized preheat cycles, shortened barrel residence time, and nitrogen purge compatibility minimize thermal history effects; validated per ISO 1133–2 Annex C for ultra-high-MFR materials.
Is the die geometry certified to ISO 1133 Annex A dimensional tolerances?
Each die is supplied with individual dimensional certification (diameter: 2.095 ±0.005 mm; land length: 8.000 ±0.025 mm), measured using coordinate measuring machine (CMM) traceable to SI units.
How does the system handle calibration verification between accredited calibrations?
Built-in verification mode allows daily checks using certified reference polymer (e.g., PMMA RM-127) with pass/fail criteria based on ±5% tolerance against certified MFR value.
Does the software support LIMS integration?
Yes—JB-Link offers configurable HL7 and ASTM E1384-compliant interfaces for bidirectional data exchange with major LIMS platforms including LabWare, Thermo Fisher SampleManager, and Siemens Opcenter Quality.
