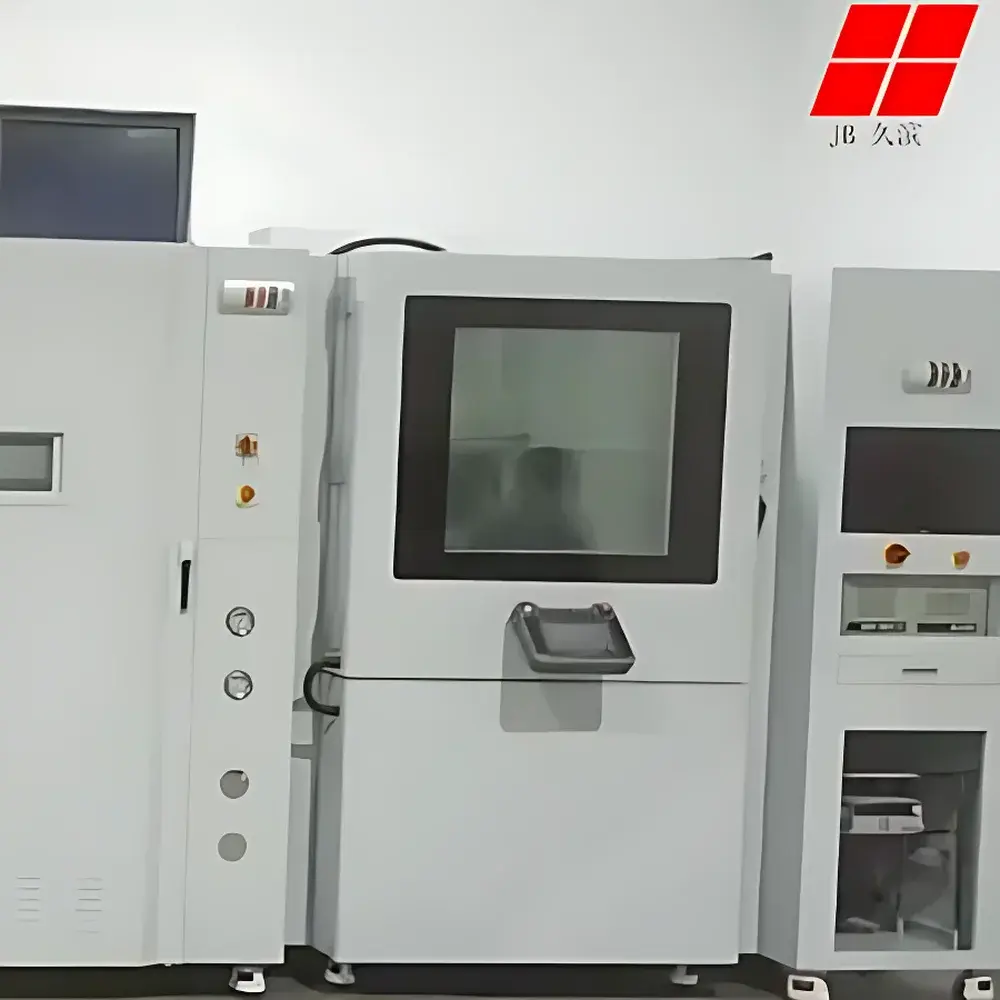

JB-JM8 Hydraulic Pressure Test System

Overview

The JB-JM8 Hydraulic Pressure Test System is an engineered benchtop and industrial-scale static pressure and burst pressure testing platform designed for rigorous qualification of pressure-bearing components under controlled, repeatable conditions. It operates on a pneumatic-hydraulic intensifier principle—using clean, dry compressed air (3–8 bar) to drive a high-ratio intensifier that generates precise hydraulic output pressures up to 400 MPa. Unlike conventional electric pump-based systems, this architecture delivers inherently stable, pulse-free pressure ramps with minimal thermal drift, making it suitable for long-duration hold tests, creep evaluation, and deterministic burst analysis per ASTM D1598, ISO 11439, SAE J1884, and EN 13480-5. The system is built for integration into QA/QC labs, R&D facilities, and production line final-test stations where traceability, repeatability, and regulatory compliance are mandatory.

Key Features

• Modular non-welded fluid path architecture using high-pressure stainless steel tubing and metal-seal fittings—ensures leak-tight integrity at full scale while enabling rapid reconfiguration for different test specimens.
• Independent separation of drive air circuit and test fluid circuit—eliminates cross-contamination risk and allows independent thermal management of the test medium (ambient to 150 °C ±3 °C).
• Multi-mode control interface supporting manual override, programmable logic controller (PLC) integration via standard digital I/O and Modbus RTU, and fully featured PC-based operation with real-time data acquisition.
• Automated burst detection logic: integrated pressure decay monitoring triggers immediate depressurization and pump shutdown within <100 ms of rupture onset—preserving specimen integrity for forensic post-test analysis.
• Programmable multi-stage pressure profiles: users define arbitrary sequences of fill, purge, hold, ramp, and burst phases—including variable ramp rates (infinitely adjustable), segmented dwell times (0–999 h), and conditional transitions based on pressure stability thresholds.
• Comprehensive safety subsystems including redundant pressure transducers, mechanical relief valves set at 110% of max rated pressure, emergency stop circuitry compliant with ISO 13850, and automatic interlock verification prior to pressurization.

Sample Compatibility & Compliance

The JB-JM8 accommodates a broad spectrum of pressure-rated components across aerospace, automotive, energy, and industrial hydraulics sectors. Validated test configurations include metallic and reinforced elastomeric hoses (SAE 100R1–R17, EN 853, ISO 6803), tube assemblies (stainless steel, copper-nickel, titanium), heat exchangers and condensers, hydraulic manifolds and valve blocks, pressure transducers and gauges (per EN 837-1), ASME Section VIII Div. 1 & 2 vessels, and subsea connector systems. All firmware and software modules support audit-trail generation, electronic signatures, and user-level access control aligned with FDA 21 CFR Part 11 requirements. Calibration documentation adheres to ISO/IEC 17025 principles, and pressure transducers are traceable to NIST or equivalent national metrology institutes.

Software & Data Management

The optional JB-TestSuite™ software provides a validated Windows-based environment for test method definition, execution, and reporting. It supports GLP/GMP-compliant workflows with role-based permissions (Operator, Supervisor, Administrator), full electronic signature capture, and immutable data logging—including raw sensor timestamps, interpolated pressure curves, temperature correlation traces, and event-marked annotations (e.g., “hold initiated”, “burst detected”). Export formats include CSV, PDF (with embedded digital signatures), and XML for LIMS integration. Historical data is stored in encrypted SQLite databases with configurable auto-backup to network shares or cloud storage endpoints. Software validation packages (IQ/OQ/PQ protocols) are available upon request.

Applications

• Proof testing and acceptance verification of newly manufactured pressure vessels and piping components per ASME B31.4/B31.8 and API RP 1111.
• Burst pressure mapping for design validation of composite overwrapped pressure vessels (COPVs) and flexible fuel lines.
• Creep and stress rupture evaluation of polymer-lined tubes under sustained load at elevated temperatures.
• Leak-before-break (LBB) analysis for nuclear-grade instrumentation tubing per IEEE 383.
• Calibration and functional verification of high-pressure sensors and transmitters before field deployment.
• Accelerated life cycle testing of hydraulic quick-connect couplings and swivel joints under cyclic pressure loading.

FAQ

What pressure media are supported beyond water and hydraulic oil?
Custom-compatible fluids—including glycol-water mixtures, dielectric oils, and low-volatility synthetic esters—can be accommodated with prior compatibility verification and optional wetted-material upgrades (e.g., Hastelloy C-276 seals).
Is the system compliant with European Machinery Directive 2006/42/EC?
Yes—the JB-JM8 carries CE marking under Annex IV, with full technical documentation, risk assessment per EN ISO 12100, and conformity declaration issued by a Notified Body.
Can test data be exported directly to LabVIEW or MATLAB?
Yes—via TCP/IP socket interface or OPC UA server add-on module, enabling real-time streaming of synchronized pressure, temperature, and status signals for external analysis environments.
What is the recommended calibration interval for pressure transducers?
Annual calibration is advised under normal use; however, intervals may be extended to 24 months with documented intermediate verification using a certified deadweight tester per ISO 4064-2.
Does the system support remote diagnostics and firmware updates?
Field-upgradable firmware is delivered via secure HTTPS portal; remote diagnostic access requires pre-configured VPN tunneling and is subject to customer IT security policy approval.
