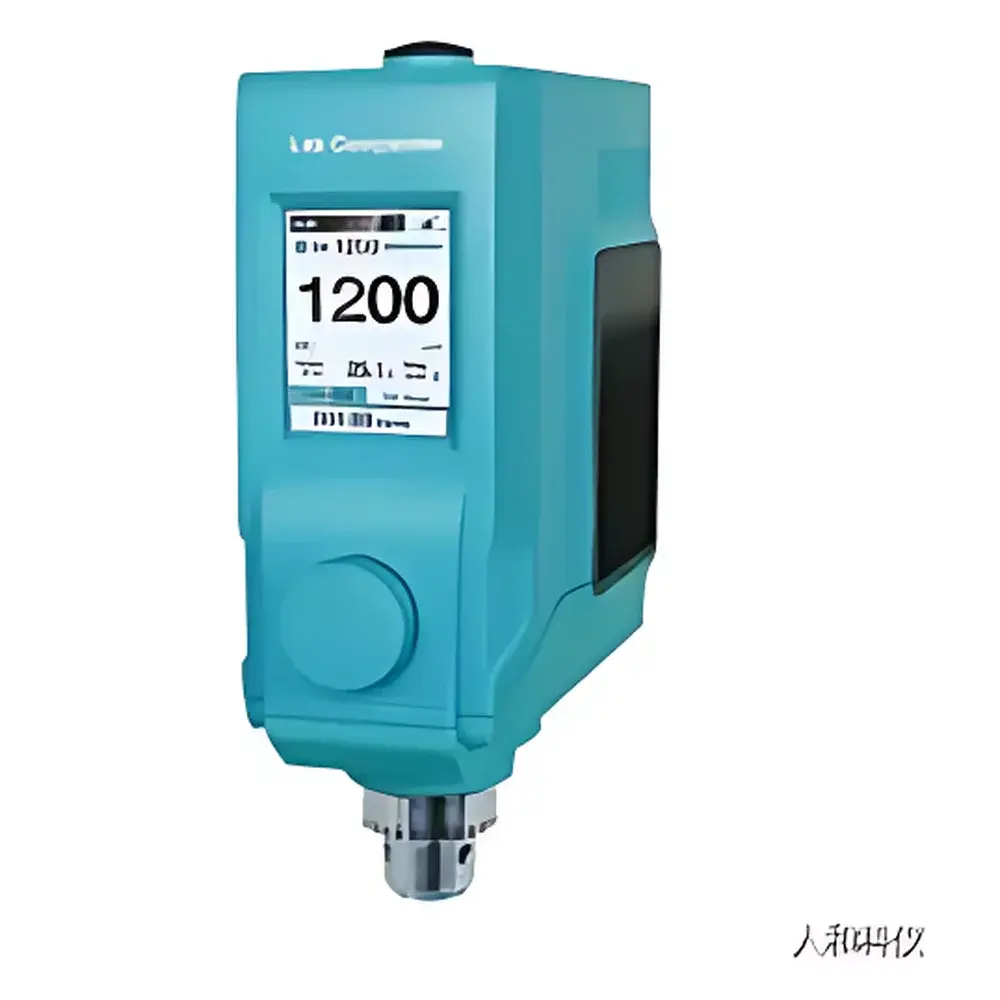

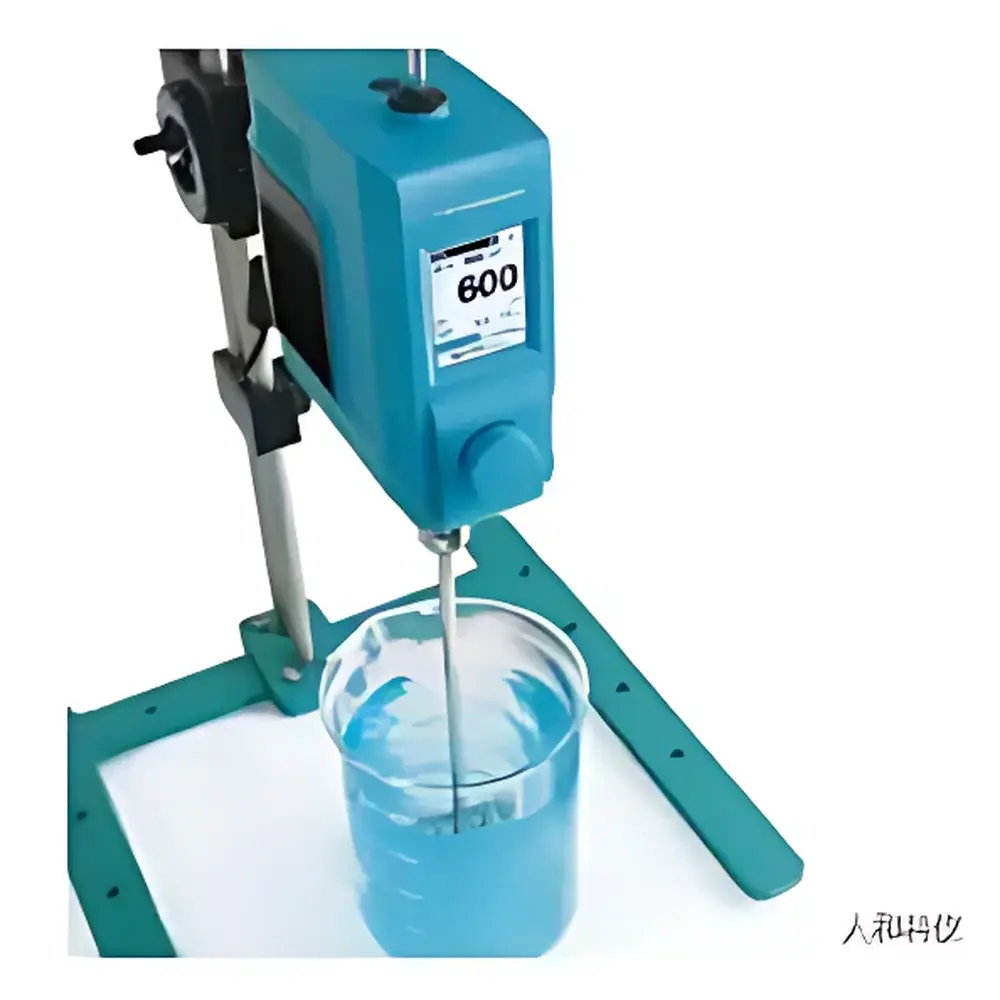

JEIO TECH MSH-0512 Overhead Stirrer

Overview

The JEIO TECH MSH-0512 Overhead Stirrer is an industrial-grade, brushless DC motor-driven laboratory stirrer engineered for high-reliability mixing and dispersion tasks in demanding R&D, QC, and pilot-scale production environments. Designed according to DIN EN 60529 IP30 ingress protection standards, it employs Couette flow principles to deliver consistent shear input across viscous and heterogeneous media—enabling reproducible homogenization, suspension stabilization, and dissolution kinetics studies. Its compact footprint (80 × 185 × 235 mm) and modular mounting architecture support seamless integration into fume hoods, biosafety cabinets, and automated reactor platforms without compromising ergonomic access or thermal management. The unit operates within a controlled ambient range of 5–40 °C and ≤80% RH, making it suitable for temperature-sensitive formulations in pharmaceutical, food, and cosmetic manufacturing.

Key Features

• Brushless DC motor delivering 48 W output power and peak torque of 41.6 N·cm—ensuring stable rotational performance under variable load conditions up to 100 L volume.
• PID-regulated speed control with real-time feedback: precise setpoint tracking across 80–1200 rpm range; displayed as both target and actual RPM on the integrated color LCD touchscreen.
• Intelligent thermal management system: aluminum powder-coated housing acts as passive heat sink; internal mini-fan activates dynamically based on motor temperature—monitored and color-coded (green/yellow/red) on-screen.
• Full operational visibility: simultaneous display of speed setpoint/current value, elapsed runtime, timer countdown (up to 99 h 59 min), real-time torque load, and motor temperature status.
• USB interface compliant with standard CDC/ACM protocols for bidirectional communication—supports external PC-based control, automated script execution, and time-stamped data logging (RPM, torque, temperature, runtime).

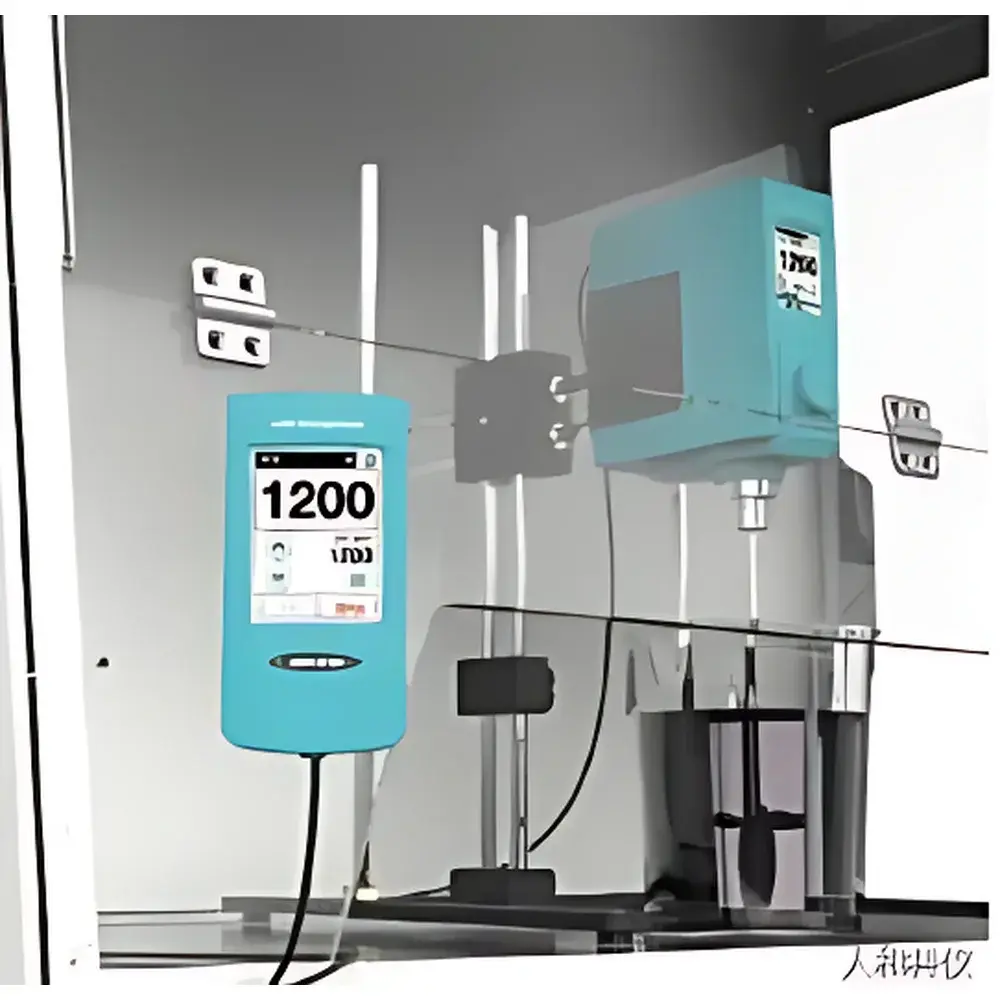

• Optional external color LCD controller enables glove-compatible operation inside containment enclosures—eliminating the need to open sash windows during hazardous material handling.
• Three-point safety architecture: (1) isolated AC/DC power adapter minimizes electric shock risk; (2) automatic shutdown upon sustained overload or critical overheating; (3) password-protected screen lock prevents unauthorized parameter modification.

Sample Compatibility & Compliance

The MSH-0512 accommodates standard ISO 8573-compliant impellers—including three-blade helical propellers (e.g., Ø50 mm) and anchor/paddle configurations—via its 3–10 mm keyless chuck. It maintains mechanical stability during continuous operation with Newtonian and moderately non-Newtonian fluids (e.g., glycerol/water mixtures, polymer solutions, suspensions). Validation documentation supports alignment with GLP and GMP workflows, including audit-ready event logs (start/stop/torque excursions/temperature alerts) traceable via USB export. While not certified for ATEX or IECEx hazardous area use, its IP30-rated enclosure meets general-purpose laboratory environmental requirements per IEC 61000-6-3 (EMC) and IEC 61000-6-2 (immunity).

Software & Data Management

No proprietary software installation is required. The USB interface exposes a virtual COM port compatible with Python (pySerial), LabVIEW VISA drivers, MATLAB Serial Port Toolbox, and common SCADA/HMI systems. Logged datasets are exported as UTF-8 CSV files containing timestamped columns: “UTC_Time”, “RPM_Setpoint”, “RPM_Actual”, “Torque_mN·m”, “Motor_Temp_C”, “Runtime_min”, and “Event_Flag”. All timestamps adhere to ISO 8601 format with millisecond precision. For regulated environments, the system supports 21 CFR Part 11-compliant electronic signatures when paired with validated third-party LIMS or ELN platforms—provided audit trails, user authentication, and data integrity checks are implemented at the host application layer.

Applications

This overhead stirrer serves critical unit operations across multiple regulated sectors: emulsion formation and viscosity profiling in cosmetic formulation labs; dissolution testing of extended-release tablets per USP ; slurry homogenization in battery cathode material synthesis; flocculant dispersion in municipal water treatment validation studies; enzymatic reaction mixing under controlled thermal conditions; and sterile media preparation in bioprocessing cleanrooms. Its torque responsiveness and low-speed stability (±1 rpm repeatability at 80 rpm) make it especially suitable for shear-sensitive biological suspensions and nanoparticle dispersion where agglomeration must be minimized.

FAQ

What impeller types are compatible with the MSH-0512?
Standard ISO 8573-compliant shafts with diameters between 3 mm and 10 mm, including marine propellers, turbine blades, and anchor impellers—secured via the integrated keyless chuck.
Is the device suitable for use inside a Class II biosafety cabinet?
Yes—when used with the optional external color LCD controller, all operational functions can be executed without breaking cabinet integrity.
Does the unit support analog voltage or 4–20 mA process control inputs?
No—control is exclusively digital via USB CDC/ACM protocol; analog integration requires external signal conditioning hardware.
Can torque data be exported in real time during operation?
Yes—continuous streaming at configurable intervals (default: 1 Hz) is supported through serial command scripting; raw values are transmitted as ASCII-encoded comma-separated fields.
What maintenance is required for long-term reliability?
Annual visual inspection of chuck jaws and motor cooling fan clearance; no lubrication or brush replacement needed due to brushless DC motor design.
