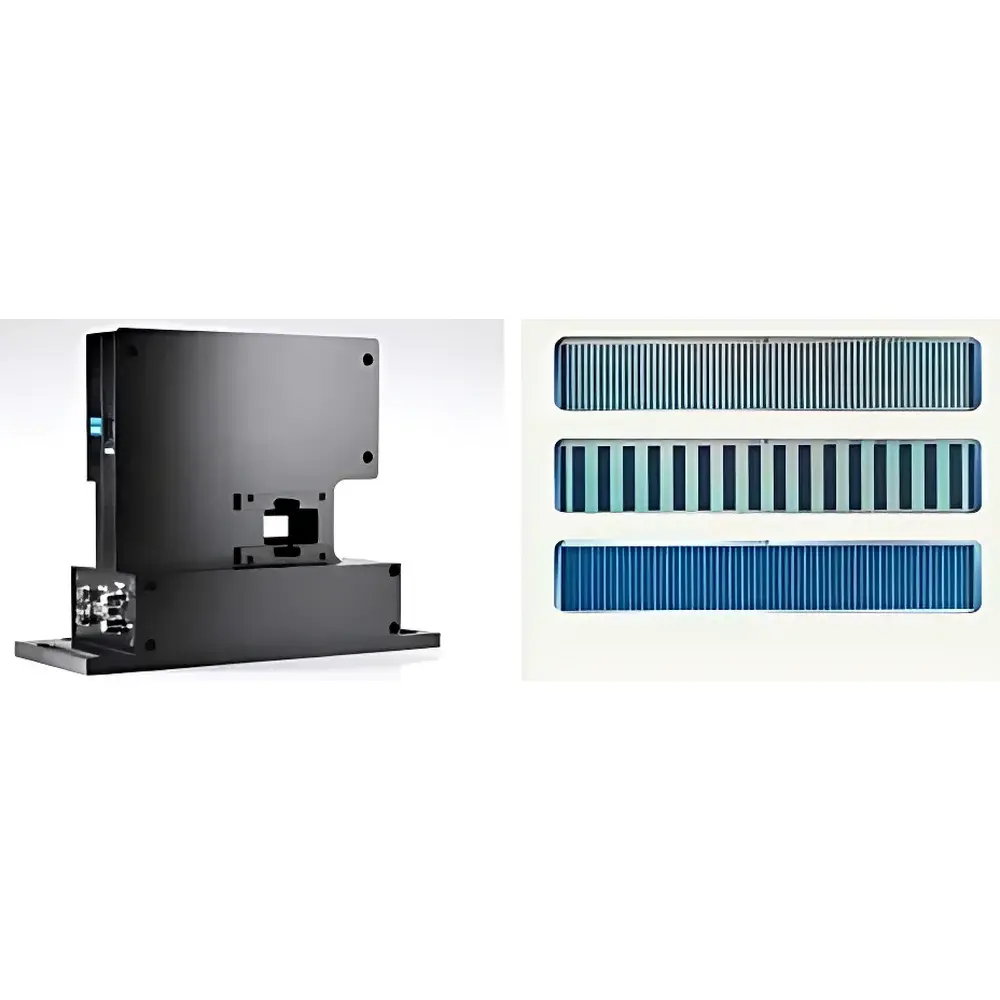

Jenoptik SLM-S320(d)/640(d) Liquid Crystal Spatial Light Modulator
| Brand | Jenoptik |
|---|---|
| Origin | Germany |
| Model | SLM-S320(d)/640(d) |
| Technology | Nematic Liquid Crystal-Based Phase Modulator |
| Wavelength Range | 430–1600 nm |
| Configuration Options | Single-Layer (phase OR amplitude/polarization modulation) / Dual-Layer (simultaneous phase & amplitude modulation) |
| Active Area | Large-aperture design for high-power laser compatibility |
| Control Interfaces | LabVIEW VIs, MATLAB Toolbox, C/C++ API |
| Mounting Options | Reflective mode with optional backside mirror |
| AR Coating | Customizable broadband anti-reflection coating |
Overview
The Jenoptik SLM-S320(d)/640(d) is a high-fidelity liquid crystal spatial light modulator engineered for precise, pixel-resolved control of optical wavefronts in ultrafast and high-irradiance laser systems. Based on nematic liquid crystal technology, it operates as a programmable phase-only or hybrid phase-amplitude modulator across a broad spectral range—from visible (430 nm) to near-infrared (1600 nm). Its architecture leverages the electro-optic birefringence effect in aligned liquid crystal layers, enabling dynamic, analog phase retardation up to 2π per pixel with sub-millisecond response times. Designed specifically for demanding applications such as pulse shaping in chirped pulse amplification (CPA), adaptive optics correction, holographic beam steering, and 4f spectral filtering, the device features a large active aperture—critical for maintaining beam integrity and avoiding thermal damage under multi-watt continuous-wave or high-peak-power pulsed illumination.
Key Features
- Two configuration variants: SLM-S320(d) (320 × 320 pixels) and SLM-S640(d) (640 × 640 pixels), both supporting 8-bit or 12-bit grayscale input for fine-grained phase depth resolution
- Dual-layer mask option enables independent, co-registered control of phase and amplitude—essential for complex field synthesis and loss-compensated pulse shaping
- Reflective operation mode with user-selectable high-damage-threshold mirror substrate; optional custom AR coatings optimized for specific wavelength bands (e.g., Ti:sapphire at 800 nm or Yb:fiber at 1030 nm)
- Fully software-controllable via native drivers for LabVIEW, MATLAB, and C/C++; includes low-latency USB 3.0 and HDMI interfaces for real-time pattern streaming
- Integrated analog trigger input and TTL synchronization ports support closed-loop adaptive optimization (e.g., pulse compression feedback using d-scan or MIIPS)
- Thermally stabilized housing minimizes drift during extended operation; compatible with standard kinematic mounts and vacuum-compatible enclosures upon request
Sample Compatibility & Compliance
The SLM-S320(d)/640(d) is designed for integration into Class 3B and Class 4 laser laboratories compliant with IEC 60825-1 and ANSI Z136.1 safety standards. Its liquid crystal cell is qualified for use with femtosecond Ti:sapphire, picosecond Nd:YAG, and CW fiber lasers operating within its specified wavelength and power density limits. While not certified to ISO 9001 or FDA 21 CFR Part 11 as a standalone medical or analytical device, the modulator meets RoHS and REACH directives for hazardous substance restriction. Documentation includes full optical specifications, damage threshold test reports (LIDT ≥ 0.5 J/cm² @ 1030 nm, 350 fs, 1 kHz), and mechanical drawings conforming to DIN ISO 2768-mK tolerances.
Software & Data Management
Jenoptik provides a comprehensive SDK including compiled libraries, header files, and example scripts for rapid integration into custom experimental control environments. The included WaveFront Manager application supports real-time phase map generation (Zernike, Gaussian, vortex, kinoform), Fourier plane masking, and iterative algorithms (Gerchberg-Saxton, direct search). All parameter settings, calibration profiles, and pattern history are stored in human-readable XML metadata files—enabling full traceability and reproducibility required under GLP and academic publication guidelines. No proprietary runtime or license server is required; deployment is portable across Windows and Linux platforms.
Applications
- Pulse shaping in ultrafast laser systems: dispersion compensation, pulse compression, and coherent control experiments
- Adaptive optics: dynamic aberration correction in microscopy, astronomy, and ophthalmic imaging
- Holography and optical trapping: generation of multiple optical tweezers, Bessel beams, and structured illumination patterns
- Quantum optics: spatial mode sorting (e.g., OAM multiplexing), entanglement engineering, and single-photon wavefront control
- Spectral filtering and 4f pulse characterization: integration with zero-dispersion compressors and frequency-resolved optical gating (FROG) setups
- Industrial laser processing: beam homogenization, multi-focus drilling, and selective surface structuring
FAQ
What is the maximum refresh rate for full-frame phase updates?
Typical frame rates range from 60 Hz (full 640×640 resolution) to >200 Hz (reduced ROI or binary patterns), depending on interface bandwidth and host system latency.
Can this SLM be used in transmission mode?
No—the SLM-S320(d)/640(d) is designed exclusively for reflective operation; transmission-mode variants are not offered in this product line.
Is factory calibration provided for phase nonlinearity?
Yes—each unit ships with a measured pixel-wise phase response curve (LUT file) and corresponding linearization coefficients for accurate 0–2π phase mapping.
Does the device support polarization diversity configurations?
When operated with properly oriented input polarization and quarter-wave plates, the SLM enables polarization-encoded modulation schemes—details are provided in the technical manual’s polarization management section.
Are OEM integration services available?
Jenoptik offers mechanical, electrical, and firmware customization—including custom driver development, sealed enclosure options, and alignment fiducial integration—for volume OEM deployments.
